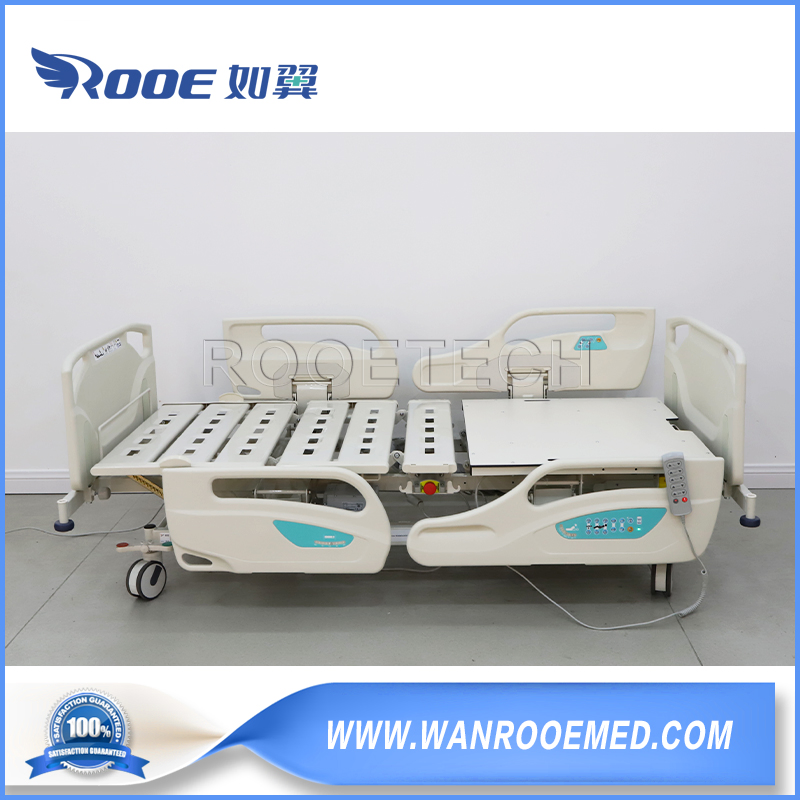

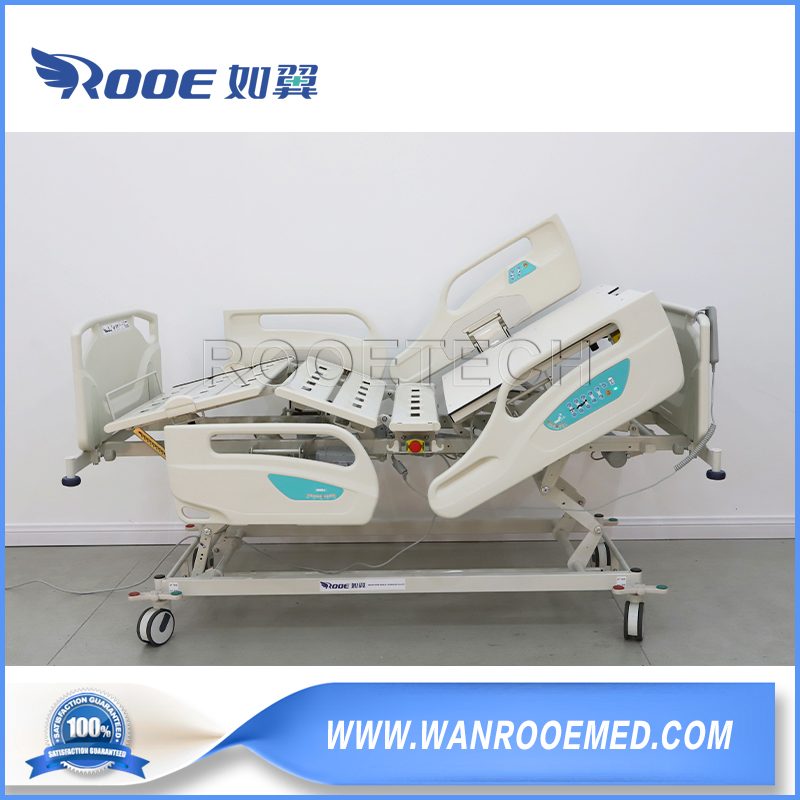

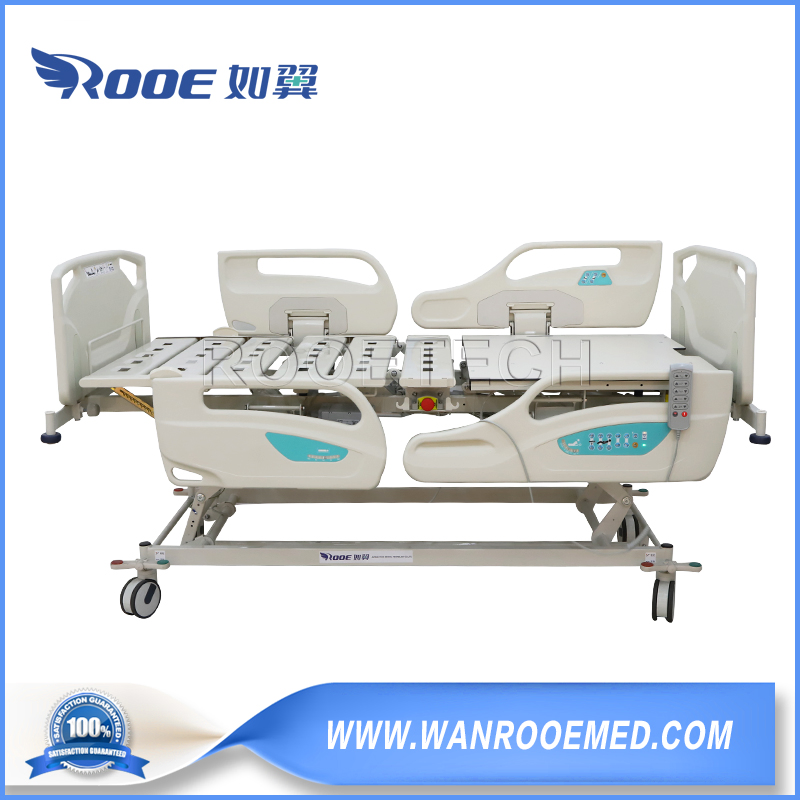

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

1 / 5

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Customization:	Available
Material:	Metal
Type:	Electric Bed

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

BAE503

Using Ambient

Hospital / ICU

Function

Five-function / Multifunction

Certification

CE, FDA, ISO13485

Bed Base Height

420-790mm

Power

220VAC or 110VAC

Material

Cold-Rolled Steel / ABS Plastic

Capacity

250kg

📝 Product Description

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

1. Durable Frame

Made from premium cold-rolled steel, molded in one piece for enhanced strength. Multiple ventilation holes ensure excellent airflow.

2. Protective Side Rails

Equipped with angle display devices. Features external control panels for staff and internal panels for patients, with a safety lock mechanism to prevent accidental opening.

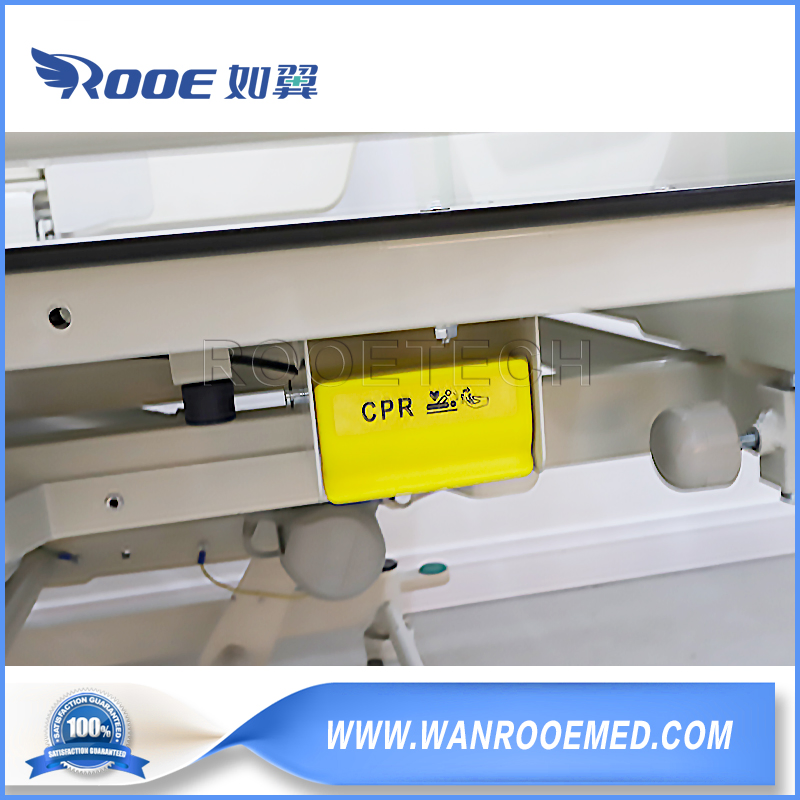

3. Emergency CPR

Dual-sided manual CPR function allows the bed to be flattened quickly during power failures. Electric CPR buttons are also available on the control panel.

Advanced Features:

Removable Boards: Head and foot boards can be quickly detached for treatment access.
Silent Casters: 125mm dual-direction casters with locked, free, and directional modes.
Night Light: LED indicator on side rails assists staff during nighttime rounds.
Backup Battery: Integrated system for handling emergencies efficiently.
Restraint Devices: Three high-strength devices on both sides for added security.

📊 Product Parameters

Technical Specifications
Model	BAE503
Dimensions	2140mm (L) * 1050mm (W)
Height Range	420mm to 790mm
Backrest Max Angle	0-70°
Knee Adjustable Angle	0-25°
Footrest Adjustable Angle	0-22°
Tilt Angle (Trendelenburg)	-12° ~ 12°
Loading Capacity	250kg
Power Supply	220VAC/110VAC, 50-60HZ
Casters	Φ125mm central control or 6" caster

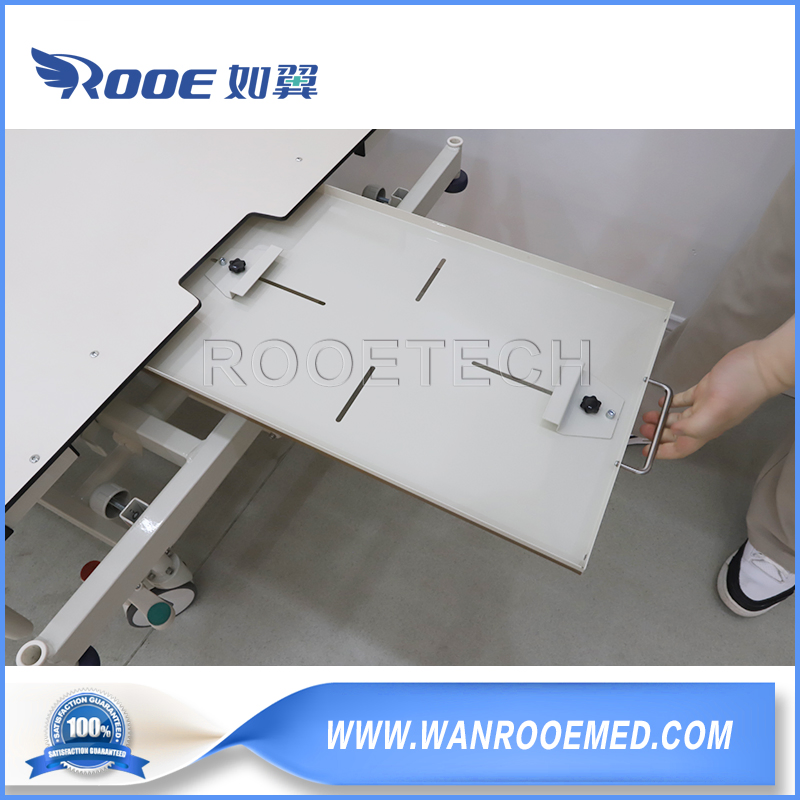

Options	Extended Frame, Mattress, IV Pole, Weighing system, X-ray board

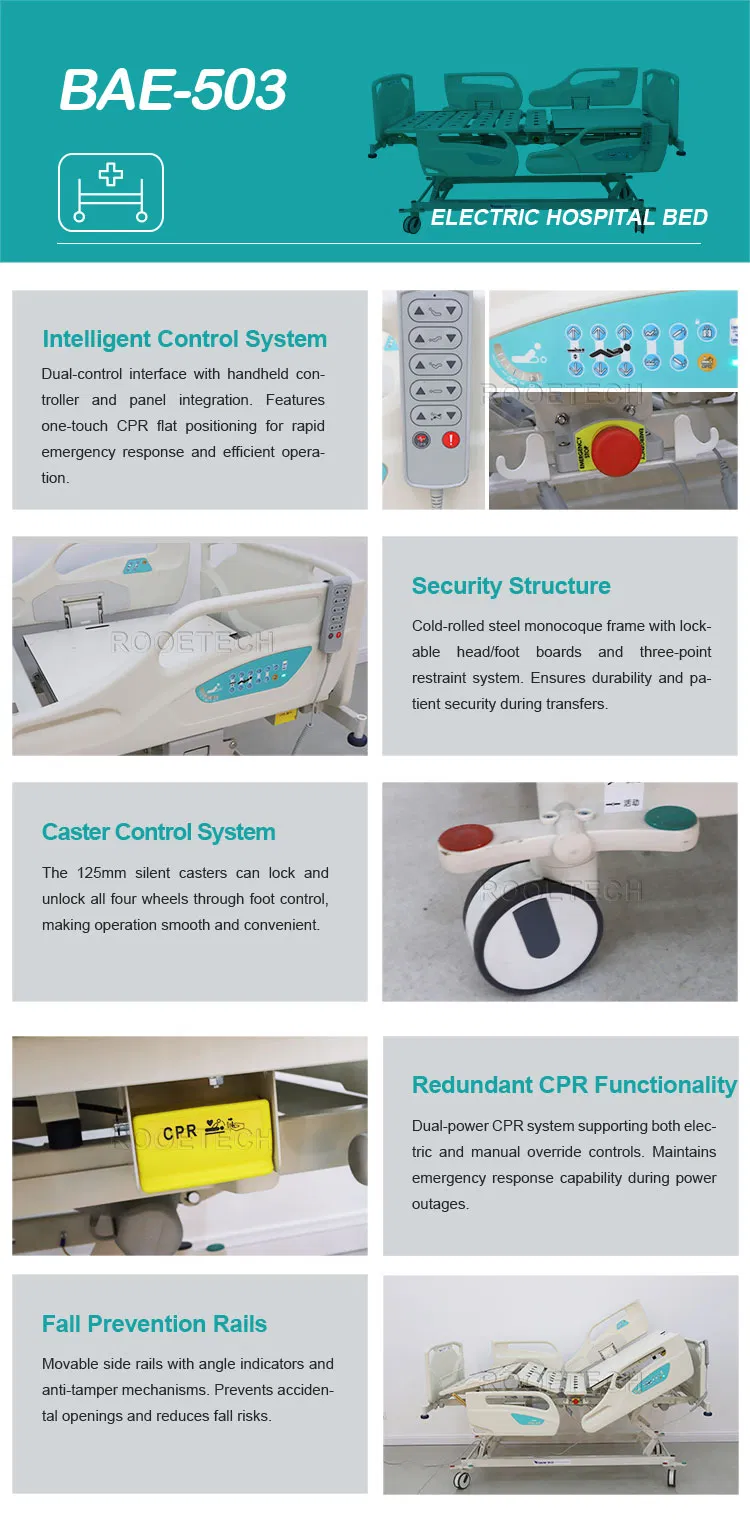

📷 Detailed Photos

❓ Frequently Asked Questions

Q1: What are the primary functions of the BAE503 electric bed?

A1: It is a five-function bed providing electrical adjustments for the backrest (0-70°), knee section (0-25°), footrest, height (420-790mm), and Trendelenburg/Reverse Trendelenburg tilting (-12° to 12°).

Q2: How does the CPR function work in emergencies?

A2: The bed features a dual-sided manual CPR lever that flattens the backrest instantly without power. It also includes an electric CPR button on the control panels for standard operation.

Q3: What is the maximum weight capacity of this medical bed?

A3: The bed is designed with a high-strength cold-rolled steel frame, supporting a safe loading capacity of up to 250kg.

Q4: Are the side rails safe for patient use?

A4: Yes, the side rails move in sync with the bed sections to prevent falls. They feature internal controls for the patient and external locks that can only be released by medical staff from the outside.

Q5: Does the bed continue to operate during a power outage?

A5: Yes, the bed is equipped with an integrated backup battery system to ensure all electric functions remain operational during emergencies or power failures.

Q6: What type of casters are used for mobility?

A6: It uses 125mm silent medical dual-direction casters with a central control system, allowing for locked, free, or straight-line directional movement.

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Product Description

1. Durable Frame

2. Protective Side Rails

3. Emergency CPR

Related Products

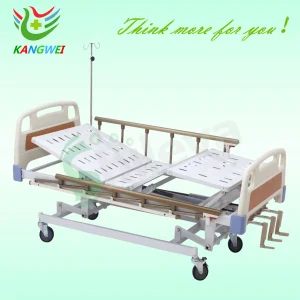

Hospital ABS Three-Function Electric Medical Bed Nursing Bed

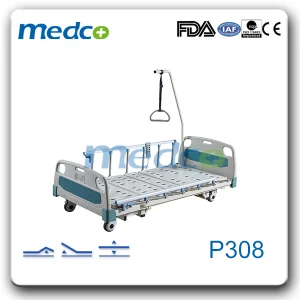

Steel and ABS One Two Three Five Functions Back Lifting Hospital Medical Furniture Equipment Electric Bed

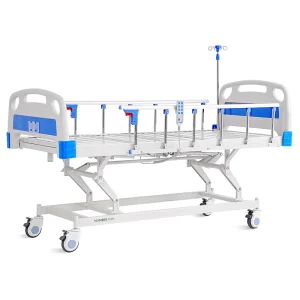

Nwd603 Number Win Wholesale Stainless Steel 3 Function Electric Medical Hospital Bed

Huaren Medical Care Equipment Manufacturing Hospital Bed Semi Electric China Hr-D08 Three Function Hydraulic Lifting Medical Bed

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Standard Smart Patient Healthcare 5 Functions Medical Home Nursing Electric Hospital Bed

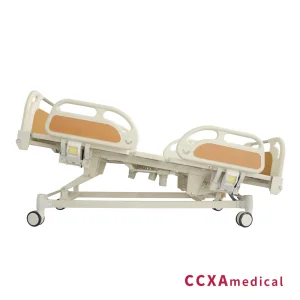

Best-Selling Electric 5 Functions Hospital Medical Furniture Factory Direct ISO13485 CE Certified for Elderly Clinic Use Patient Nursing Bed

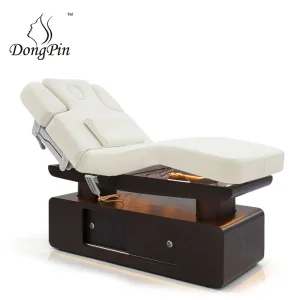

Thermal Full Electric Medical SPA Treatment Massage Table Facial Beauty Bed 4 Motors
