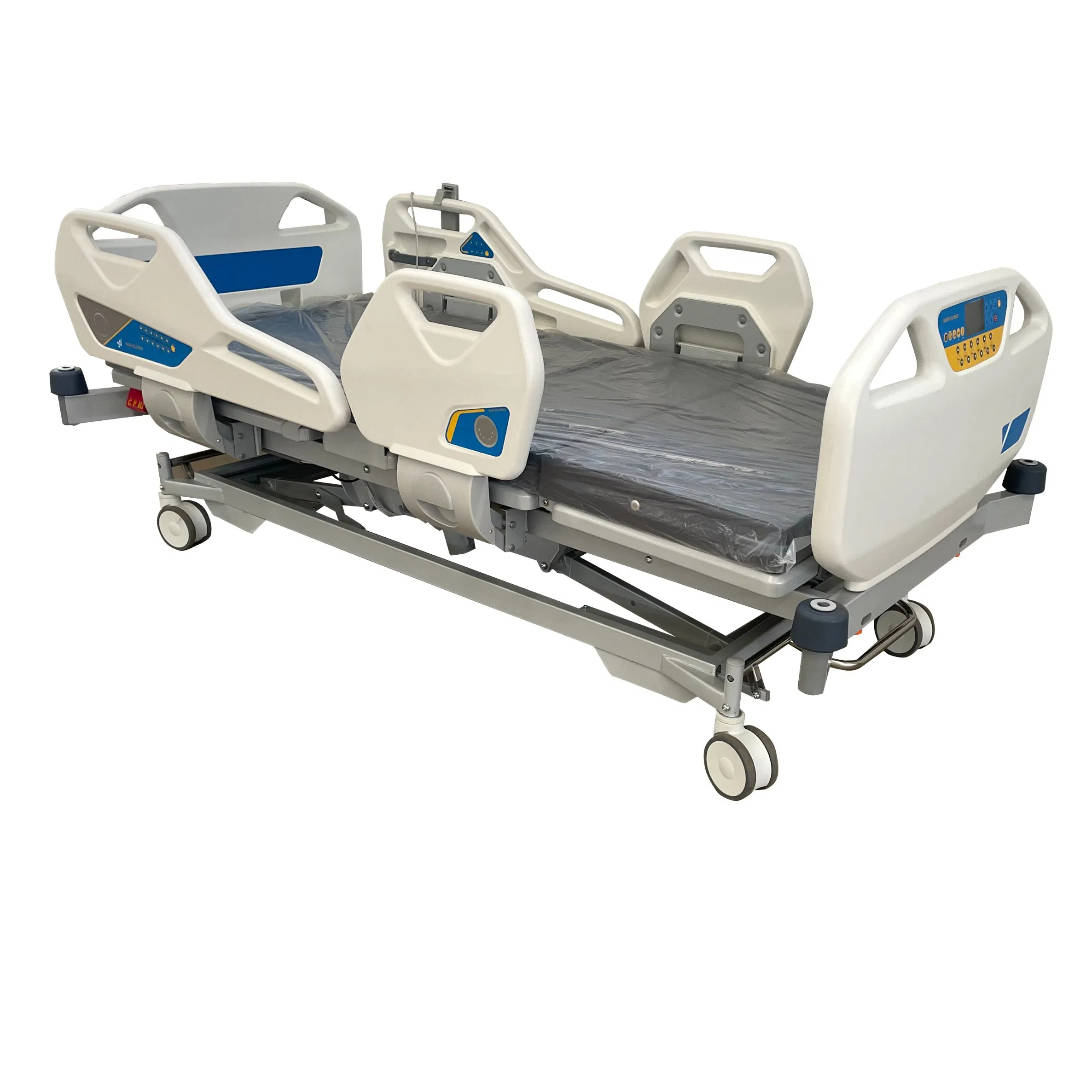

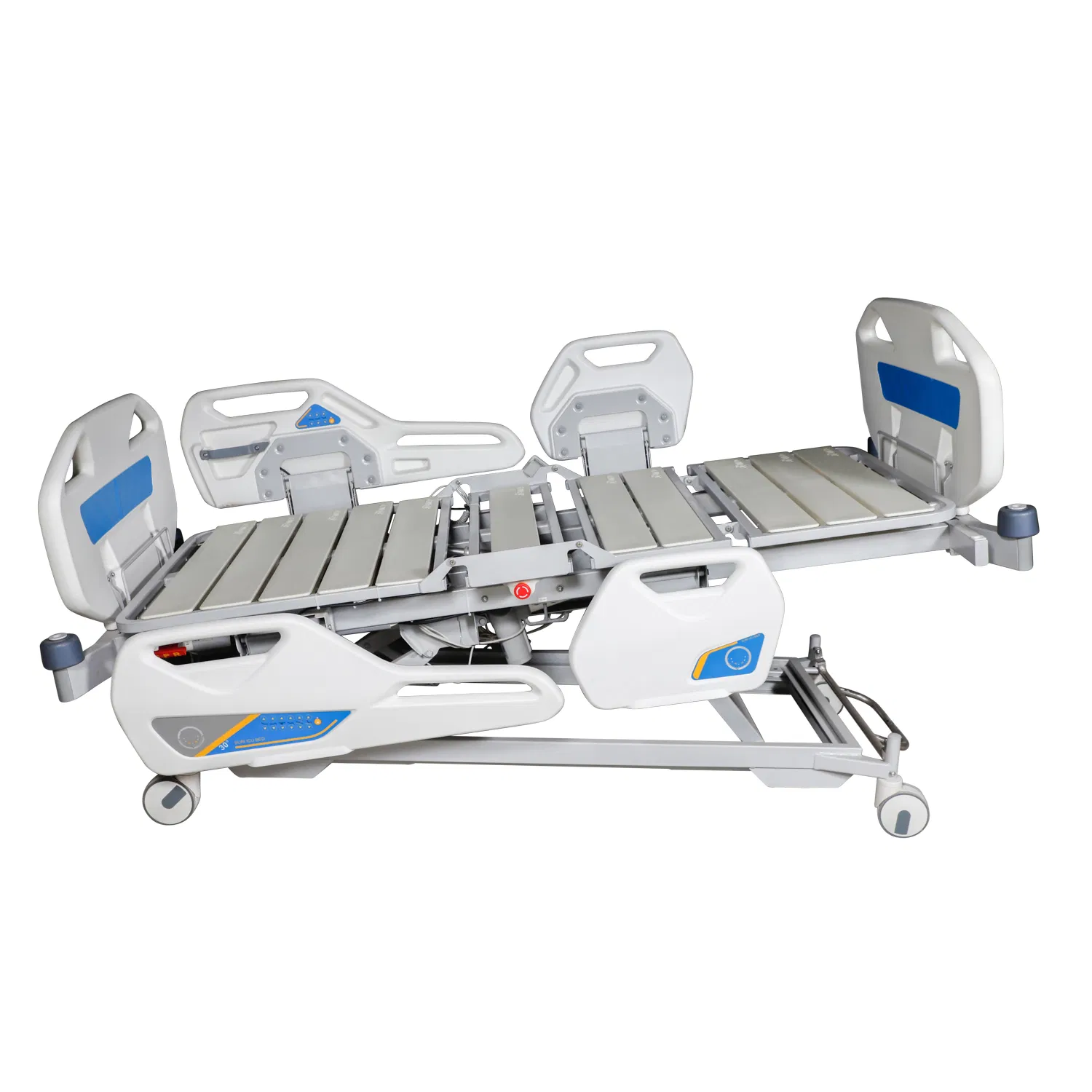

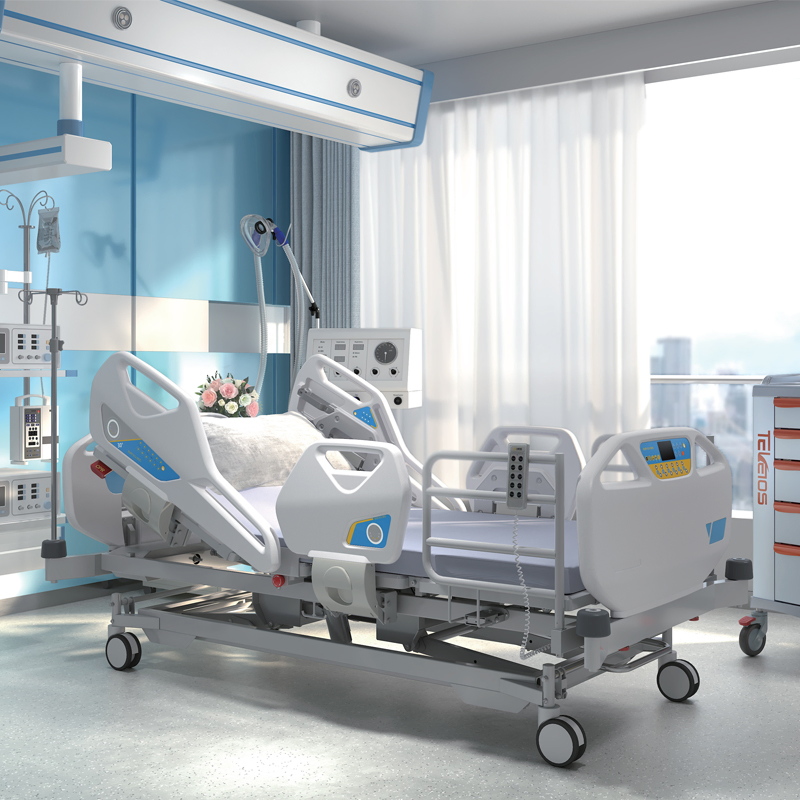

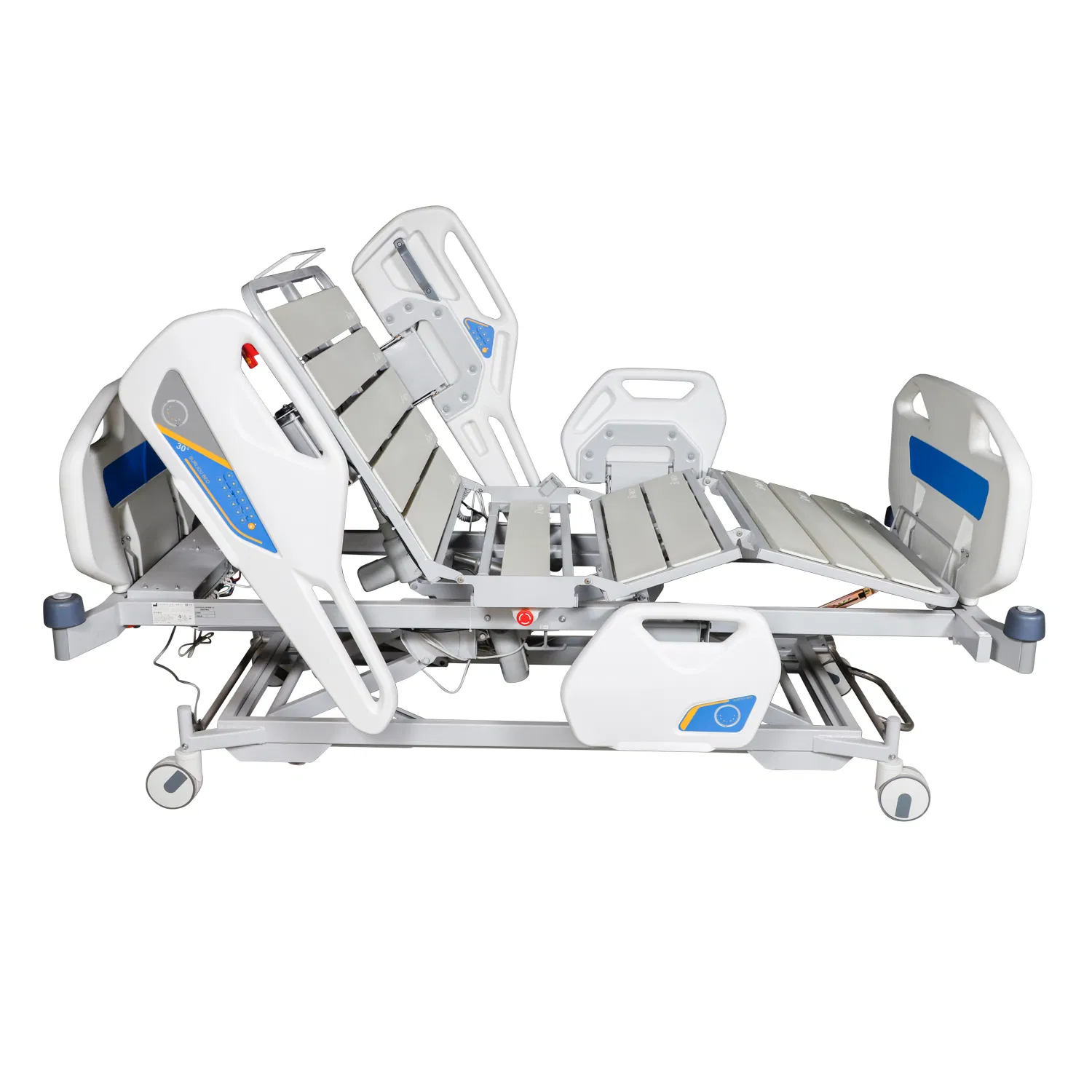

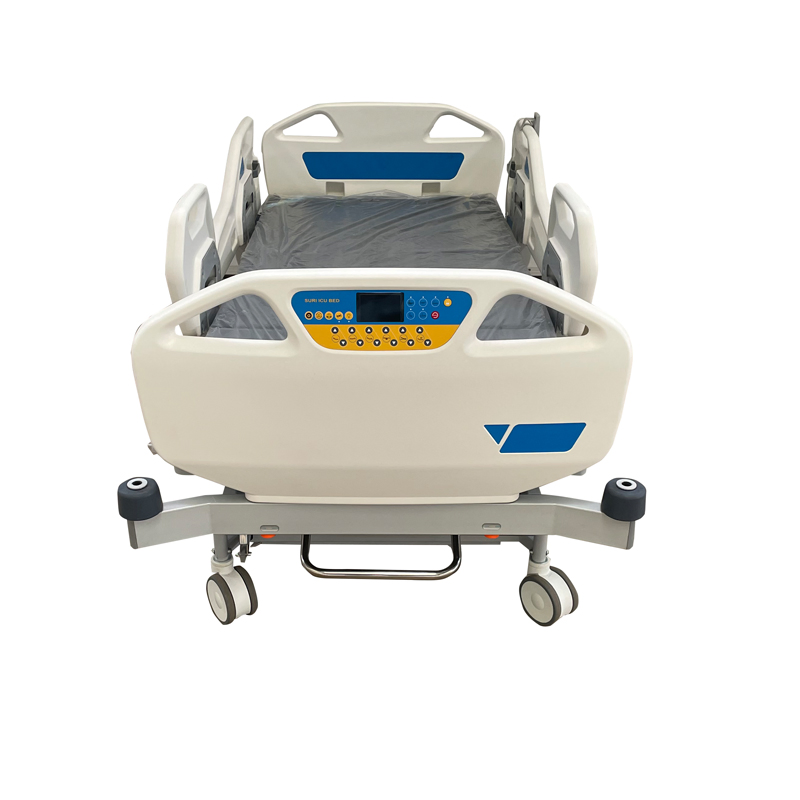

Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
1 / 5
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale
Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale

Patient Intensive Care Medical Clinic Va Patient Hospital ICU Electric Bed with Weighing Scale

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
JDCJH381A
Application
Hospital ICU / Intensive Care
Functions
Five-function Electric
Certification
CE, FDA, ISO13485, ISO9001
Dimension
L2260*W1087*H460-800mm
Distinctive Features
Weighing Scale, Cardiac Position
Brake System
Central Brake
Loading Capacity
0-180 kg
Product Material & Construction
  • 🔹Bed platform, structure and leg are made of premium cold-rolled steel with electrostatic powder coating.
  • 🔹The Bed platform consists of four foldable sections with carbon steel folding plate frame.
  • 🔹Detachable HDPE bed headboard and footboard; four corner bumpers for protection.
  • 🔹Four-section HDPE side rails operated by gas spring for smooth movement.
Standard Intelligence Features
  • ⚙️Adjustment Range: Backrest 0-70°±5°, Leg rest 0-40°±5°, Height adjustment: 460-800±10mm, Trendelenburg 0-12°±3°.
  • ⚙️Motor System: Four high-quality, noise-free motors with built-in control buttons and LED nurse control screen.

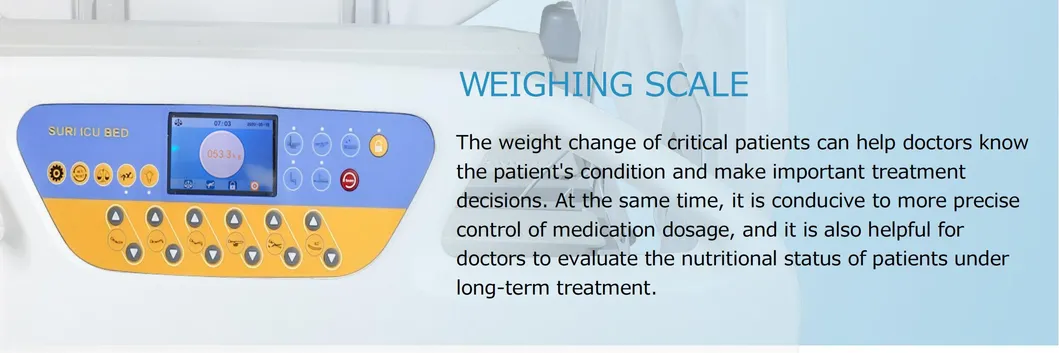

  • ⚙️Digital Weighing: Integrated system with real-time display on footboard, accuracy up to 0.1kg.

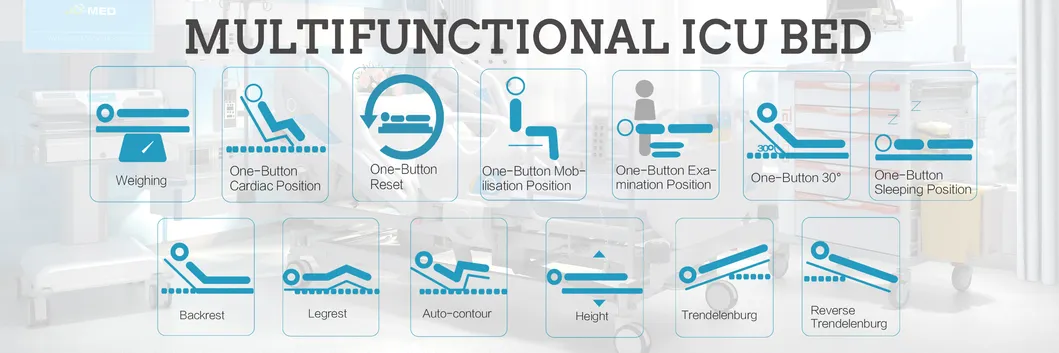

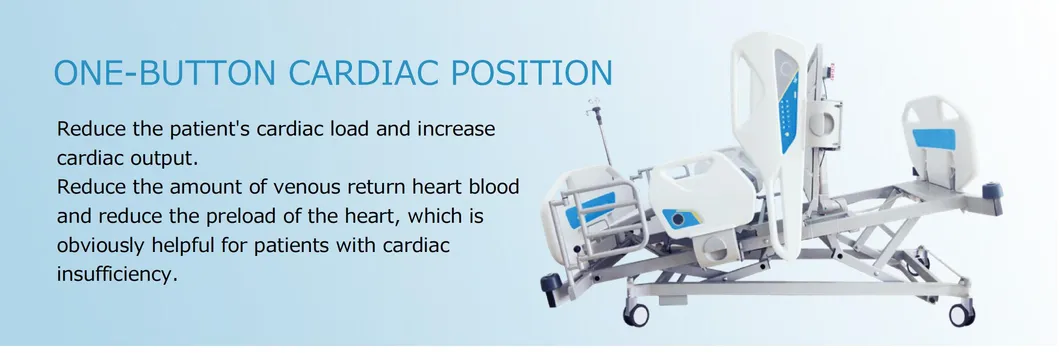

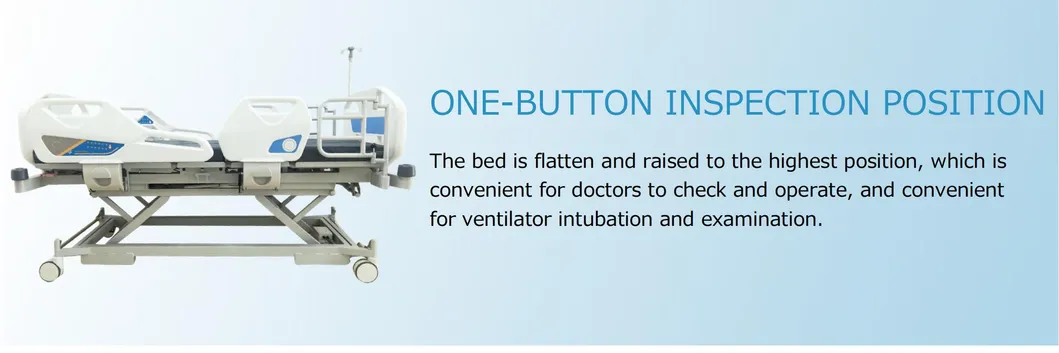

  • ⚙️One-Button Presets: Cardiac position, 30° backrest adjustment, horizontal reset, inspection, sleeping, and rescue positions.
  • ⚙️Safety Systems: Manual dual-side CPR, leaving alarm (detects patient exit), and automatic bed light for dark environments.

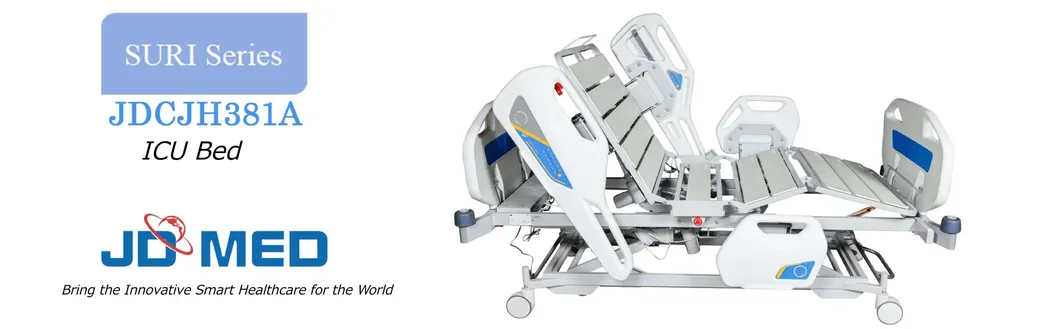

ICU Bed Overview
Technical Parameters
Bed DimensionsL2260*W1087*H460-800mm
Bed Platform Size1980*900mm
Auto-contour & Calf RaisingYes
One-Button Cardiac PositionYes
Weighing Scale SystemYes
Bed Light & Leaving AlarmYes
Optional AccessoriesI.V. Pole, X-ray cassette board, Backup battery, Mattress, EMG button, Bed Extension

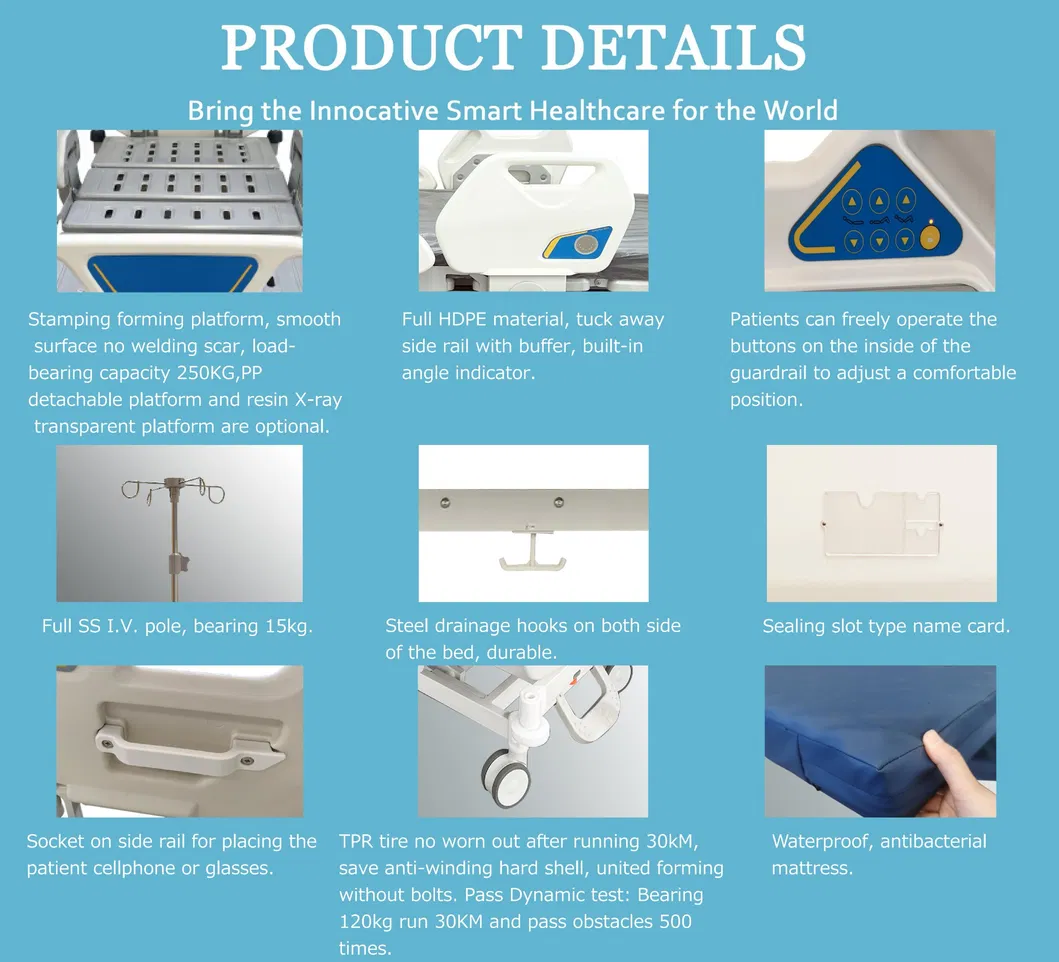

Product Details & Gallery
Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6
Dimensions
Manufacturing Excellence

Established in 1984, the brand specializes in healthcare products and hospital furniture with over 30 years of experience. We provide integrated hospital logistic solutions, including medical trolleys, ICU beds, and nurse station designs. Our manufacturing center utilizes advanced technology such as welding robots, automatic laser processing centers, and CNC machines.

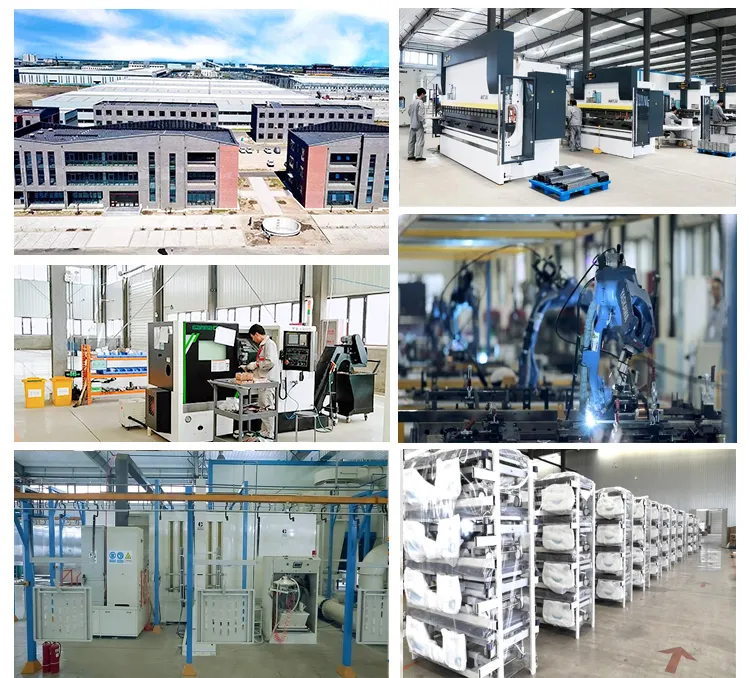

Factory Base
Certificates & Quality Assurance
Certificates
Frequently Asked Questions
Is the weighing system accurate for clinical use?
Yes, the bed features a multi-function digital weighing system with an accuracy of 0.1kg, allowing for continuous real-time monitoring of the patient's weight.
What are the safety features for critical care?
The bed includes manual dual-side CPR for emergency flattening, a leaving alarm to notify staff if a patient attempts to exit, and one-button rescue/cardiac positions.
Can X-rays be taken while the patient is in bed?
We offer an optional backrest radiolucent board and X-ray cassette board specifically designed for bedside imaging.
What is the standard delivery time for large orders?
The standard delivery time is between 25 to 40 days, depending on the order quantity and customization requirements.
What kind of warranty is provided?
We provide a standard 1-year warranty. Parts damaged due to manufacturing issues within this period are eligible for free replacement parts and technical support.
Do you support OEM and customization?
Yes, we have a professional R&D team that handles customized projects and OEM services based on your specific clinical requirements.
