Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
1 / 5
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley
Operation Connecting Patient Stretcher Trolley Medical Trolley

Operation Connecting Patient Stretcher Trolley Medical Trolley

Customization: Available
Color: White
Folded: Folded
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
JRLS-7CB
Certification
ISO, CE
Material
Metal
Number of Belts
Six
Type
Surgical Patient Operation Connecting Transfer Trolley
Net Weight
105kgs
Transport Package
Plywood
Origin
P. R. China
Production Capacity
2000units/Month
⚙️

Technical Specifications

Hi-Low 835mm-600mm
Back-rest lifting angle 0-60°
knee-rest lifting angle 0-40°
Trend & rev. Trend angle 0-13°
Castor diameter 150mm
Net weight 105kgs
Standard accessories Mattress, I.V Pole
📝

Product Description

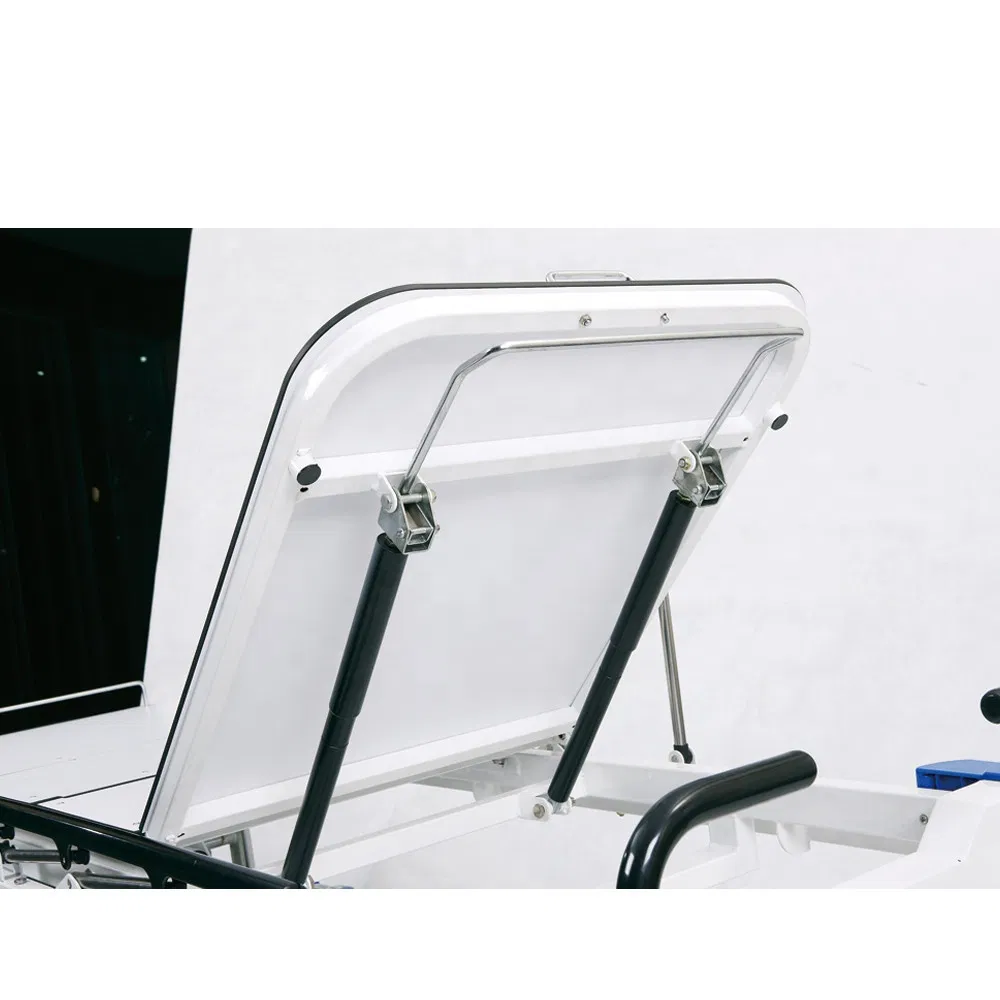

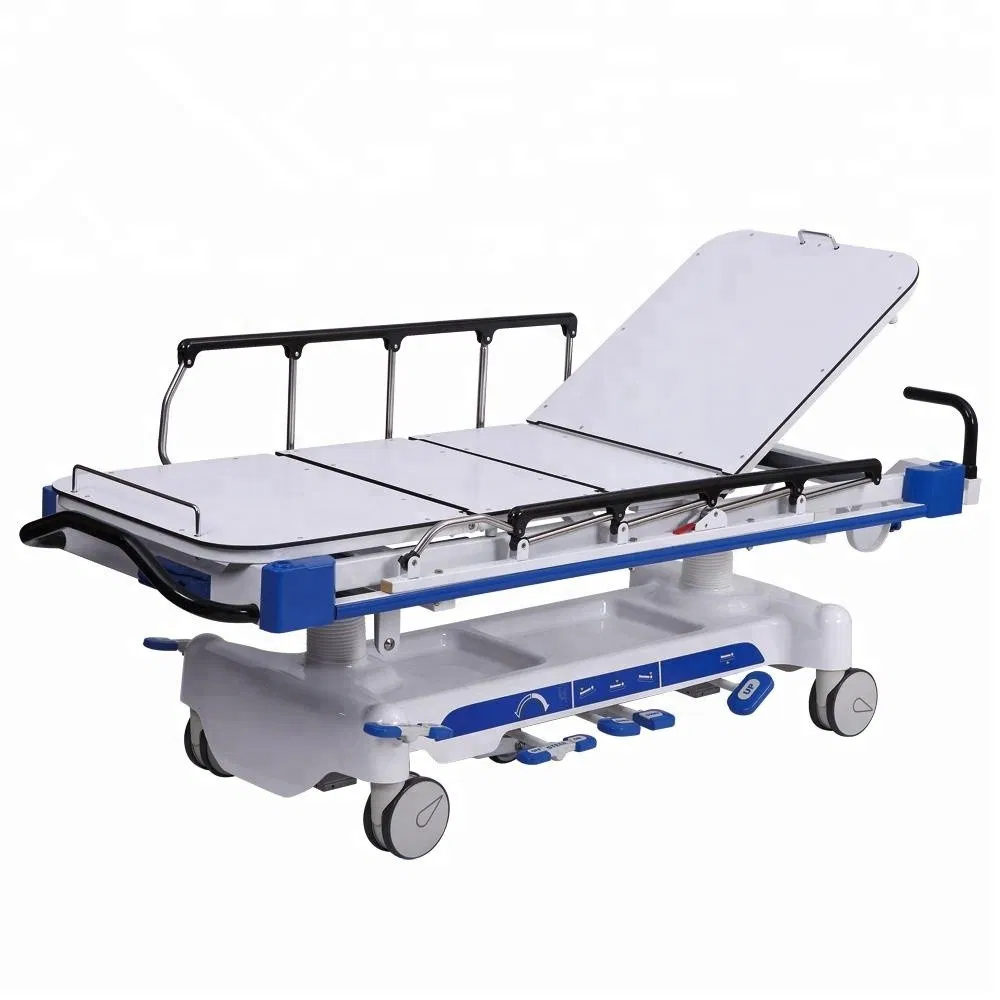

1. It is a type of hydraulic transfer stretcher, 5 functions available by hydraulic, gas spring, and cranks system together.

2. At the head-end, there is a pair of push-handles that can be folded up and down.

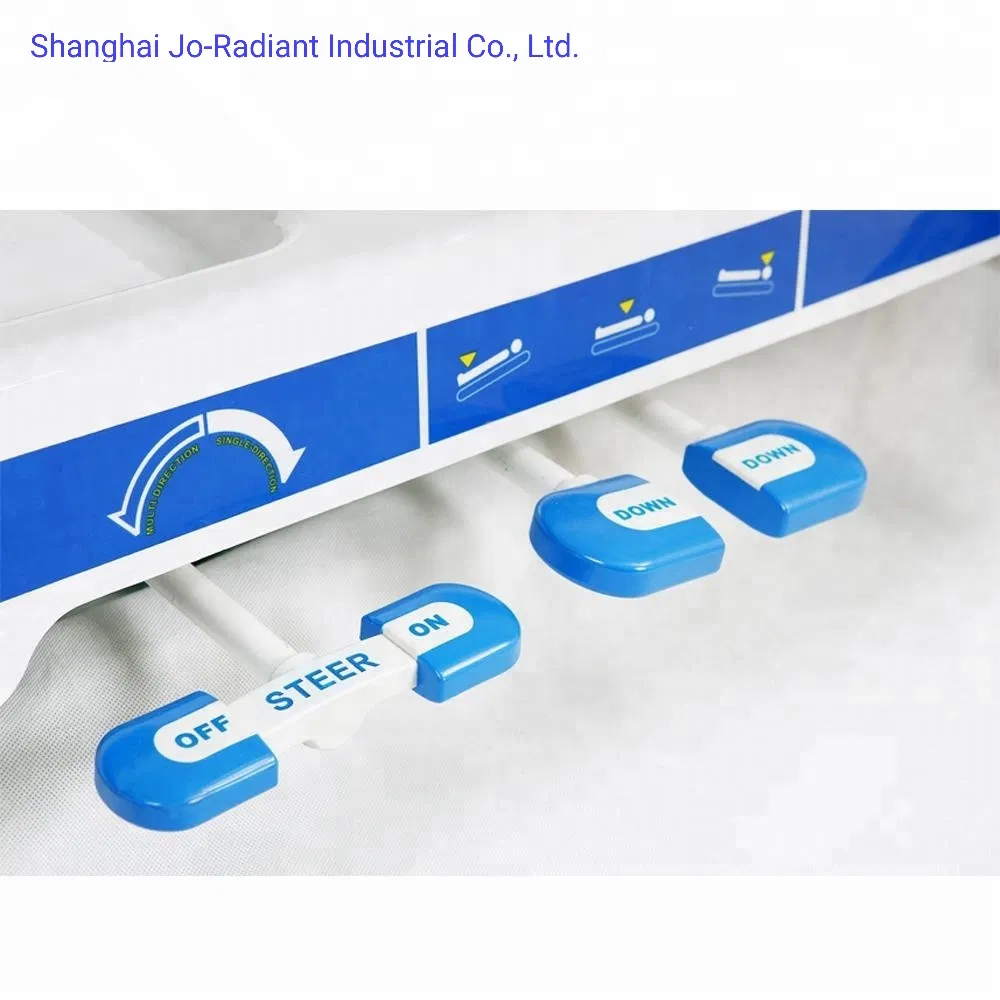

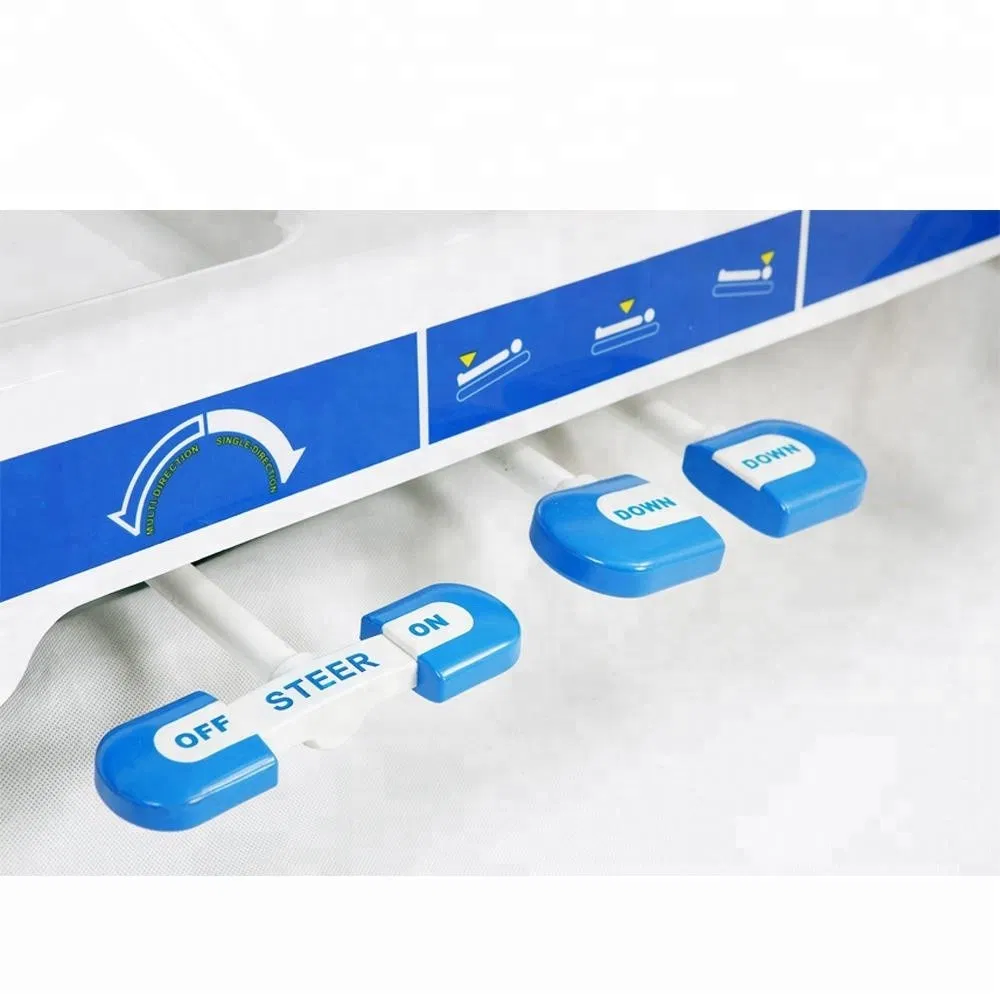

3. Bright arrow symbols direct the users how to operate clearly.

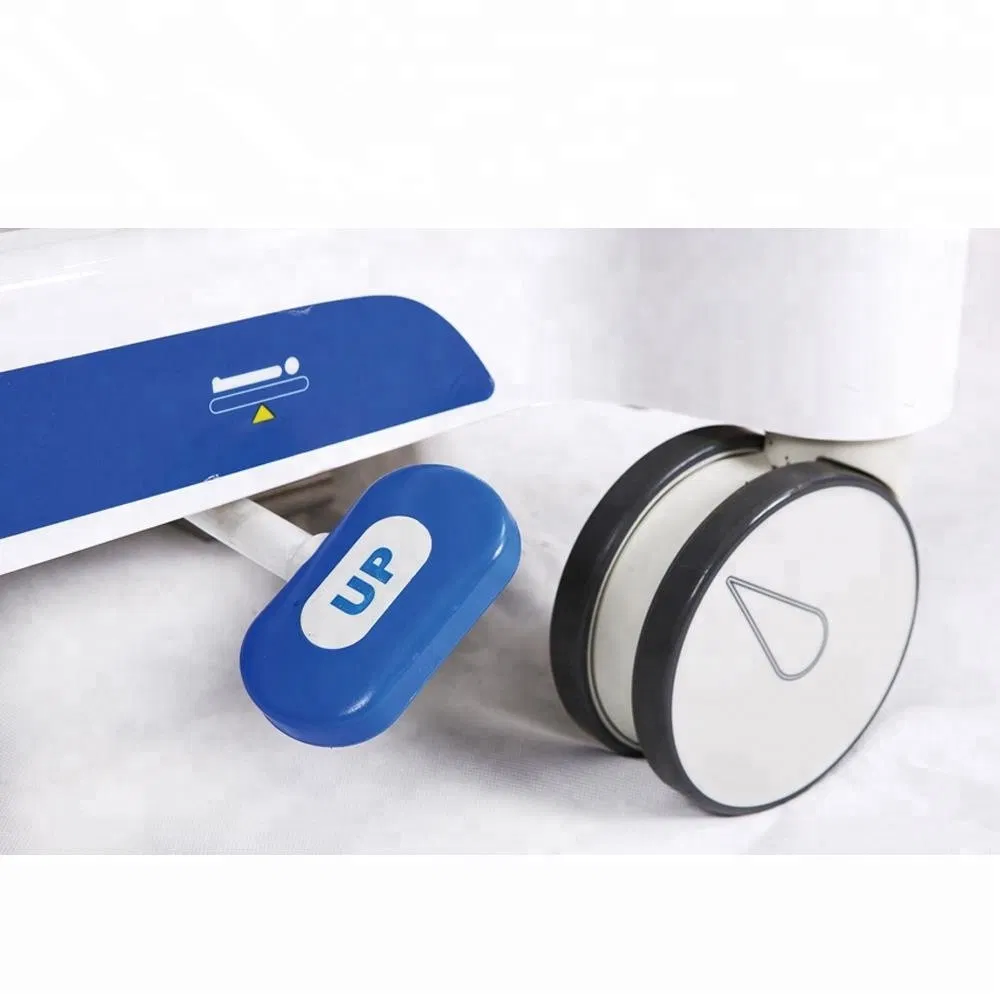

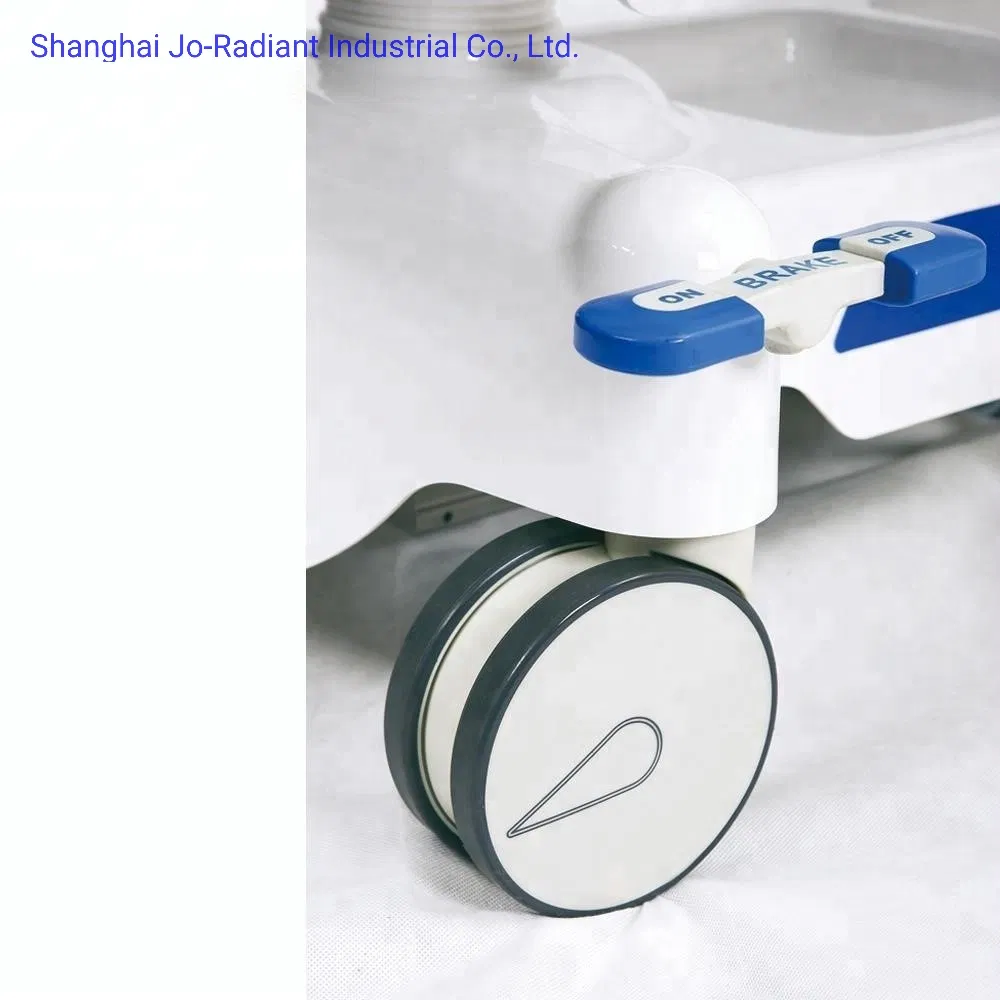

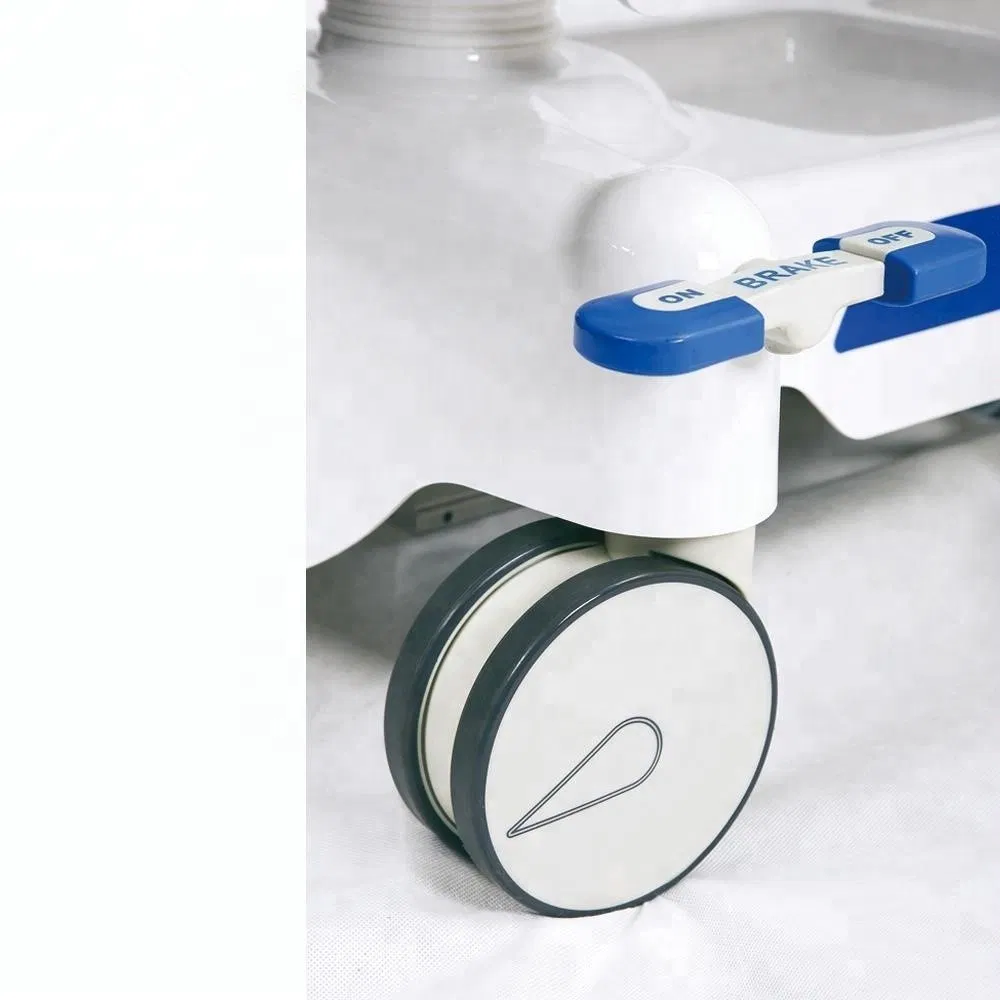

4. Central-lock castors, diameter 150mm. Matched with direction castor under the chassis, which help steering and mobility.

Operation Connecting Patient Stretcher Trolley 1
Operation Connecting Patient Stretcher Trolley 2
Operation Connecting Patient Stretcher Trolley 3
Operation Connecting Patient Stretcher Trolley 4
Operation Connecting Patient Stretcher Trolley 5
Operation Connecting Patient Stretcher Trolley 6

Frequently Asked Questions

What are the adjustment functions of this hydraulic transfer stretcher?
The JRLS-7CB features 5 adjustment functions supported by a combined system of hydraulics, gas springs, and manual cranks, including Hi-Low height adjustment, back-rest, and knee-rest lifting.
What is the height adjustment range for the trolley?
The stretcher's height can be adjusted from a minimum of 600mm to a maximum of 835mm (Hi-Low range).
Does the trolley include a braking system?
Yes, it is equipped with 150mm diameter central-lock castors. It also features a directional castor under the chassis to improve steering and maneuverability during transport.
What are the maximum lifting angles for the patient's comfort?
The back-rest can be lifted up to 60°, and the knee-rest can be lifted up to 40°. It also supports Trendelenburg and Reverse Trendelenburg angles up to 13°.
What standard accessories come with the JRLS-7CB model?
Every unit comes equipped with a mattress and an I.V. pole as standard accessories to ensure immediate clinical utility.
What is the production capacity for this medical trolley?
The production facility has a capacity of 2000 units per month, ensuring a steady supply for large-scale medical facility requirements.
