Basic Specifications
Wheel Type
Central Locking Casters 8'
Use
Hospital Transportation Trolley
Payment Term
L/C, T/T, W/U
Specification
1930*660*(510-850)mm
Product Description

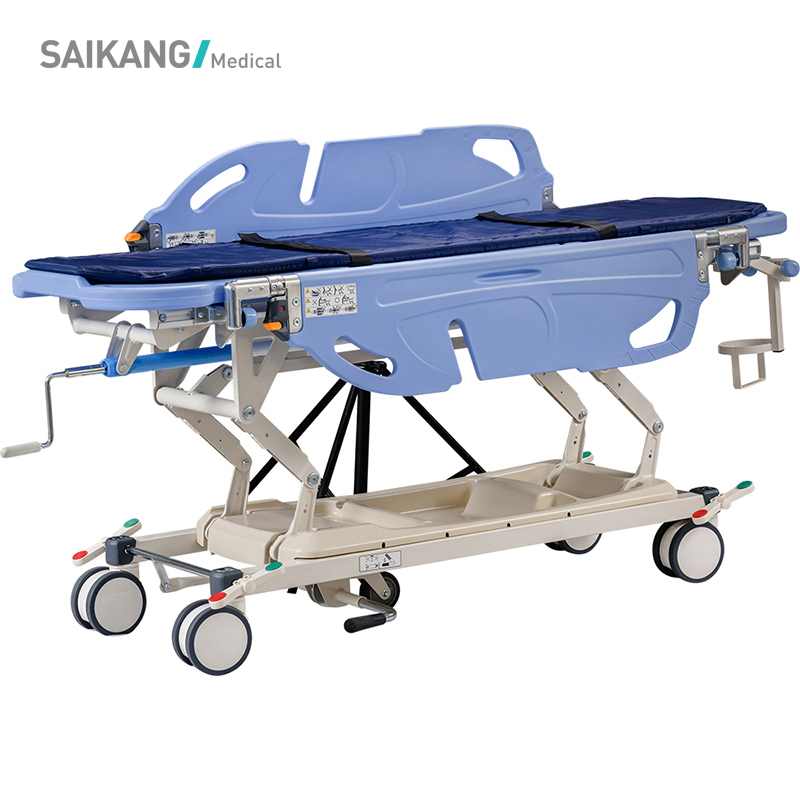

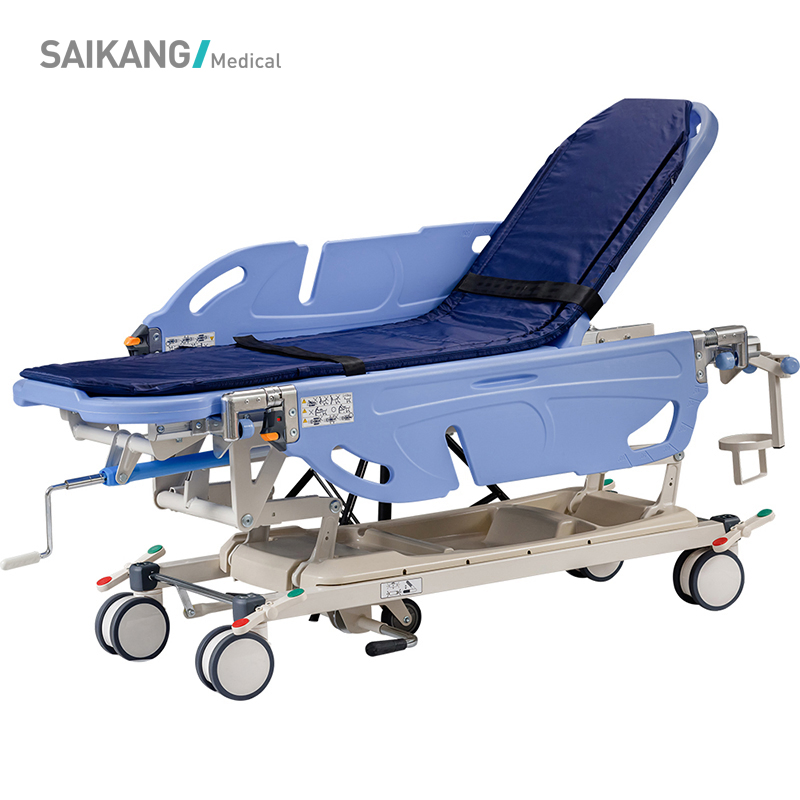

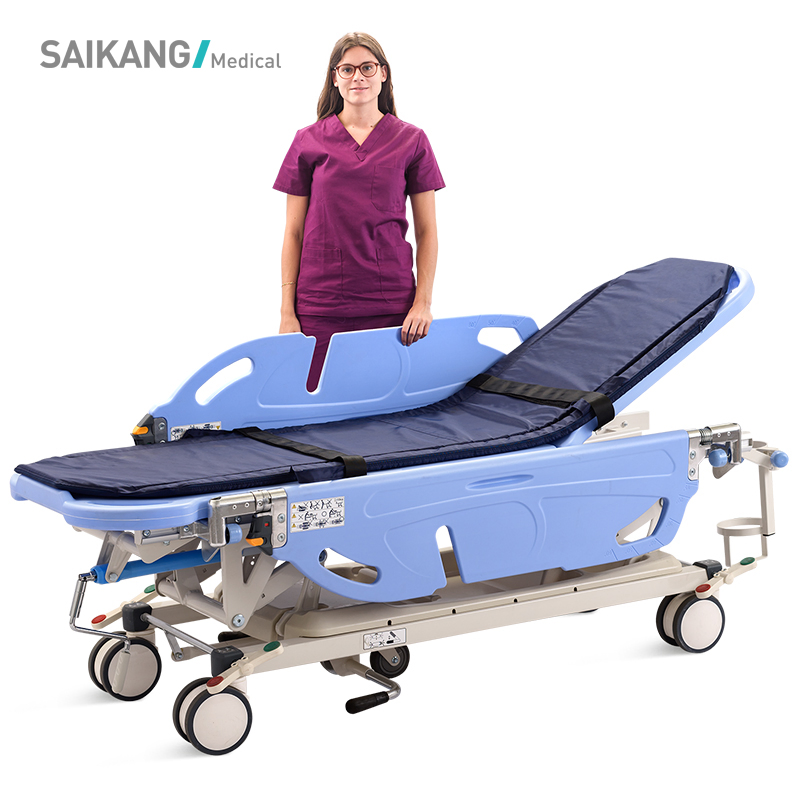

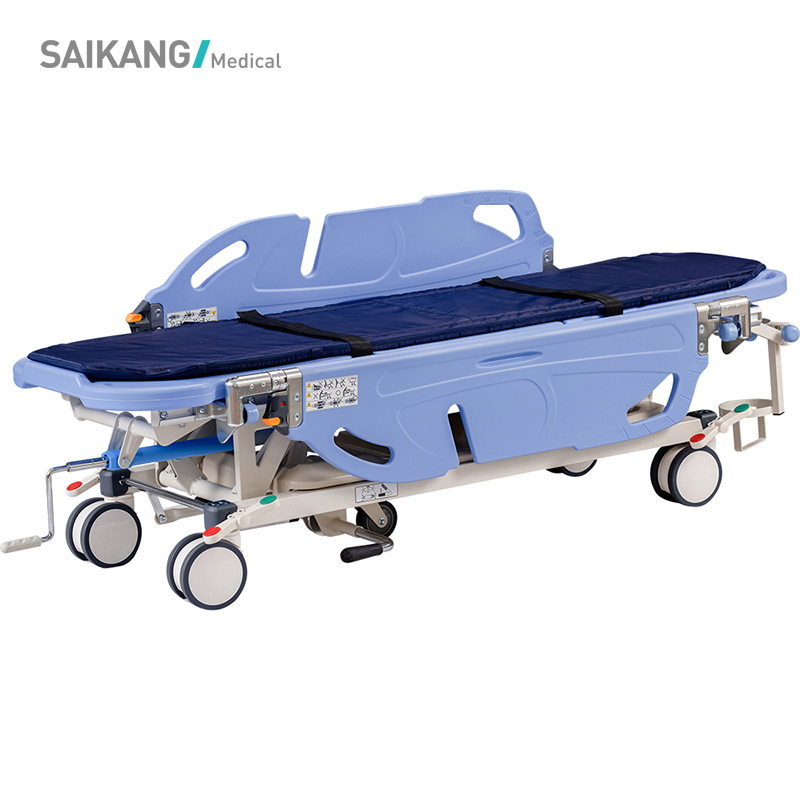

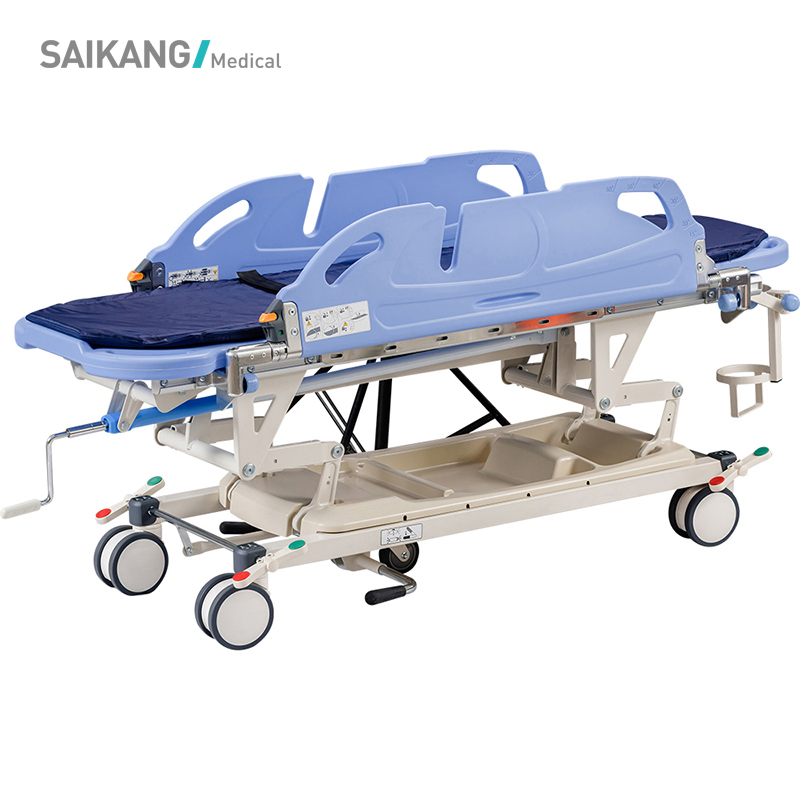

SKB041-6 Wholesale Multifunction Foldable Operation Connecting Medical Patient Stretcher Trolley
Important Quality Control

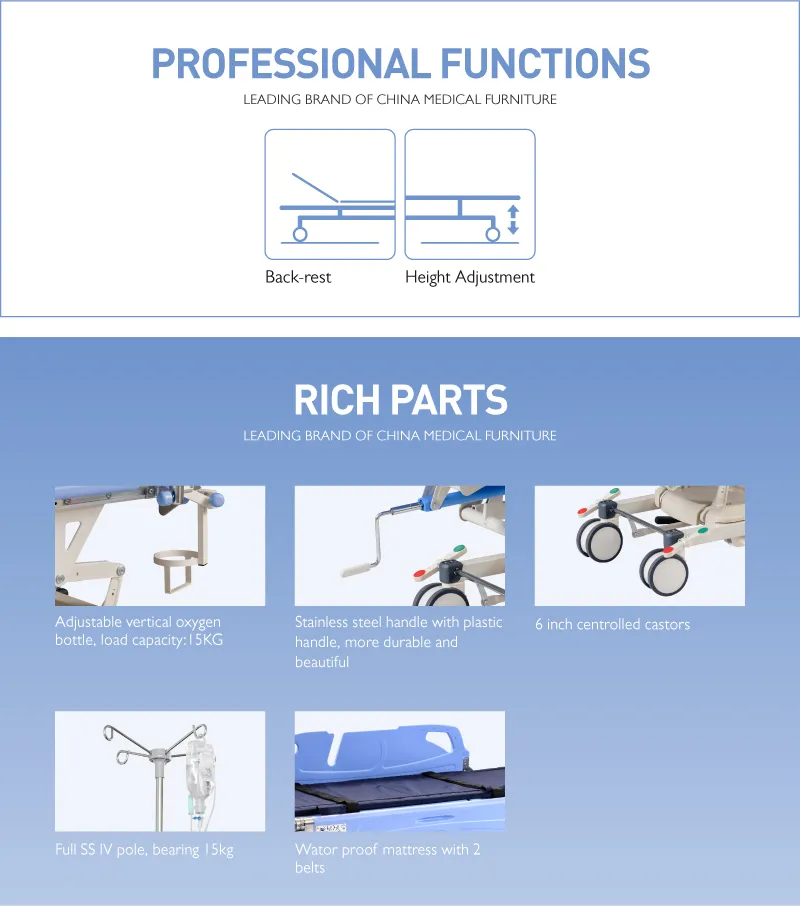

- 2 Functions: Backrest adjustment and height adjustment

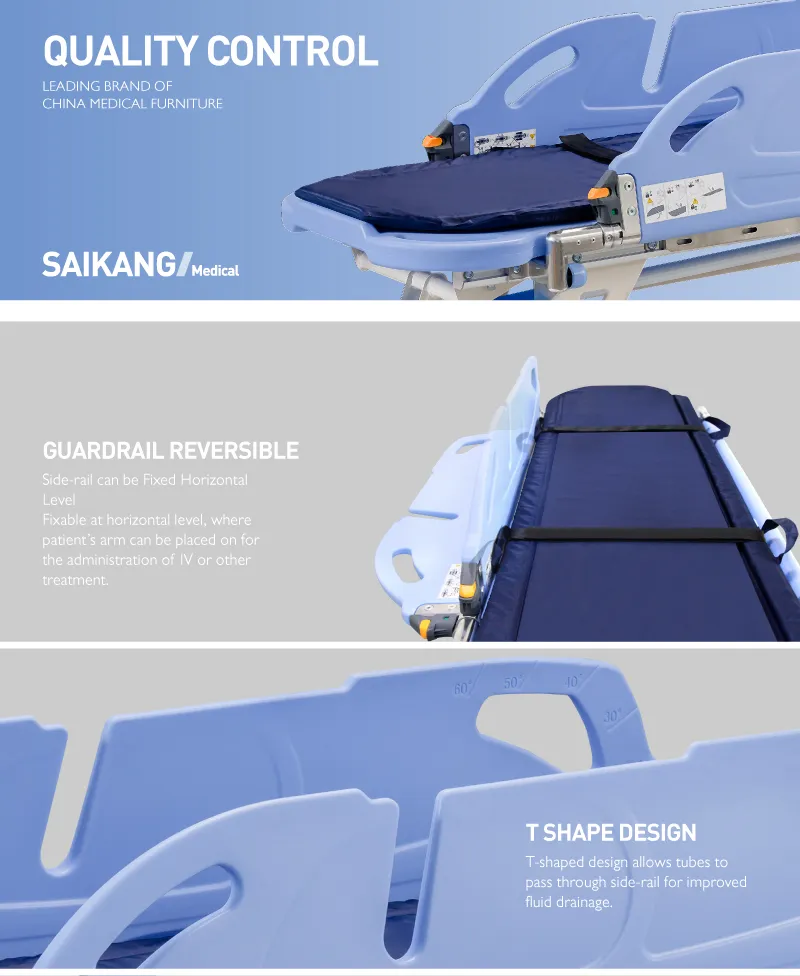

- Side-rail can be Fixed at Horizontal Level for IV administration
- T-shaped design for improved fluid drainage through side-rails

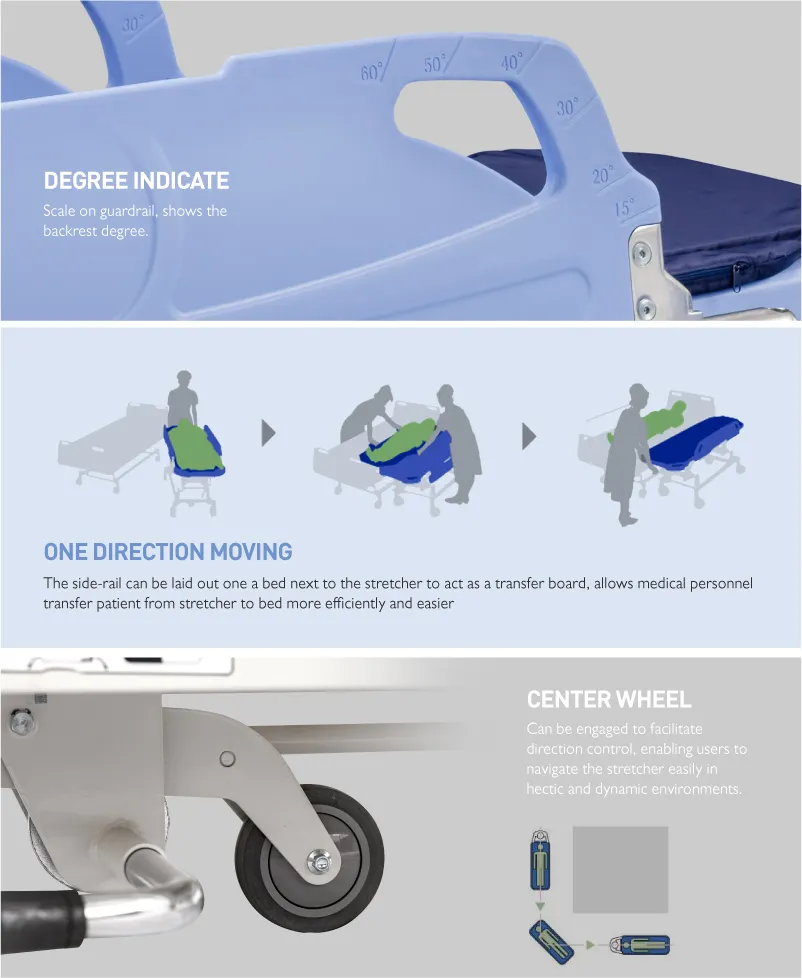

- Integrated scale on guardrail showing backrest degree
- Durable Stainless steel handle with plastic grip
- Adjustable vertical oxygen bottle holder (15KG capacity)
- Center Wheel for precise direction control in hectic environments
- 6-inch controlled castors with central locking system
- Full SS IV pole with 15kg bearing capacity
- Waterproof mattress equipped with 2 safety belts
Technical Configuration
| Parameter |
Category |
| Model | SKB041-6 |
| Name | Patient Transportation Trolley |
| Size | 1930*660*(510-850)mm |
| Back-rest Range | 0-70°(±10°) |
| Crank System | 1 set |
| Back Rest Air Spring | 1 pc |
| Plastic Side Rail | 1 set |
| Castors | 6" Castors, Central Locking (4pcs) |
| Directional Wheel | 1 pc |
| Directional Pedal | 2 pcs |
| IV Pole Previsions | 2 pcs |
| IV Pole | 1 set (15kg bearing) |
| Oxygen Cylinder Holder | 1 pc (15kg capacity) |
| Break Pedal | Central Locking Break Pedal (4pcs) |
| Transfer Mattress | 1 pc (Waterproof) |
| Safe Lock for Side Rail | 2 pcs |

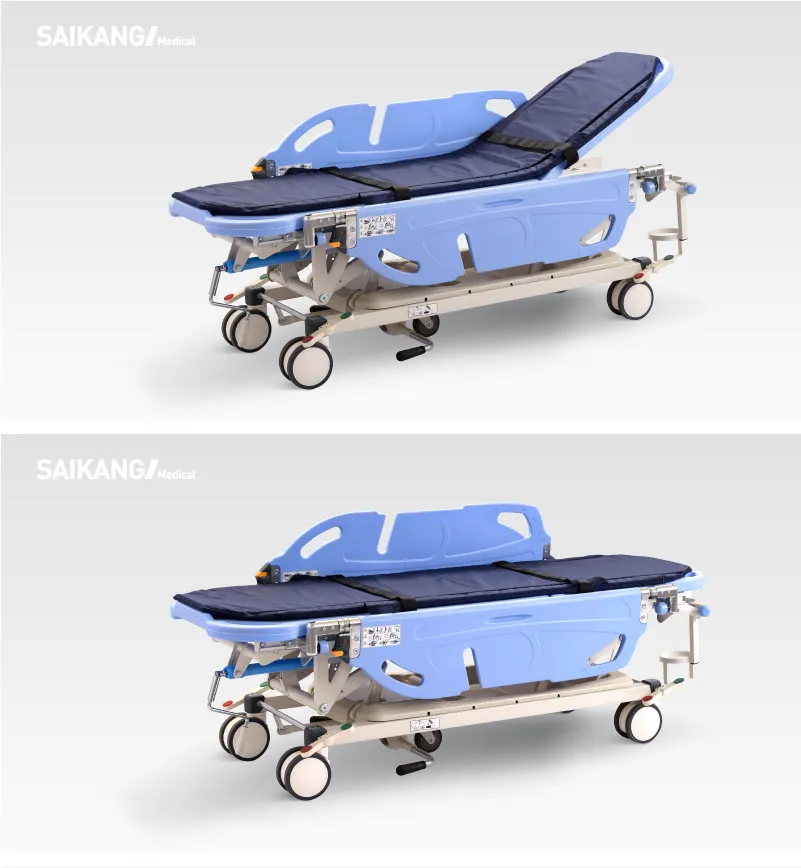

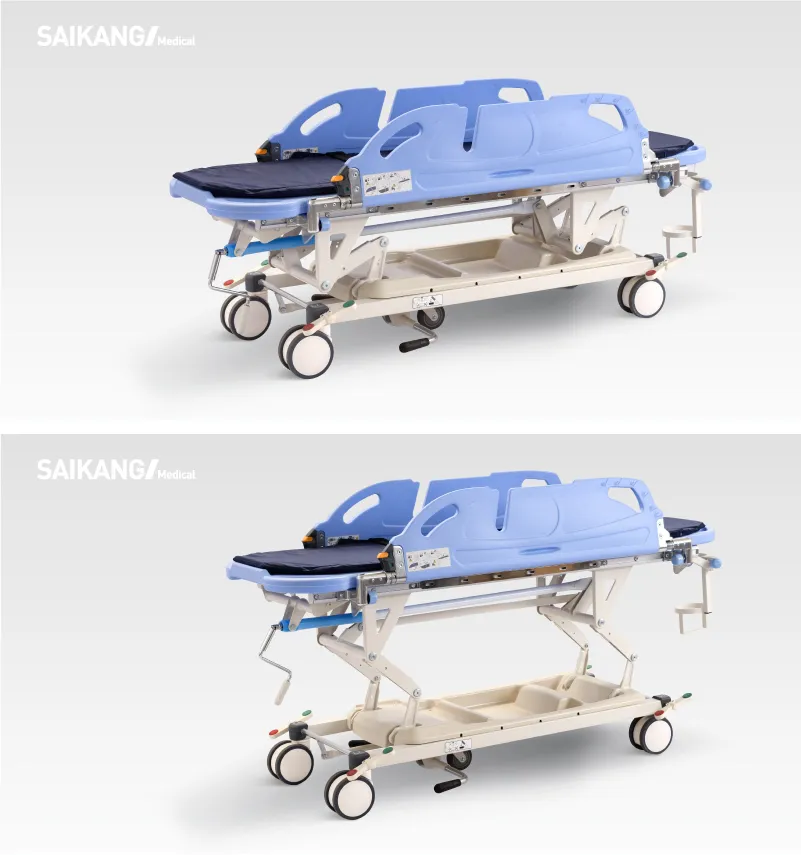

Product Gallery
Frequently Asked Questions
What are the main adjustable functions of the SKB041-6 stretcher?
The stretcher features two primary functions: backrest adjustment (0-70°) and overall height adjustment (510-850mm) to accommodate different medical needs.
How does the side-rail assist in medical treatments?
The side-rails can be fixed at a horizontal level, providing a stable platform for the patient's arm during IV administration or other treatments. The T-shaped design also facilitates fluid drainage.
What is the braking and steering system like?
It is equipped with a 6-inch central locking castor system and a dedicated center wheel. This allows for easy navigation and precise direction control in busy hospital environments.
What accessories are included with the trolley?
The trolley comes with a waterproof mattress with safety belts, a full stainless steel IV pole (15kg capacity), and an adjustable vertical oxygen cylinder holder.
Is the stretcher suitable for oxygen therapy during transport?
Yes, it includes a dedicated oxygen cylinder holder with a load capacity of up to 15KG, specifically designed for mobile medical use.
What certifications does this medical stretcher have?
The SKB041-6 is fully certified with CE, FDA, and ISO (including ISO13485 and ISO9001) standards, ensuring high quality and safety compliance.
