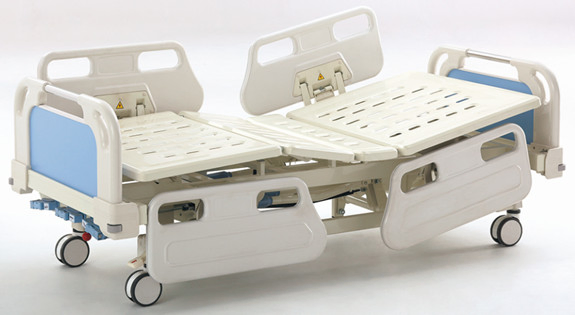

★ Five function electric bed | Size: 2180mm(L)*970mm(W)*480/770mm(H)
-
✔
The bed frame is made of epoxy coated steel, which is stable and reliable.
-
✔
High quality ABS engineer plastic head/foot board & side rails.
-
✔
Built-in control panels on both sides of siderails, easy to operate for both the patient and nursing staff.
-
✔
Four dia-125mm castors, equipped with a central locking system.
-
✔
Five functions operated by electric motor: (1) Back rest: 0-80±2º; (2) Knee rest: 0-35±2º; (3) High-low: 480~770mm; (4) Trendelenburg: 20±2º; (5) Reverse trendelenburg: 20±2º.
-
✔
Location for IV rod in each corner.
-
✔
Voltage Compatibility: 110V~120V or 220V~230V, 50HZ~60HZ.
Frequently Asked Questions
What are the five main functions of this electric bed?
The bed features five motorized functions: back rest adjustment (0-80°), knee rest adjustment (0-35°), height adjustment (480-770mm), Trendelenburg, and Reverse Trendelenburg positions.
What materials are used for the bed's construction?
The frame is constructed from stable epoxy-coated steel, while the headboard, footboard, and side rails are made from high-quality ABS engineering plastic for durability and easy cleaning.
Does the bed include a locking mechanism for safety?
Yes, the bed is equipped with four 125mm diameter castors that feature a central locking system to ensure stability when stationary.
Can the patient operate the bed independently?
Yes, there are built-in control panels on both sides of the side rails, allowing both the patient and nursing staff to easily adjust the bed's positions.
What power supply is required for the PM-2-1 model?
The bed is compatible with universal voltage standards, supporting 110V-120V or 220V-230V at 50Hz to 60Hz.
Is the product certified for medical use?
Yes, this electric hospital bed is CE and ISO13485 certified, meeting international standards for medical equipment quality and safety.
