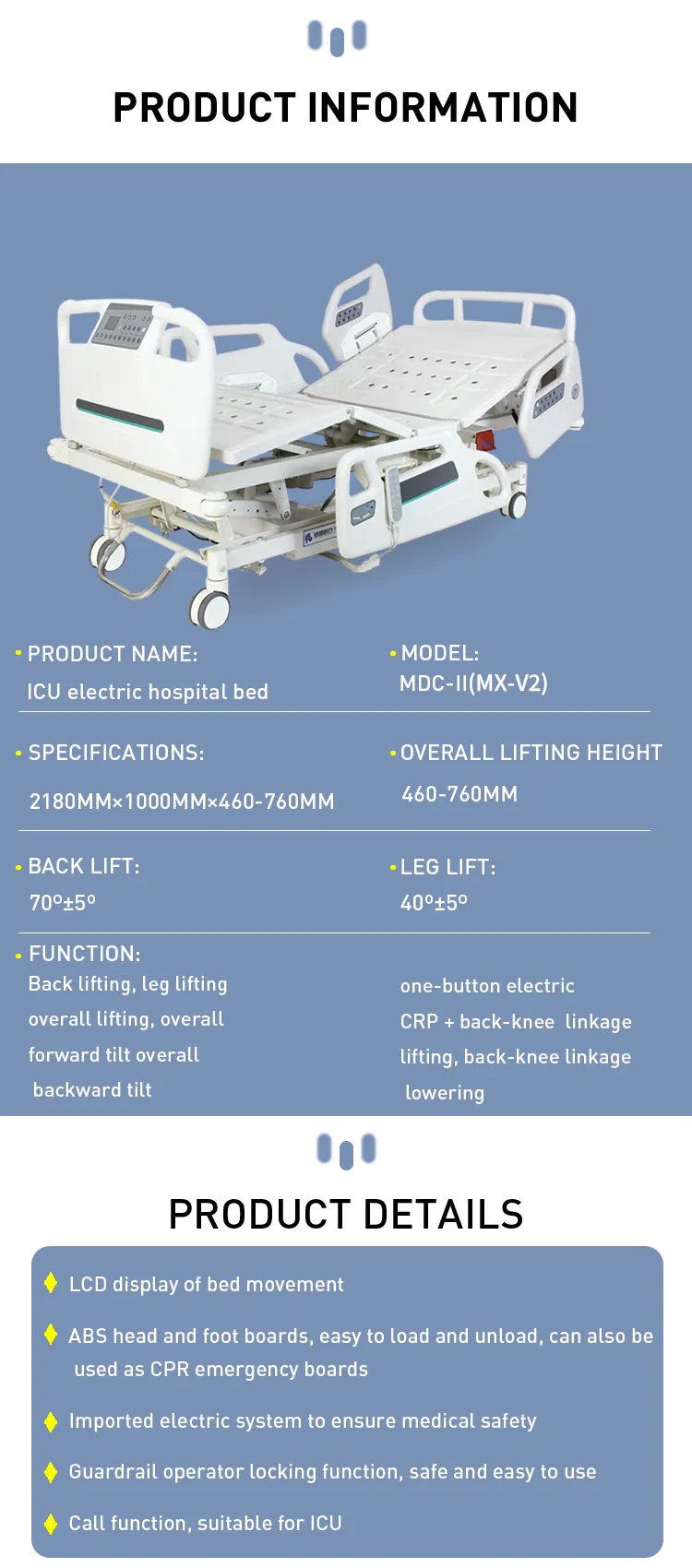

📋 Basic Information
Product Name
Electric Bed (Thrombolysis Bed)
Size
2180mm × 1000mm × 460-760mm
Control Mode
Manual, Internal and External Control
Adjustment
Back/Legs/Tilt/Lifting
Alarm System
Off Bed Alarm/Abnormal Position
Guardrail
Four Piece ABS (Antibacterial)
Brake
Central Control Brake
🏥 Product Description

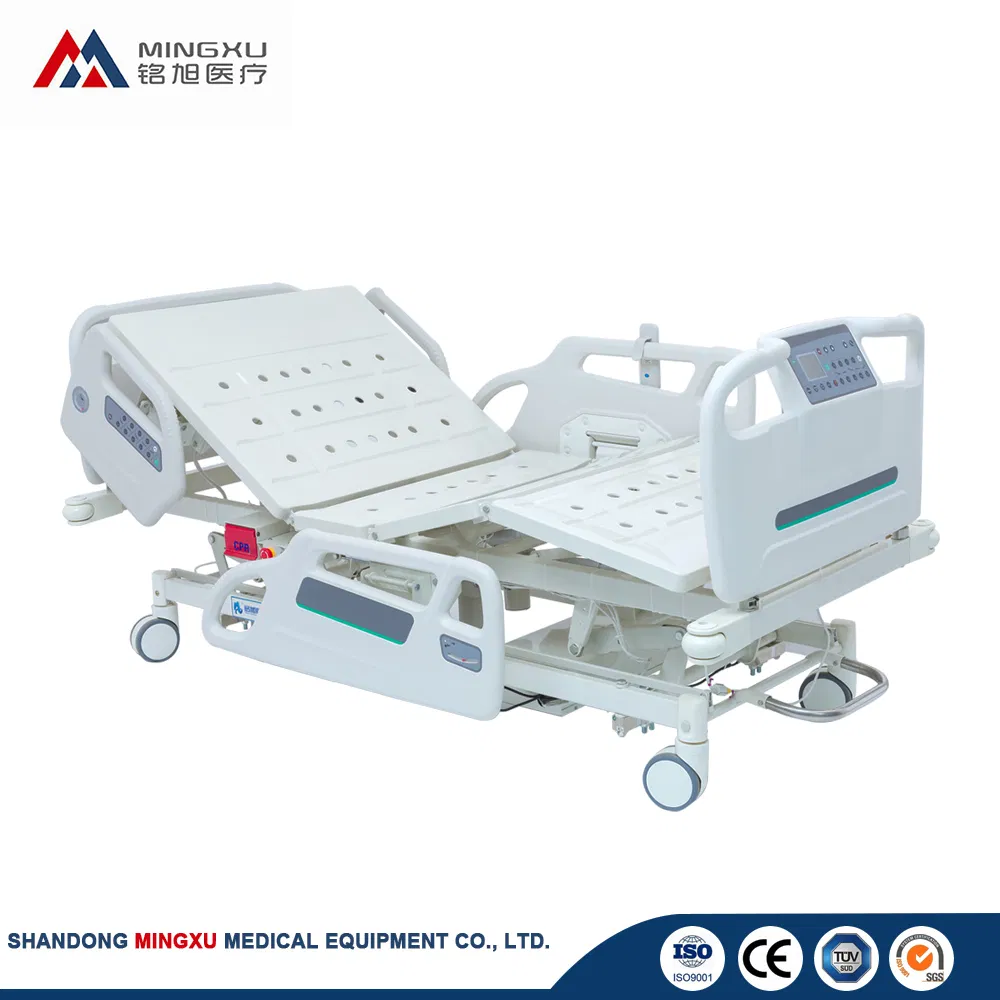

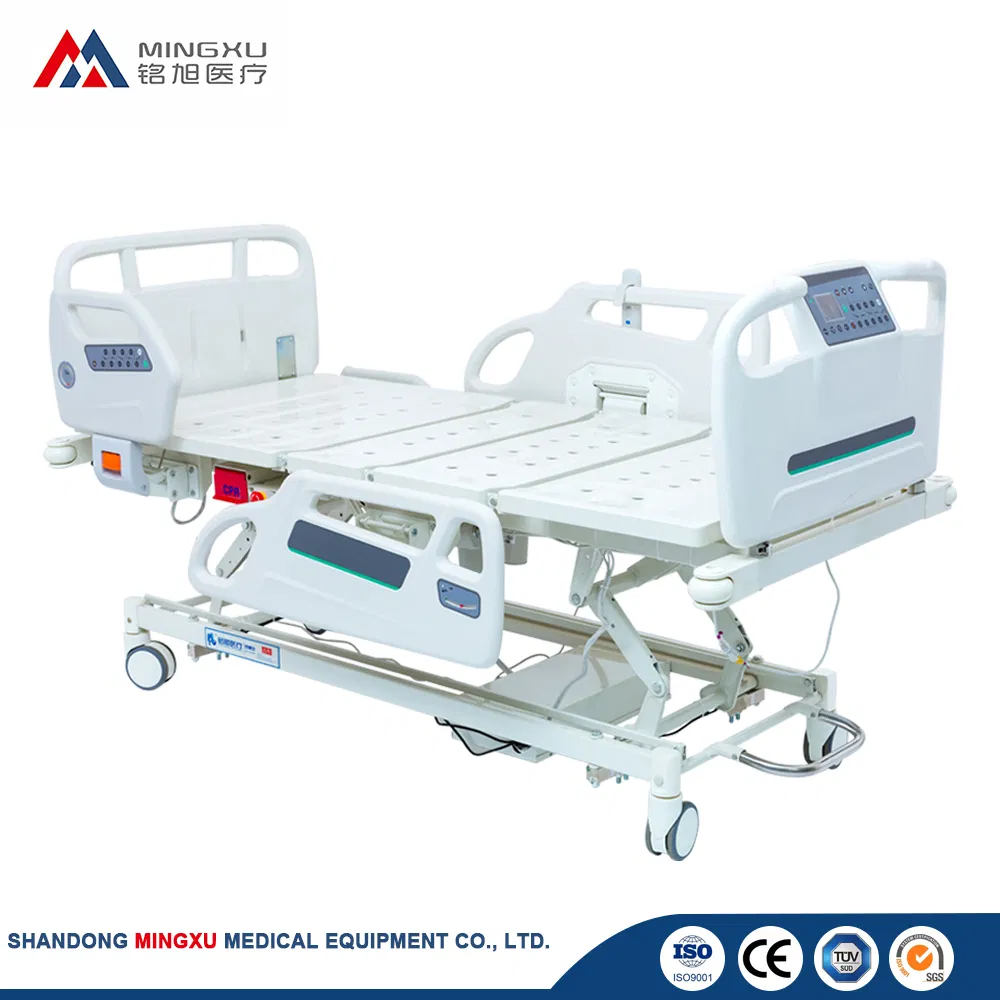

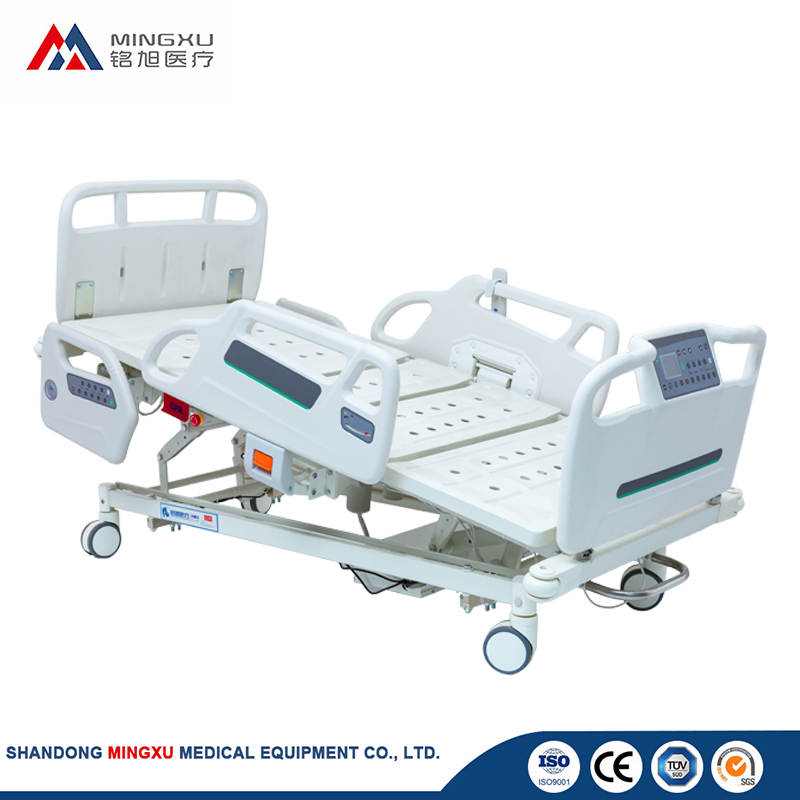

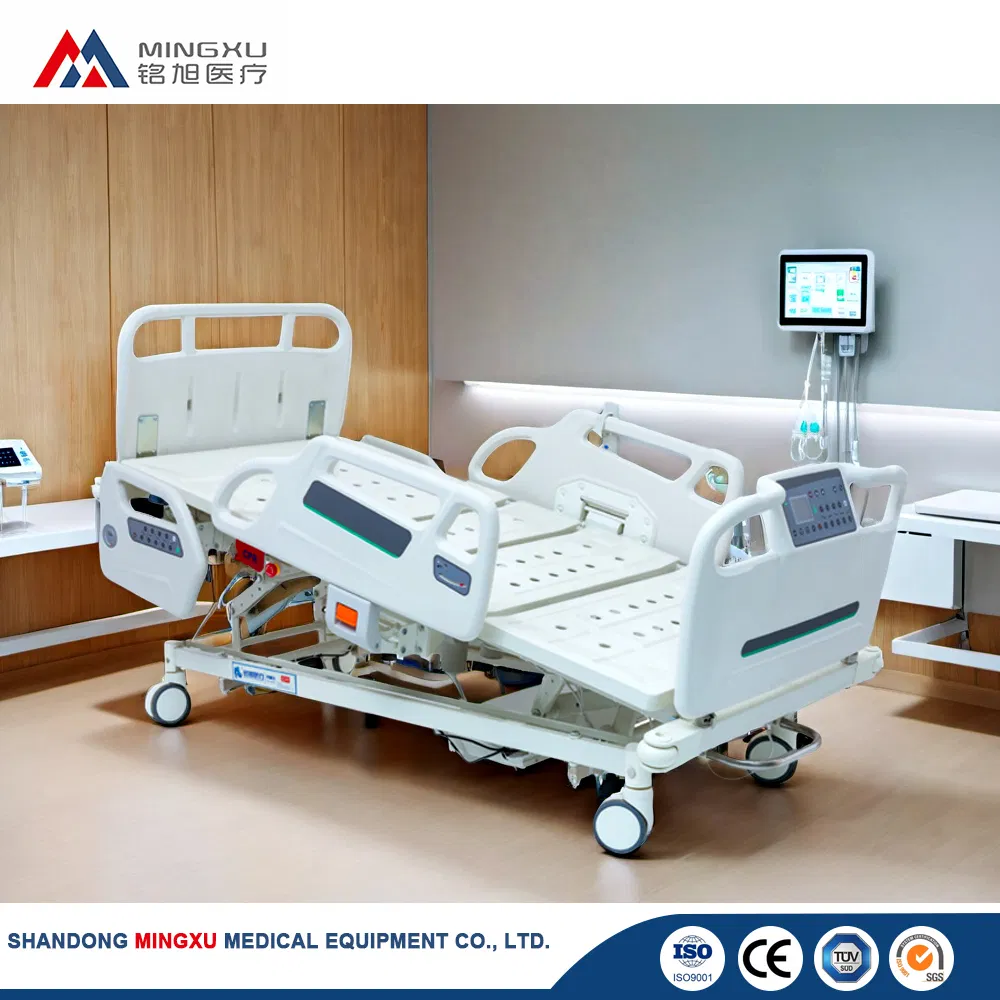

The ICU Five-Function Electric Nursing Bed is a revolutionary advancement in hospital care, crafted for the Intensive Care Unit to deliver superior patient care. This state-of-the-art medical bed is integrated with an array of functions, including adjustable height, backrest, leg rest, and tilt capabilities, allowing healthcare professionals to tailor the bed to each patient's unique requirements effortlessly. As a vital piece of hospital equipment, these electric beds ensure patient comfort, safety, and convenience throughout their hospital stay. Constructed with precision from high-quality materials, this hospital bed promises unparalleled reliability and durability.

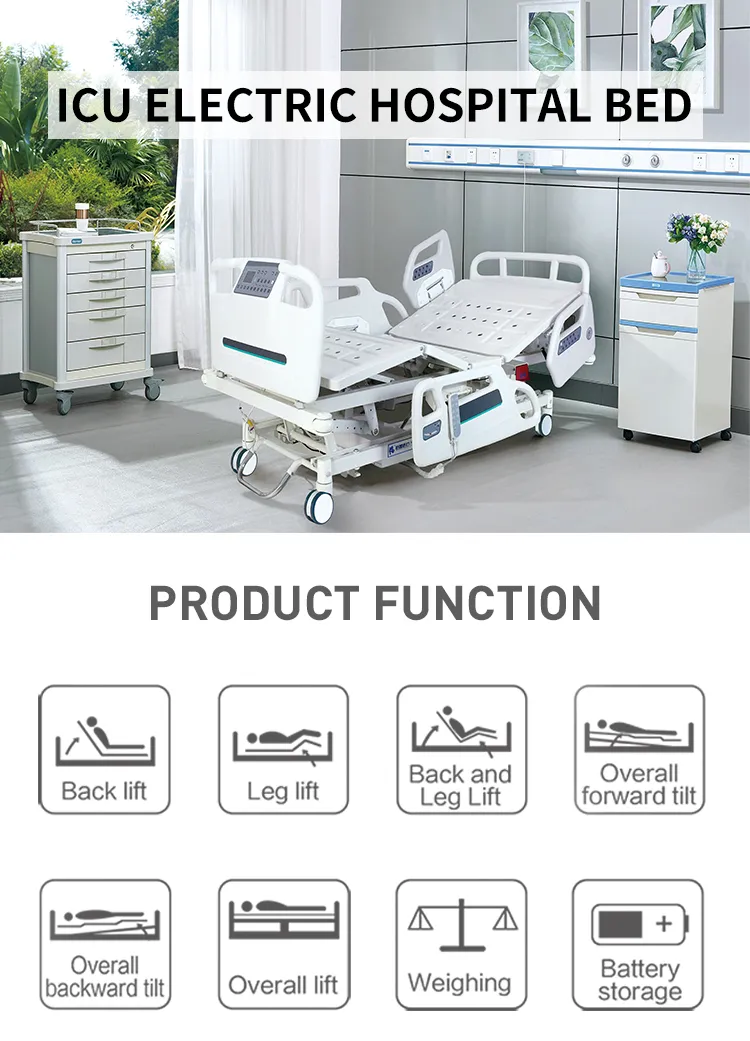

⚙️ Core Functions
Forward and Backward Tilt Function
Leg Tilt Function & Back/Leg Linkage Function
Equipped with a Get Off Bed Alarm for heightened safety
Robust dynamic load-bearing capacity: ≥ 240kg
🔧 Technical Parameters

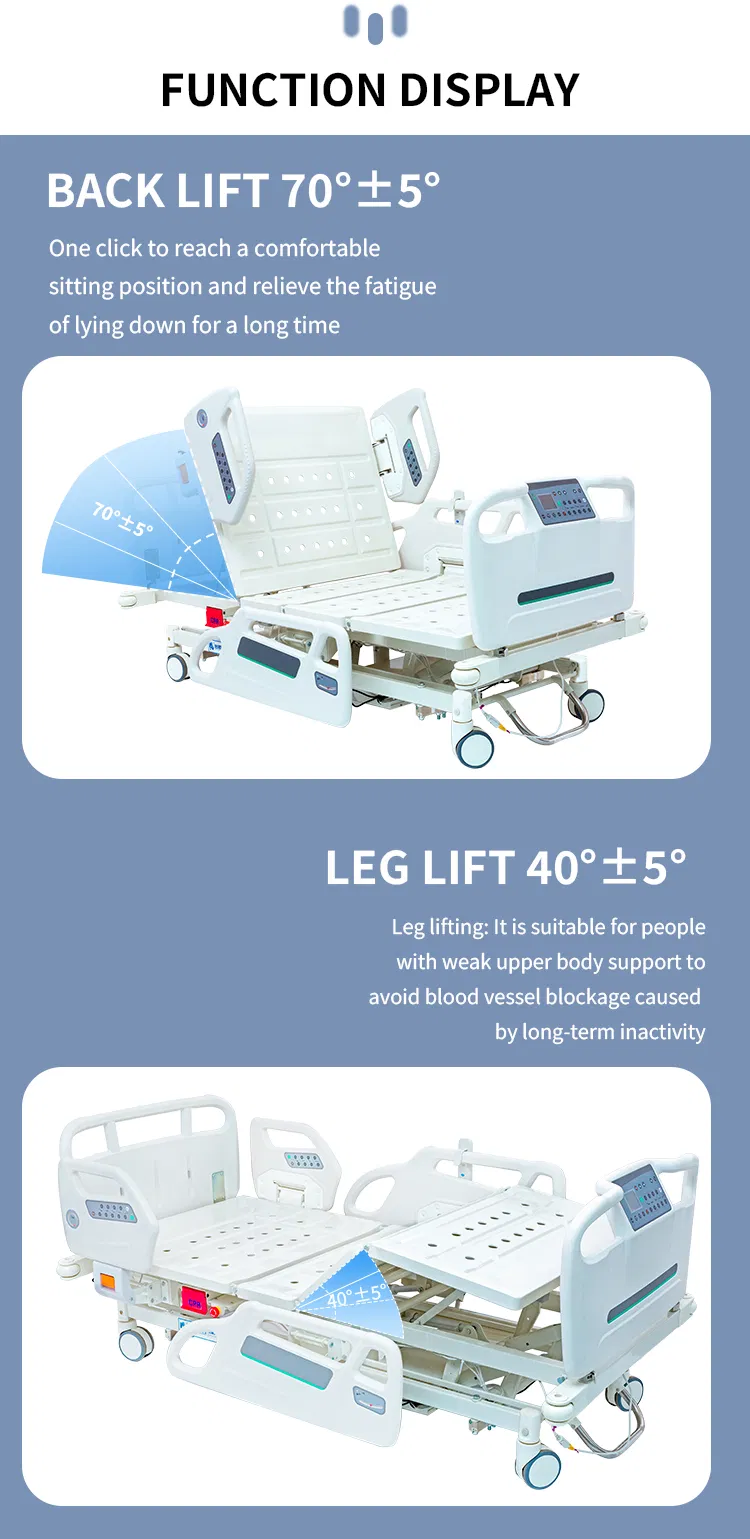

1. Adjustment Range: Backward tilt of 70º±5º; Leg tilt 40º±5º; Bed lifting height 460-760mm; Front to back tilt ranges from 0-14º±2º.

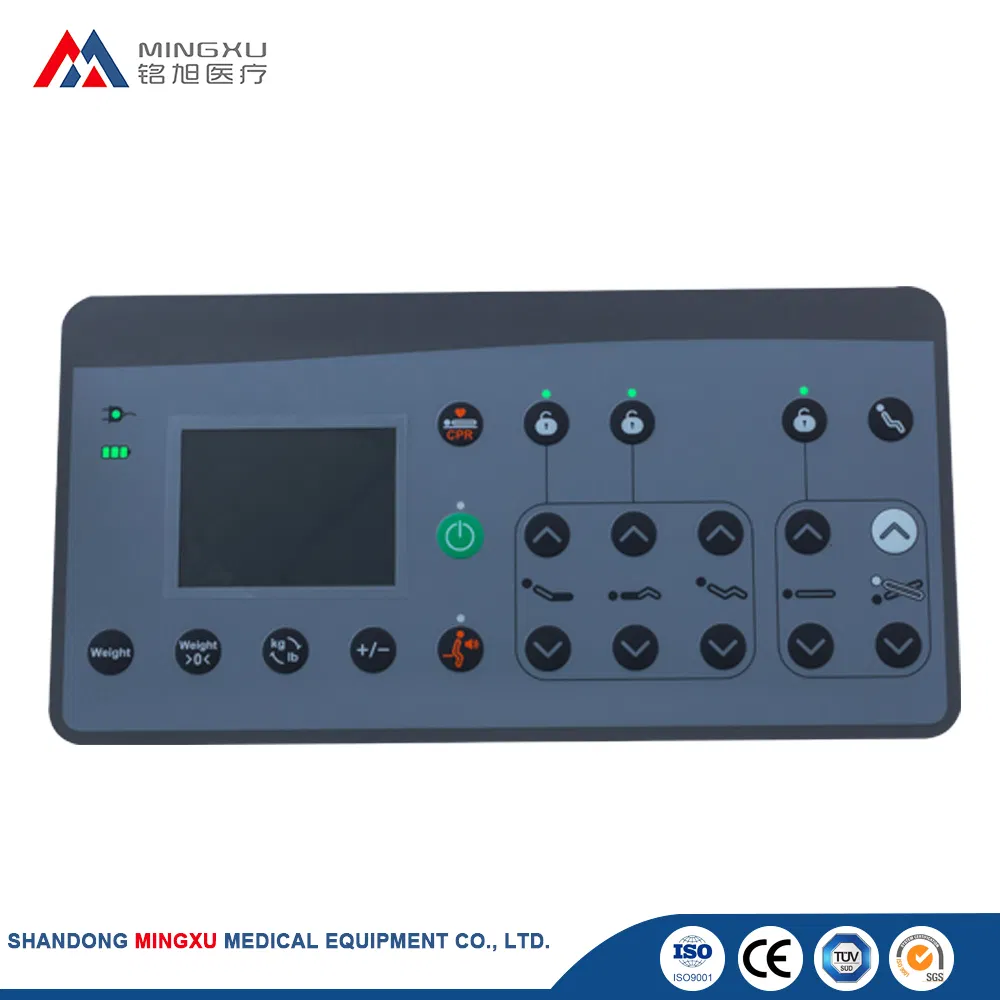

2. Operation Modes: Manual controller, inner/outer controllers, or bed end controller to minimize cross-infection risks.

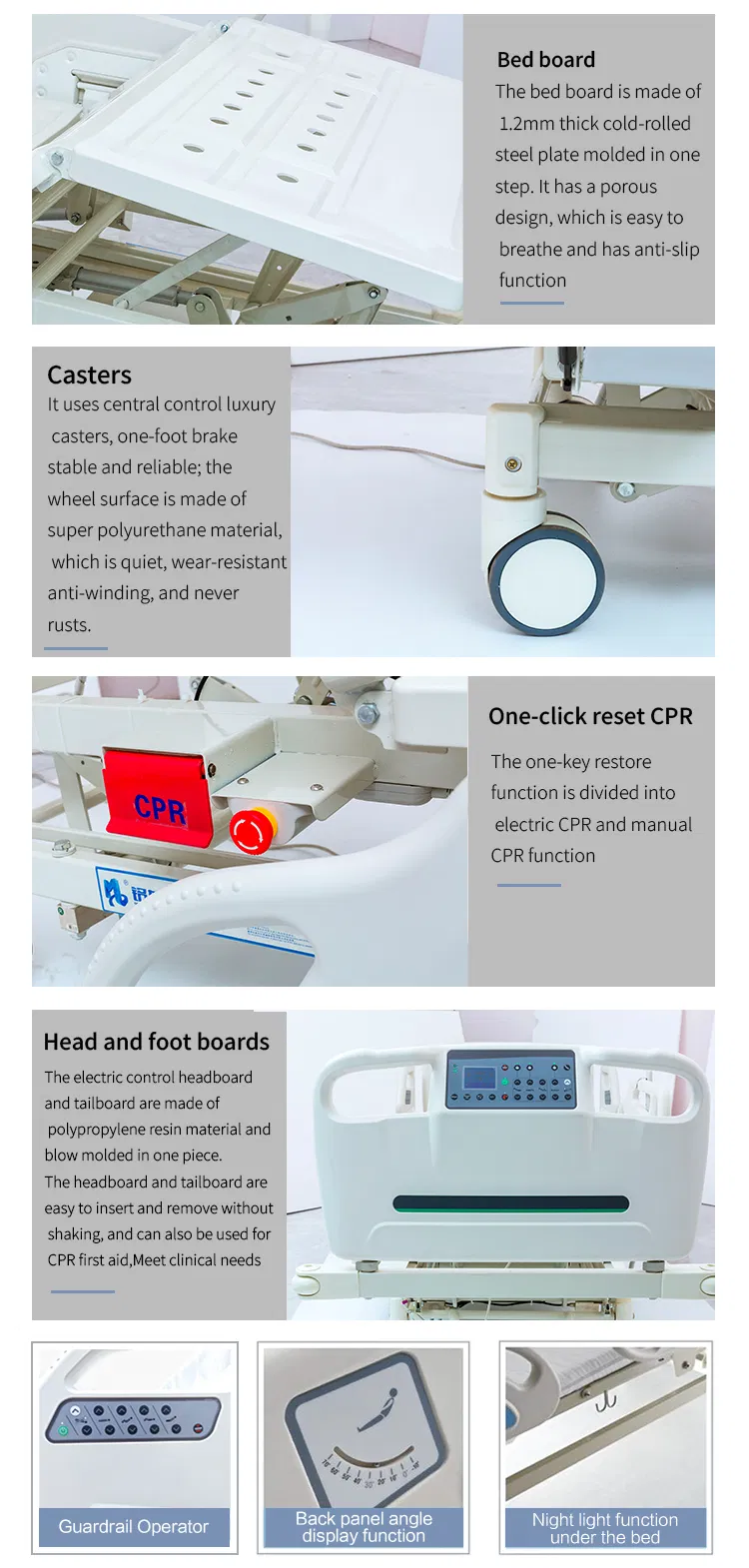

3. Bed Board: Porous structure for breathability and anti-slip function. Reinforced bone structure for high load-bearing.
4. Back Board: Support unloading structure with reinforced carbon fiber steel pipes.
5. Motor System: Four powerful motors (4000-6000N thrust) providing smooth and quiet operation.
6. ABS Guardrail: Height ≥ 380mm, antibacterial and UV-resistant, integrated with electric control buttons.
7. Angle Display: Indicators on all four guardrails display real-time bed angles for medical staff monitoring.
8. Casters: Luxury central control casters with polyurethane wheels, wear-resistant and anti-winding.
📊 Product Configuration List
| NO. |
Name |
Unit |
Quantity |
Remark |
| 1 | Bed Set | Set | 1 | Main Structure |
| 2 | Headboard & Footboard | Pair | 1 | Blow molding |
| 3 | Center Control Casters | pc | 4 | With brake |
| 4 | Handheld Controller | pc | 1 | Multi-function |
| 5 | ABS Guardrail | pc | 4 | Side protection |
| 6 | Angle Display | pc | 4 | 1 per guardrail |
| 7 | Motor | pc | 4 | High thrust |
| 8 | Battery | pc | 1 | Backup power |
| 9 | Drainage Hook | pc | 2 | Optional |
| 10 | Mattress | pc | 1 | Standard |
| 11 | Packaging | pc | 1 | Wooden crate |
❓ FAQ
What is the maximum load capacity of the MX-V2 bed?
The bed is designed with a robust load-bearing grade of ≥240kg, ensuring safety and stability for various patient requirements.
How many operation modes are available for this ICU bed?
It features three convenient operation modes: manual controller, inner and outer guardrail controllers, and a bed end controller for maximum accessibility.
Does the bed include safety alarms?
Yes, it is equipped with an "Off Bed Alarm" and an "Abnormal Position Reminder" system to enhance patient safety and alert medical staff.
What are the adjustment ranges for the backrest and legs?
The backrest can tilt up to 70º±5º and the leg section can tilt up to 40º±5º. The height is adjustable from 460mm to 760mm.
What type of guardrails does the bed use?
It uses a four-piece ABS guardrail system that is both antibacterial and UV-resistant, featuring integrated angle displays and control buttons.
Are the casters suitable for quiet environments?
Yes, the luxury center console casters are made of superior polyurethane material, offering quiet operation, wear resistance, and anti-winding properties.
