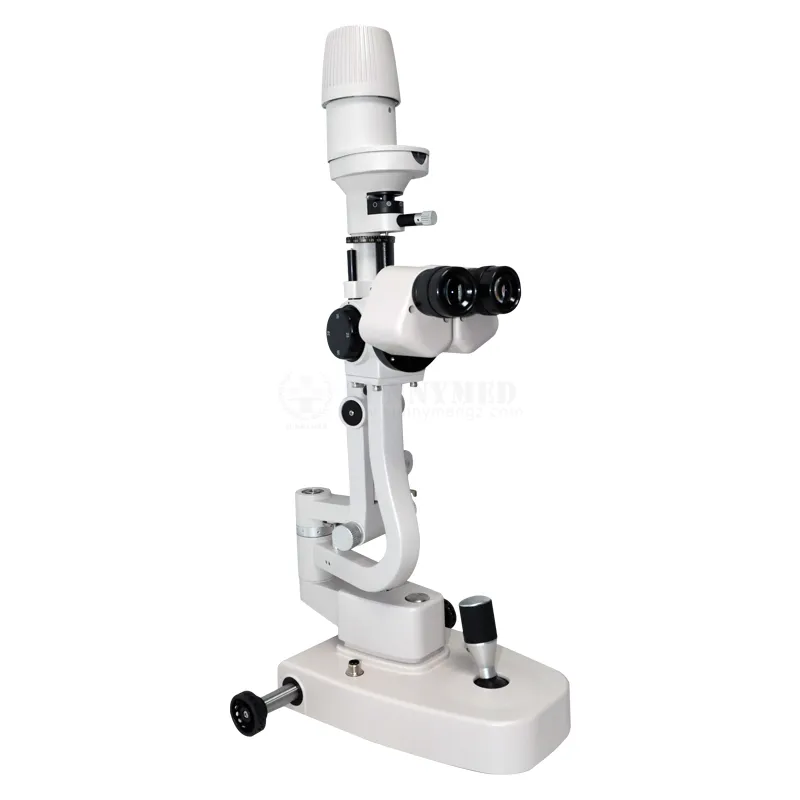

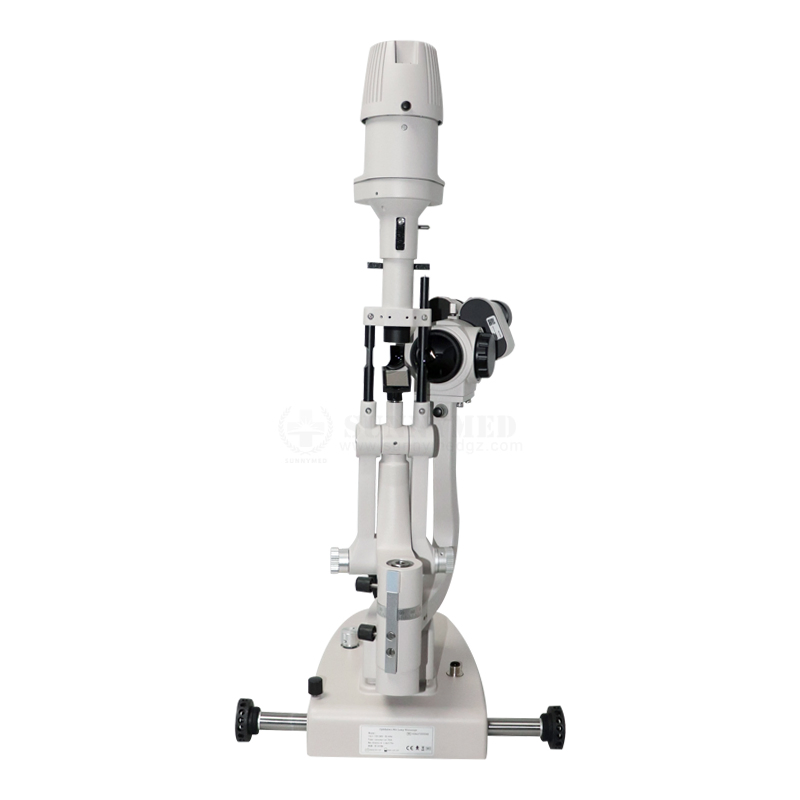

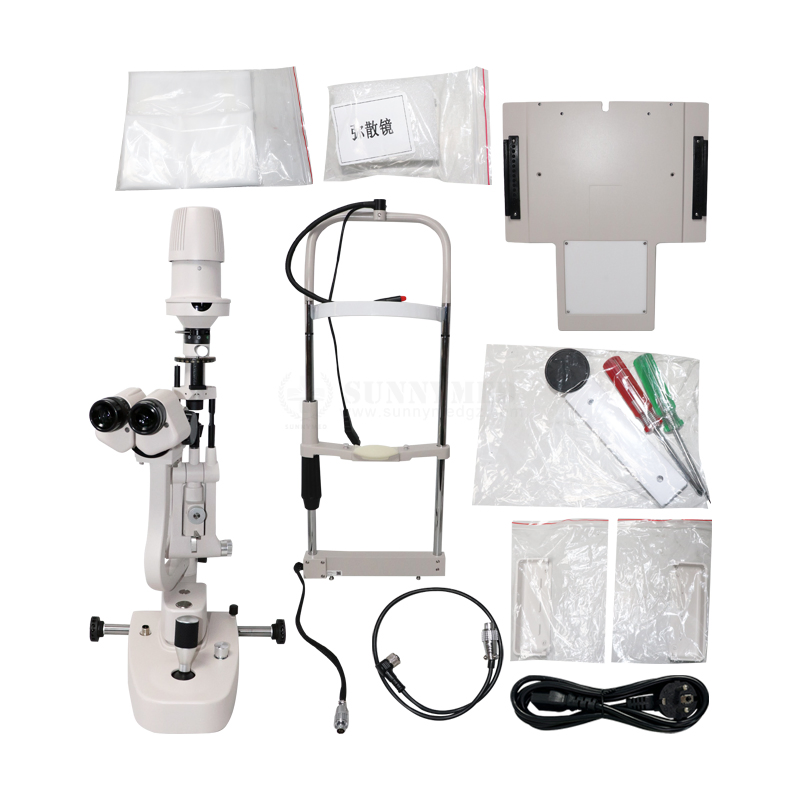

The SY-V003-1 Ophthalmic Equipment Optical Slit Lamp Microscope is a professional tower-type slit lamp designed with a high-performance 3000K color temperature LED light source. This system provides outstanding optical quality, ensuring a clear and comfortable view for diagnostic examinations.
| Model | S5 (SY-V003-1) |
| Illumination Type | Top Illumination |
| Light Source | Imported LED Lamp (60,000 Lux Max) |
| Microscope Type | Parallel type, Galilean system |

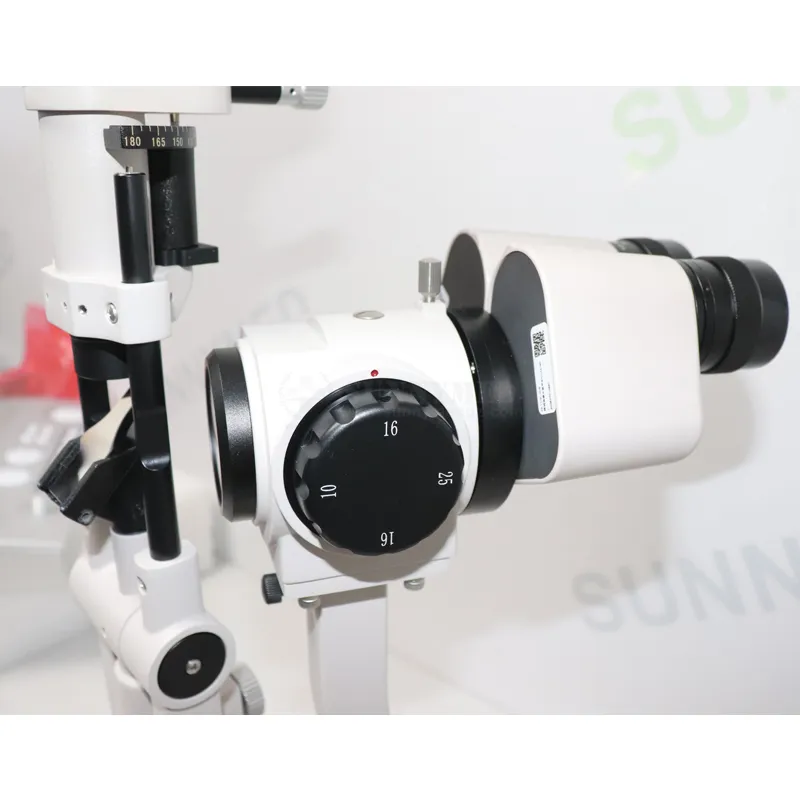

| Magnification Steps | 6X, 10X, 16X, 25X, 40X |
| Eyepiece | 12.5X |
| Visual Field Diameter | 6X: 33mm | 10X: 22mm | 16X: 14mm | 25X: 8.5mm | 40X: 5.5mm |
| Slit Width/Length | 0mm~14mm continuous |

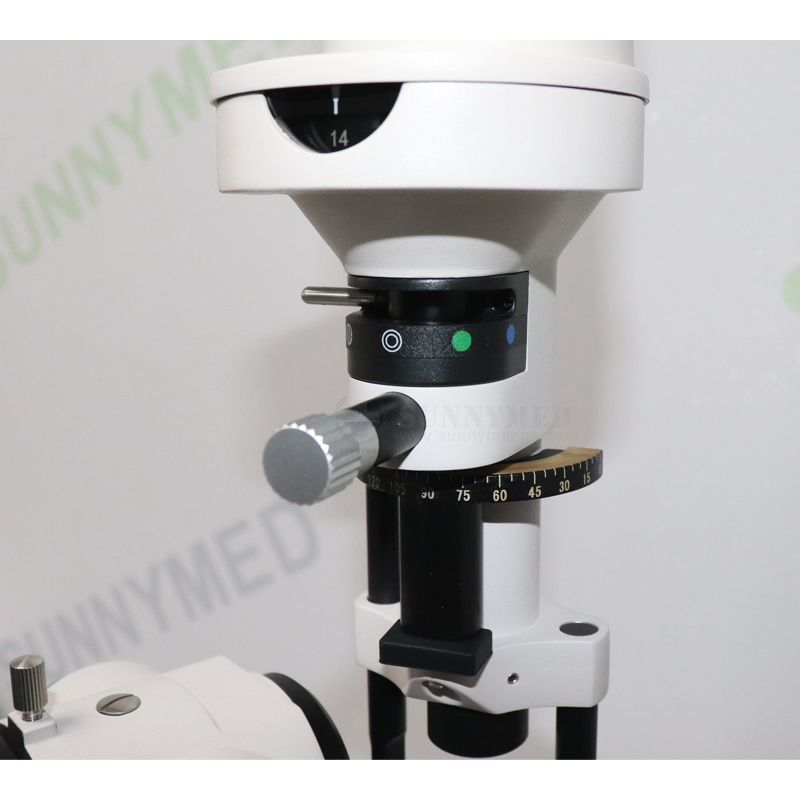

| Slit Image Angle | 0~180° continuous rotation |
| Diopter Adjustment | -7D ~ +7D |
| Pupil Range | 52mm ~ 82mm |
| Input Power | 100V~240V, 48~62HZ |

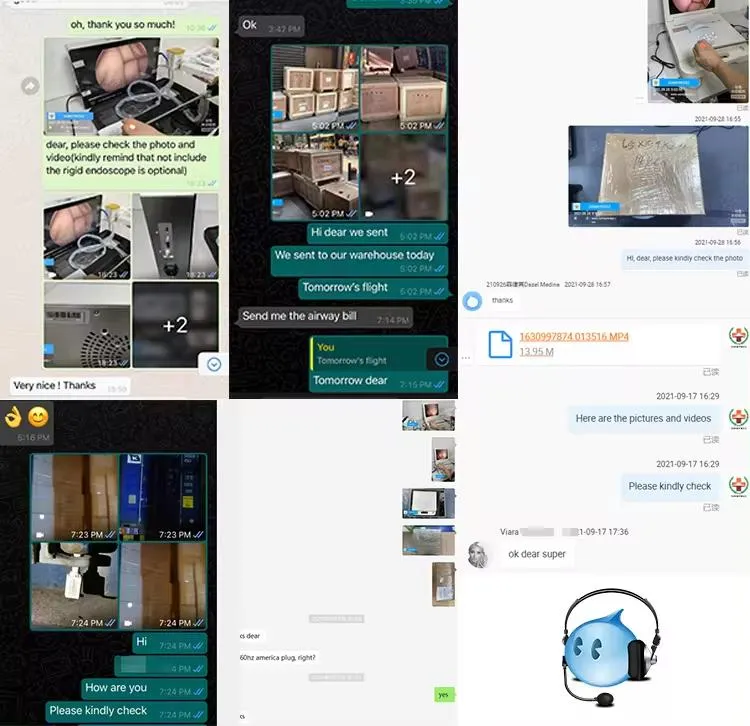

We provide comprehensive support including video tutorials for installation, operation, and maintenance. Every order undergoes a strict one-to-one inspection process before delivery to ensure the highest safety standards.
