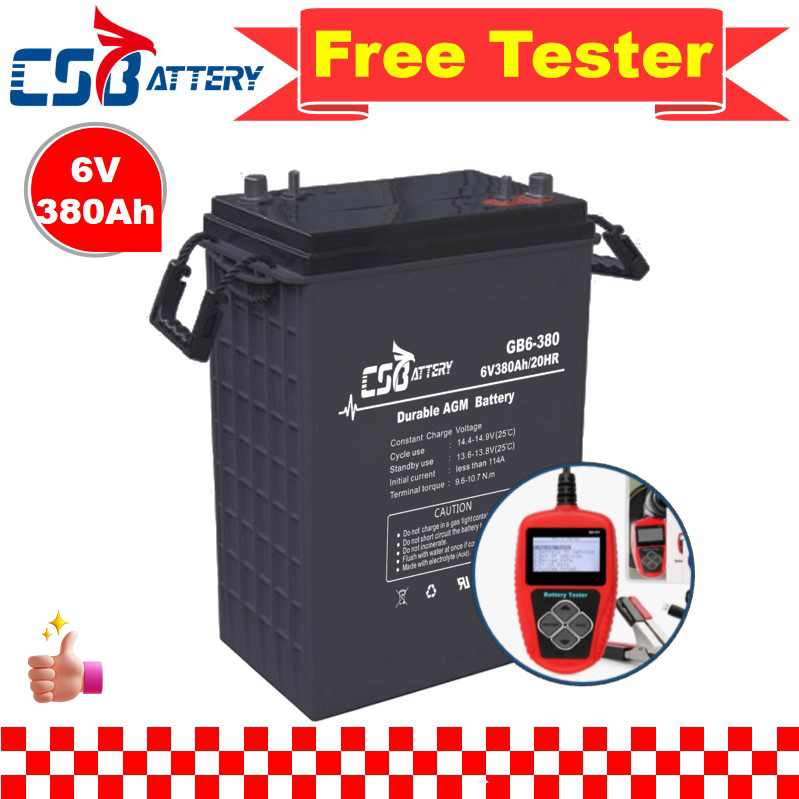

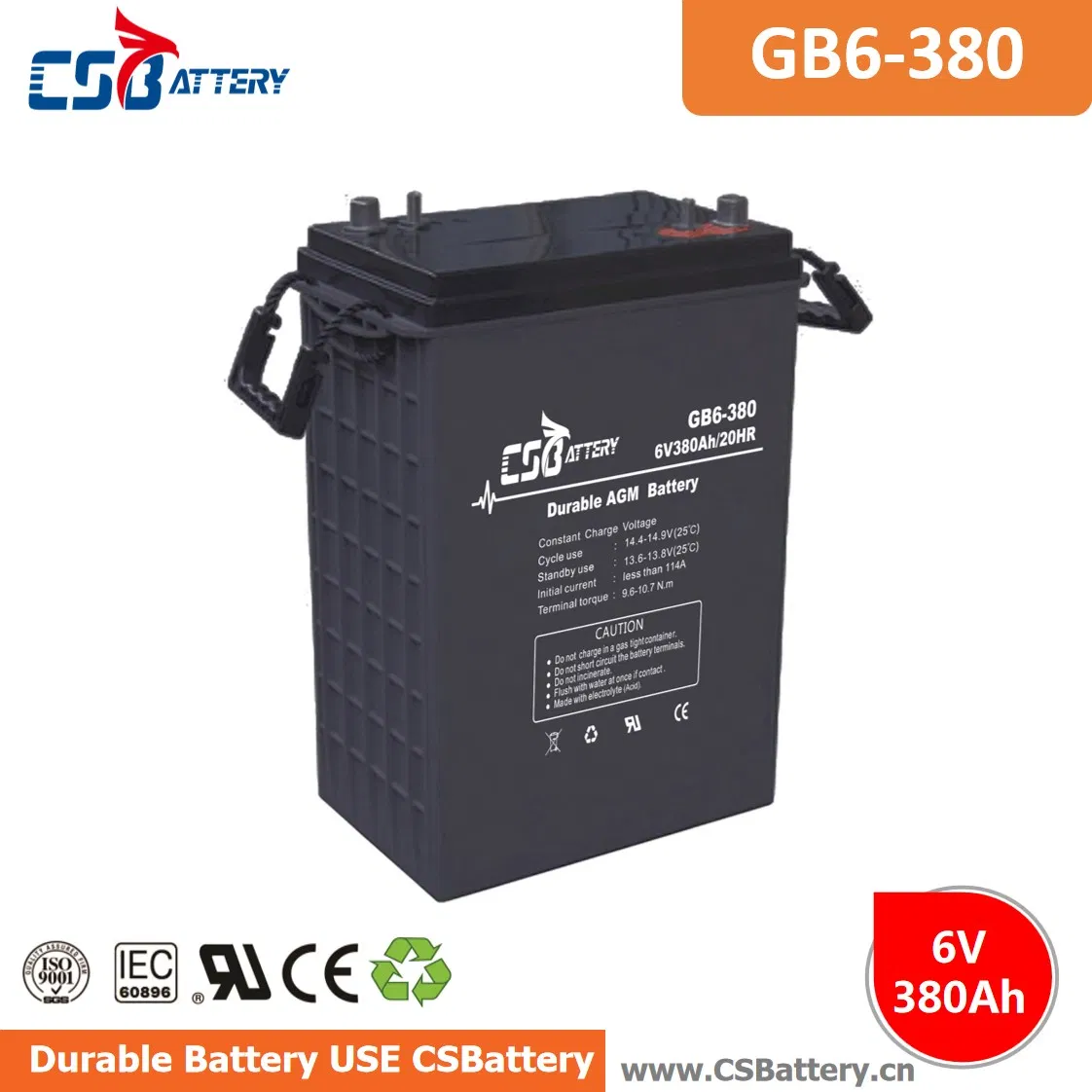

Csbattery 6V380ah SLA AGM Bateria for Telecom-System/Medical-Equipment/Alarm/Toys

1 / 5

Csbattery 6V380ah SLA AGM Bateria for Telecom-System/Medical-Equipment/Alarm/Toys

Customization:	Available
Type:	Durable AGM Lead Acid Battery
Usage:	UPS,Electric Power, Lighting, Boat

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

GB6-380

Nominal Voltage

Discharge Rate

0.2-0.5c

Shape

Block

Electrolyte

AGM+Acid

Capacity

380Ah

Size

295*178*404*410mm

Net Weight

55.3 kg

Terminal

M5/M6/M8

Certificates

CE, IEC, ISO

Warranty

1 Year

Casing

ABS or UL94 Fire Resistance

🔋

Product Overview

GB SERIES SEALED FREE MAINTENANCE VRLA AGM BATTERY

Designed for high-capacity storage and repeated deep discharge cycles. These batteries feature heavy non-porous plates and a specialized electrolyte formula, providing 30% higher cyclic life compared to standard ranges.

10 years designed floating service life
Excellent deep discharge recovery
Wide operating temperature: -20°C to 50°C
Low self-discharge rate (3% per month)
Up to 700 cycles at 50% DOD

📊

Technical Specifications & Models

Model	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Net Weight (kg)	Terminal
GB6-180	6	180/10HR	260	180	247	27.5	M8
GB6-200	6	200/10HR	260	180	247	29.5	M8
GB6-225D	6	225/20HR	243	187	275	30.5	M8
GB6-330D	6	330/20HR	295	178	354	46.6	M8
GB6-380D	6	380/20HR	295	178	404	55.3	M8
GB6-420D	6	420/20HR	295	178	404	56.8	M8

🛠️

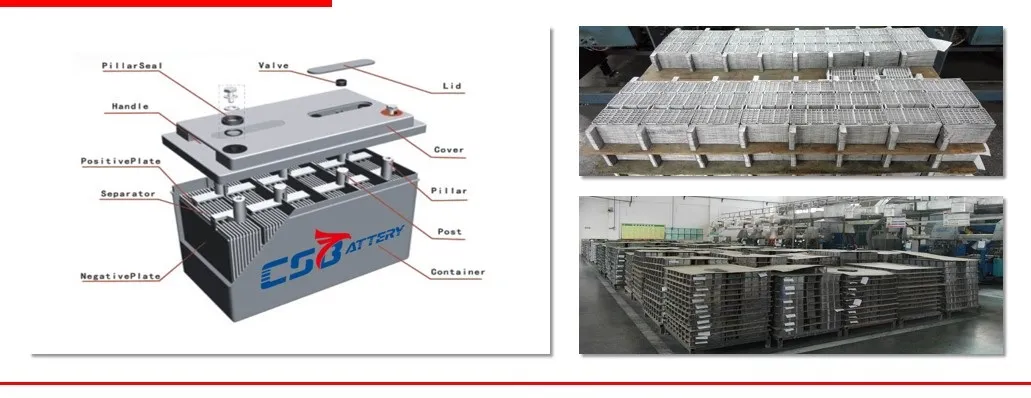

Advanced Construction

Positive Plate: Thick high Sn low Ca grid with special paste

Negative Plate: Balanced Pb-Ca grid for recombination efficiency

Separator: Advanced AGM/PVC for high pressure design

Electrolyte: Nano GEL or Dilute high purity sulfuric acid

Container: Fire resistance ABS (UL94-V0 optional)

Pillar Seal: Two layers epoxy resin seal

🖼️

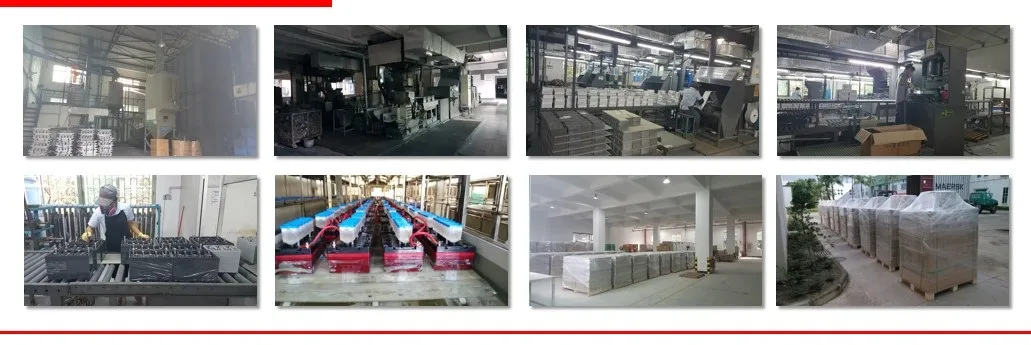

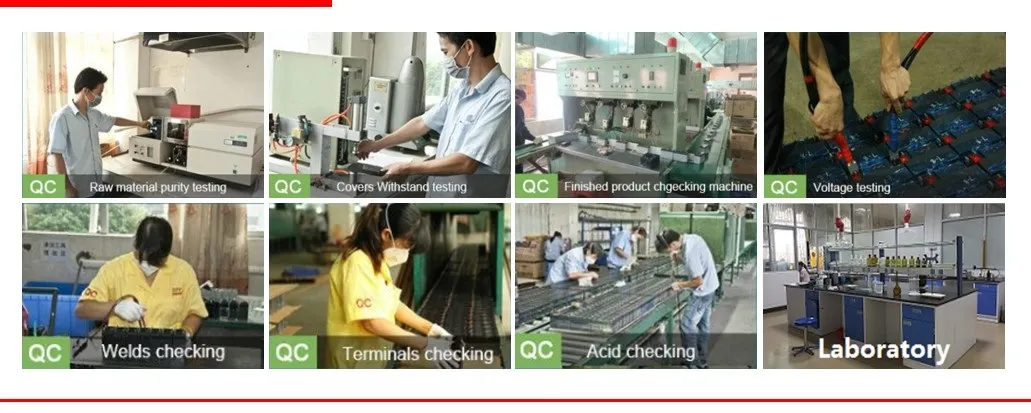

Production & Quality Control

🏭

Applications & Manufacturing

Widely used in: Electric Vehicles, Golf Carts, Wheelchairs, Medical Equipment, UPS Systems, Telecom BTS Stations, Solar and Wind Energy Storage, and Security Systems.

❓

Frequently Asked Questions

Can the batteries be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.

Can I fast charge my battery?

Fast charging is not recommended as it can be harmful to the battery's internal structure and overall lifespan.

Can I do a partial replacement of my battery bank?

Partial battery replacement of lead-acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.

What is the typical delivery time?

Usually about 7 days for stock products, around 20 days for partial containers, and 30 days for full 20ft container orders.

What is the shelf life of a VRLA battery?

VRLA batteries self-discharge less than 3% per month at 25°C. They should not be stored for more than 6 months without a recharge. In hot climates, recharge every 3 months.

Why does the battery have different capacities at different hour rates?

Capacity is dynamic and depends on the discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Ah than a high discharge current (like a 2-hr rate).
