GB SERIES SEALED FREE MAINTENANCE VRLA AGM BATTERY
Voltage: 12V | Capacity: 12V15Ah~12V250Ah
Designed floating service life: 8-10 years @ 25 °C/77 °F.

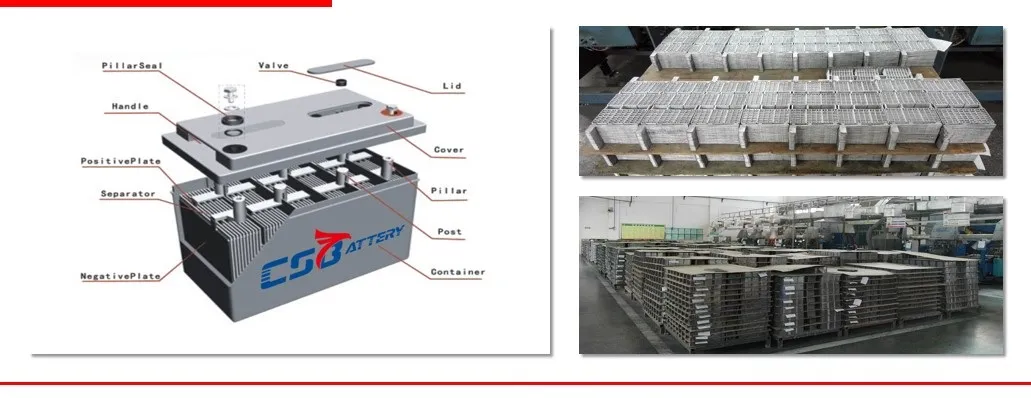

Features and Advantages:
| Component | Positive Plate | Negative Plate | Container | Separator | Electrolyte |
|---|---|---|---|---|---|
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Advanced AGM | Dilute high purity sulfuric acid |
| Nominal Voltage | 12V (6 cells per unit) |
| Design Floating Life @ 25ºC | 5 Years |
| Nominal Capacity @ 25ºC | 7.5Ah (20 hour rate) |
| Internal Resistance | ≤21.0mΩ (Full Charged) |
| Max. Discharge Current | 45A (5s) @ 25ºC |
| Self-Discharge @ 25ºC | 3% per Month |
| Operating Temperature | -15ºC to 45ºC |
Primary Applications:
Electric Powered Vehicles, Golf Cars, Wheel Chairs, Power Tools, Control Systems, Medical Equipment, UPS Systems, Inverter Systems, Servers, Telecom, Emergency Systems, and Security Systems.
