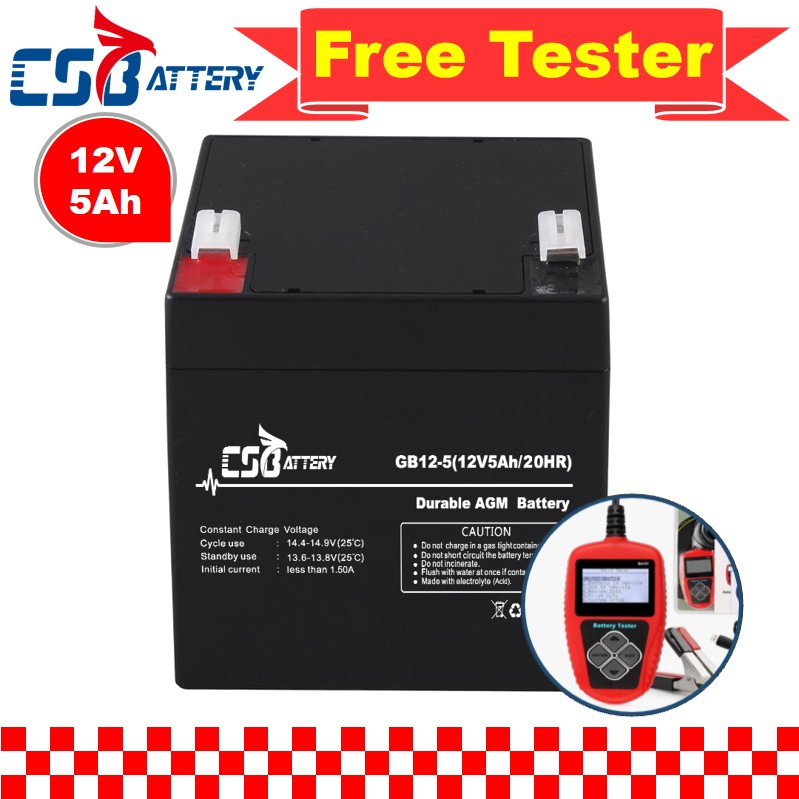

Csbattery 12V5ah Small Size AGM Bateria for Electronic-Scale/Medical-Electronic-Equipment/Fire

1 / 5

Csbattery 12V5ah Small Size AGM Bateria for Electronic-Scale/Medical-Electronic-Equipment/Fire

Customization:	Available
Type:	Durable AGM Lead Acid Battery
Usage:	UPS,Electric Power, Lighting, Boat

Send Inquiry

Product Description

GB SERIES SEALED FREE MAINTENANCE VRLA AGM BATTERY

Voltage: 12V | Capacity: 12V15Ah ~ 12V250Ah

Designed Floating Service Life: 8-10 years @ 25 °C/77 °F

Basic Information

Model NO.

GB12-5

Nominal Voltage

12V

Capacity

5Ah

Electrolyte

AGM+Acid

Size

90*70*101*107mm

Net Weight

1.58 kg

Warranty

1 Year

Certificates

CE, IEC, ISO

Features & Advantages

These lead acid batteries are designed with heavy non-porous plates to withstand repeated major discharging and charging cycles. The GB range features 30% higher cyclic life compared to standard ranges.

✔30% more cyclic life through innovation at PAM additives

✔Long life expectancy of 10 years in floating condition

✔Wide operating temperature range: -20 °C to 50°C

✔Low self-discharge rate: Only 3% per month

✔Excellent deep cycle performance: up to 700 cycles @50% DOD

✔Excellent deep discharge recovery capability

Technical Specifications (GB12-5)

Item		Specification
Nominal Voltage		12V (6 cells per unit)
Design Floating Life @ 25ºC		5 Years
Capacity @ 25ºC	20 hour rate	5Ah
	10 hour rate	4.80Ah
	1 hour rate	3.3Ah
Internal Resistance		≤30.0mΩ (Full Charged)
Max. Discharge Current		30A (5s)
Charge Voltage @ 25ºC	Standby Use	13.6 - 13.8V
Charge Voltage @ 25ºC	Cycle Use	14.4 - 14.9V

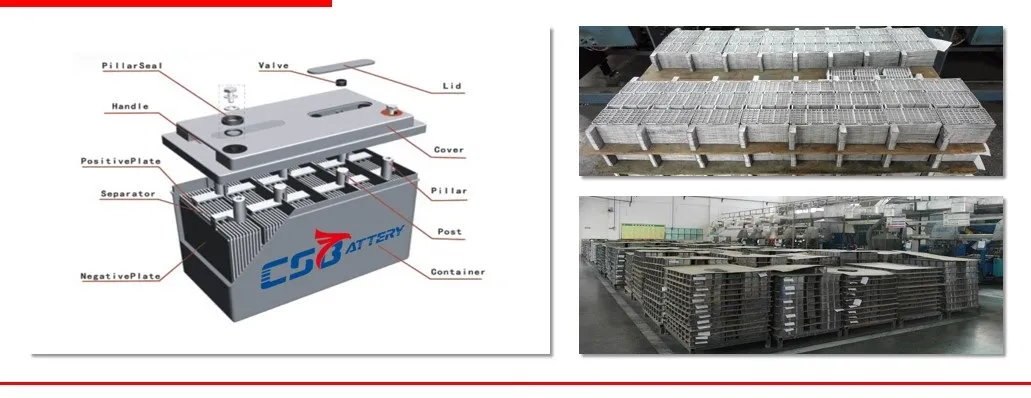

Product Structure

Component	Positive plate	Negative plate	Container	Separator	Electrolyte
Features	Thick high Sn low Ca grid	Balanced Pb-Ca grid	Fire resistance ABS	Advanced AGM	Dilute sulfuric acid

Applications

Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Servers, Telecom, Emergency systems, Security systems.

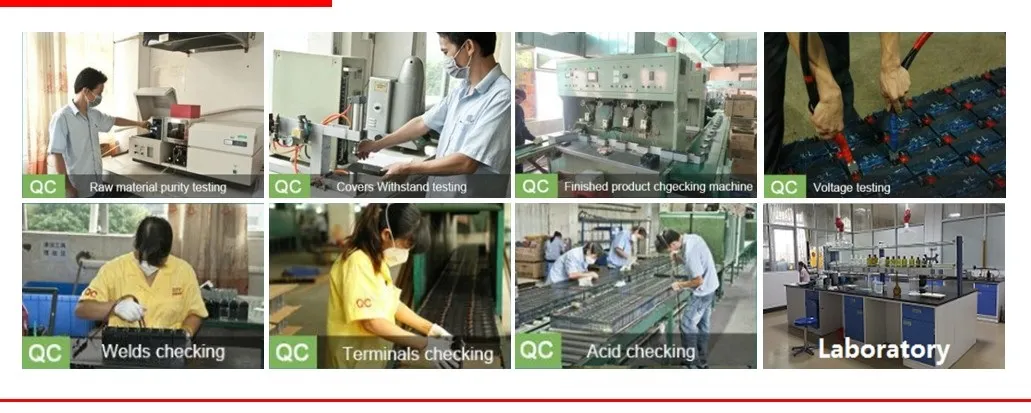

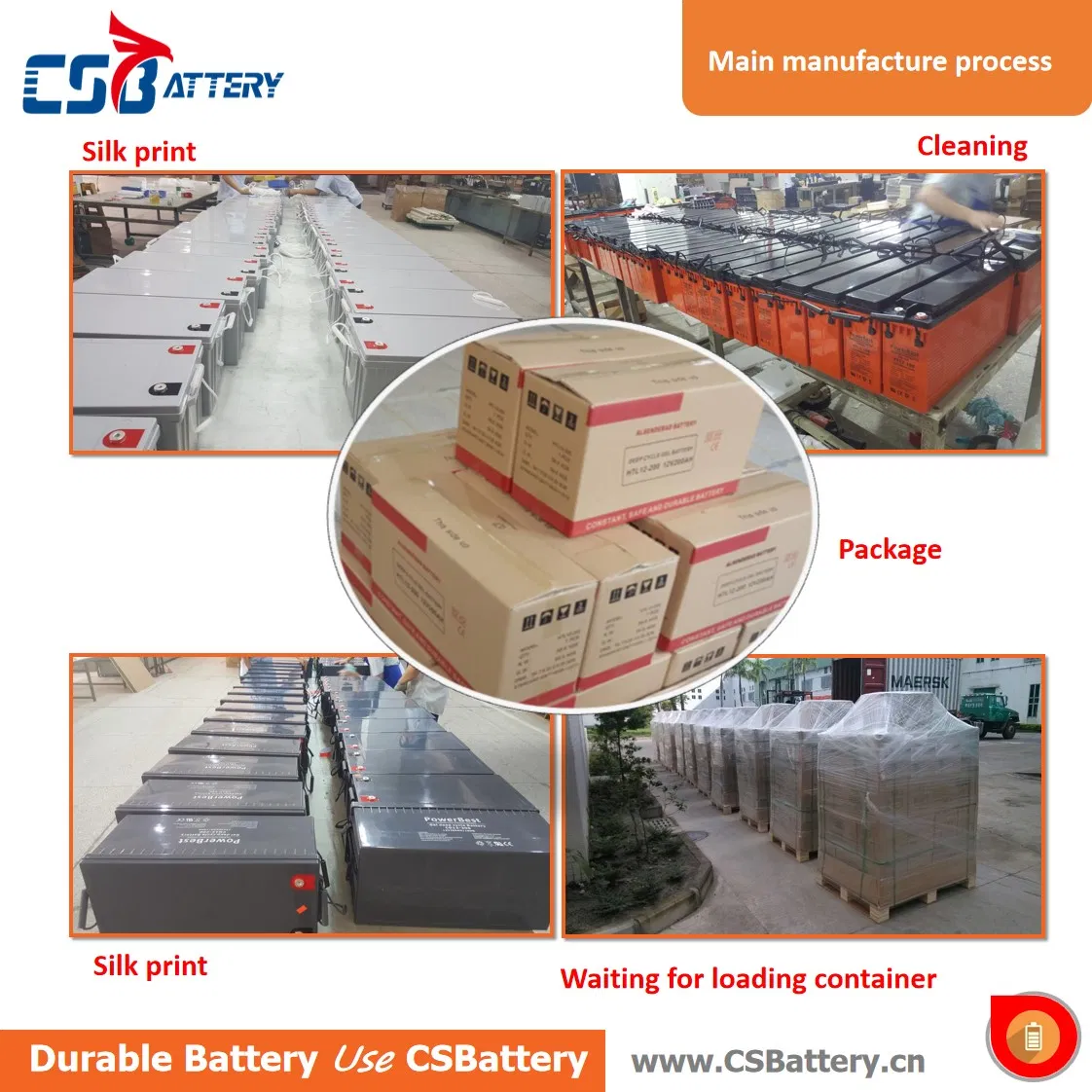

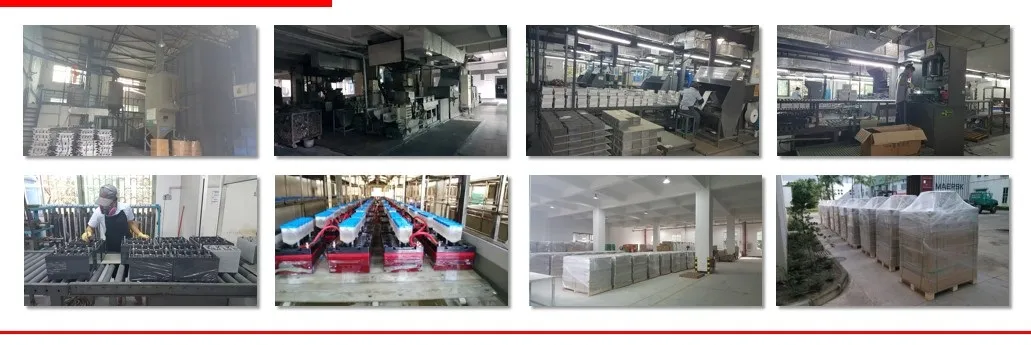

Manufacturing & Quality Control

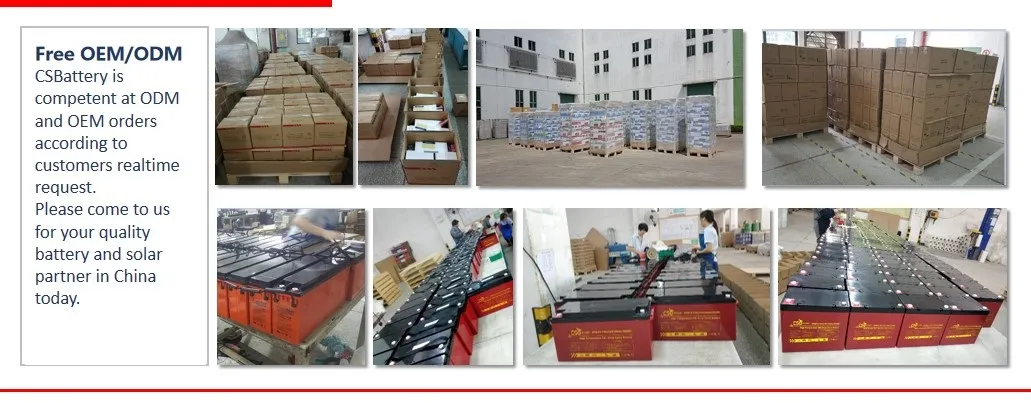

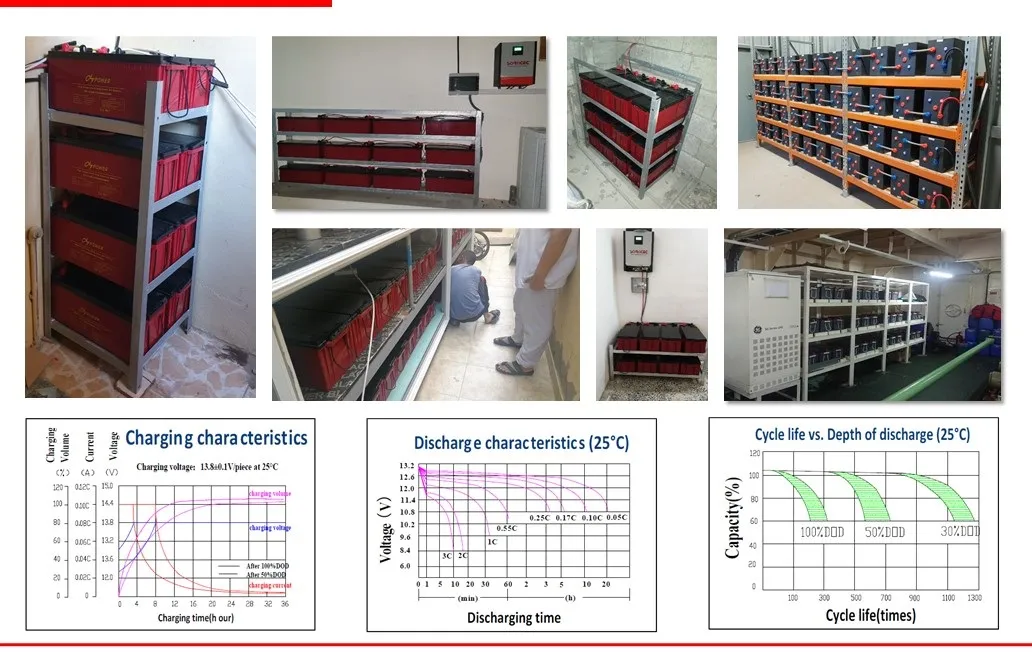

Packing & Projects

Frequently Asked Questions

Can the battery be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.

Can I fast charge my battery?

Fast charging is not recommended as it can be harmful to the battery's long-term health and performance.

Can I do a partial replacement of my battery banks?

Partial battery replacement of lead acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.

What is the typical delivery time?

Usually about 7 days for stock products, around 20 days for half-container orders, and 30 days for 20ft full container products.

How should I maintain the VRLA battery during storage?

VRLA batteries should not be stored for more than 6 months at 25°C without recharging. In hot temperatures, it is recommended to recharge every 3 months.

Why does the battery have different capacities at different hour rates?

Capacity is dependent on the discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Amp-hours than a high discharge current (like a 2-hr rate).
