650-1050mm Height Adjustable Hospital Patient Electric Transport Trolley Bed

Customization: Available
Material: Metal
Wheel Type: Swivel Casters

Product Description

📋 Basic Information
Model NO.
BD26D
Type
Transfer Stretcher
Feature
Easy Cleaning
Color
White+Black
Condition
New
Range of Height
650mm-1050mm
Movement Distance
600mm
Equipment Weight
300kg
Movement Speed
30mm/S
Max Load
250kg
Power Supply
AC220V, 50Hz
Storage Battery
(12V,13ah)*2
Transport Package
Wooden Export Package
Specification
CE, ISO
HS Code
94029000
Production Capacity
500 Sets/Month
🔍 Product Description
Electric Transport Trolley Bed

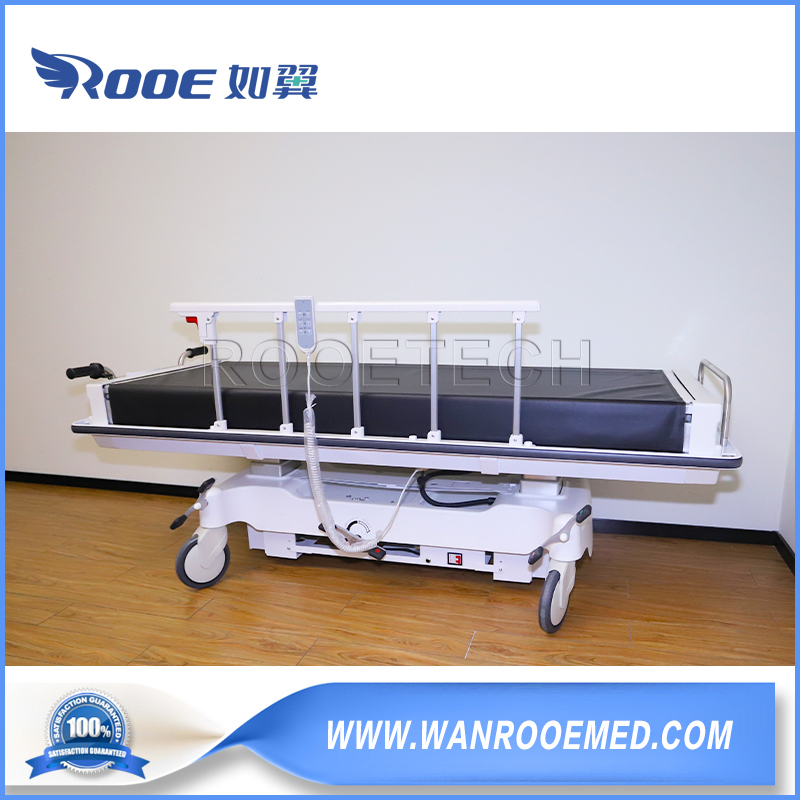

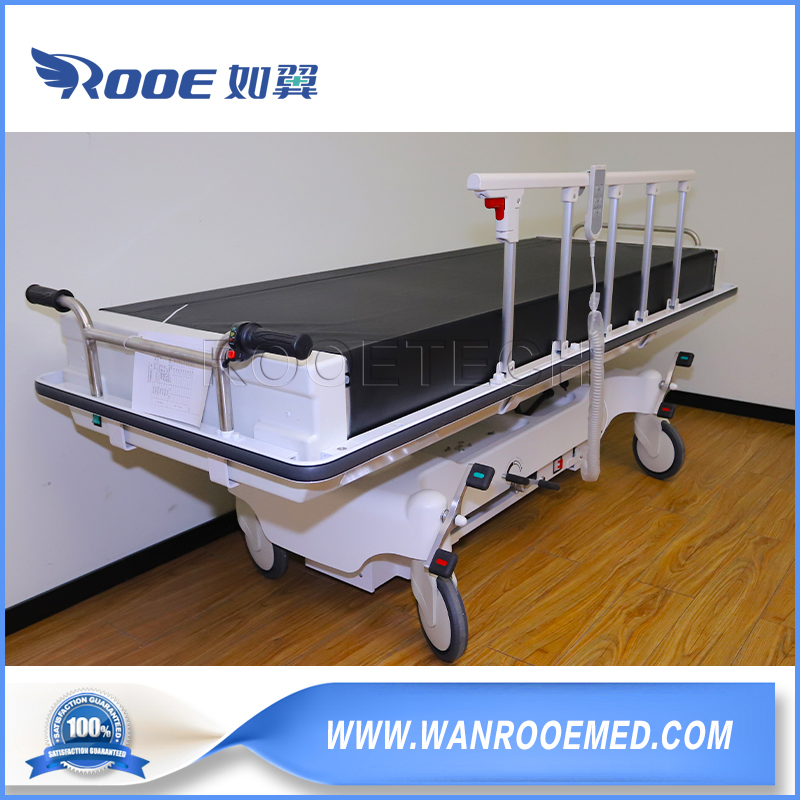

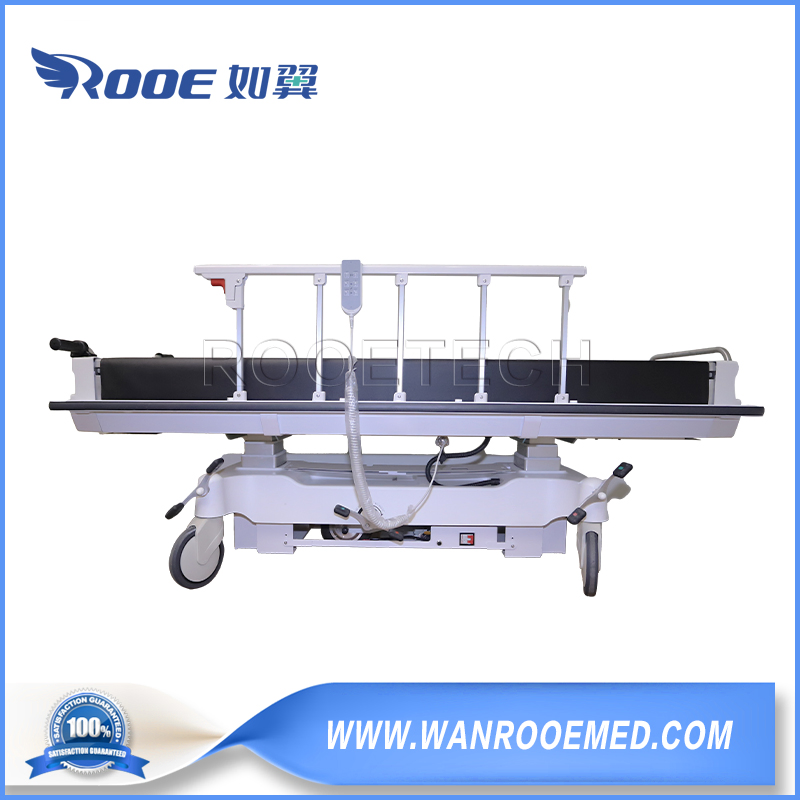

650-1050mm Height Adjustable Hospital Patient Electric Transport Trolley Bed

Key Features:

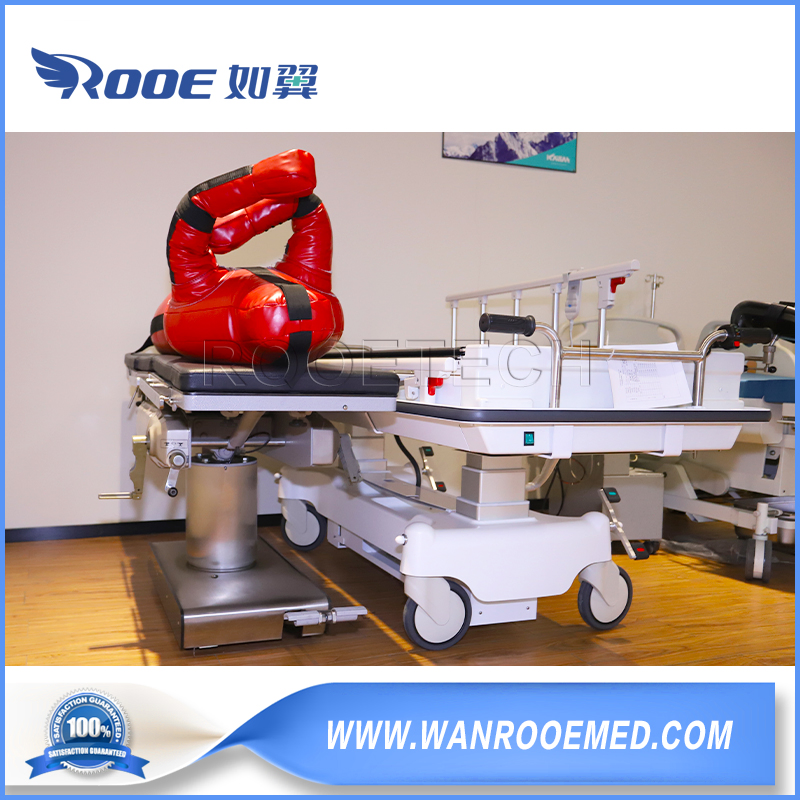

  • Used to transfer the patient automatically between the hospital bed & operating theatre.
  • Reducing the risk of injury to the patient & operator.
  • The height can be adjusted to all platforms in the hospital.

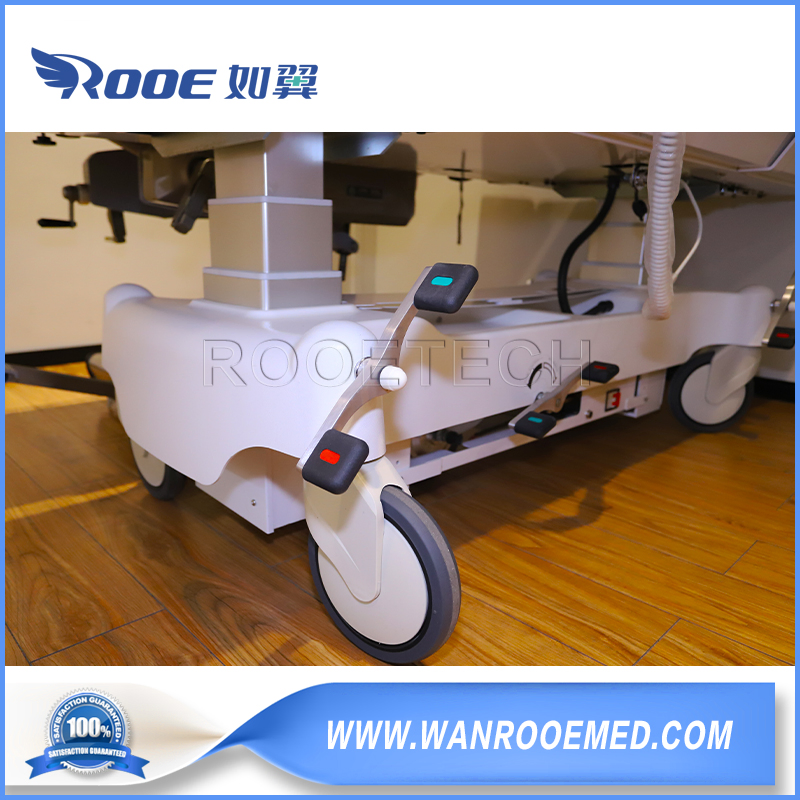

  • The foot brake controls all 4 castors that can be locked into position during a transfer procedure.
  • Matched with direction castor under the chassis, help user easy control the direction.
  • The safety side rails allow an easy on/off transfer.
  • Double column linak lift motor with an easy to use hand control.

🚀 Application:

  • Rapid transfer between the operating room and the ward.
  • Examination and transportation of critically ill patients (such as CT/MRI).
  • Smooth transfer of postoperative patients without vibration.
  • Reduce the risk of lumbar strain for medical staff.
📊 Product Parameters
Parameter Item Specifications
Surface dimension (L*W)2140mm*810mm
Range of height650mm-1050mm
Distance of movement board600mm
Equipment weight300kg
Speed of movement board30mm/s
Max load250kg
Storage battery(12V.13AH)*2
Power for chargeAC220V, 50Hz

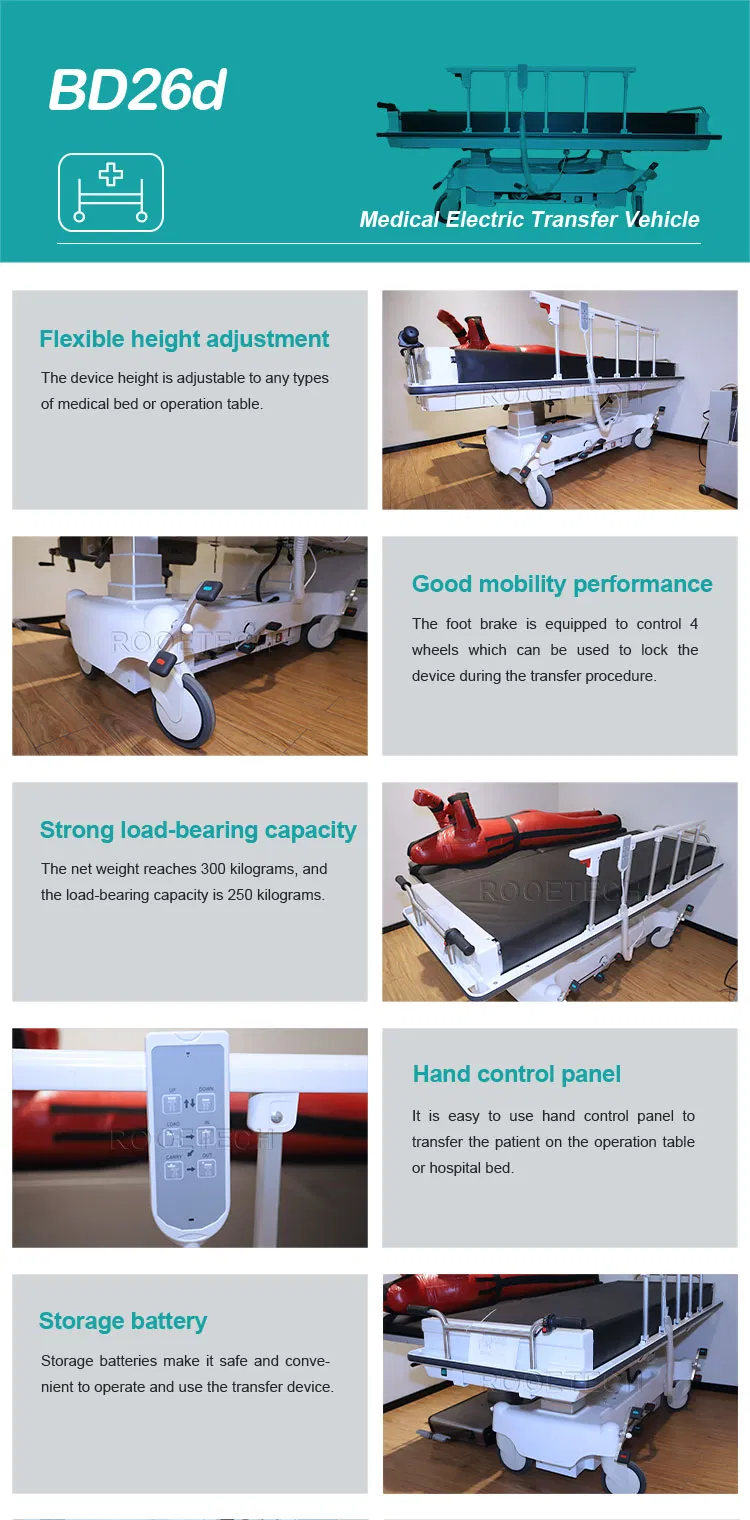

📸 Detailed Photos
Frequently Asked Questions
What is the height adjustment range of this trolley?
The height of the BD26D transport trolley can be adjusted between 650mm and 1050mm, making it compatible with various hospital platforms and beds.
How does the automatic transfer system work?
The trolley features a movement board that can bridge a distance of 600mm at a speed of 30mm/s, allowing for a smooth and vibration-free transfer of patients between surfaces.
What is the maximum load capacity?
This electric transport trolley is designed to safely handle a maximum patient load of 250kg (approx. 550 lbs).
Does it have a backup power system?
Yes, it is equipped with two 12V, 13ah storage batteries, ensuring operational capability even when not connected to the AC220V power source.
How is the trolley controlled during movement?
It uses a foot brake system that controls all four castors for stability during transfer, along with a dedicated direction castor under the chassis for easy steering during transport.
Is the motor system reliable?
The trolley utilizes a high-quality double column Linak lift motor, known for its durability and smooth operation, controlled via a user-friendly hand remote.
