iBed PLR 1 Electric Adjustable Hospital Bed with Integrated Medical Nursing Support

1 / 5

iBed PLR 1 Electric Adjustable Hospital Bed with Integrated Medical Nursing Support

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

iBed PLR 1

Using Ambient

Hospital

Functions

Five-function

Certification

CE, ISO13485

Condition

New

Dimensions

2.35m * 1.15m * 0.87m

Controller

LCD / Touch Screen

Special Feature

Blood Volume Assessment

Casters

Silent Central Locking Casters

HS Code

9402900

Production Capacity

12,000 PCS/Year

Product Description

This advanced electric hospital bed is designed for high-end wards and ICU environments, focusing on critical care nursing and patient safety. It features intelligent automation and high-strength construction to support medical staff and improve patient outcomes.

Core Functions & Positioning

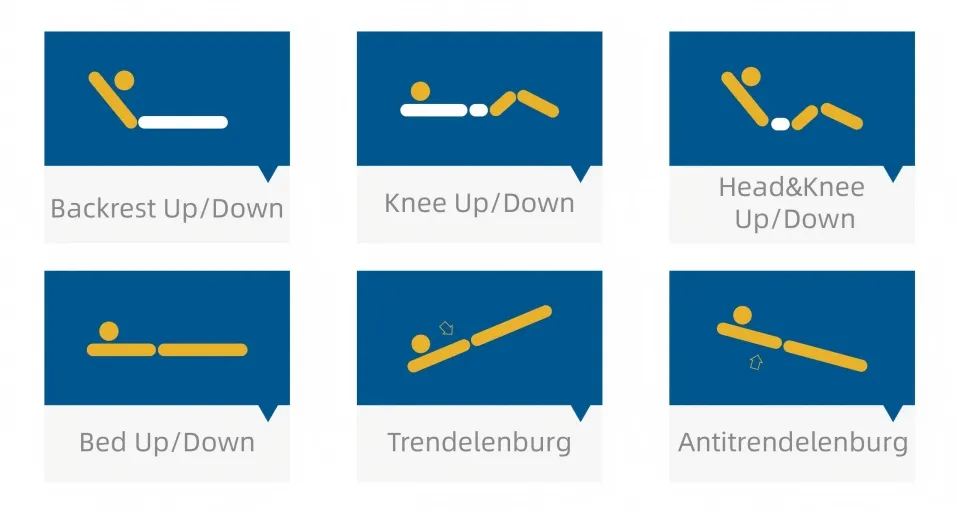

Electric Adjustments: Backrest Up/Down, Knee Up/Down, Trendelenburg, and Antitrendelenburg.

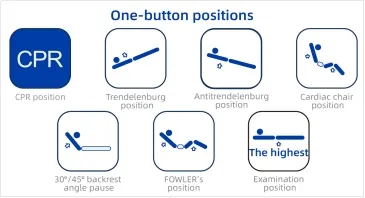

One-Button Control: Cardiac chair, CPR, Fowler, and Examination positions.

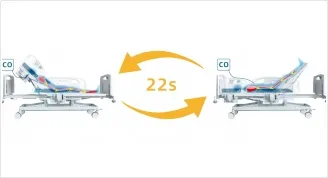

Standard PLR Position: Achieved in 22 seconds for easy fluid responsive assessments.

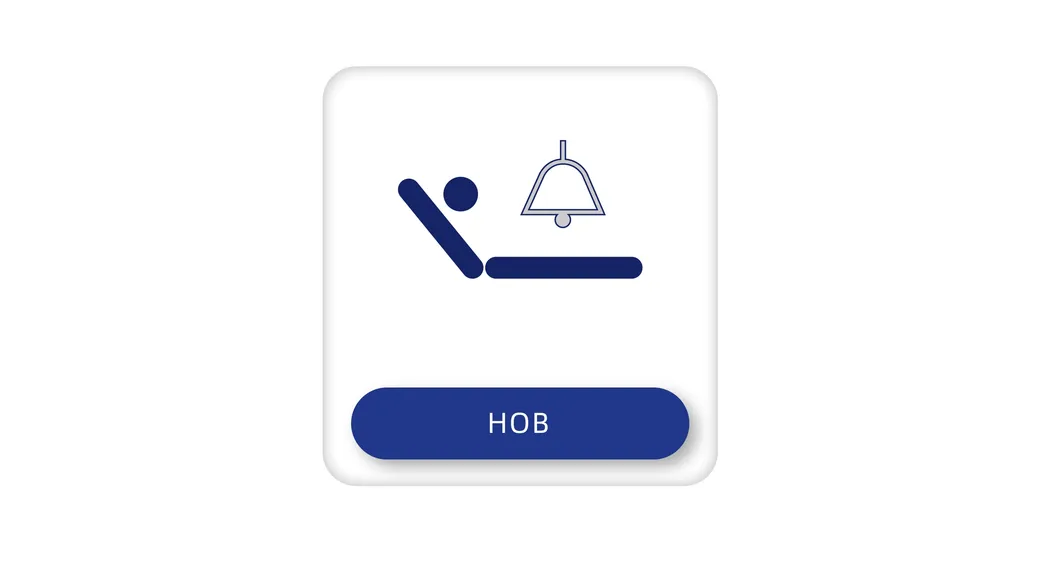

HOB Monitoring: Regularly checks back-board angle (30-45°) with voice broadcast alerts.

Safety & Design Features

Auto-Rollback: Reduces displacement and shear force during adjustment.
Safe Guardrails: High-strength structure; cannot be unlocked by patient force.
Manual CPR Levers: Dual-sided with damping device for controlled descent.

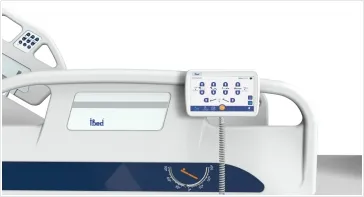

7-inch Touch Screen: Supports multi-language operation (Chinese/English).

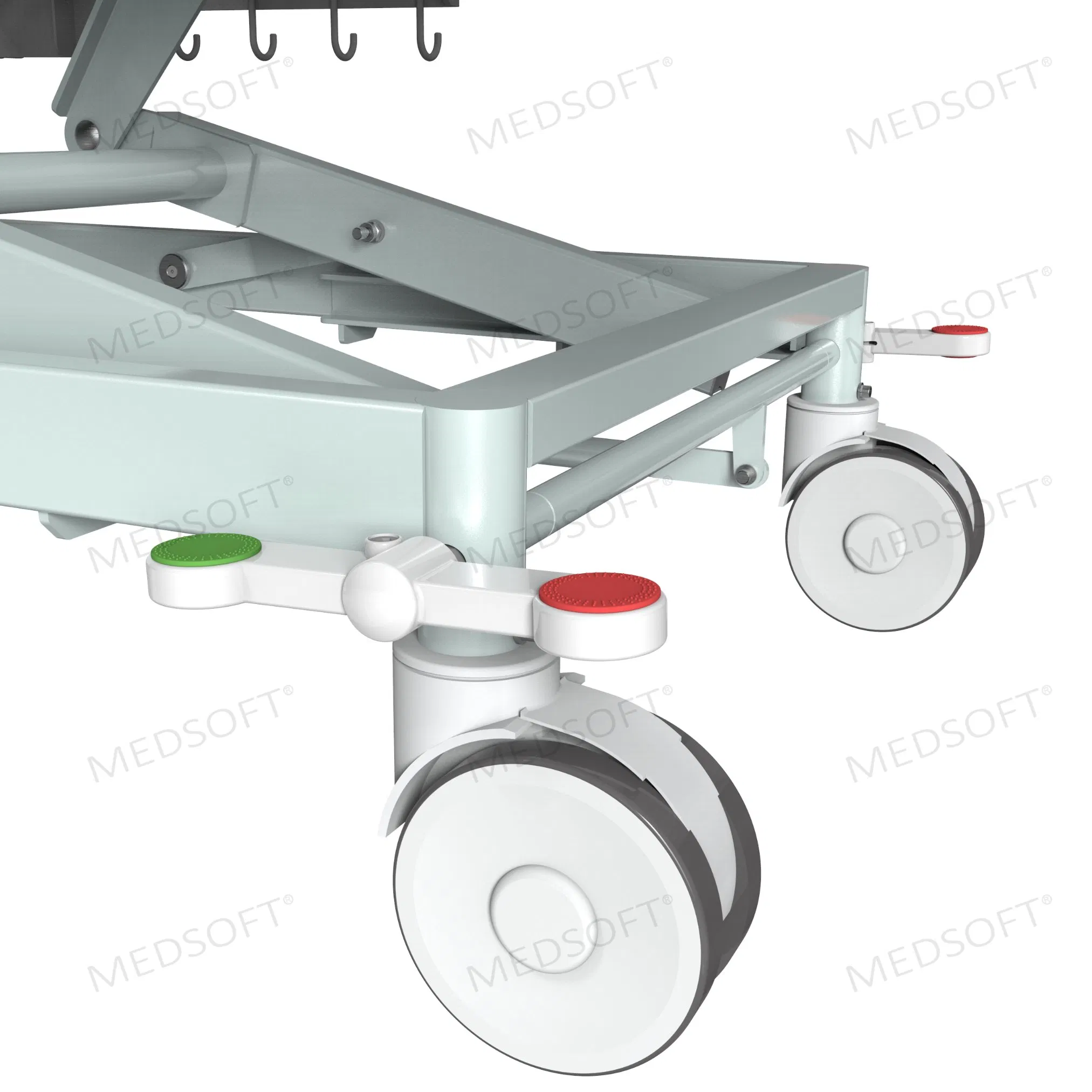

Central Locking: Four-wheel linkage system for easy steering and locking.

Technical Parameters

Parameter	Dimension / Specification
Overall Size (LWH)	22001035(415-785)mm
Mattress Platform	2000*811mm
Safe Working Load	230kg
Backrest Adjustment	0-70°
Knee Adjustment	0-45°
Trendelenburg / Antitrendelenburg	0-16°
Linear Motors	5 Pcs (Linak Denmark)
Drainage Hooks	14 Pcs (7 per side)
Patient Restraint Points	12 Fixation sites

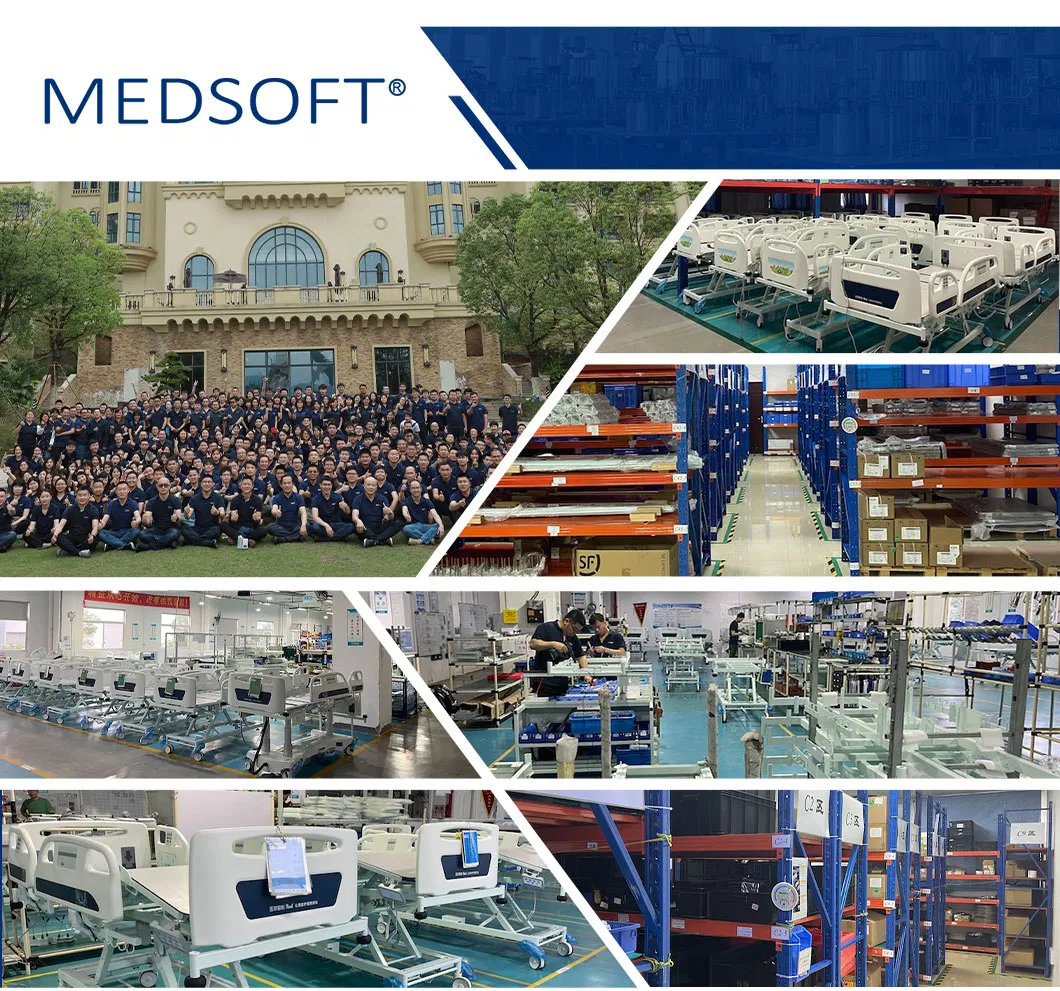

Quality Control & Materials

Linak Motors: High-stability motors from Denmark (UL/ROHS/EN standard).
Premium Steel: Sourced from Fortune Global 500 Baosteel.
Epoxy Coating: ASTM anti-bacterial testing, 0.12mm thickness, impact resistant.
Precision Welding: 360° robotic smooth welding for structural integrity.
Durability: Brake system tested for 10,000 uninterrupted cycles.

Critical Care Solutions

We focus on four professional lines to enhance patient survival rates and nursing efficiency:

Critical Microcirculation: Real-time monitoring tools.

Critical Care Nursing: Intelligent workflow systems.

Critical Respiratory: Optimized ventilation technologies.

Critical Information: AI-driven data platforms.

Frequently Asked Questions

Q1. Can I get a sample for evaluation?

Yes, samples are available for quality verification.

Q2. Is OEM/ODM customization supported?

Yes, we support custom logos and designs on our products.

Q3. Are you a direct manufacturer?

Yes, we are a professional manufacturer with a dedicated production facility.

Q4. What is your monthly production capacity?

Our facility has a capacity of approximately 1,000 beds per month.

Q5. How long is the delivery time?

Standard products in stock are typically shipped within 7 days.

Q6. Do the beds comply with international safety standards?

Yes, all products meet CE, ISO13485, and IEC60601 safety standards.
