Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed

1 / 5

Hydraulic Pump for Manual Hospital Medical Adjustable Clinical Patient Rehabilitation Nursing Care Therapy Treatment Massage Examination Bed

Material:	OEM
Type:	Hydraulic
Folded:	as Required

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

Using Ambient

Hospital

Functions

As Required

Certification

Condition

New

Transport Package

Plywood Case

Specification

OEM & ODM

Trademark

HS Code

8412210000

Production Capacity

50000 PCS / Year

📦 Product Description

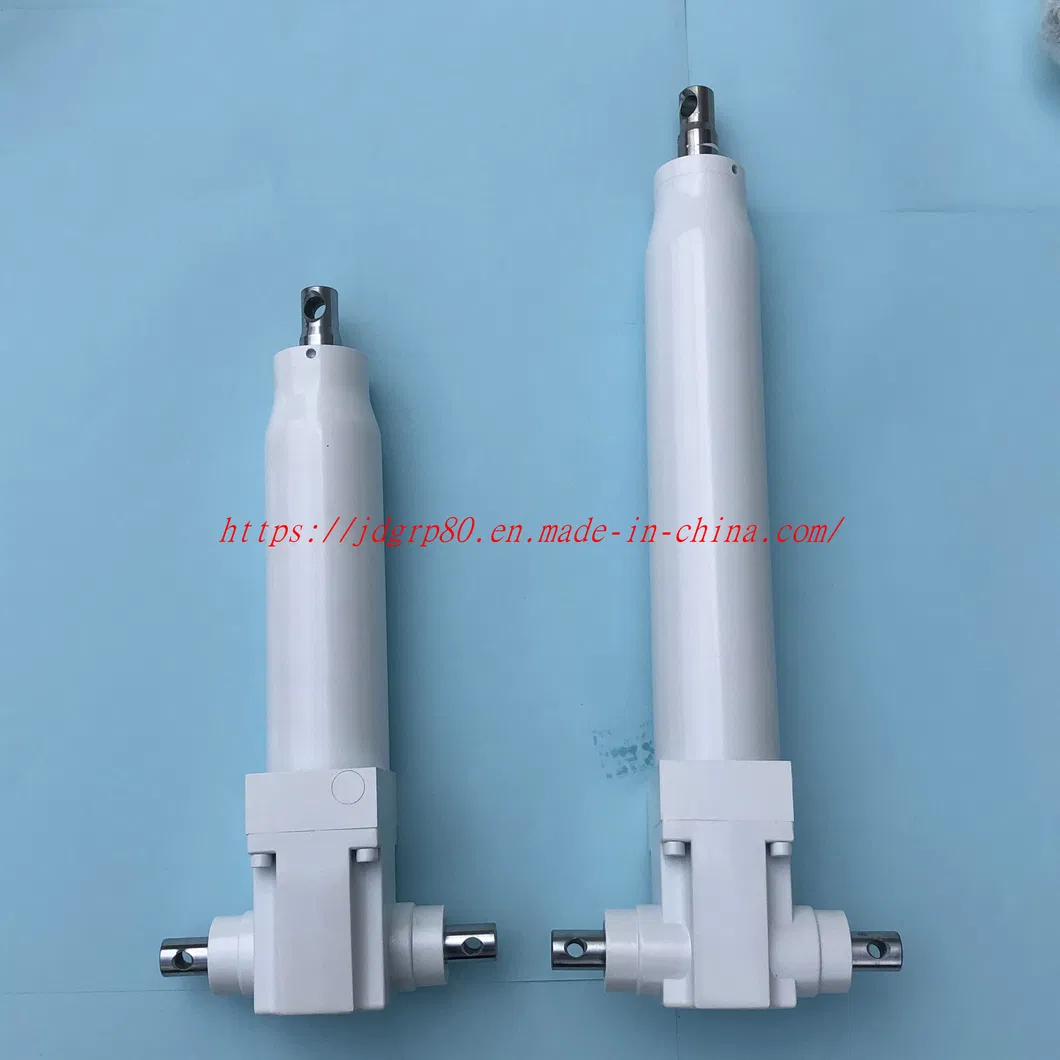

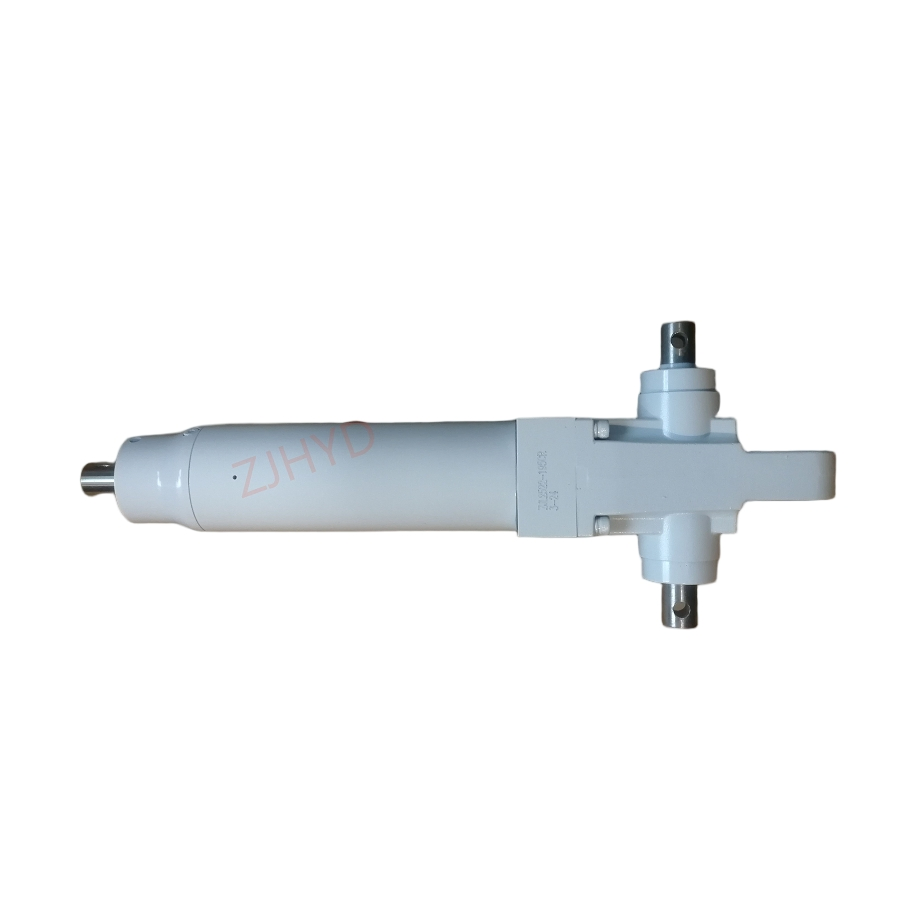

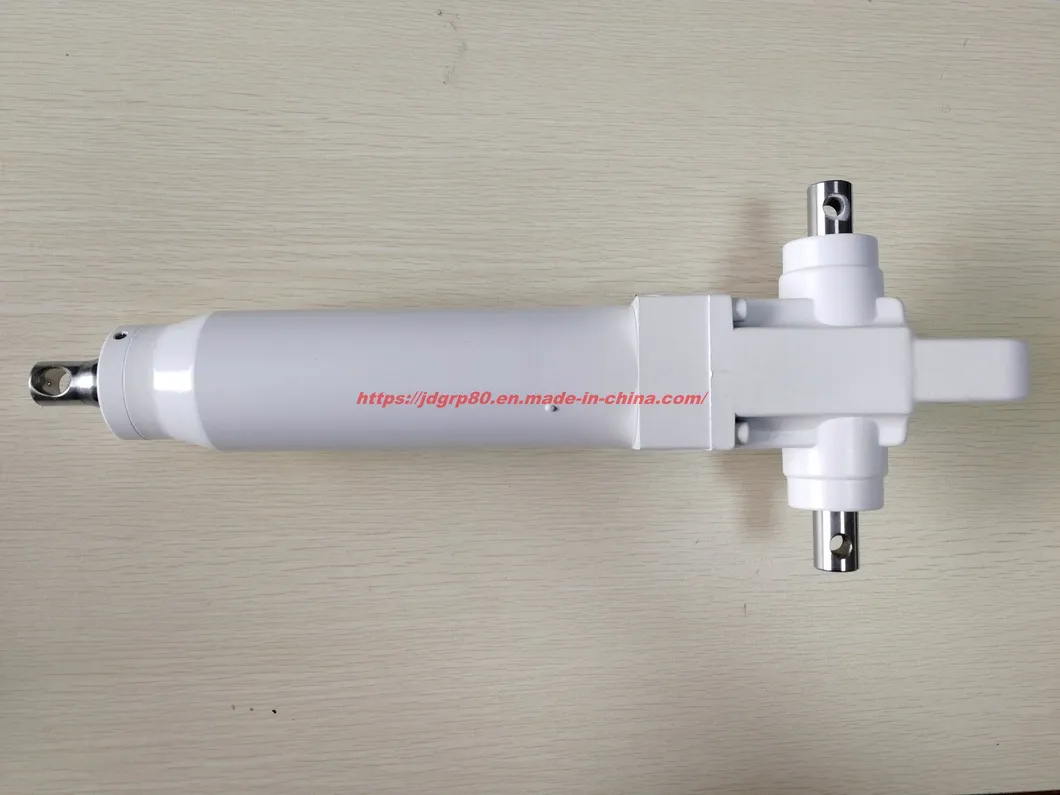

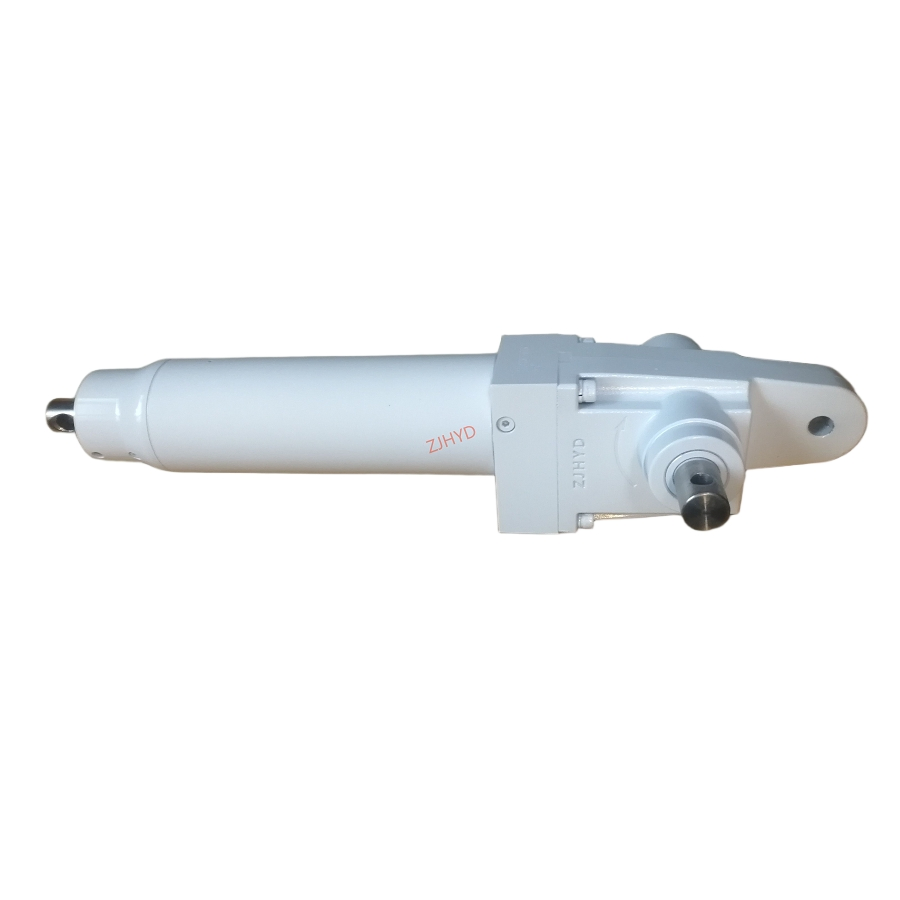

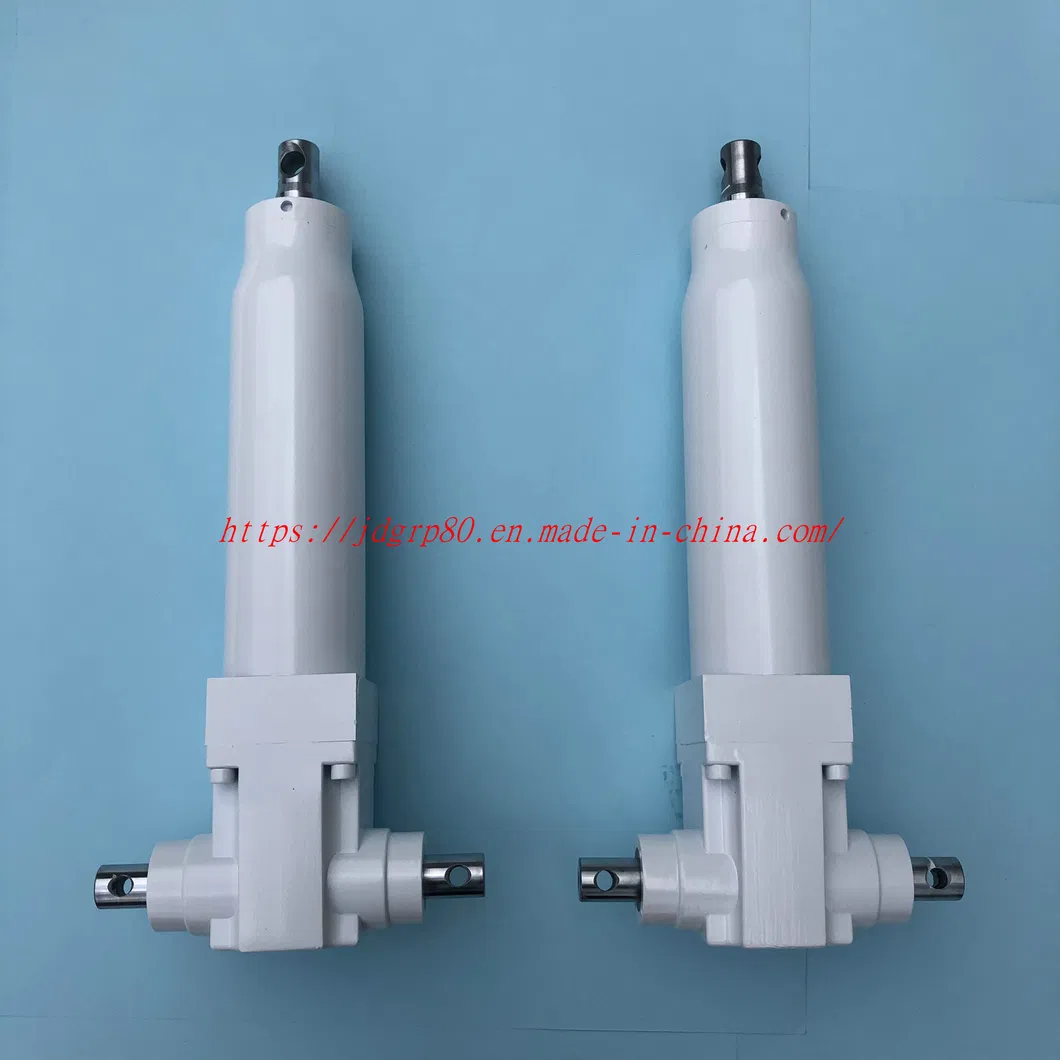

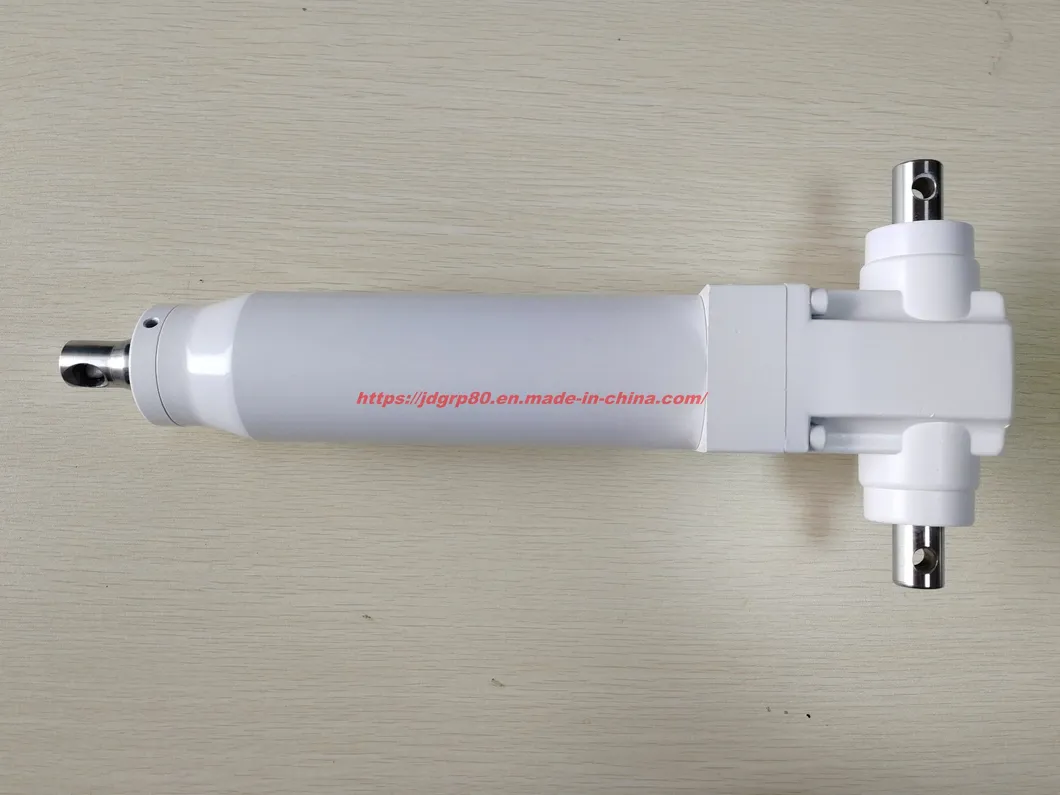

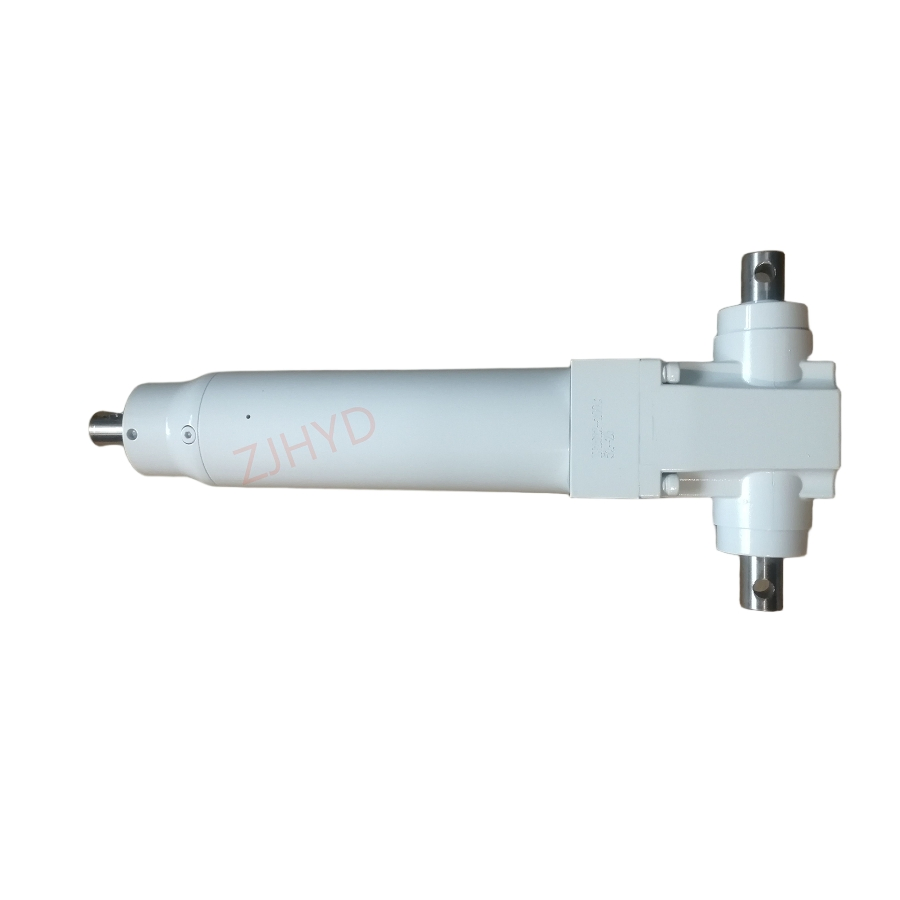

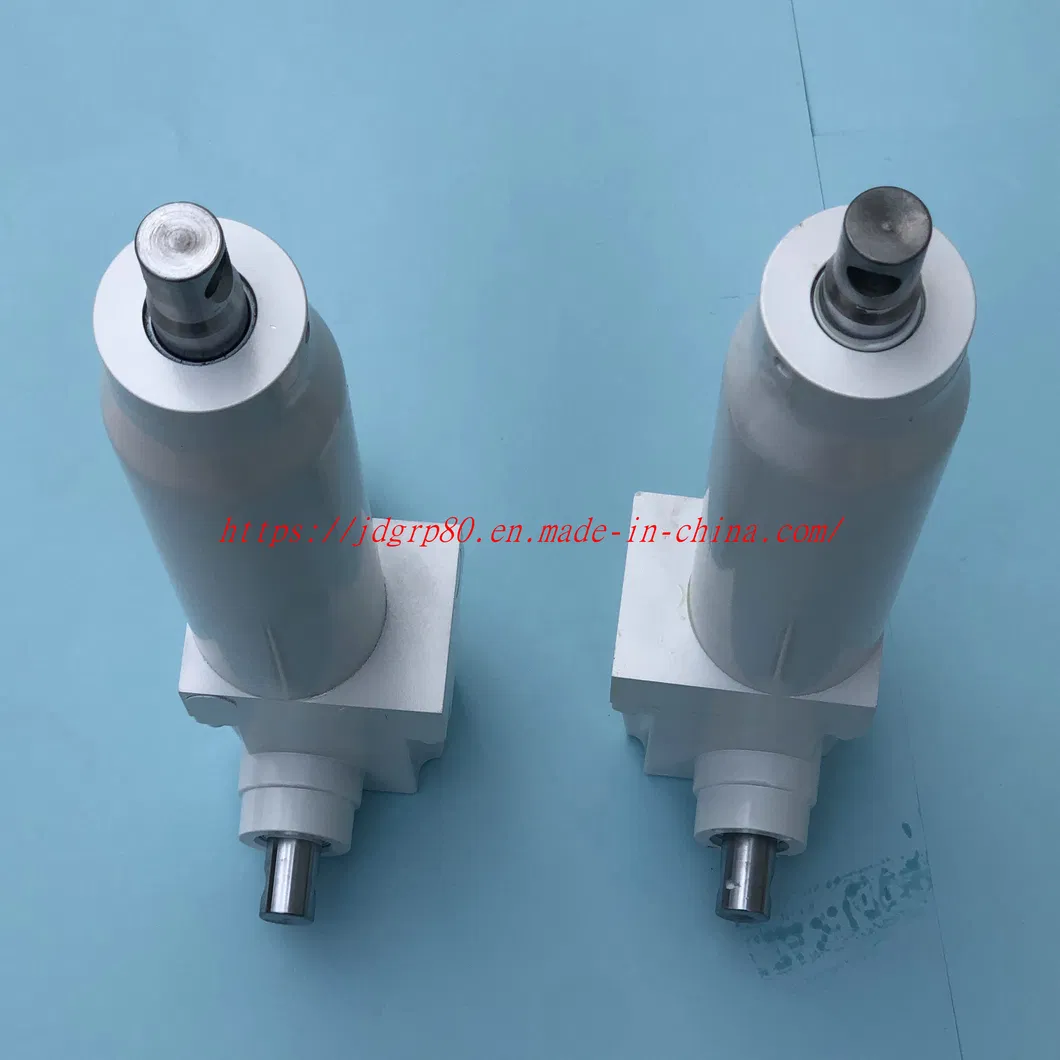

Hydraulic Cylinder for Hospital Bed / Medical Bed / Lifting Table

Technical Specifications

⚖️

Max Work Load:
600 Kg

🏗️

Max Bearing Load:
700 Kg

🛡️

Safety Valve:
Yes (Protected)

⚡

Relief Velocity:
< 15mm/S

🔄

Service Life:
> 50,000 times

📐

Installation:
360° Position

Models	Stroke (mm)
ZJ2522-100C / ZJL2522-100C	100
ZJ2522-130C / ZJL2522-130C	130
ZJ2522-140C / ZJL2522-140C	140
ZJ2522-150C / ZJL2522-150C	150
ZJ2522-180C / ZJL2522-180C	180
ZJ2522-200C / ZJL2522-200C	200
ZJ2522-250C / ZJL2522-250C	250
ZJ2522-280C / ZJL2522-280C	280
ZJ2522-300C / ZJL2522-300C	300

✨ Key Features

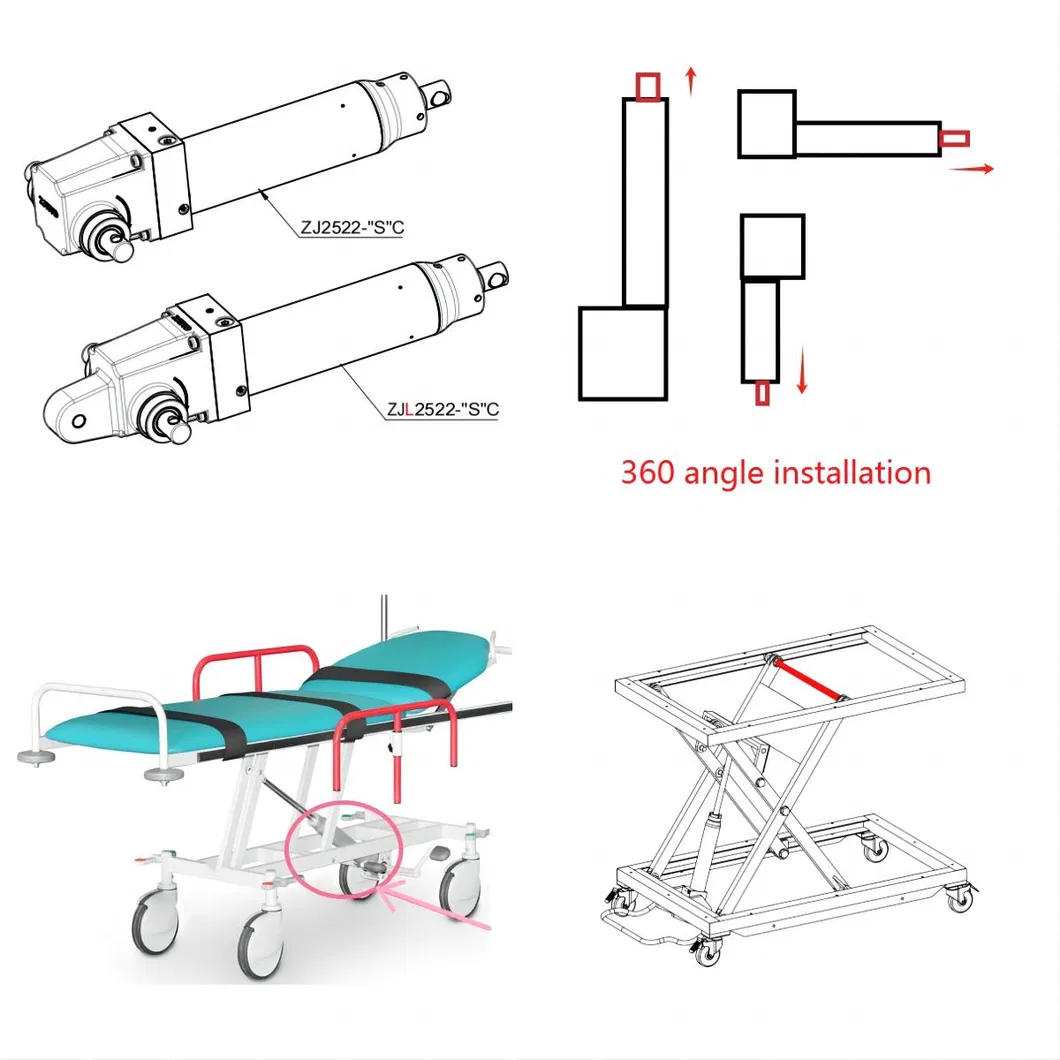

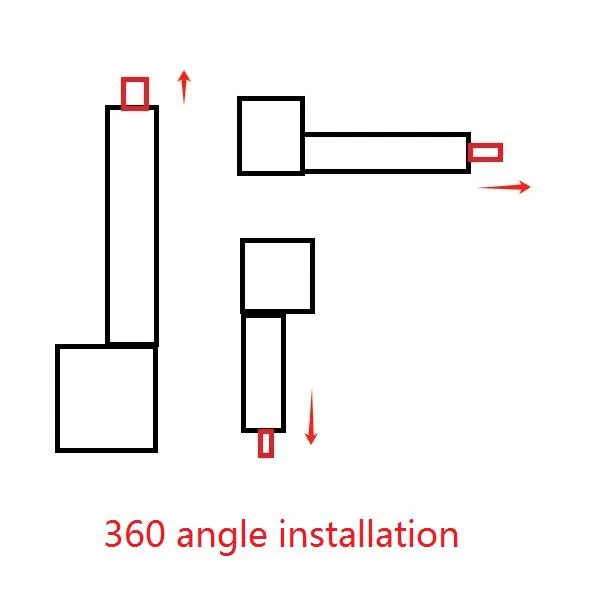

360° Position Operation: Patented function allowing work at any position—horizontally, or above/below the horizontal line.

Overload Protection: Prevents pressure from rising if the rod extends to full stroke or if the weight exceeds the setting value (e.g., 600KGS).

Premium Materials: High-quality JAPAN spring for the relief valve and 304 stainless steel for the rod and shaft with hard chrome finish.

Precision Manufacturing: Valve blocks are crafted using precise CNC machining for maximum reliability.

❓ Frequently Asked Questions

Q1: What is the maximum load capacity for this medical hydraulic cylinder? A1: The maximum work load is 600 kg, with a maximum bearing load of 700 kg.

Q2: Can this cylinder be used in horizontal positions? A2: Yes, it features a patented 360° operation function that allows it to work horizontally, as well as above or below the horizontal line.

Q3: How does the overload protection function work? A3: If the rod reaches full stroke or the load exceeds the set value, a safety relief valve is triggered to prevent pressure from rising, protecting the bed and cylinder.

Q4: What materials are used to prevent corrosion? A4: The rod and shaft are made of 304 stainless steel with a hard chrome finish for excellent durability and corrosion resistance.

Q5: What is the service life of this product? A5: The cylinder is designed for high durability with a service life exceeding 50,000 cycles.

Q6: Do you offer different stroke lengths for different bed designs? A6: Yes, we provide multiple models with stroke lengths ranging from 100mm to 300mm to suit various hospital bed requirements.
