LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
1 / 5
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment
LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment

LED Surgical Lamp Ks-500 Ceiling Type Room Lighting Hospital Equipment

Customization: Available
Application: Orthopedic, Ent
Material: Iron and Plastic
Send Inquiry

Product Description

Basic Information

Model NO.
KS-500 ceiling type
Certification
CE, FDA, ISO13485
Group
All People
Diameter of Lamp Head
500mm
Illumination (Lux)
40000-160000
Color Reduction Index
≥95
Color Temperature
3500-5000K
Power Voltage
220/50
Bulb Power
65W
Production Capacity
50000 Per Year

Product Description

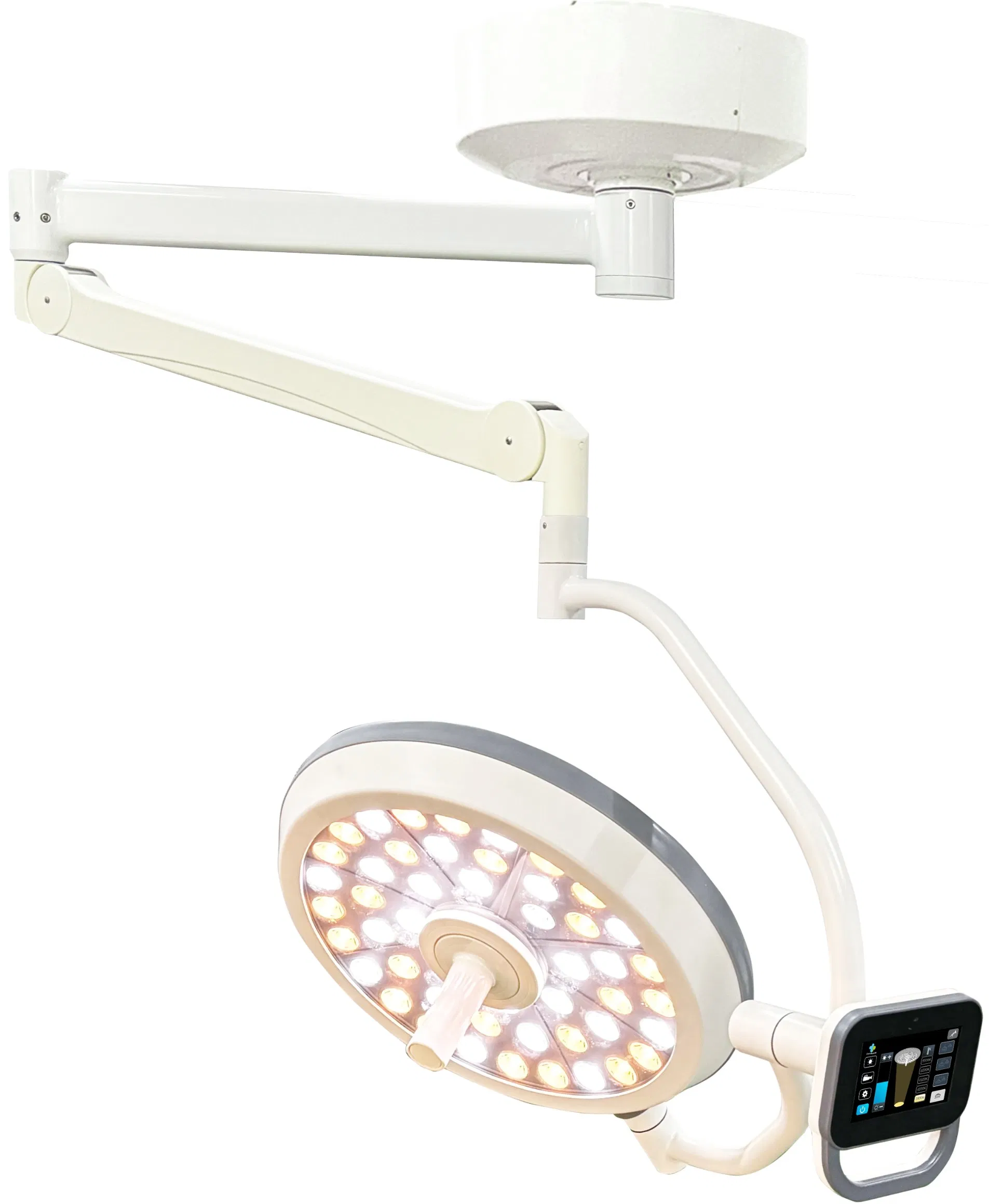

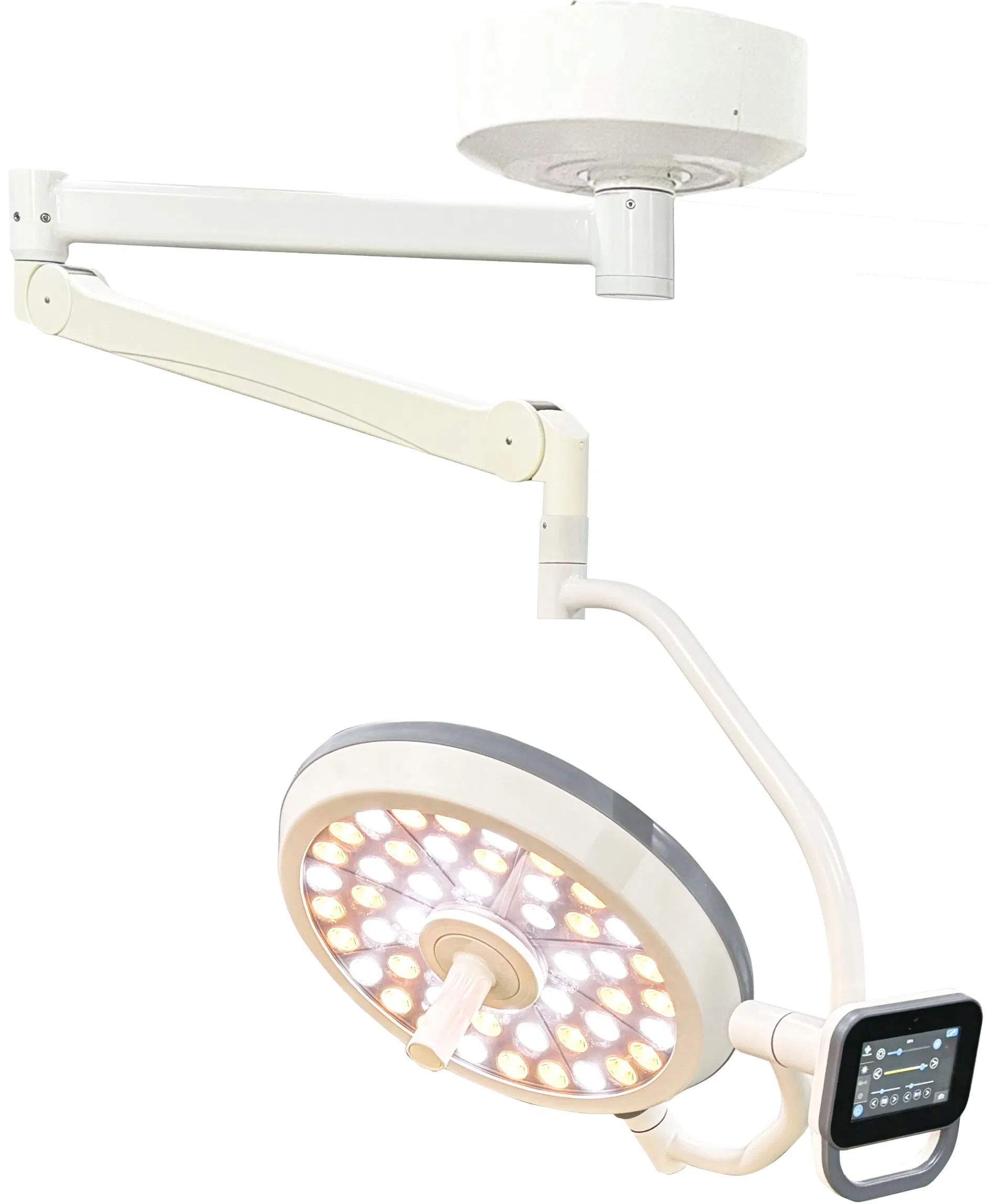

LED Surgical Lamp Ks-500

Whole Reflector Shadowless Single-arm LED Surgery operation light 500mm single head Ceiling type

  • System uses only 40% of electricity compared to Halogen lamp.
  • Adopt Germany OSRAM LED Bulb as light source, service life-span over 50000 hours.
  • No infrared rays release, preventing tissue drying and providing a pleasant operating environment.
  • Streamline shape design meets sterilization and laminar flow purification demands.
  • High performance shadowless effect with arc focus design.
  • Equipped with 5 inch touch screen control panel for illumination, color temperature, and spot adjustment.

Detailed Photos

Control panel details

Control Interface & Modules:

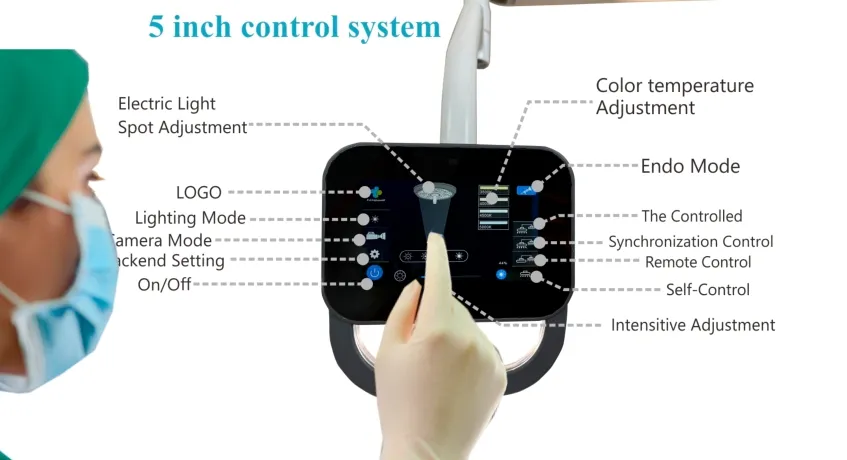

Module View 1
Module View 2

Product Parameters

Parameter Specification
ModelLED operation light KS-500 single head ceiling type
Light intensity40000-160000 Lux
Diameter of lamphead500mm
Color temperature3500-5000k
Brightness Control5 inch touch control
Light field diameter120-280mm
Light source48pcs LEDs
LED average life50000 hours
Power consumption65W
Input Voltage110V-265V 50/60Hz
Color Reduction Index (Ra)≥95
Luminance adjustmentStepless
Standard ConfigurationCeiling Mounted
Optional TypeWall mounted, Table Clamp, Rail Clamp, Mobile

Packaging & Shipping

Exported to more than 90 countries across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and Mid East.

Packaging
Shipping Logistics

Services Offered:

  • Support customization based on special requests
  • OEM availability
  • Special LOGO printing

Certifications & Exhibition

Certificates
Factory View
Exhibition History

Frequently Asked Questions

Q1: What is the lifespan of the LED bulbs used in the KS-500? A1: The system adopts Germany OSRAM LED bulbs with an average service life-span of over 50,000 hours, ensuring long-term reliability and low maintenance.
Q2: Does the surgical light generate heat during long operations? A2: No, the LED source does not release infrared rays. This prevents heat accumulation and tissue drying, providing a comfortable environment for both the surgeon and the patient.
Q3: Can the color temperature be adjusted for different surgical needs? A3: Yes, the color temperature is adjustable within the range of 3500K to 5000K through the integrated touch screen control panel.
Q4: How effective is the shadowless function? A4: The KS-500 features an arc focus design that generates an excellent shadowless effect and deep lighting, effectively bypassing obstacles such as the surgeon's head or arms.
Q5: What are the mounting options for this surgical lamp? A5: While the standard configuration is ceiling-mounted, we also offer wall-mounted, mobile (with or without battery), table clamp, and rail clamp versions to suit various room layouts.
Q6: Is the light suitable for laminar flow operating rooms? A6: Yes, the lamp body features a streamlined shape design that fully meets the high standards for sterilization and laminar flow purification required in modern operating rooms.
