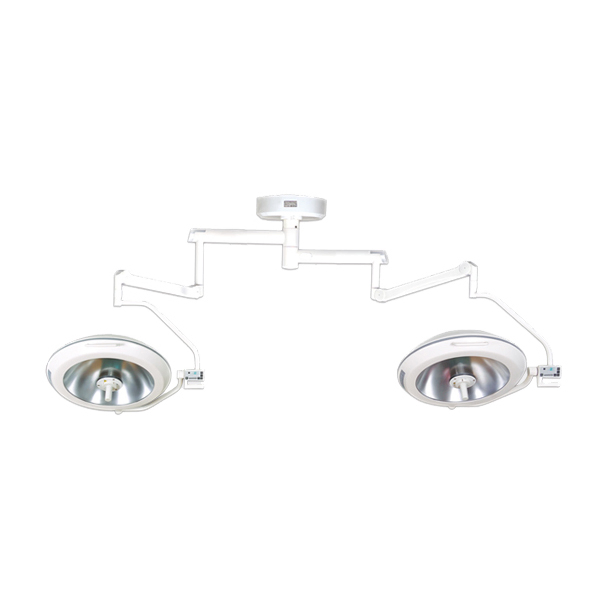

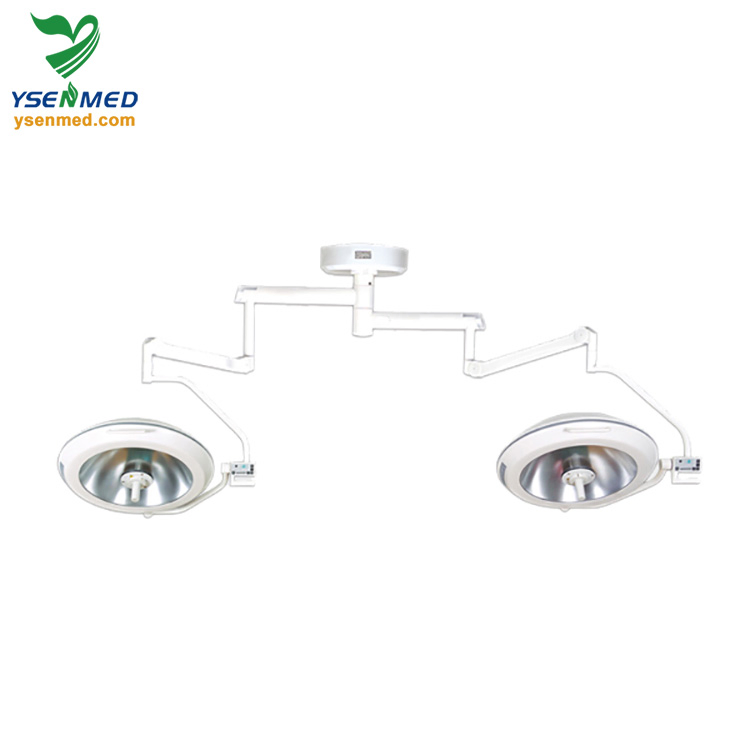

Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
1 / 5
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment
Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment

Ysot-600c2 Two Reflectors Shadowless Operating Surgery Lamp Medical Equipment

Color Temperature: 4500K+-500K
Light Source: Halogen Lamp
Material: Steel
Send Inquiry

Product Description

Two Reflectors Shadowless Operating Surgery Lamp

💡Product Overview

The YSOT-600C2 shadowless operating lamps are engineered to meet the rigorous requirements of various surgical operations. As an ideal lighting facility for modern operating rooms, it provides superior visibility and reliability.

Utilizing a CAD-designed reflector system, the light produced closely mimics natural sunlight, ensuring tissue surfaces are visible in their true color. With a tubular light beam depth reaching over 700mm, the well-proportioned illumination effectively eliminates shadows under any surgical circumstance.

📊Basic Specifications

Model NO.
YSOT-600C2
Illumination
80,000-160,000lx * 2
Facula Diameter
100~280mm
Depth of Light Beam
600mm
Brightness Adjustment
8-Stage Continuous
Lamp Shift
Automatic Standby Switch
Temperature Rise
Lower 12 Degree
Lamp Holder Dia.
700mm/500mm
Installation Height
280-320cm
Origin
Guangdong, China

⚙️Technical Parameters

Color Temperature4500K±500K
Temp Rise (Patient Head)≤2°C
Mains VoltageAC220V±20% 50Hz
Bulb VoltageAC24V
Input Power200VA * 2
Bulb Service LifeAverage 1500 hours

⭐Key Advantages

  • Imported aluminum sheet squamulose reflector
  • High-definition shock-resistant PC rippled panel
  • Titanium main arm for enhanced stability
  • Automatic standby bulb activation (within 0.5s)
  • Integrated CPU control with brightness memory
  • Steam-sterilizable dischargeable handle sheath
  • Built-in indicator for damaged bulbs
  • Optional battery and imported spring arm

🖼️Product Gallery

Technical Details 1
Technical Details 2

❓Frequently Asked Questions

1. How does the shadowless effect work?
The lamp uses a CAD-designed reflector system with a depth of tubular light beams reaching over 700mm, which ensures well-proportioned illumination that eliminates shadows even when partially obstructed.
2. What happens if the main bulb fails during surgery?
The system is equipped with an automatic switchover function. If the main bulb malfunctions, the standby bulb will automatically come into operation within 0.5 seconds.
3. Is the light intensity adjustable?
Yes, the YSOT-600C2 features an 8-stage continuous brightness adjustment controlled by a CPU, which also includes a brightness memory function.
4. How is the heat managed to protect the patient?
A special heat-isolated radiation filter reduces heat to the minimum level, ensuring the temperature rise at the patient's head remains ≤2°C.
5. Can the handles be sterilized?
Yes, the dischargeable handle sheath is designed to be easily removed and can be sterilized in a standard steam sterilizer for maximum hygiene.
6. What is the expected lifespan of the bulbs?
The imported lamp receptacles and bulbs have an average service life of approximately 1500 hours.
