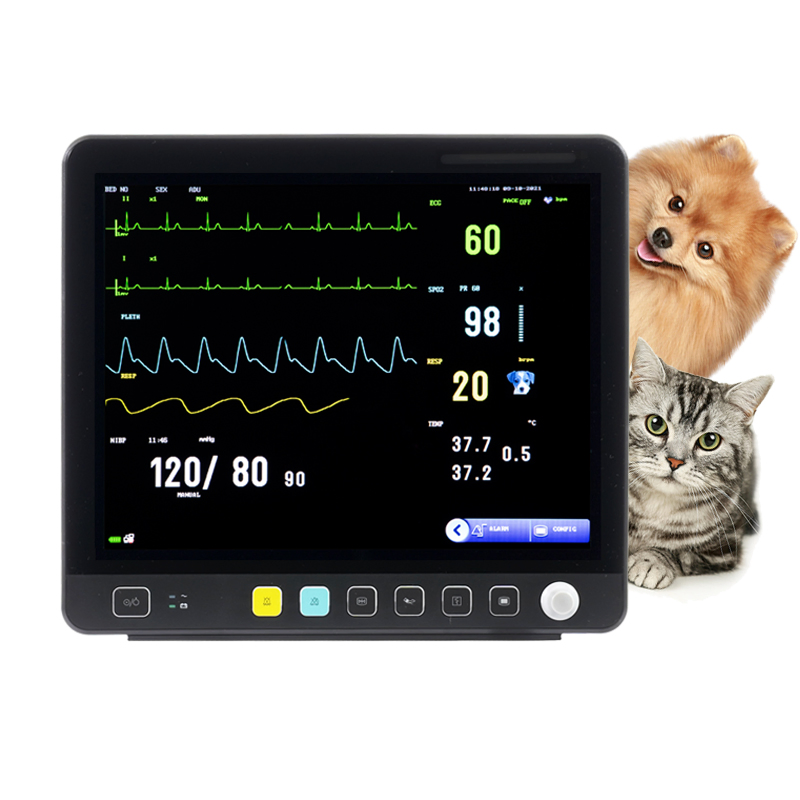

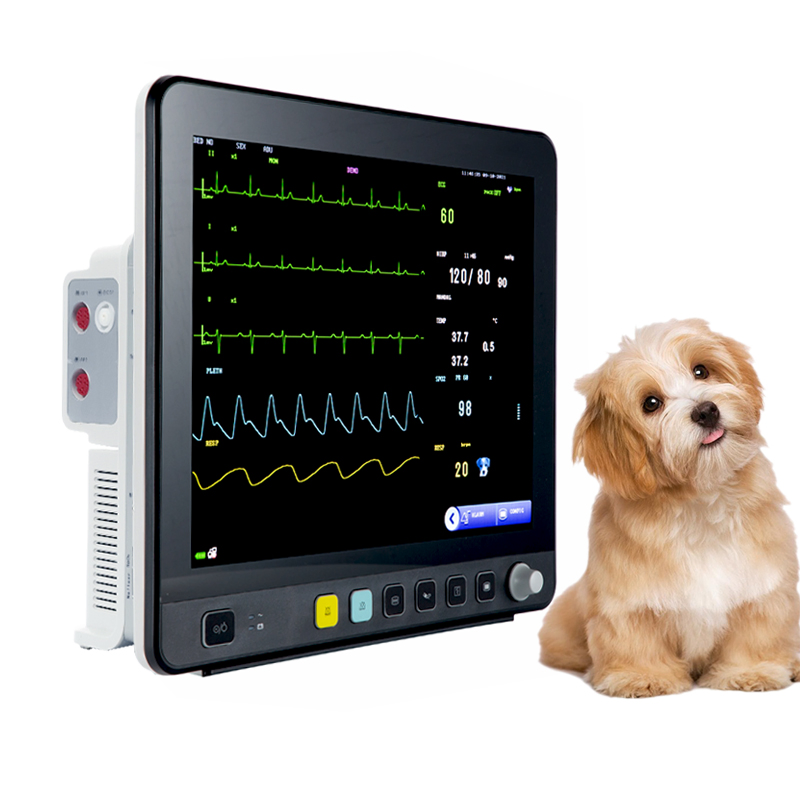

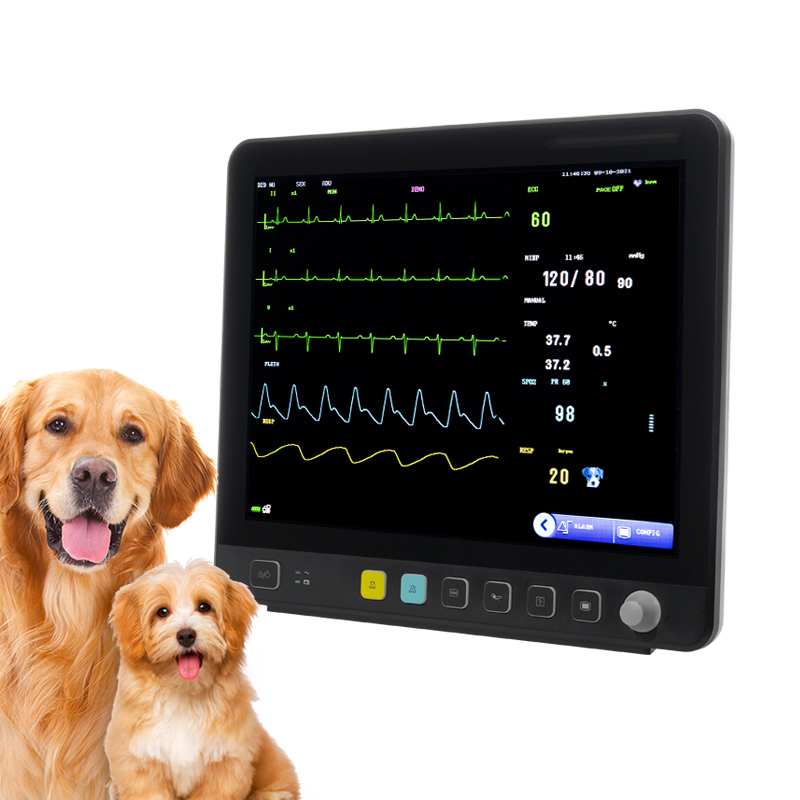

15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
1 / 5
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters
15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters

15 Inch Screen Veterinary Monitor Vet Analyze Device Vet Monitor Vital Signs Monitor 6 Parameters

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
VE15
Parameter
SpO2, NIBP, Resp, ECG, Temp, Pr
Power Source
Electric
Warranty
1 Year
Display Size
15.1 Inch
Specification
360*162*321mm
Origin
China
Production Capacity
100,000
Product Description
Intended Use & Key Features:
  • 15 inch high brightness color LCD/touch screen.
  • Various operation modes of buttons, knobs and touch screens.
  • Support multi-channel 8 waveform with screen display.
  • Arrhythmia analysis with three modes: monitoring, monitoring, and operation.
  • High blood oxygen saturation detection accuracy with weak pulse detection.
  • Non-invasive blood pressure measurement: manual, automatic, and continuous modes.
  • Large storage: 400 sets of blood pressure lists, 6,000sec waveform review, 60 alarm records, and 7 days trend chart.
  • Comprehensive alarm system: Voice, text, and visual alarms (Level 3).
  • Multiple interface displays: Standard, trend coexistence, oxyCRG, and large font.
  • Multi-language support: Chinese, English, Spanish, Polish, Turkish, French, Portuguese, Russian.
  • Built-in high capacity battery for long life and easy animal transfer.
  • Optional print output function with alarm trigger support.
  • Anti-defibrillation and anti-frequency electric knife interference.
  • Supports wired or wireless central monitoring systems.
  • Optional extension modules: Dual channel IBP, ETCO2 (Plug and Play, hot-plug support).
  • Wide application: Suitable for cats, dogs, pigs, horses, and other small to large animals.
  • Specialized animal accessories for different species.
Detailed Photos

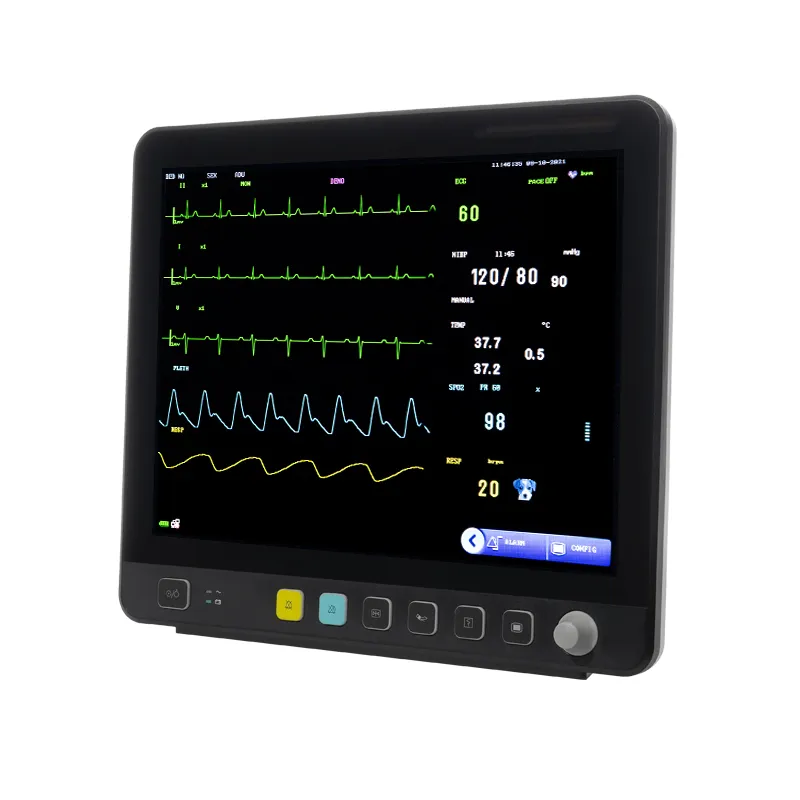

Veterinary Monitor View 1

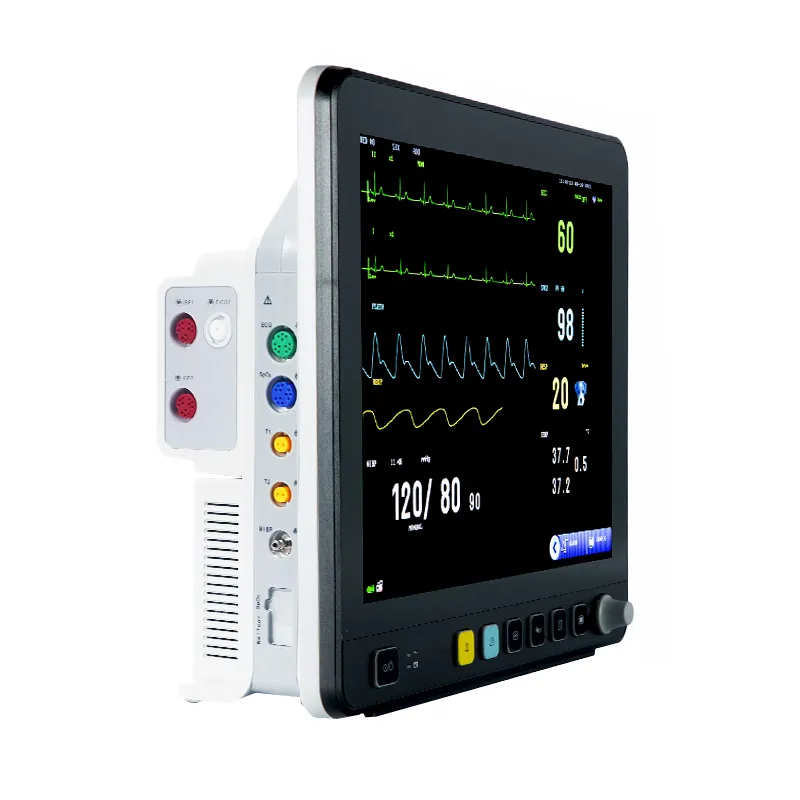

Veterinary Monitor View 2

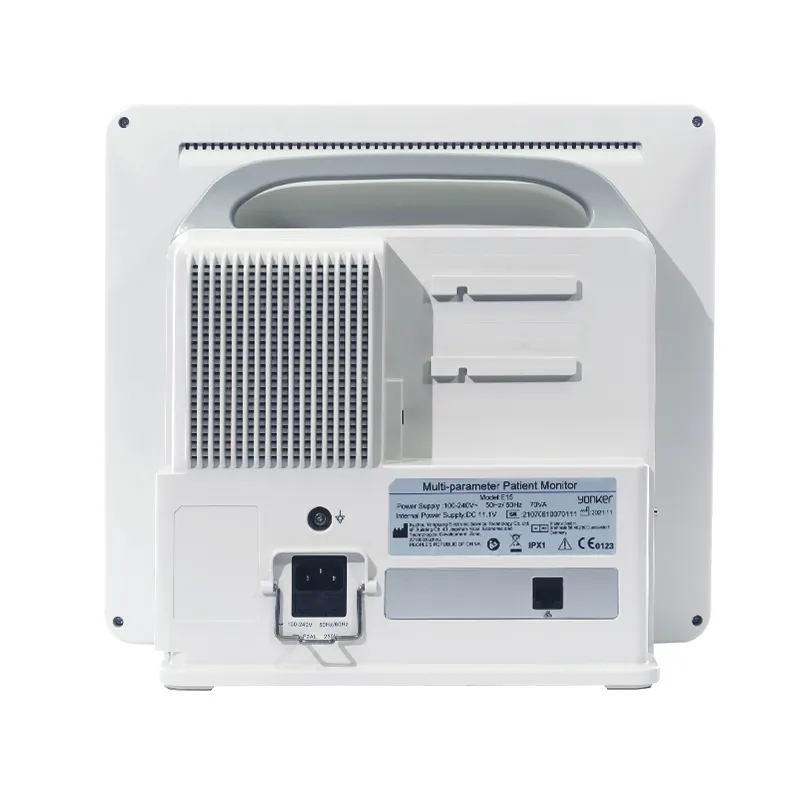

Veterinary Monitor View 3

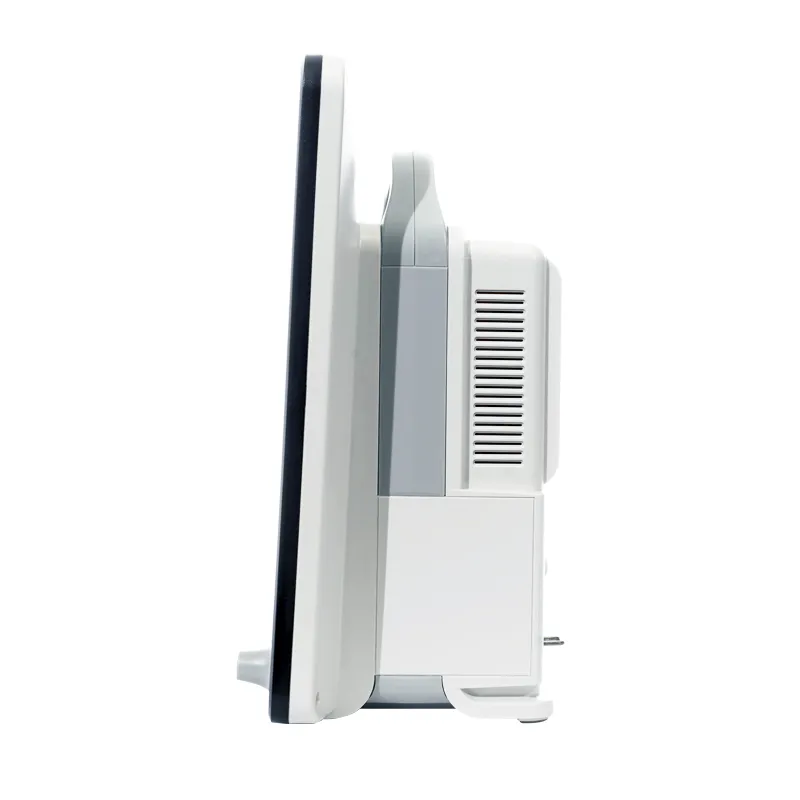

Veterinary Monitor View 4

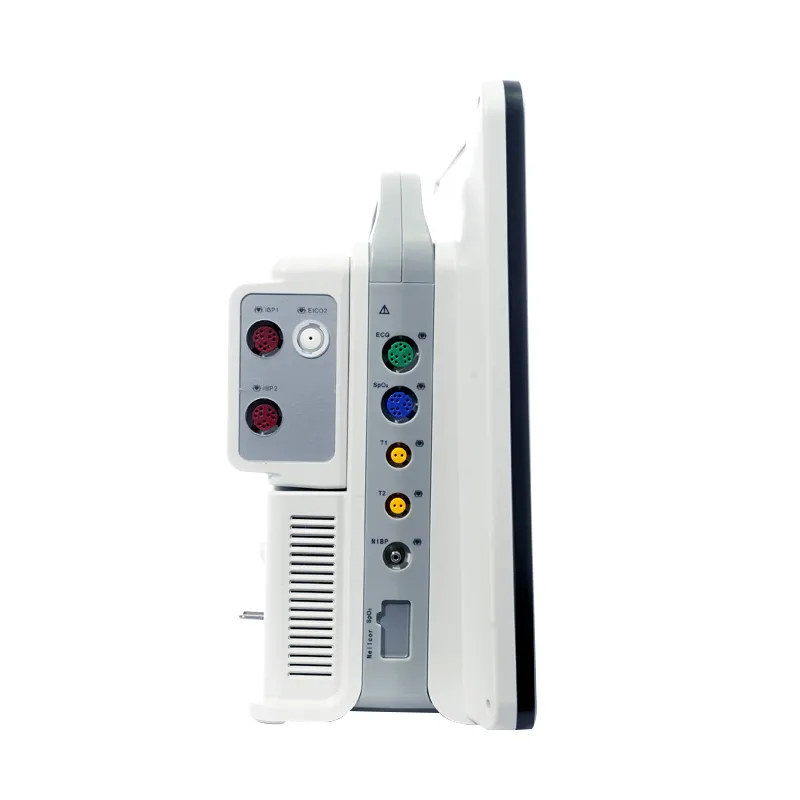

Veterinary Monitor View 5
Veterinary Monitor View 6
Technical Specifications
TECHNICAL SPECIFICATIONS
ECG Details
Input3/5 wire ECG cable
Lead sectionI II III, AVR, AVL, AVF, V
Gain selection*0.25, *0.5, *1, *2, Auto
Sweep speed6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range15-30bpm
Calibration±1mv
Accuracy±1bpm or ±1%
NIBP Details
Test methodOscillometer
PhilosophyAdult, Pediatric and Neonate
Measurement typeSystolic Diastolic Mean
Measurement parameterAutomatic, Continuous measurement
Measurement method ManualmmHg or ±2%
SPO2 Details
Display TypeWaveform Data
Measurement range0-100%
Accuracy±2% (between 70%-100%)
Pulse rate range20-300bpm
Accuracy±1 bpm or ±2%
Temperature (Rectal & Surface) Details
Number of channels2 channels
Measurement range0-50°C
Accuracy±0.1°C
DisplayT1, T2
Unit°C/°F selection
Respiration (Impedance & Nasal Tube) Details
Measurement type0-150rpm
Accuracy±1bm or ±5%
Resolution1rpm
Production & Quality

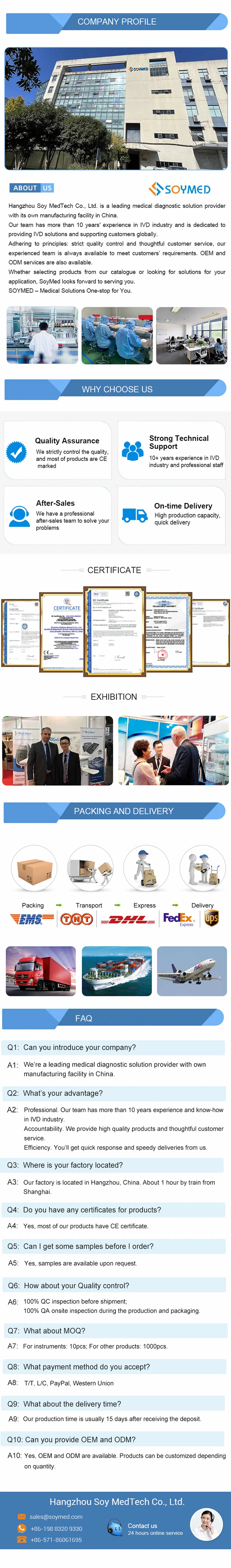

Production Process
Frequently Asked Questions
Q: What types of animals can the VE15 monitor be used for?
A: The VE15 is versatile and can be used for cats, dogs, pigs, horses, and other small, medium, and large animals with specialized accessories for each type.
Q: What are the main monitoring parameters of this device?
A: The standard configuration includes SpO2, NIBP, Respiration, ECG, Temperature, and Pulse Rate.
Q: Does the monitor support touch screen operation?
A: Yes, it features a 15-inch high-brightness color LCD that supports various operation modes including buttons, knobs, and touch screen.
Q: How much data can the device store for review?
A: It can store 400 sets of blood pressure lists, 6,000 seconds of waveform review, 60 alarm records, and up to 7 days of trend charts.
Q: Can I add more parameters like ETCO2 later?
A: Yes, the device supports optional extension modules for dual-channel IBP and ETCO2 which are plug-and-play and hot-pluggable.
Q: Is the monitor suitable for mobile use within a clinic?
A: Absolutely. It has a built-in high-capacity battery with long life, making it easy to transfer animals between different areas of the clinic.
