Handheld Vital Sign Monitor with NIBP, SpO2, Pulse Rate, Temp

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor

Product Description

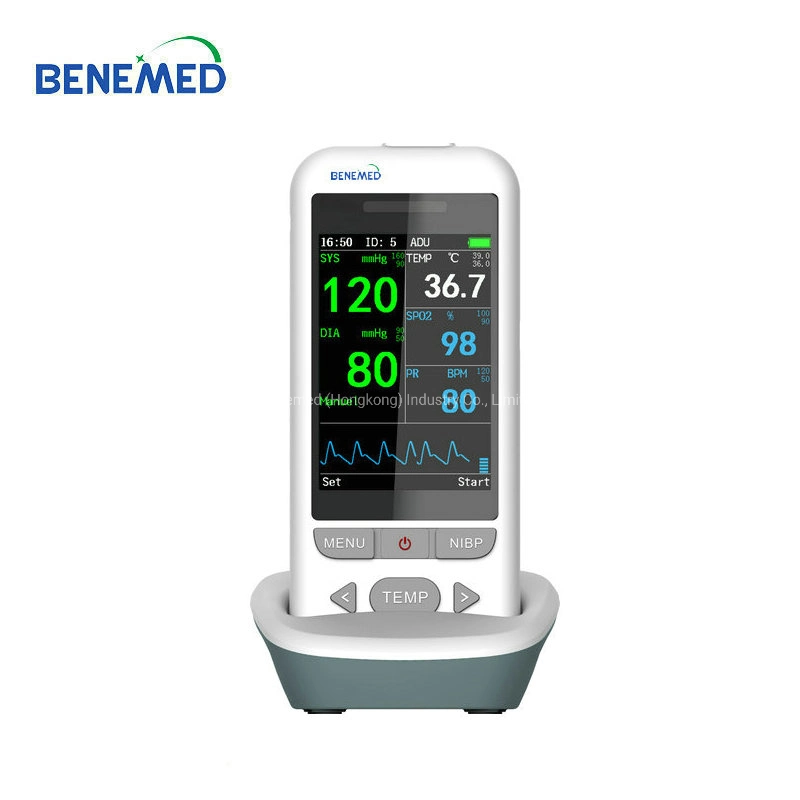

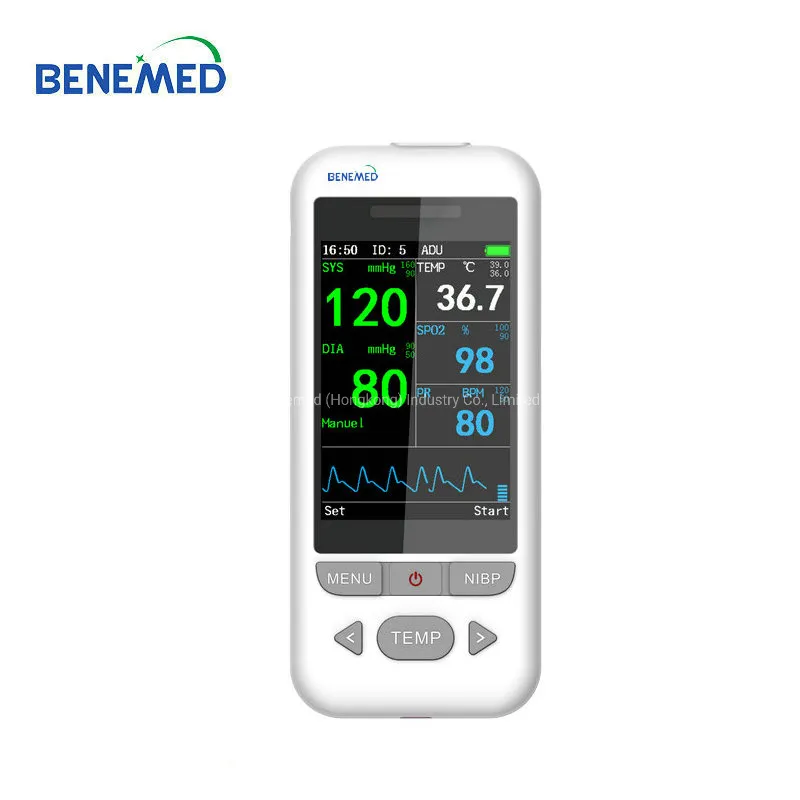

Unique Design Handheld Vital Sign Monitor BM-V3

Professional monitor with FIVE parameters: SPO2, HR, TEMP, NIBP, and RESP.

Handheld Vital Sign Monitor

Basic Information

Model NO.
BMV-3
Certification
CE, ISO13485
Group
Adult, Pediatric, Neonate
Display
3.5 Inch Color TFT-LCD
Parameters
NIBP, SpO2, Hr, Resp, Temp
Battery
Build-in Rechargeable 3.7V/2000 mAh
Bluetooth
Yes
Net Weight
0.5kg

Key Features

  • NIBP, SPO2, Pulse Rate, TEMP parameters
  • Audible operation guide and measurement data
  • Easy operation with intuitive interface
  • Rapid 2-second temperature measurement via Infrared Scanning
  • Up to 100 users' ID measurement storage
  • 1000 group storage for data and trend records
  • Support measurement data output via Bluetooth
  • Audible and visual alarm systems
  • Built-in Lithium battery works for 6 hours
  • Exquisite handheld design
  • Optional Et-CO2 (capnography) and Charging Base

Technical Specifications

NIBP
MethodOscillation
ModeManual, Auto (Intervals: 1-480 min)
AccuracyMax mean error: 5 mmHg; Max std deviation: 8 mmHg
SPO2 & Pulse Rate
SPO2 Range0 - 100% (Accuracy: ±2% for 70-100%)
Pulse Rate Range0 - 254 bpm (Accuracy: ±1 bpm)
Resolution1% for SpO2, 1 bpm for Pulse
Temperature (Infrared)
Measuring Range0 - 50°C
Accuracy / Resolution0.1°C / 0.1°C
Time Constant≤ 2 seconds
System & Physical
Size67 x 155 x 30 mm
Power3.7V/2000 mAH Battery; DC 5V/2A Micro USB
WeightNet: 500g / Gross: 1200g

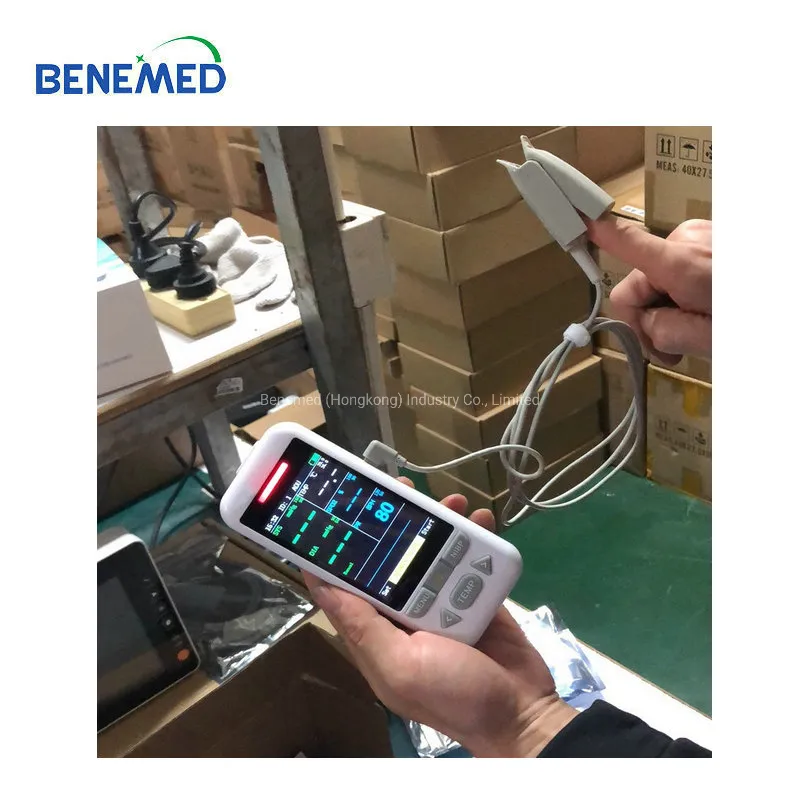

Product Display

Accessories and Usage Detailed Dimensions Interface Display

Frequently Asked Questions

What patient groups can use the BM-V3 monitor?
The device is designed for Adult, Pediatric, and Neonate patients.
How long does the battery last on a full charge?
The built-in 2000 mAh Lithium battery provides approximately 6 hours of continuous operation.
How fast is the temperature measurement?
The monitor uses unique Infrared Scanning technology to provide accurate temperature readings within 2 seconds.
Can the measurement data be exported?
Yes, the device supports Bluetooth function for measurement data output and wireless connectivity.
What are the optional configurations available?
Optional features include Et-CO2 (capnography) monitoring and a dedicated charging base.
Does it have an alarm system?
Yes, it features both visual and audible alarms for all monitored parameters including SpO2 and NIBP.
