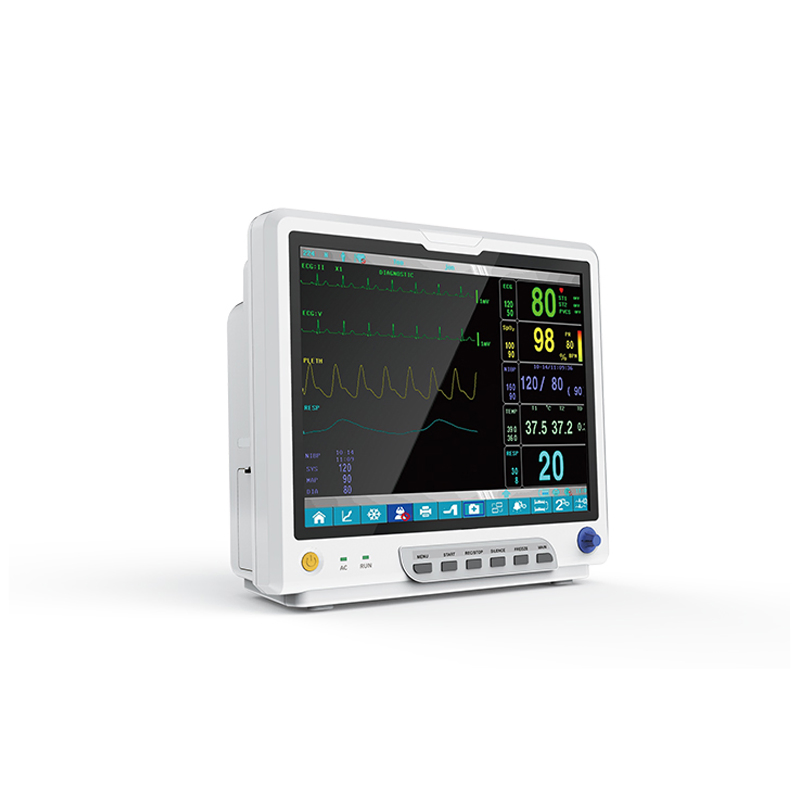

Model: CMS9200
This hospital equipment can monitor such parameters as ECG, RESP, NIBP, SpO2, PR, Dual-channel TEMP, dual-channel IBP and EtCO2. CMS9200, Multiparameter vital signs patient monitor integrates parameter measurement module, display and recorder in one device to form a compact and portable hospital equipment.
Class I protection, type CF defibrillation-proof applied part. IPX0 water ingress protection.
Working Temp: 5~40ºC | Storage: -40~+55ºC. Humidity: ≤95%.
Power Supply: AC100~240V, 50/60 Hz (Max 150VA).
Battery Working Time: 90 minutes.
8-channel waveform display with customizable colors.
Alarm: Technical, 71 physiological, and 60 arrhythmia alarms (3 levels).
Lead mode: 3-lead or 5-lead (I, II, III, aVR, aVF, aVL, V).
HR Range: Adult 15~300bpm; Pediatric/Neonatal 15~350bpm. Accuracy: ±1%.
NIBP Method: Oscillometry (Adult/Pediatric/Neonatal modes).
SpO2 Range: 0 ~ 100% (Accuracy ±2% for 70-100% range).
480-hour trend review, 2400 groups of BP data.
Network: Wired, WIFI, or 3G connectivity to central monitor systems.
Frequently Asked Questions
What parameters can the CMS9200 patient monitor measure?
The standard configuration monitors ECG, RESP, NIBP, SpO2, PR, and Dual-channel TEMP. It also supports optional IBP and EtCO2 monitoring.
Is this monitor suitable for all patient types?
Yes, it includes specialized measurement modes and alarm ranges for Adult, Pediatric, and Neonatal patients.
How long does the built-in battery last?
The built-in rechargeable battery provides approximately 90 minutes of continuous working time for uninterrupted monitoring.
What are the networking capabilities of this device?
The CMS9200 supports wired LAN, WIFI, and 3G networking to connect with central monitoring systems.
How much historical data can be stored?
The device can store up to 480 hours of trend data and allows for the review of 2400 groups of blood pressure (BP) data.
