📊 Basic Specifications
Model NO.WMVM-12
CertificationCE, MSDS, ISO13485
GroupMale / Universal
Transport PackagePaper Box
OriginChina
Production Capacity50000PCS/Year
🩺 Product Overview

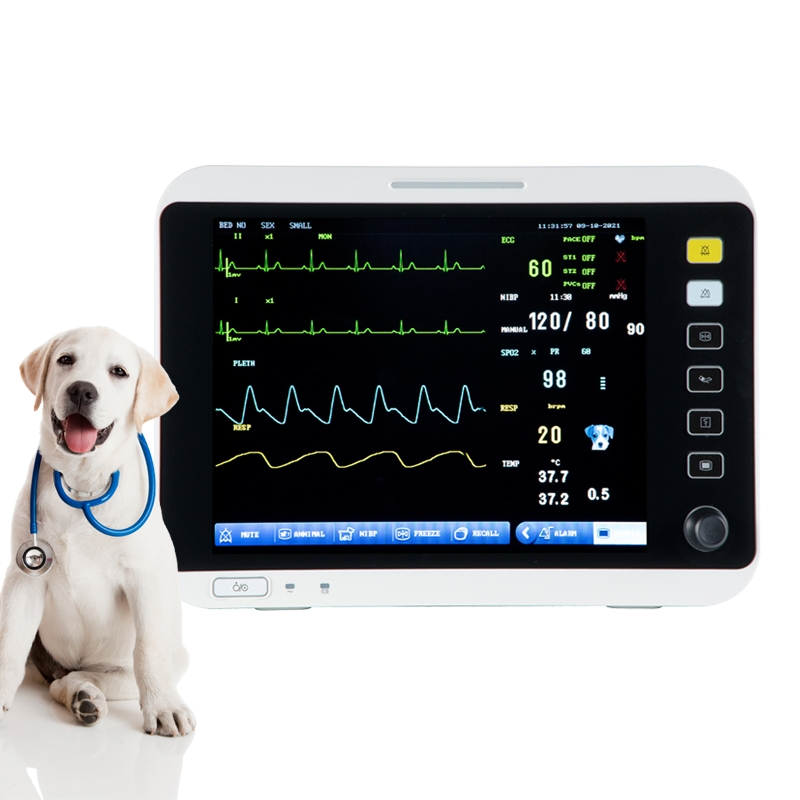

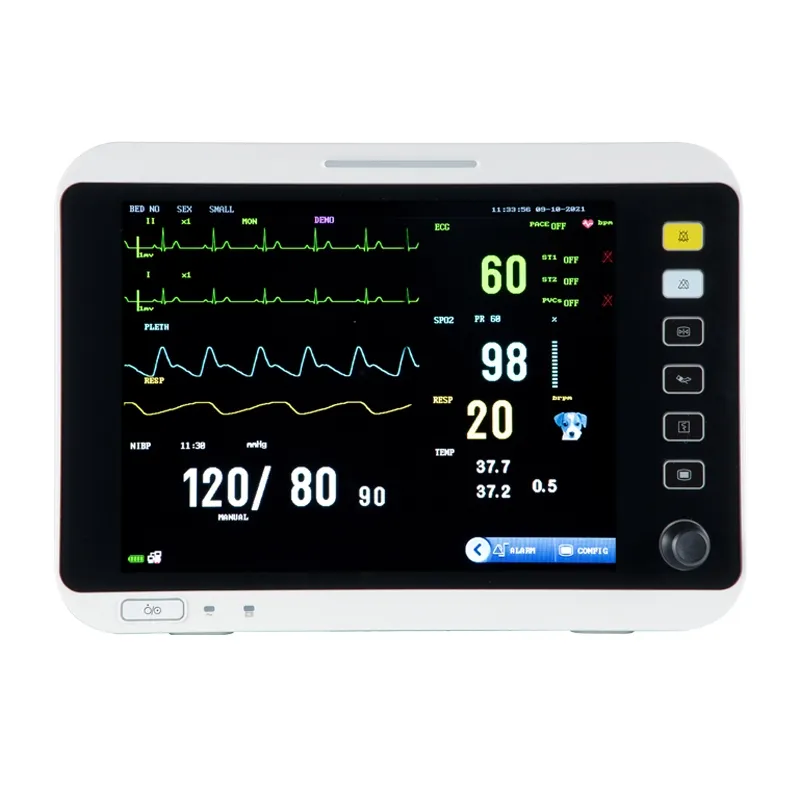

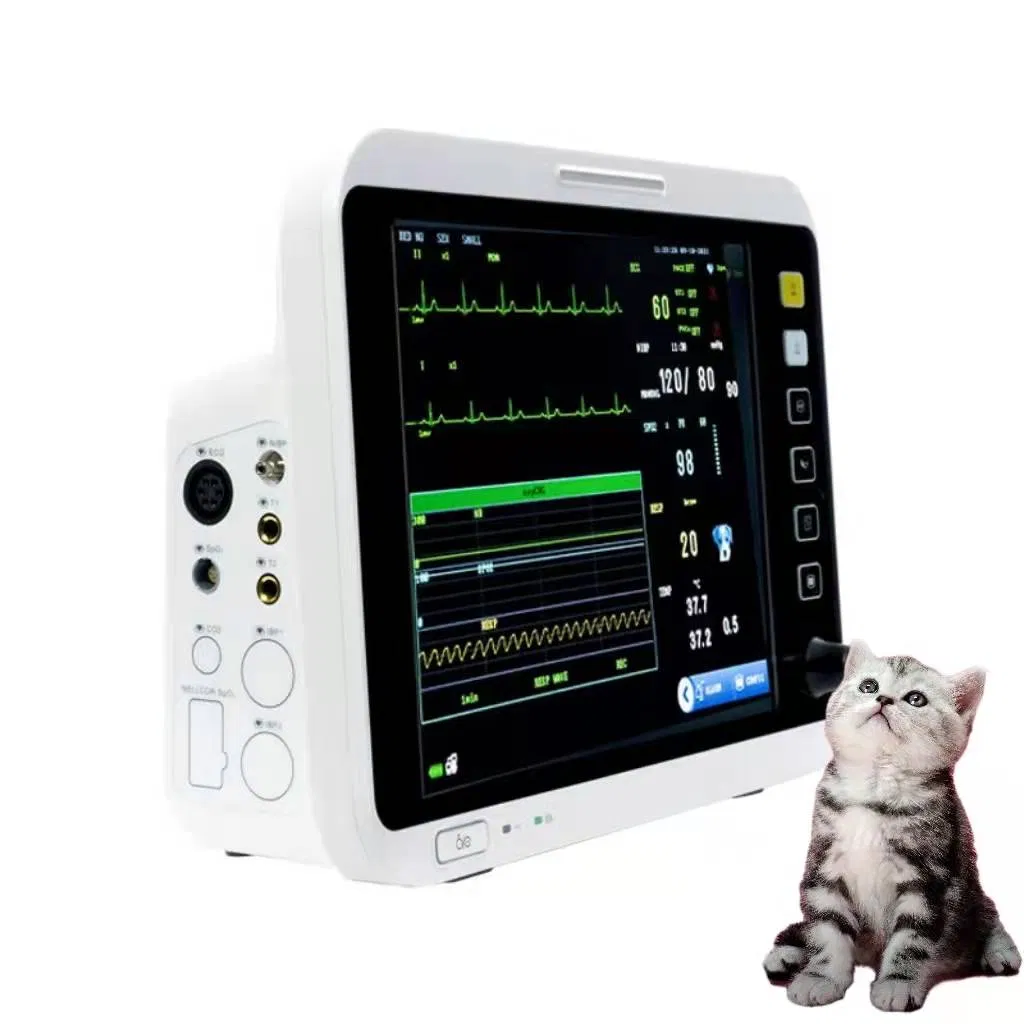

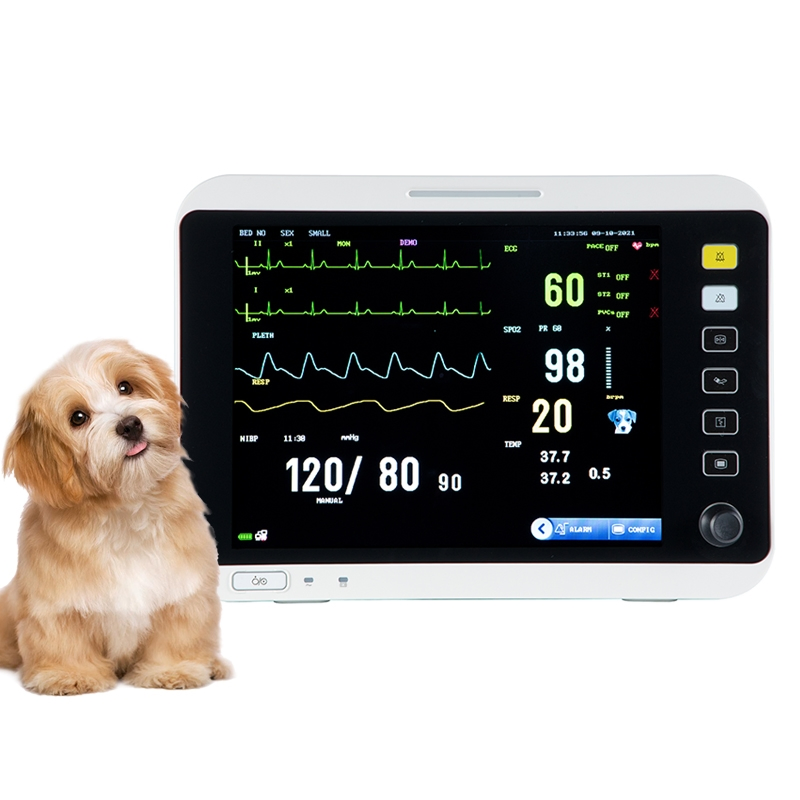

The VM12 Multi-parameter Patient Monitor is adaptable to adult, pediatric and neonatal usage. It can monitor vital signals such as ECG, Respiratory Rate, SpO2, NIBP, TEMP and IBP. It integrates parameter measuring modules, display and recorder in one device, featuring compactness, lightweight design, and portability. A replaceable built-in battery facilitates the safe transportation of patients. The large high-resolution display provides a clear view of more than 5 waveforms and full monitoring parameters. It is ideal for use in OR, ICU, general wards, and clinics.

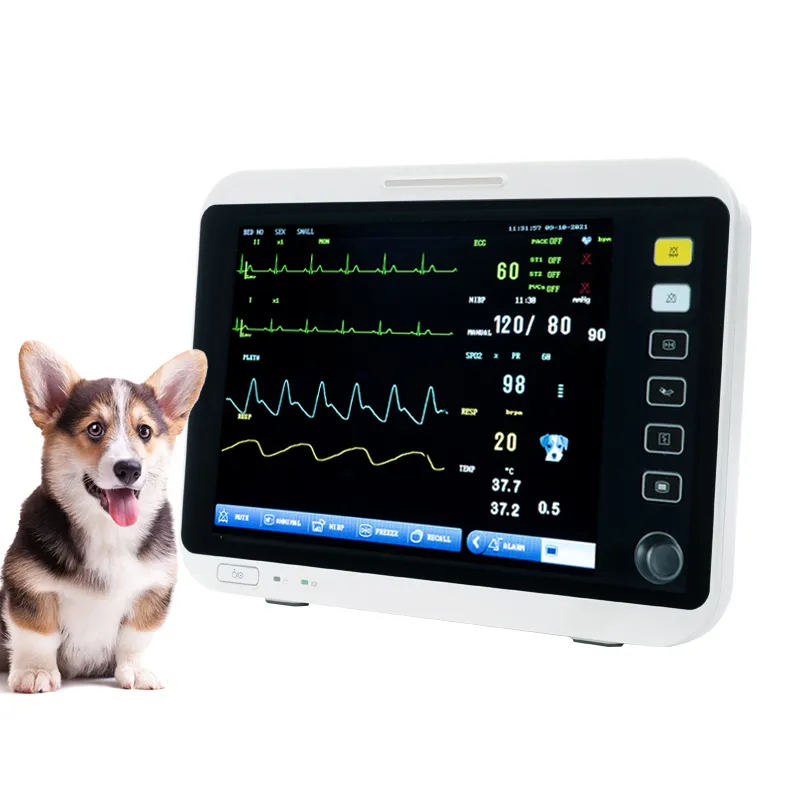

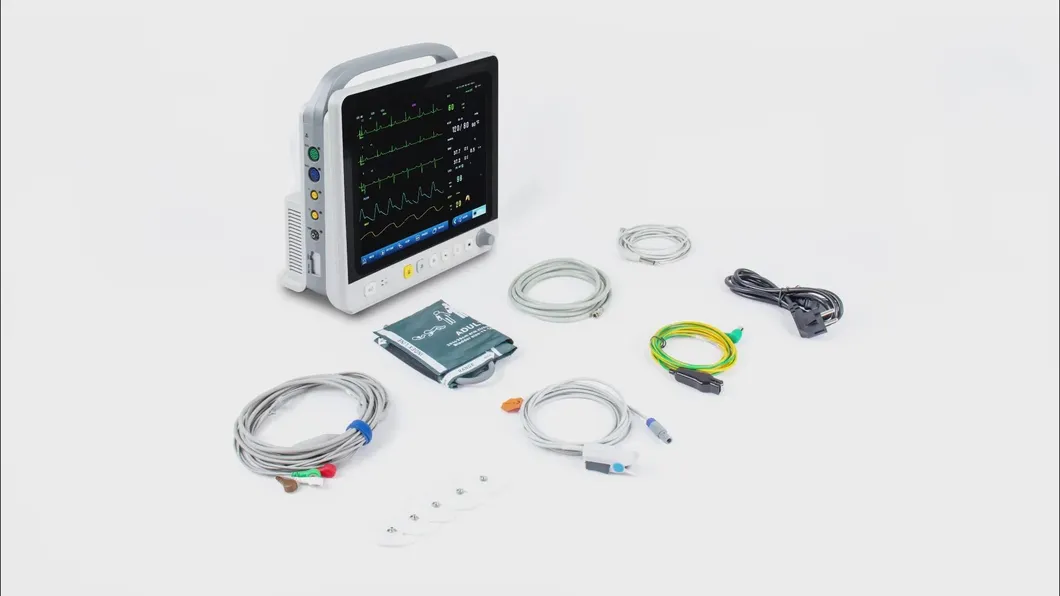

📸 Product Gallery
💡 Key Features
- Standard configuration: SPO2, ECG, NIBP, TEMP, Resp
- 12.1-inch high brightness, high resolution color TFT LED display
- Waterproof, fanless design with low energy consumption
- Built-in rechargeable Li-battery working up to 5 hours for field monitoring and ambulance transport
- Clear bright and Large character display, NIBP measurement review, and unique Vector display
- 7 channel ECG waveform display with ST-segment analysis
- Applicable for Adult, Pediatric, and Neonate patients
- Working modes: Diagnosis, Monitor, and Surgery
- 13 kinds of arrhythmia analysis and 15 kinds of drug dose calculation
- ESU protection: resistant to high-frequency surgical knives (300W) and defibrillation
- New SpO2 technology ensuring accuracy even with low perfusion up to 0.2%
- Intelligent audio and visual alarm functions
- Optional parts: HDMI, IBP, EtCO2, and touch screen support
📋 Technical Parameters
| ECG Configuration |
| Input | 3/5 wire ECG cable |
| Lead section | I, II, III, aVR, aVL, aVF, V |
| Gain selection | *0.25, *0.5, *1, *2, Auto |
| Sweep speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
| Heart rate range | 15-300bpm |
| Accuracy | ±1bpm or ±1% |
| NIBP (Non-Invasive Blood Pressure) |
| Test method | Oscillometer |
| Patient Type | Adult, Pediatric and Neonate |
| Measurement type | Systolic, Diastolic, Mean |
| Measurement method | Manual, Automatic, Continuous |
| SpO2 & Temperature |
| SpO2 Measurement range | 0-100% (Accuracy ±2% between 70%-100%) |
| Pulse rate range | 20-300bpm |
| Temperature Channels | 2 channels (Rectal & Surface) |
| Temperature Range | 0-50ºC (Accuracy ±0.1ºC) |
🔍 Detailed Views

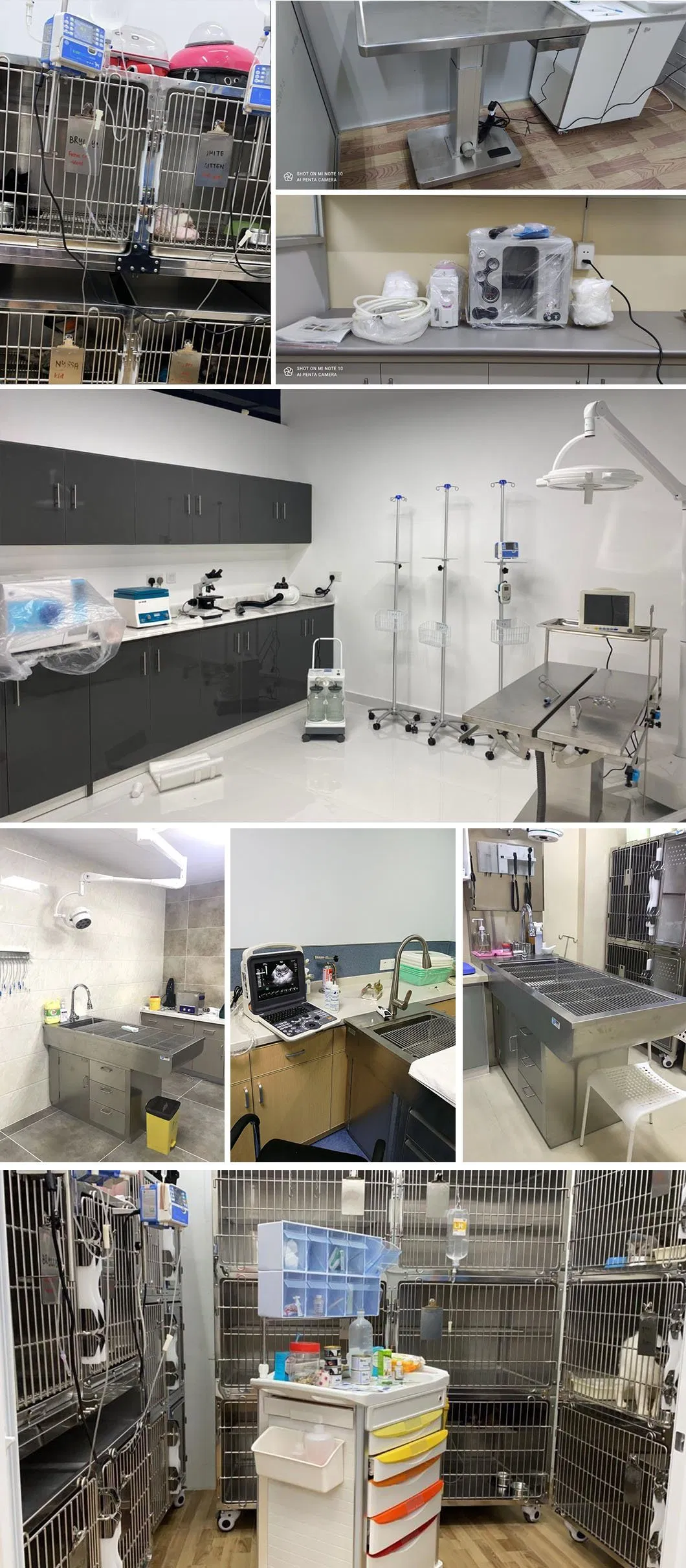

🏥 Application & Environment

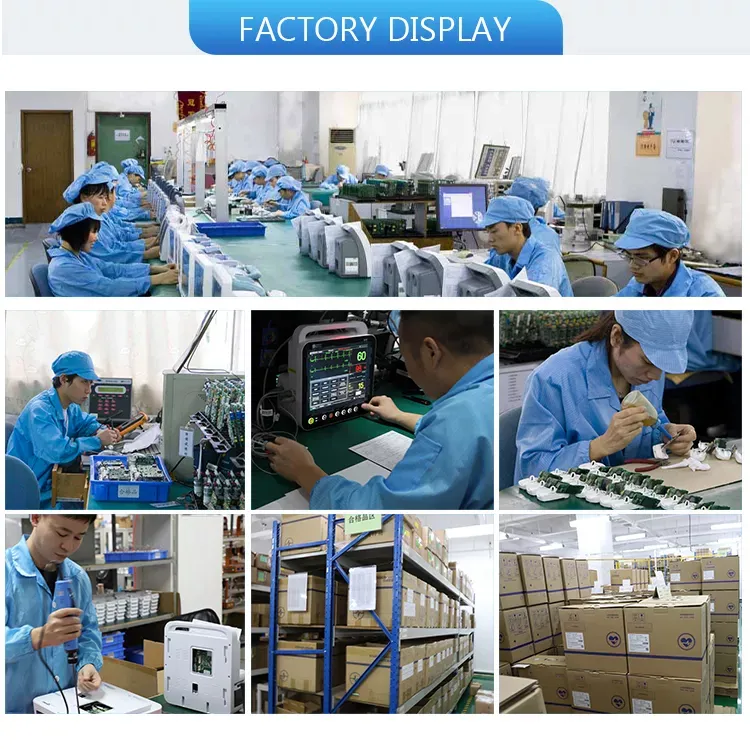

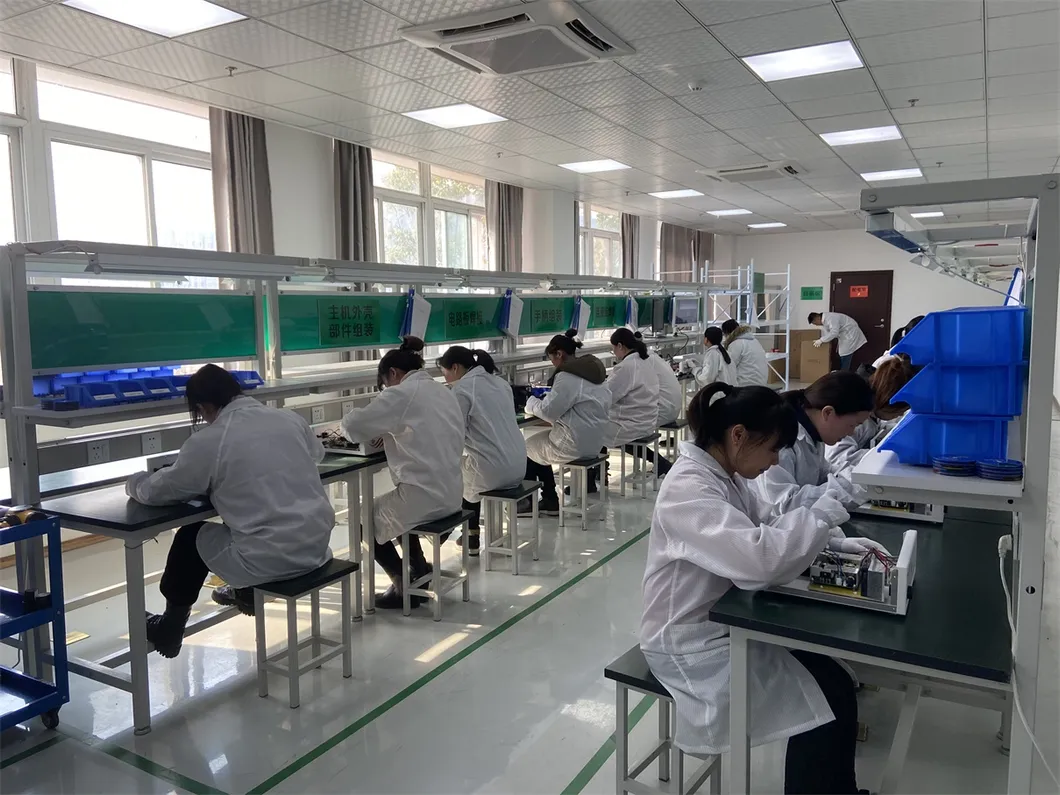

📜 Quality & Manufacturing
🌍 Global Presence

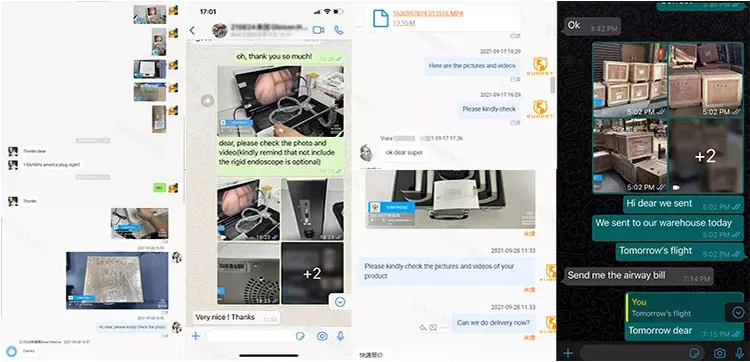

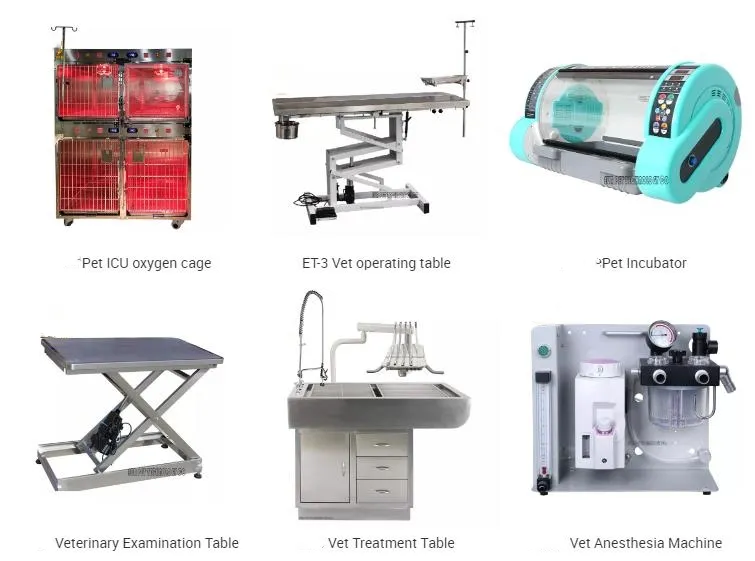

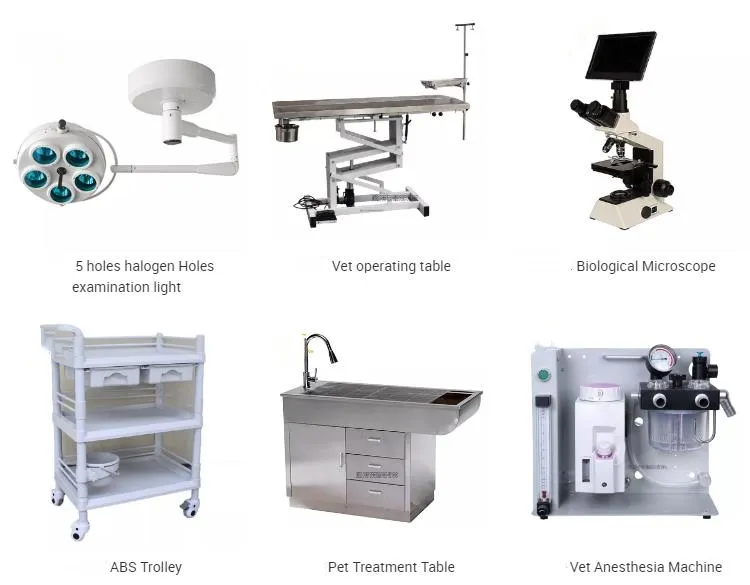

⭐ Customer Feedback & Related Models
❓ Frequently Asked Questions
Can this monitor be used for neonatal patients?
Yes, the VM12 monitor is designed with specialized software modes for adult, pediatric, and neonatal applications to ensure accurate readings across all age groups.
How long does the battery last during portable use?
The built-in rechargeable Lithium battery supports up to 5 hours of continuous operation, making it suitable for ambulances and short-term patient transport.
Does the device support advanced cardiac analysis?
Yes, it features 7-channel ECG waveform display, ST-segment analysis, and can perform 13 different kinds of arrhythmia analysis.
Is the monitor resistant to interference from surgical equipment?
The device is equipped with ESU protection, ensuring reliable performance even when high-frequency electric surgical knives (up to 300W) or defibrillators are in use.
What are the optional upgrades available for the VM12?
Optional configurations include a touch screen interface, HDMI output, IBP (Invasive Blood Pressure) monitoring, and EtCO2 measurement modules.
Does it have a cooling fan?
No, it features a fanless design which reduces energy consumption and provides a quiet, dust-free operation environment ideal for sterile settings.
