Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems

Type:	Patient Monitor
Material:	Plastic
Feature:	Reusable

Basic Information

Model NO.:CCO-PM12B

Certification:ISO13485

Warranty:1 Year

Transport Package:Standard Export Package

Origin:China

Capacity:500 units/Month

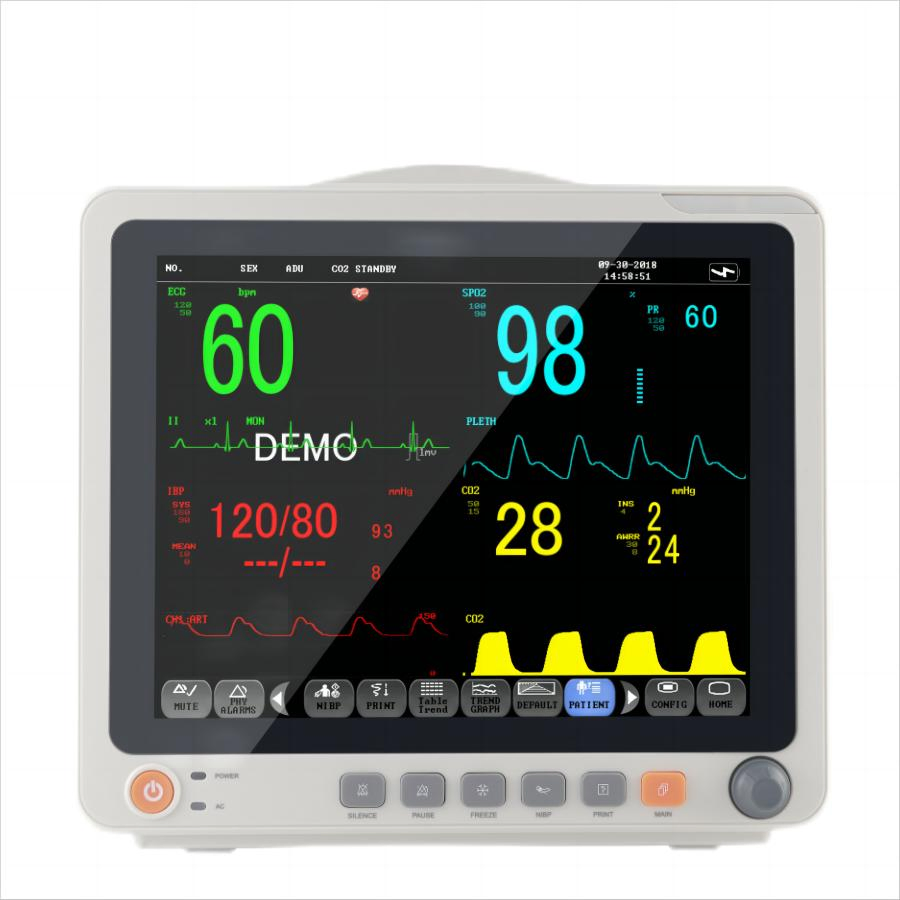

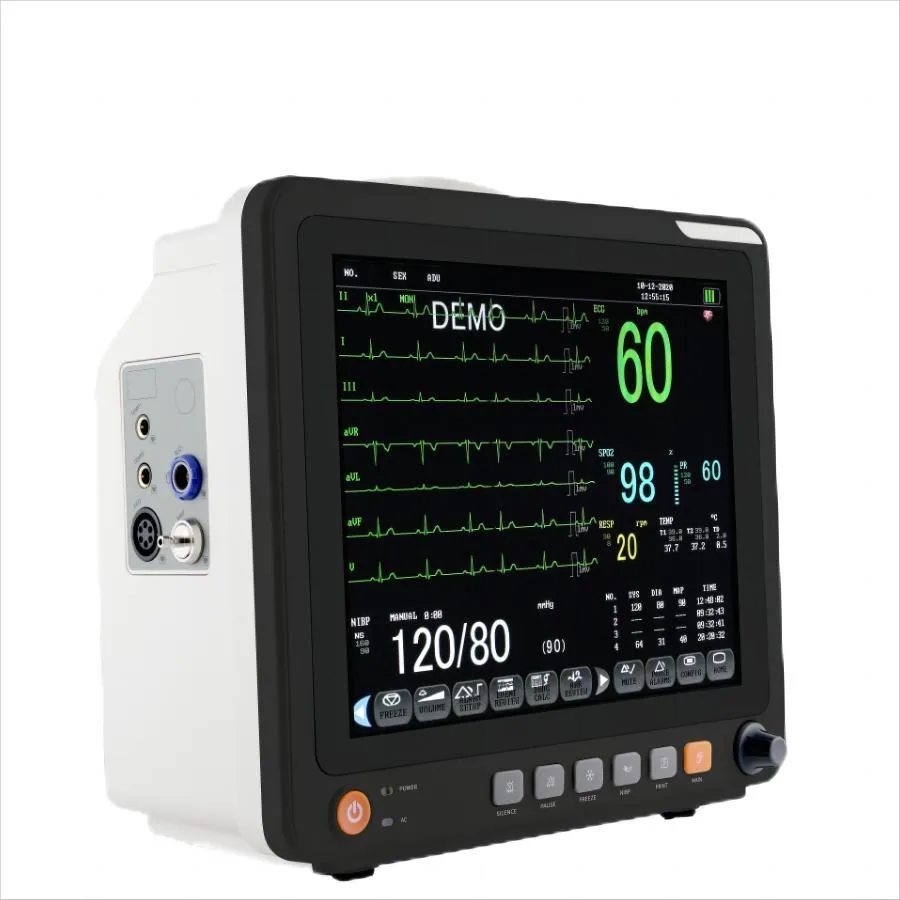

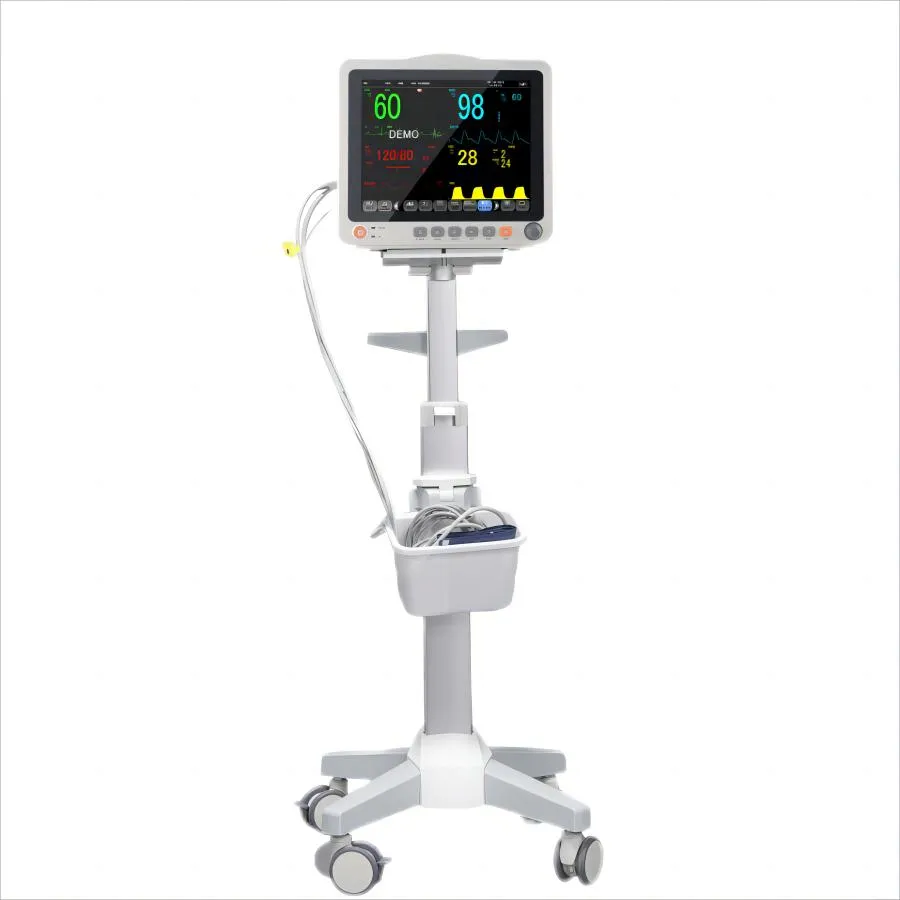

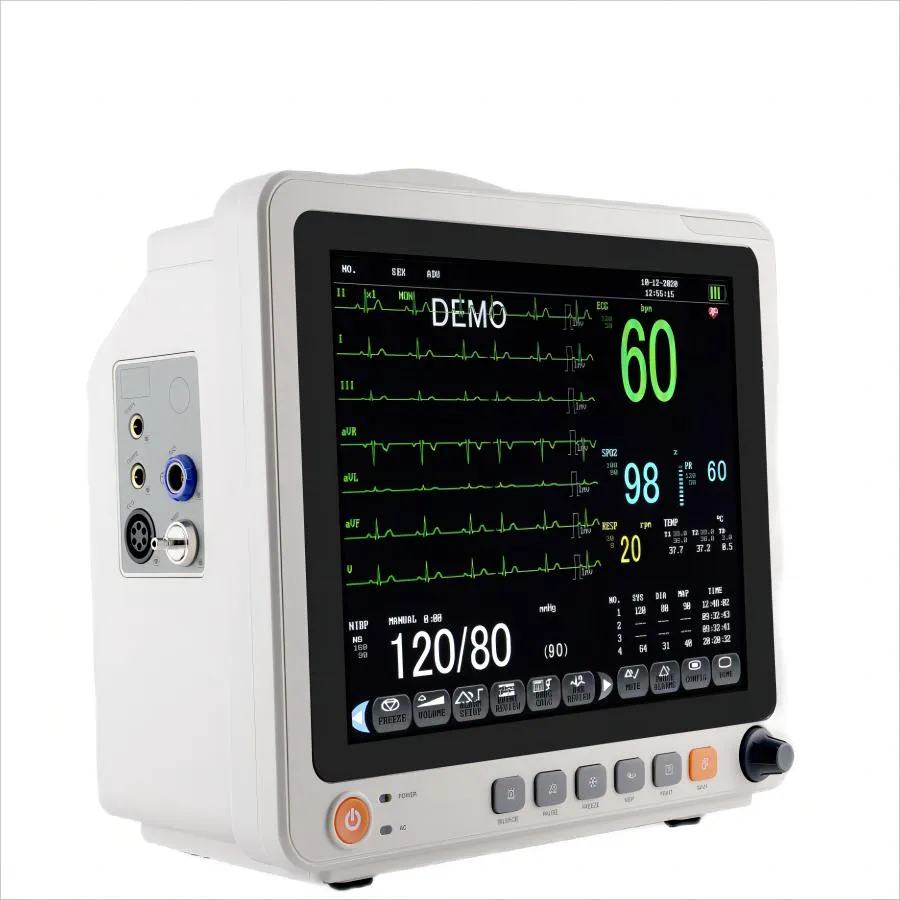

Hospital 12.1-inch Touch Screen Multi-parameter ICU Patient Monitoring Systems

Key Features

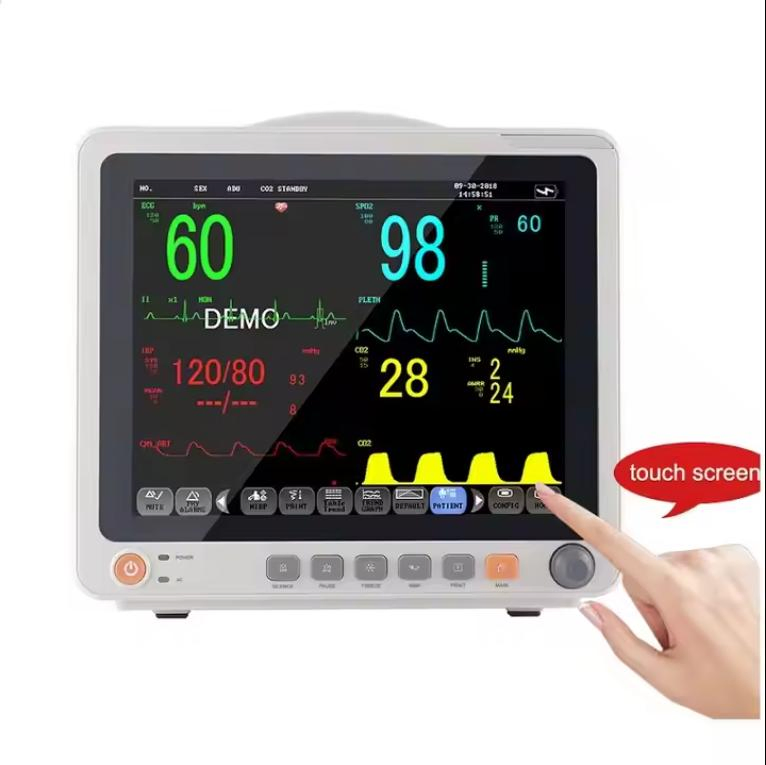

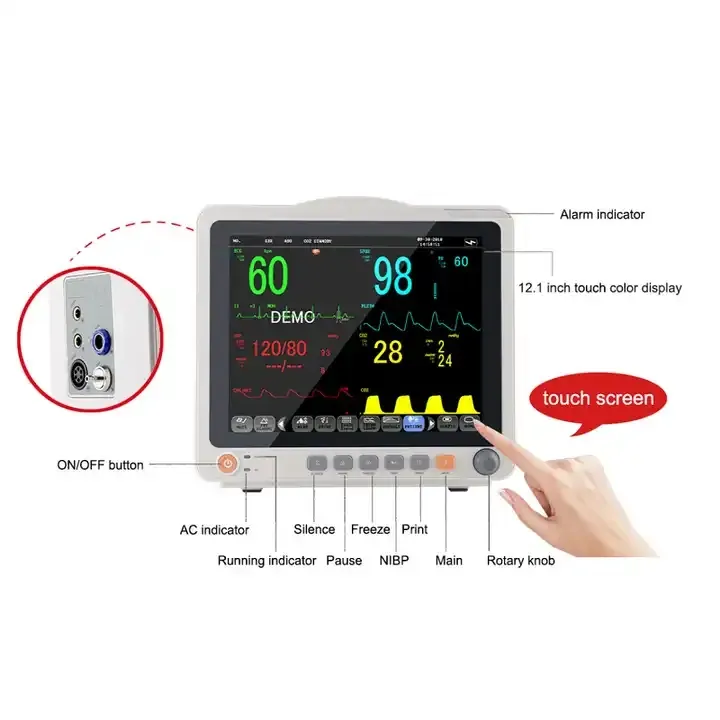

Touch-screen for easy operation
12.1 inch high resolution color TFT display
USB interfaces support easy software upgrade and data transfer
Compatible with Central Monitoring System (CMS)
Three Working Modes: Monitoring, Surgery and Diagnosis
Simple and friendly operating display interface
Multi-display modes: Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend
Built-in high capacity battery up to 3 hours of continuous work

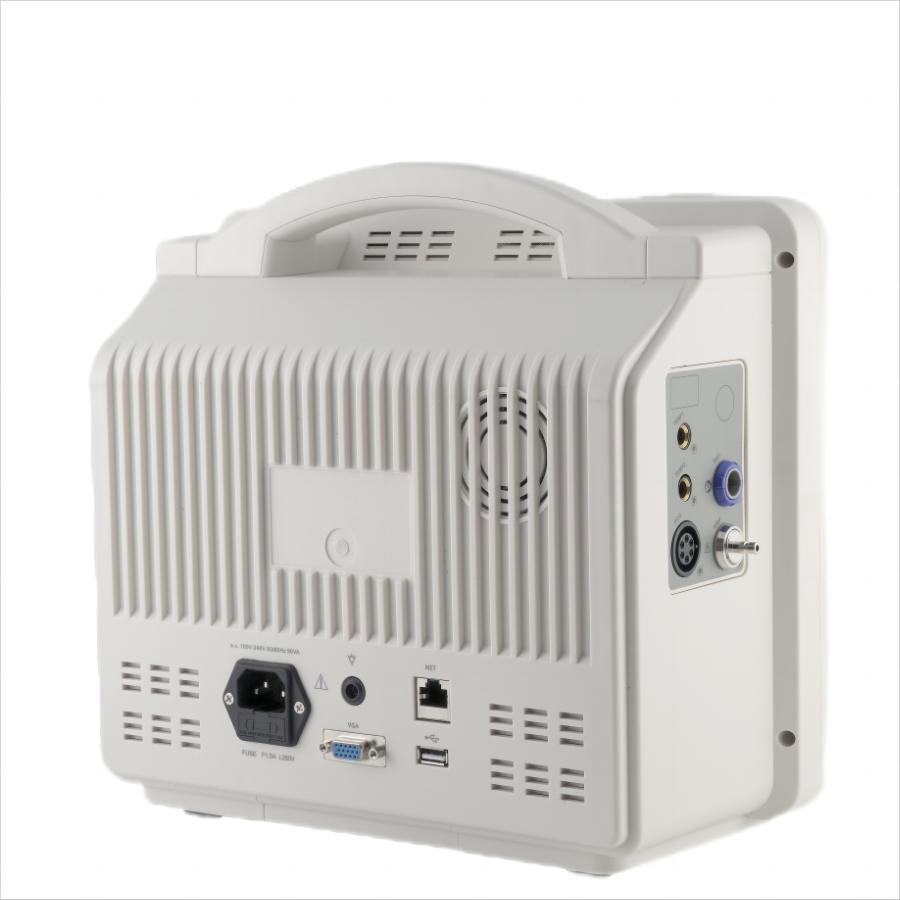

VGA output for external display

Technical Specifications

ECG Monitoring

Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
Resolution & Accuracy: 1 BPM / ±1%
ST measurement range: -2.0 ~ +2.0 mV
Bandwidth: Diagnostic (0.05~130 Hz), Monitor (0.5~40 Hz), Surgery (1~20 Hz)

SpO2 & NIBP

SpO2 Measuring Range: 0 ~ 100 % (Accuracy: ±2% for 70%-100%)
Pulse Rate: 20-250 BPM (Accuracy: ±3 BPM)
NIBP Method: Oscillometry (Manual, Auto, STAT modes)
NIBP Range (Adult): SYS 40~280mmHg, DIA 10~225mmHg, MEAN 20~240mmHg
NIBP Range (Neonatal): SYS 40~135mmHg, DIA 10~100mmHg, MEAN 20~110mmHg

RESP & TEMP

RESP Range: Adult 10~120 BrPM, Neonatal/Pediatric 7~150 BrPM
TEMP Range: 0 ~ 50 °C (Resolution: 0.1°C)

Standard Configuration

No.	Item	Quantity
1	Main Unit	1
2	5-lead ECG cable	1
3	Disposable ECG Electrode	5
4	Adult Spo2 probe	1
5	Adult NIBP cuff	1
6	NIBP extension tube	1
7	Temperature probe	1
8	Power Cable	1
9	User Manual	1
10	Fuse	3

Optional Parameters

Recorder (Printer), Central monitoring system, Dual IBP, Etco2, 12-lead ECG, Nellcor-SpO2, Sun Tech NIBP.

Available Medical Equipment Range

Department	Products
X-Ray Room	X-ray machine, processor, film, cassette, lead protective clothing (gloves, glasses, apron)
Ultrasound	B/W 2D ultrasound, 2D/3D/4D color doppler ultrasound
Laboratory	Chemistry analyzer, hematology analyzer, ELISA reader/washer, centrifuge, pipette, urine analyzer
Operation Room	Anesthesia machine, ventilator, operating lamp, table, ECG, patient monitor, defibrillator, infusion pump, oxygen generator, autoclave sterilizer

Frequently Asked Questions

Q1: What are the core parameters monitored by the CCO-PM12B? The standard configuration monitors ECG, RESP (Respiration), TEMP (Temperature), NIBP (Non-invasive Blood Pressure), SpO2, and PR (Pulse Rate).

Q2: Does the monitor support touch screen operation? Yes, it features a 12.1-inch high-resolution color TFT touch screen for easy and intuitive operation.

Q3: Can this system be used for neonatal or pediatric patients? Yes, the system includes dedicated modes for Adult, Pediatric, and Neonatal patients with adjusted alarm ranges and measurement sensitivities.

Q4: How long does the internal battery last? The built-in high-capacity battery supports up to 3 hours of continuous operation, making it suitable for patient transport or power emergencies.

Q5: Is it possible to upgrade the software or transfer data? Yes, the device is equipped with USB interfaces that support easy software upgrades and data transfer to external systems.

Q6: What optional upgrades are available for this monitor? Optional parameters include a built-in recorder (printer), Central Monitoring System (CMS) compatibility, Dual IBP, Etco2, and Nellcor-SpO2.
