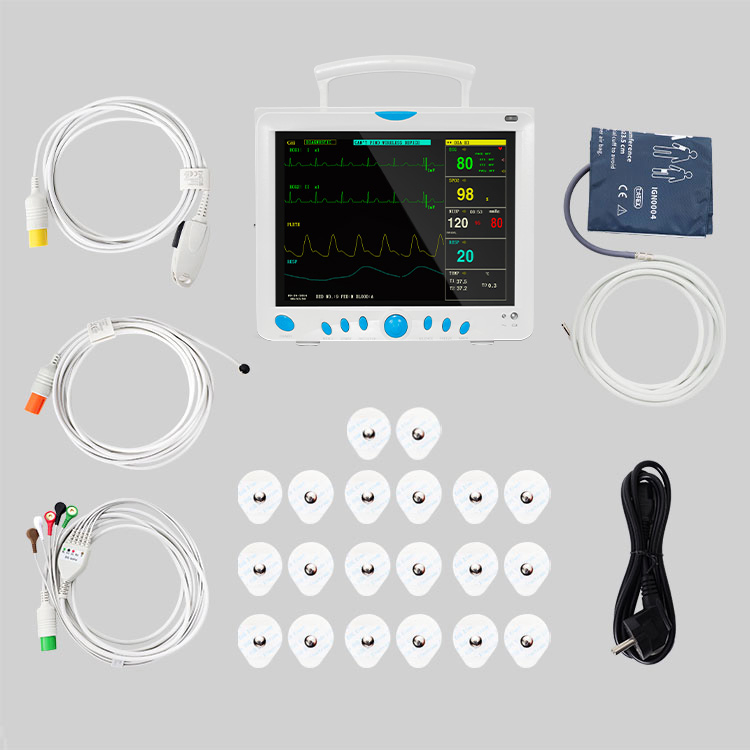

Key Features

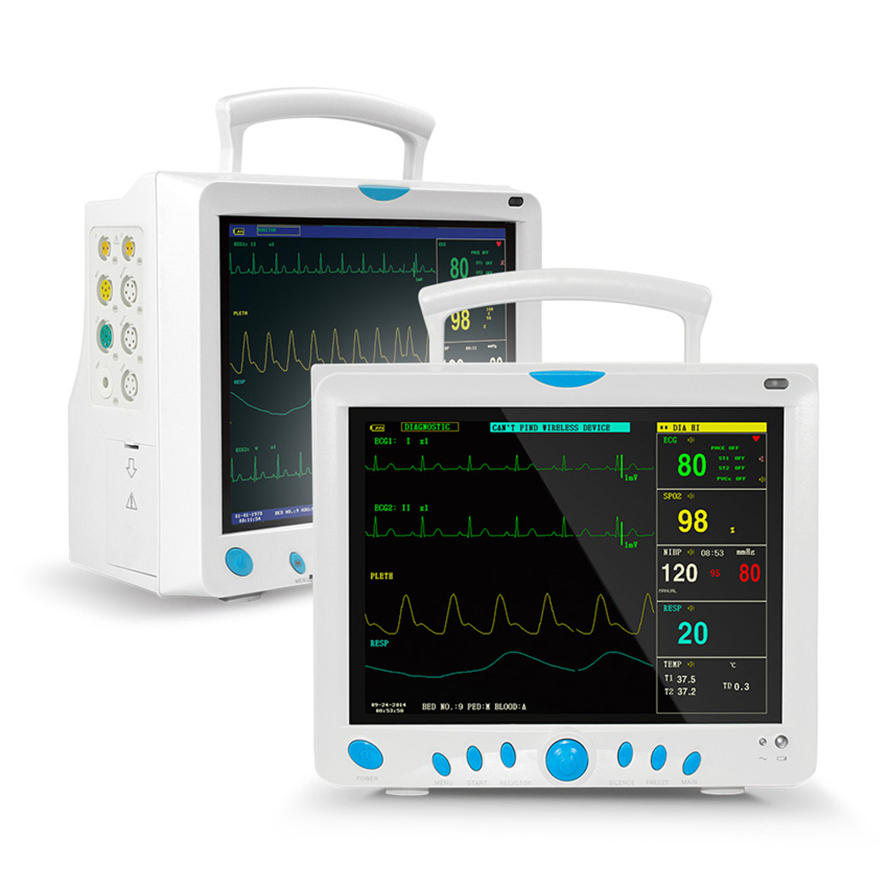

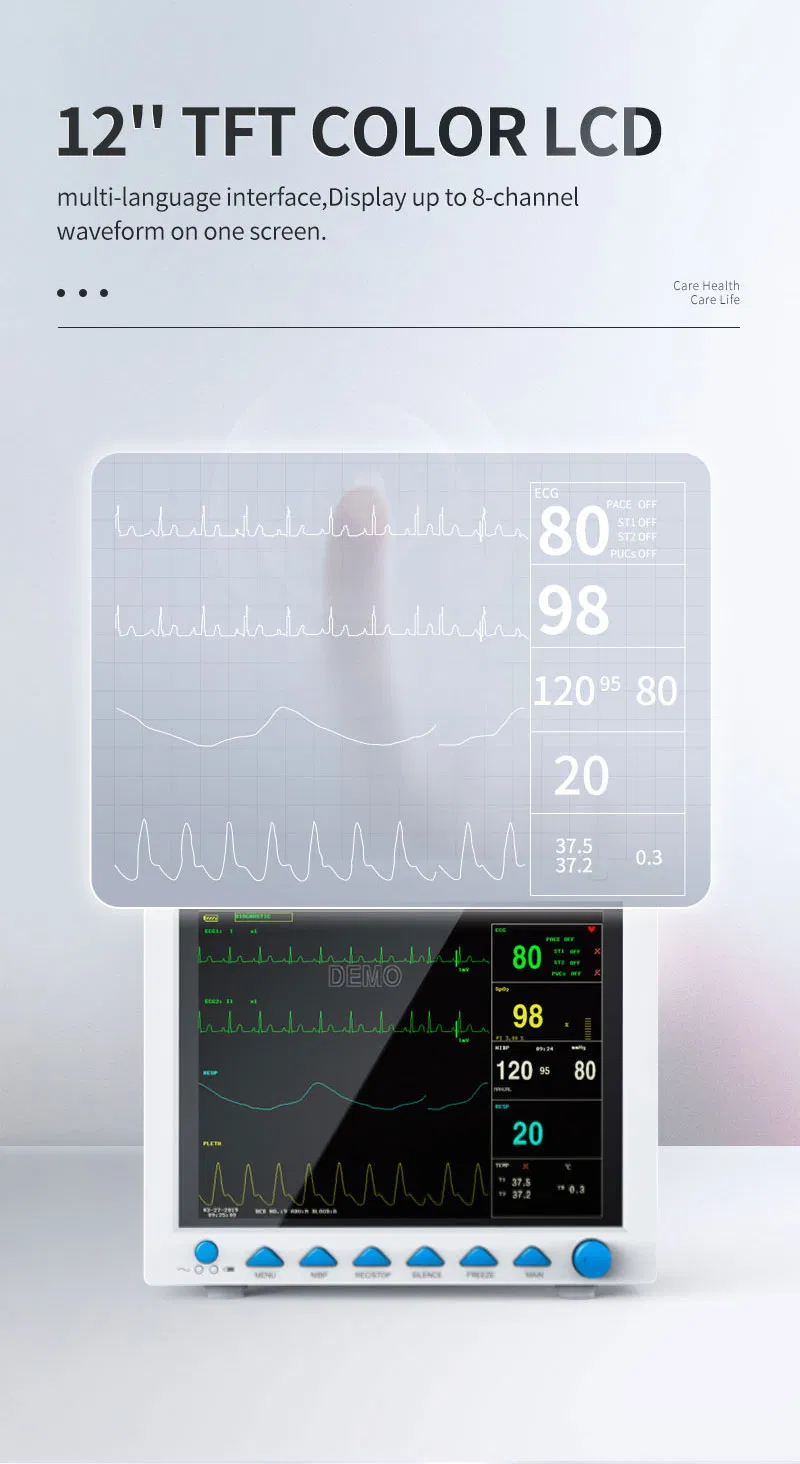

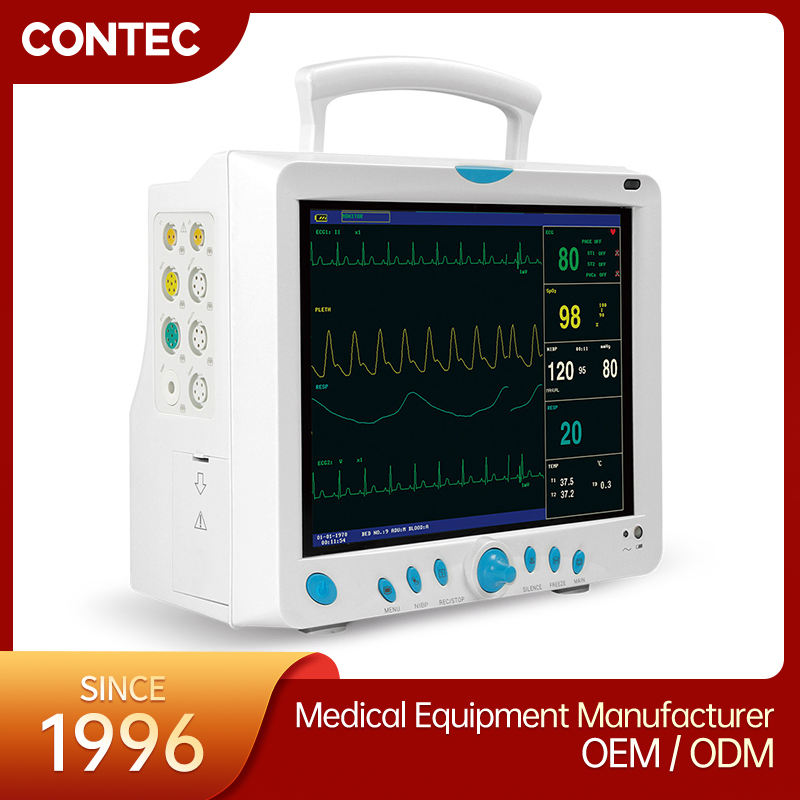

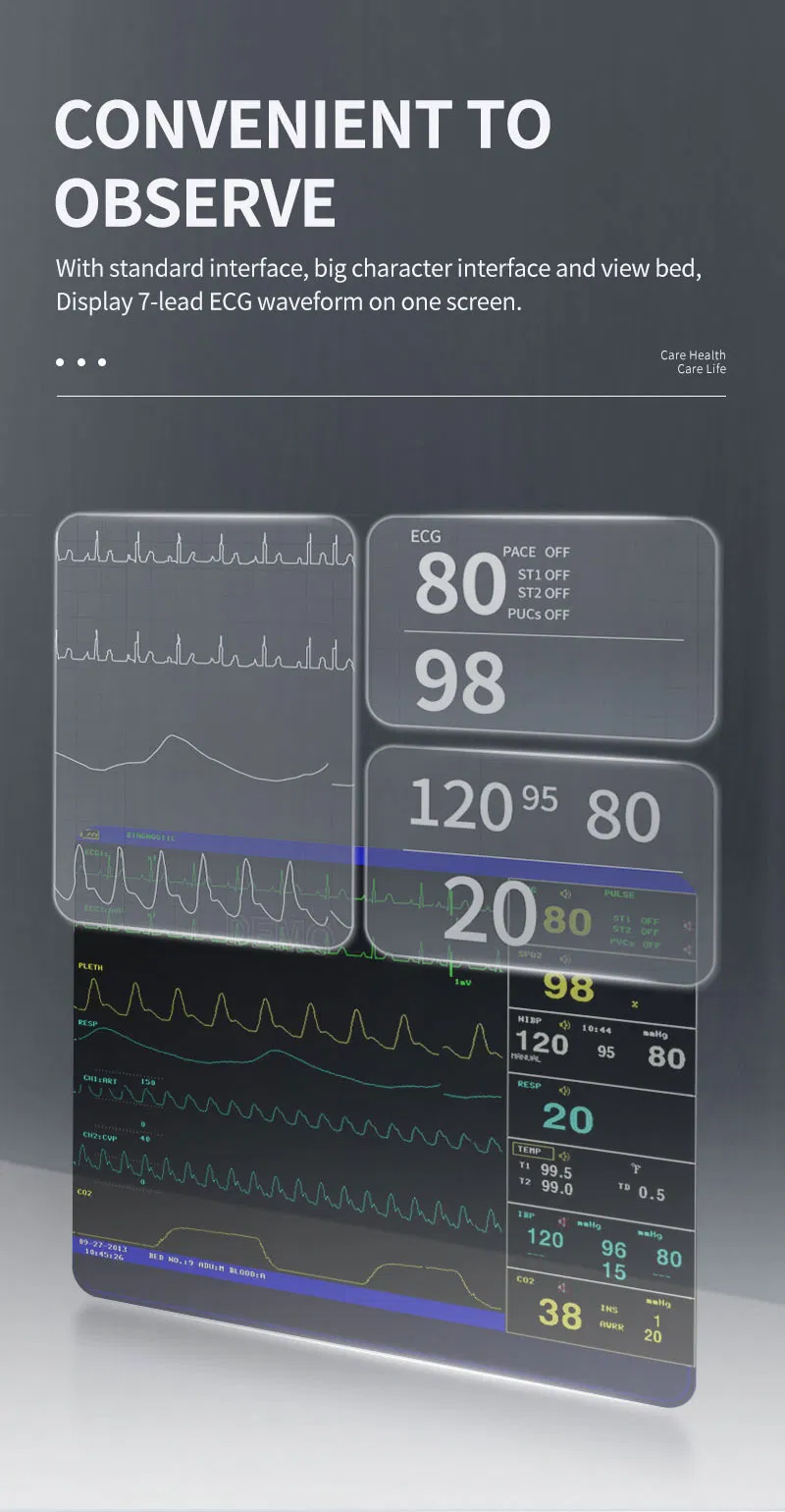

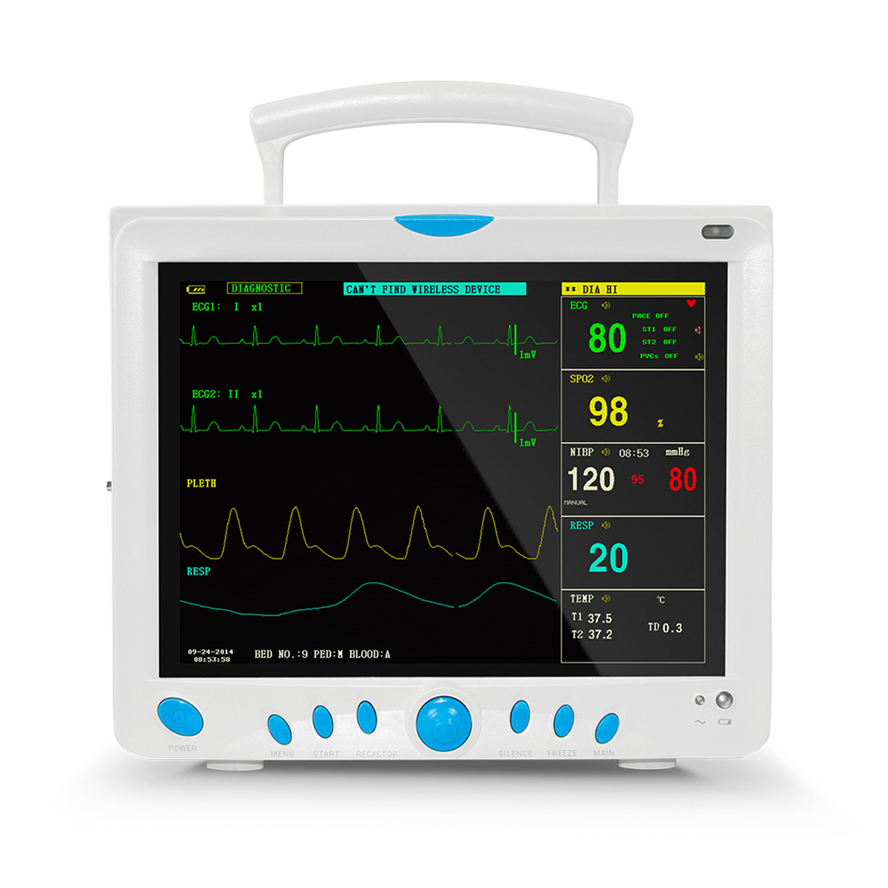

12.1" Color TFT Screen, waveform up to 8 channels
Light and portable with build-in rechargeable battery
Up to 10 kinds of monitor parameters
Arrhythmia analysis, pace-marker detection and S-T Segment analysis
72 hour storage and review of trend grams and tables
40 second review of holographic waveforms
All-round monitor for adult, pediatric and neonatal patients
Electrosurgical unit and defibrillation protected
Technical Specifications
5-lead or 3-lead selectable; Lead selection: I, II, III, avR, avL, avF, V; Gain selection: 12.5mm/s, 25mm/s, 50mm/s; Accuracy: ±1bpm or ±1%; Protection: Withstand 4000VAC/50Hz voltage; S-T detection & Arrhythmia analysis included.
Method: Oscillometry; Modes: Manual/Automatic/STAT; Measurement types: Systolic, Diastolic, Mean; Range: Adult 10-270mmHg; Over-pressure protection included.
SpO2 Range: 0-100%; Accuracy: ±2digit (70~100%); Respiration Method: RA-LL impedance; Range: Adult 6-120rpm, Pediatric/Neonatal 6-150rpm; Apnea alarm included.
Dual-channel Temperature (0-50°C); Optional EtCO2 (Side-stream or mainstream); Optional Cardiac Output (Thermo-dilution); Optional 2-channel IBP.
Frequently Asked Questions
What are the standard parameters monitored by CMS9000?
The standard configuration includes ECG, SpO2, NIBP, Respiration, Temperature, and Pulse Rate monitoring.
Is this monitor suitable for all patient types?
Yes, the CMS9000 is designed for all-round monitoring of adult, pediatric, and neonatal patients.
What is the screen size and display capability?
It features a 12.1" color TFT screen capable of displaying up to 8 channels of waveforms simultaneously.
Does the device support data storage and review?
Yes, it supports up to 72 hours of trend data storage and review, as well as 40-second holographic waveform reviews.
What optional modules can be added?
Optional parameters include EtCO2 (side-stream or mainstream), Cardiac Output (CO), 2-channel IBP, and a thermal printer.
Is the monitor protected against other hospital equipment?
Yes, the device is electrosurgical unit and defibrillation protected, ensuring safety and accuracy during various medical procedures.
