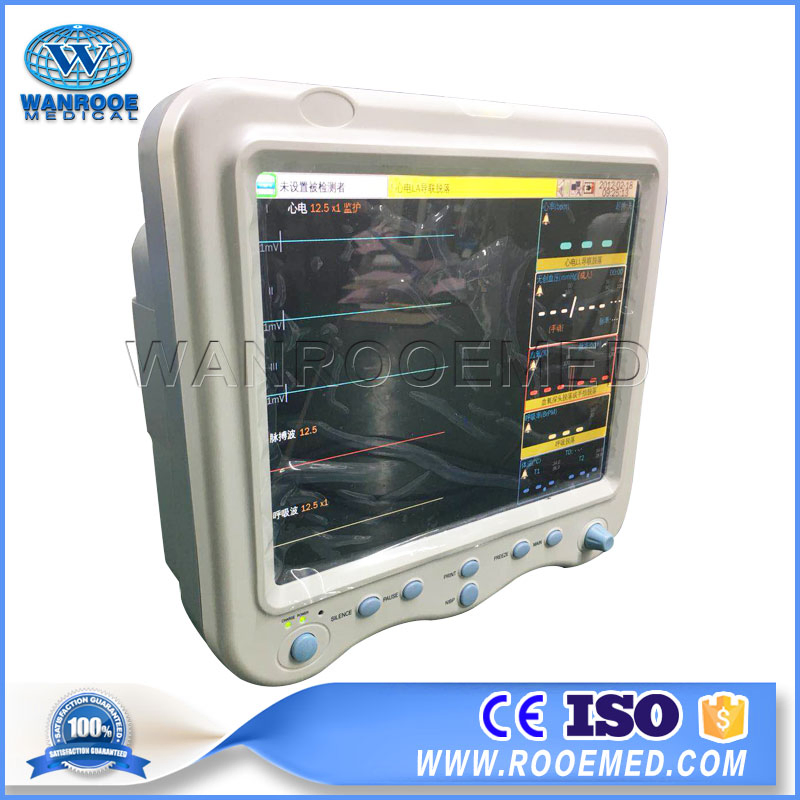

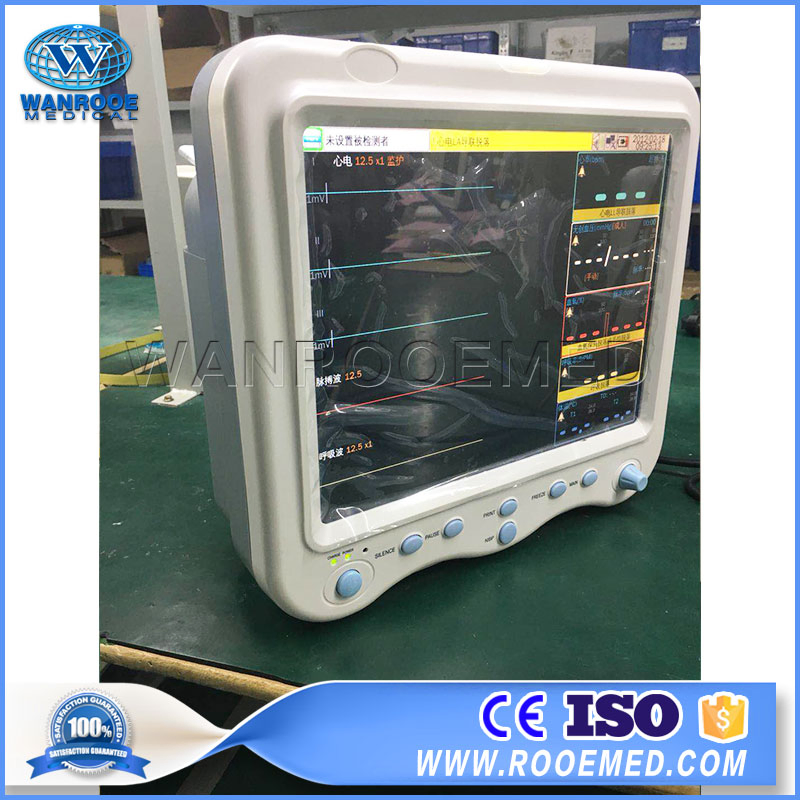

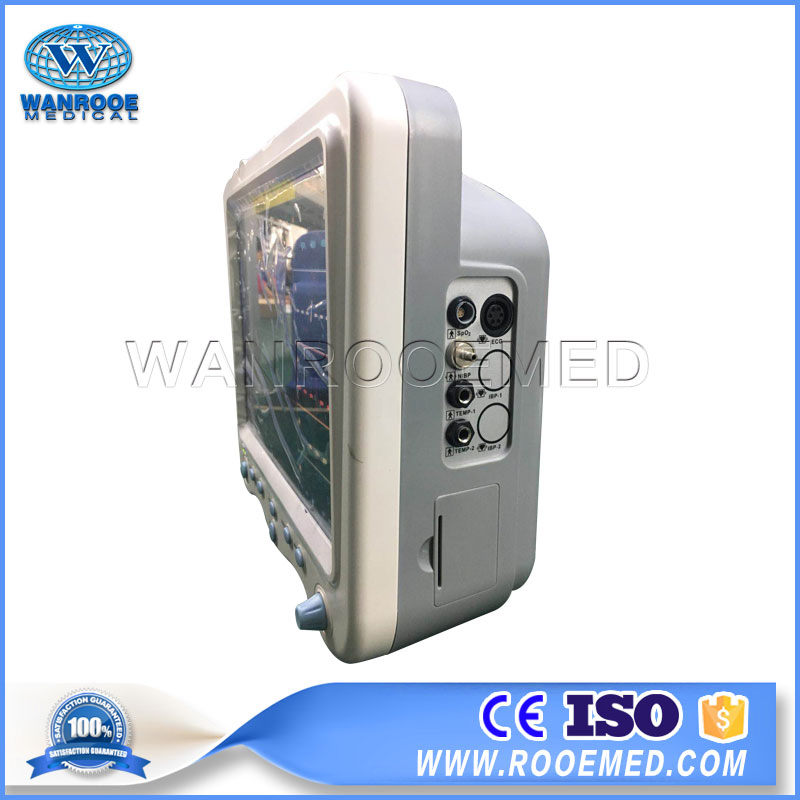

F15 Economic Surgical Ambulance Equipment 15 Inch ICU Portable Patient Monitoring System

1 / 5

F15 Economic Surgical Ambulance Equipment 15 Inch ICU Portable Patient Monitoring System

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.

F15

Certification

Group

Adult, Pediatric and Neonatal Patient

Dimension

330mm*260mm*140mm

Weight

4 Kg

Display

15' Color TFT LCD Screen

Temperature

0-40

Power

AC 90-300V, 50/60Hz, 60W

Battery

Rechargeable Lead-Acid

Touch Screen

Optional

Thermal Printer

Optional

Origin

China

Capacity

1000PCS/Month

Product Overview

F15 Economic Surgical Ambulance Equipment 15 Inch ICU Portable Patient Monitoring System

Key Features

💠

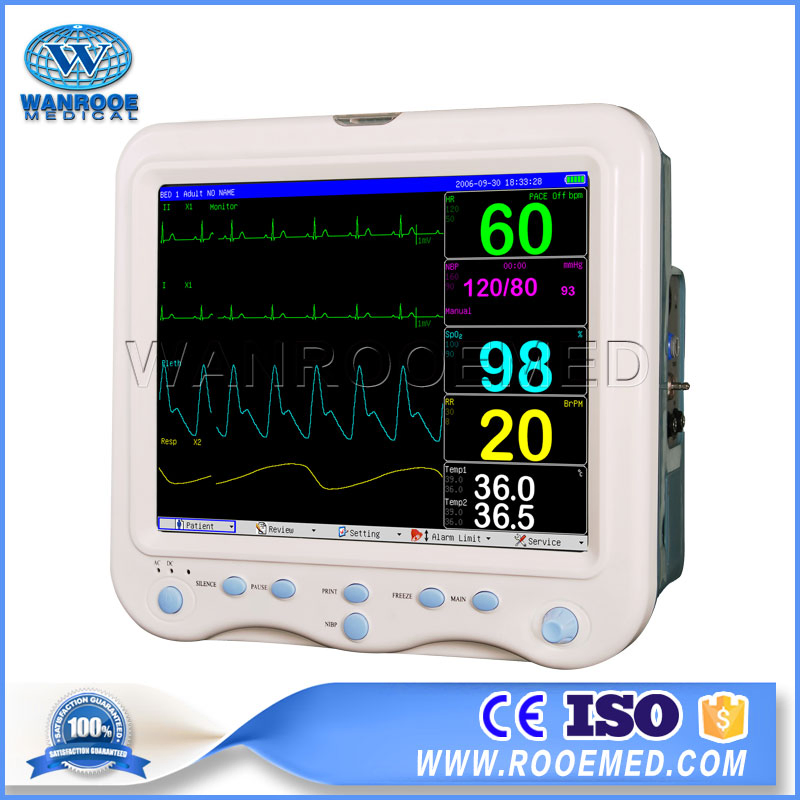

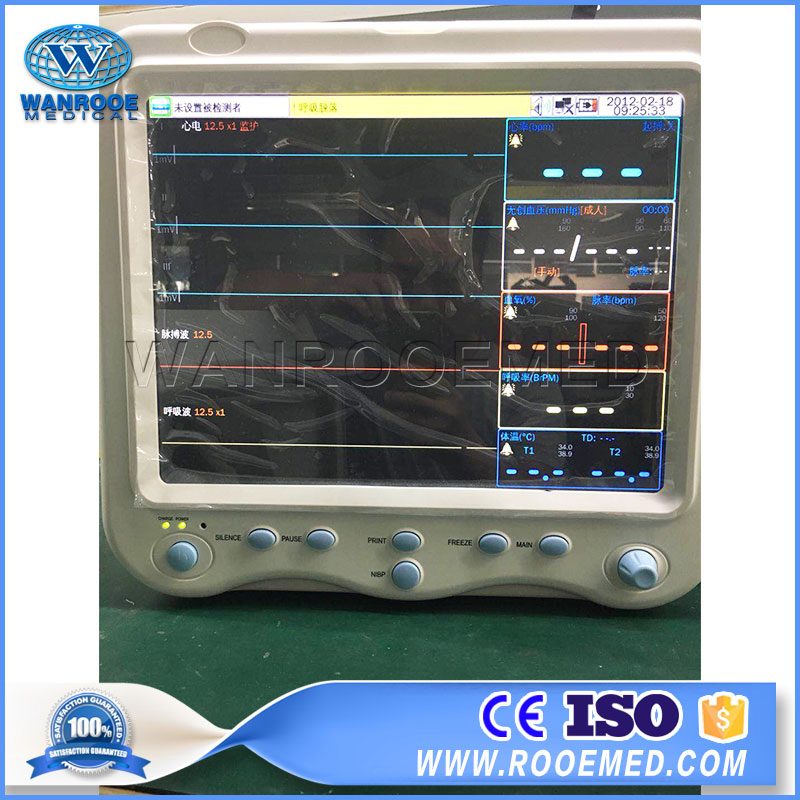

High-Resolution Display: 15' color TFT LCD screen supports display of up to 11 waveforms simultaneously.

💠

Advanced Alarms: Personated voice reminding alarm combined with visual on-display and integrated alarm lights.

💠

Versatile Monitoring Modes: Includes Standard, Large Font, NIBP Trend, Trend Table, Full lead ECG, and Oxy CRG modes.

💠

Clinical Tools: Real-time ST segment analysis, pace maker detection, arrhythmia analysis, and drug calculation/titration tables.

💠

Patient Universal: Suitable for monitoring adult, pediatric, and neonatal patients.

💠

Data Storage: Supports storage of 720 hours patient data, 1000 NIBP records, and 500 alarm events.

Technical Specifications

Physical & Performance Specs
Dimensions	330mm(W)260mm(H)140mm(D)
Weight	4 kg (Standard configuration)
Power Requirements	AC 90-300V, 50/60HZ, 60W / 90VA
Battery	Internal rechargeable lead-acid battery (12V, 2.0Ah)
ECG Leads	3/5-lead: I, II, III, aVR, aVL, aVF, V
NIBP Method	Automatic oscillometric (Manual/Auto/STAT modes)
SpO2 Range	0% - 100% (Accuracy ±2% for non-motion)
Temperature	Dual-channel, 0-50ºC range
Advanced Options
EtCO2	Main-stream / Side-stream / Micro-stream (0-150mmHg)
Multi-Gas/O2	CO2, N2O, O2, Enf, Iso, Hal, Sev, Des detection

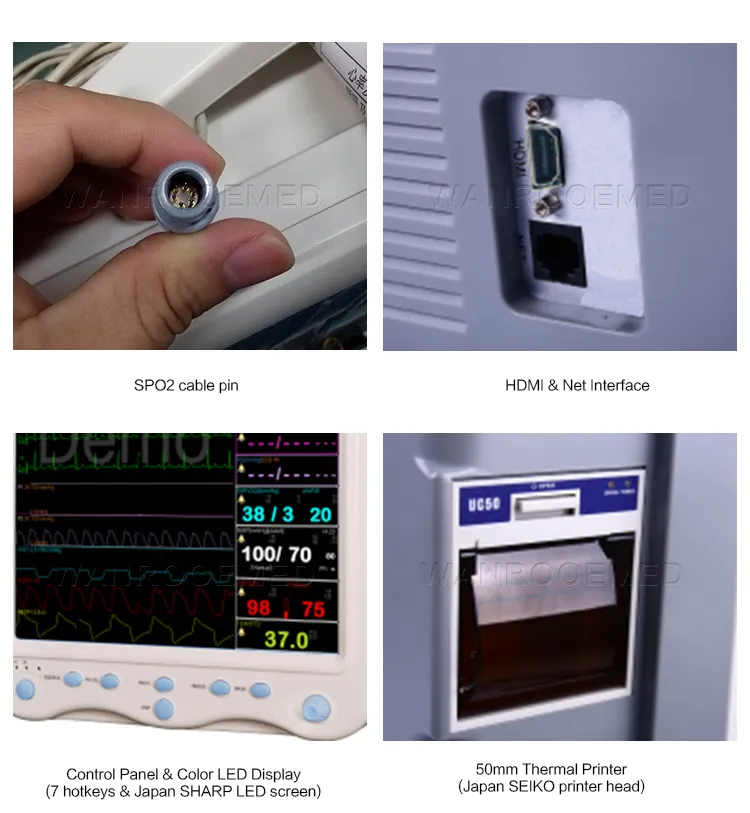

Printer	Built-in 50mm thermal printer (Optional)

Frequently Asked Questions

❓ What patients is the F15 monitor suitable for?

The F15 patient monitor is designed for a wide range of patients, including adult, pediatric, and neonatal (newborn) patients.

❓ How large is the display screen?

The system features a large 15-inch color TFT LCD screen, which can display up to 11 waveforms simultaneously for comprehensive monitoring.

❓ Does the device have an internal battery?

Yes, it comes with an internal rechargeable lead-acid battery (12V), making it suitable for portable use and ensuring continuous operation during power outages.

❓ Can the F15 store monitoring data?

Absolutely. The device can store up to 720 hours of monitoring data, 10,000 NIBP records, and 500 alarm events for clinical review.

❓ Which languages are supported by the software?

The F15 is highly versatile, supporting multiple languages including English, Chinese, Spanish, Portuguese, Russian, French, German, Turkish, and many more.

❓ Are there optional configurations available?

Yes, you can customize the unit with optional features like a touch screen, thermal printer, IBP, EtCO2, Nellcor SpO2, and multi-gas monitoring.
