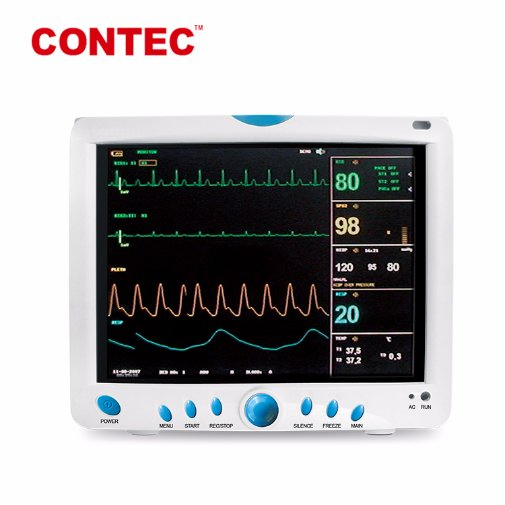

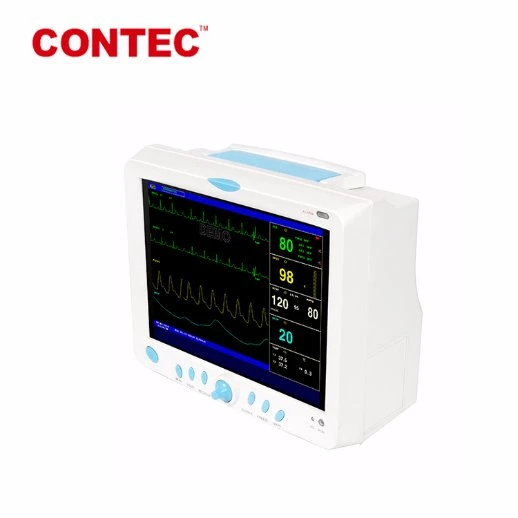

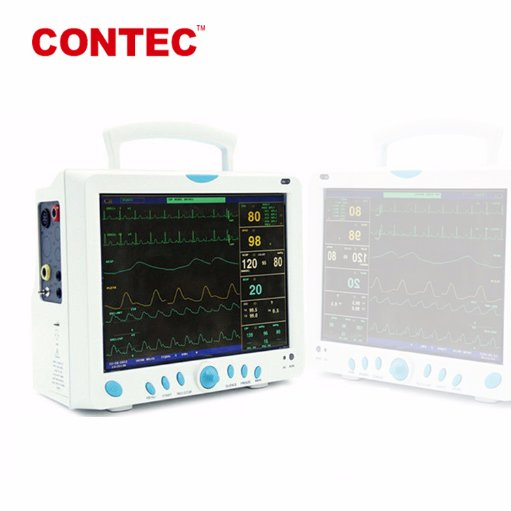

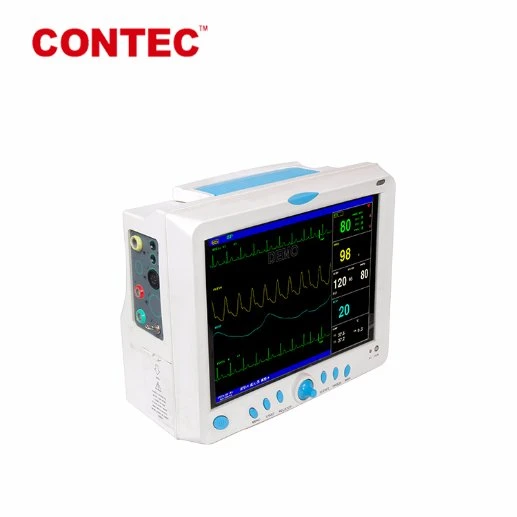

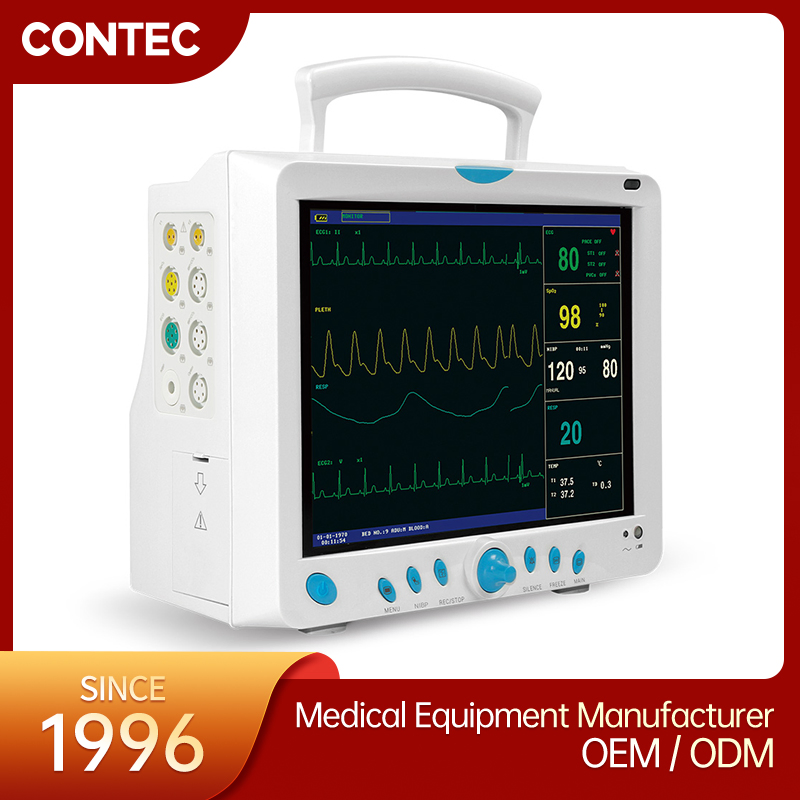

Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
1 / 5
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System
Contec Cms9000 CE Certificated Central Patient Monitoring System

Contec Cms9000 CE Certificated Central Patient Monitoring System

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

Basic Information
Model NO.
CMS9000
Certification
CE, ISO13485
Group
Middle-aged and Old
Product Name
Multifunction Patient Monitor with CE Cert
Optioanl Parameters
Etco2, 2-IBP, Thermal Printer
Standard Parameters
ECG/SpO2/NIBP/Pr/Temp/Resp
Warranty
18-Month for Main Unit and 6-Month for Accessories
Specification
12.1" screen
HS Code
9018193010
Production Capacity
500/Week
Product Description
Central Patient Monitoring System
CMS9000 CE Certificated Central Patient Monitoring System

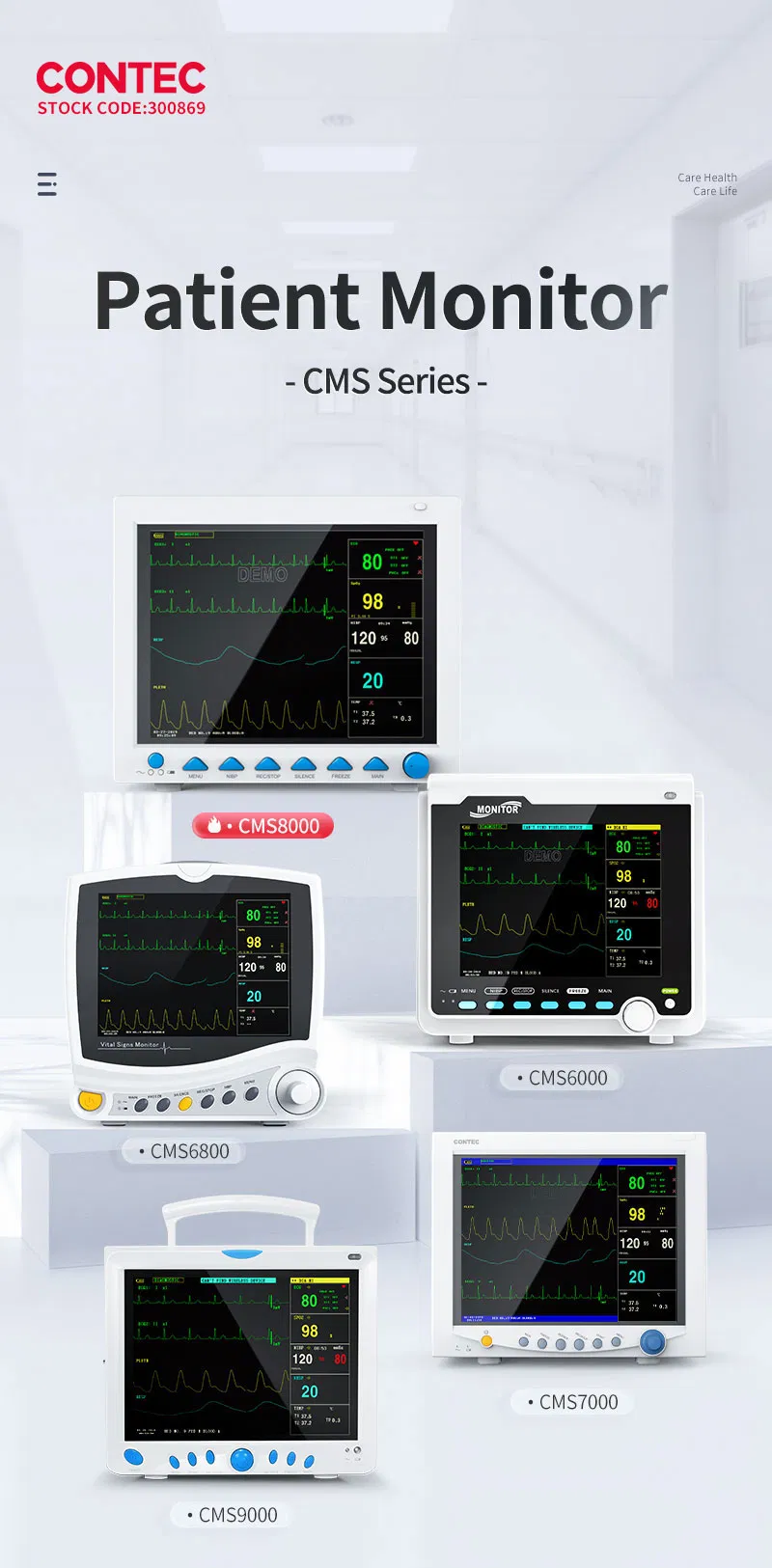

Patient Monitor Details
Patient Monitor Interface

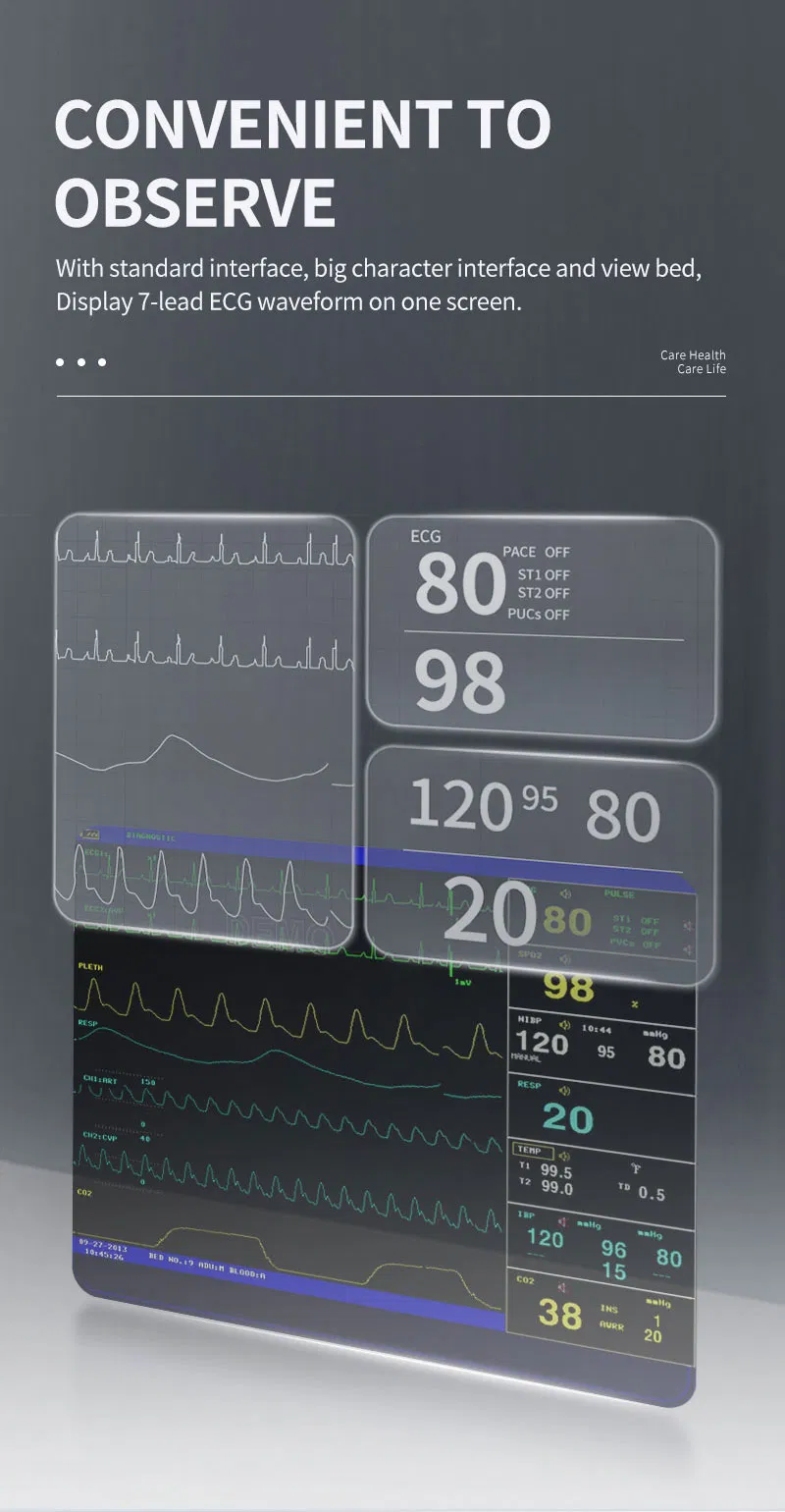

Patient Monitor Features
Key Features
1. Color TFT Screen, waveform up to 8 channels
2. Light and portable with build-in rechargeable battery
3. Up to 10 kinds of monitor parameters
4. Arrhythmia analysis, pace-marker detection and S-T Segment analysis
5. 72 hour storage and review of trend grams and tables
6. All-round monitor for adult, pediatric and neonatal
7. Electrosurgical unit and defibrillation protected
8. Standard parameters: ECG, NIBP, SPO2, Respiration, Temperature, Pulse rate

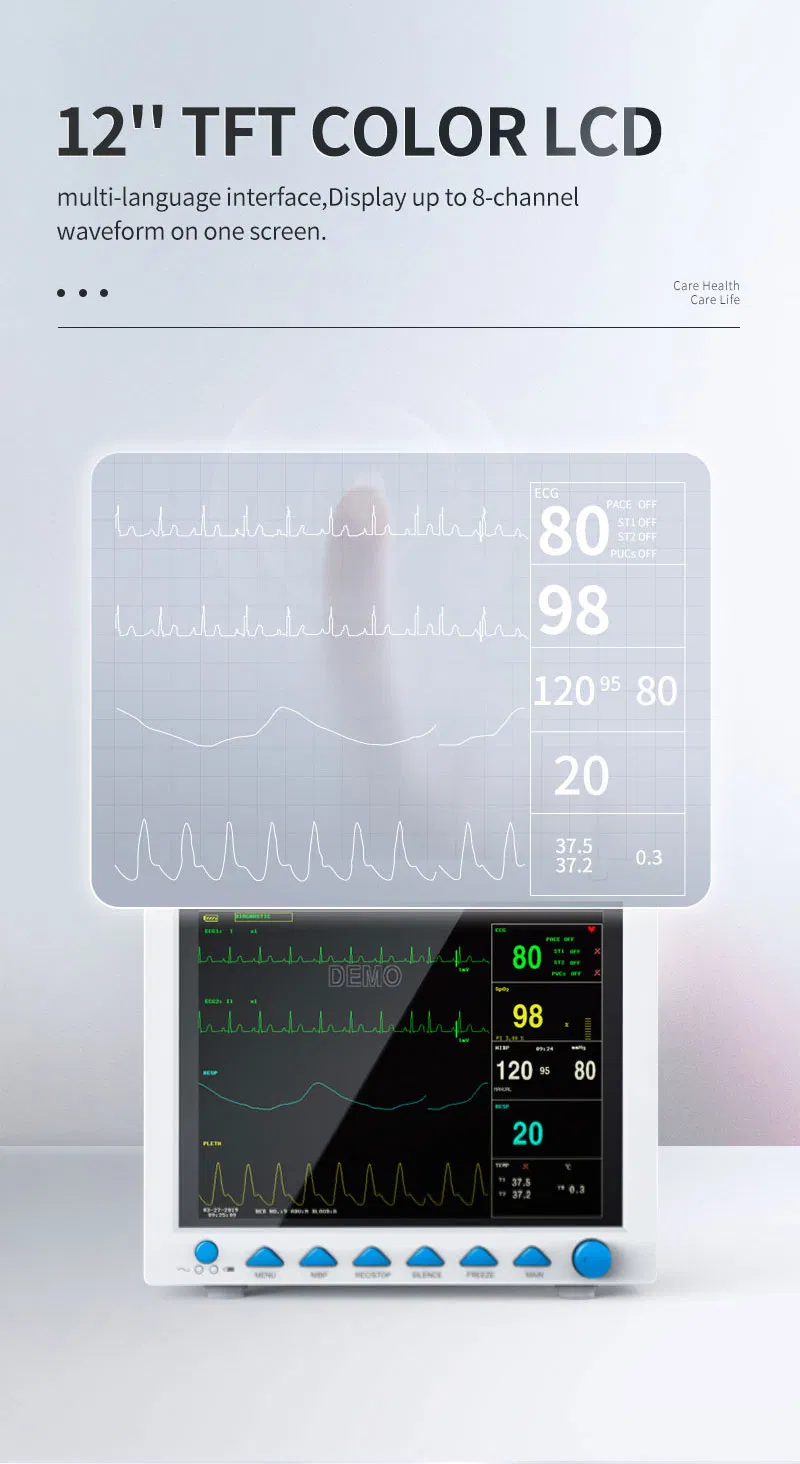

Technical Specs 1

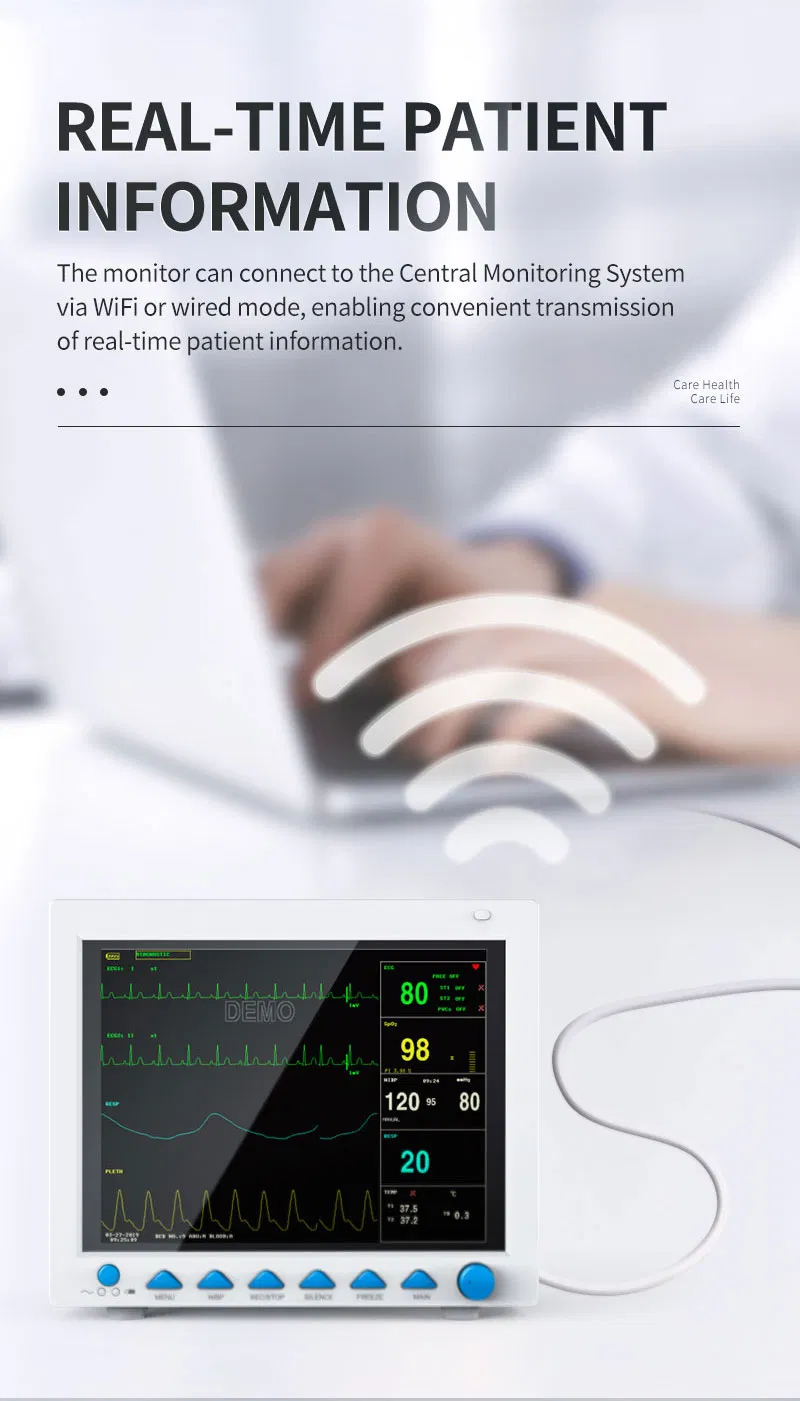

Technical Specs 2

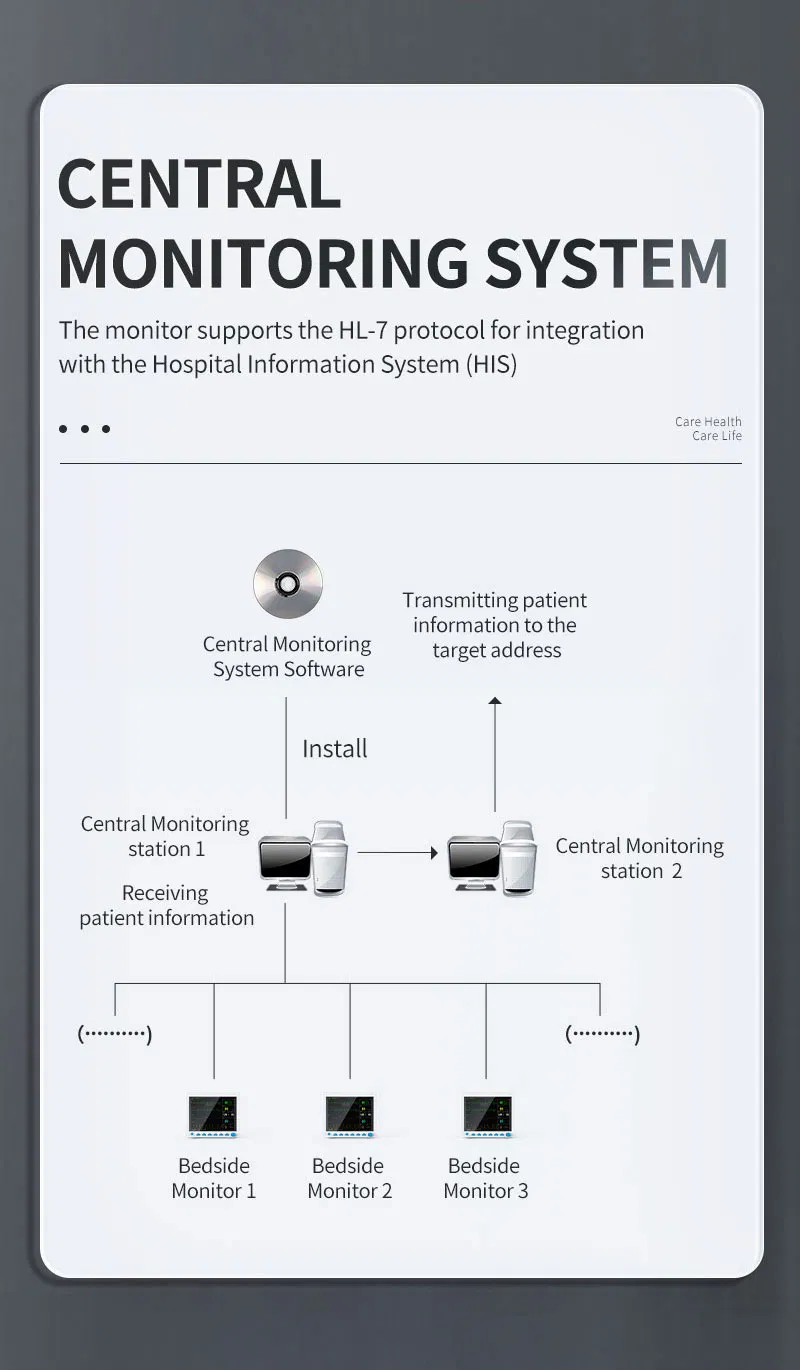

Technical Specs 3
Technical Specifications

ECG: 5-lead or 3-lead selectable; Gain selection: 12.5mm/s, 25mm/s, 50mm/s; Protection: Withstand 4000VAC/50Hz voltage; S-T detection & Arrhythmia analysis included.

NIBP: Method: Oscillometry; Operation modes: Manual/Automatic/STAT; Measurement range: Adult: 10-270mmHg; Over-pressure protection included.

SpO2: Measurement range: 0-100%; Accuracy: ±2digit (70~100%).

Respiration: Method: RA-LL impedance; Apnea alarm included.

Temperature: Dual-channel; Resolution: 0.1°C; Alarm range: 0-50°C.

Optional: EtCO2 (Side-stream/mainstream), CO (Thermo-dilution), IBP (2 channels).

Usage Scenario 1

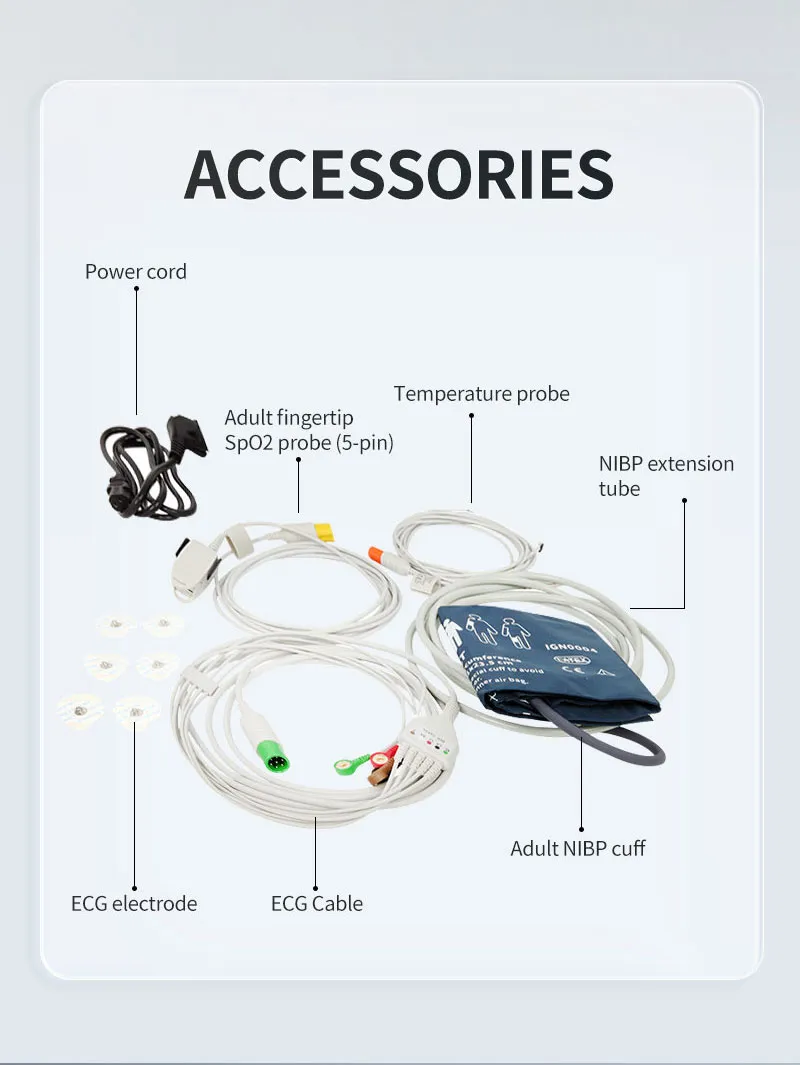

Usage Scenario 2

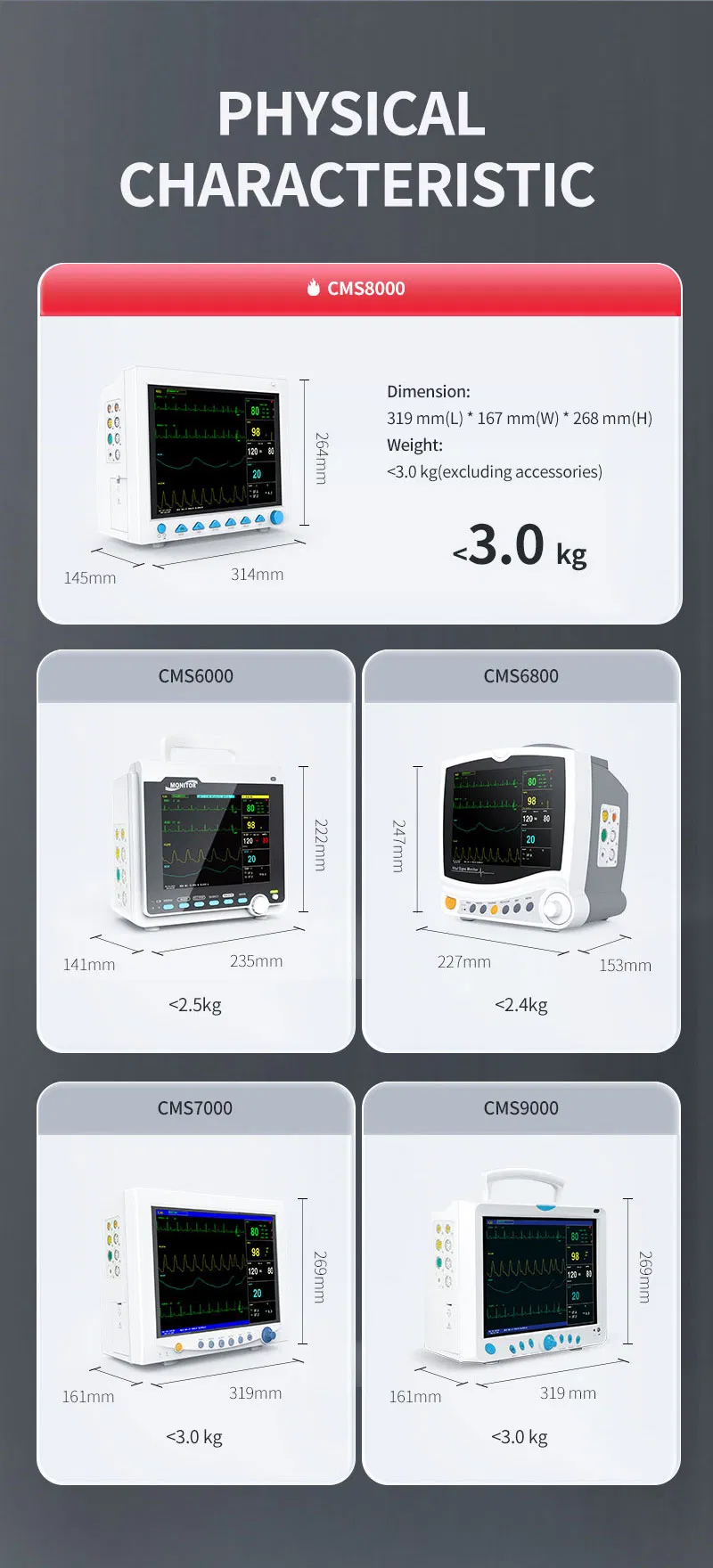

Usage Scenario 3
Production & Quality Control
Production Facility

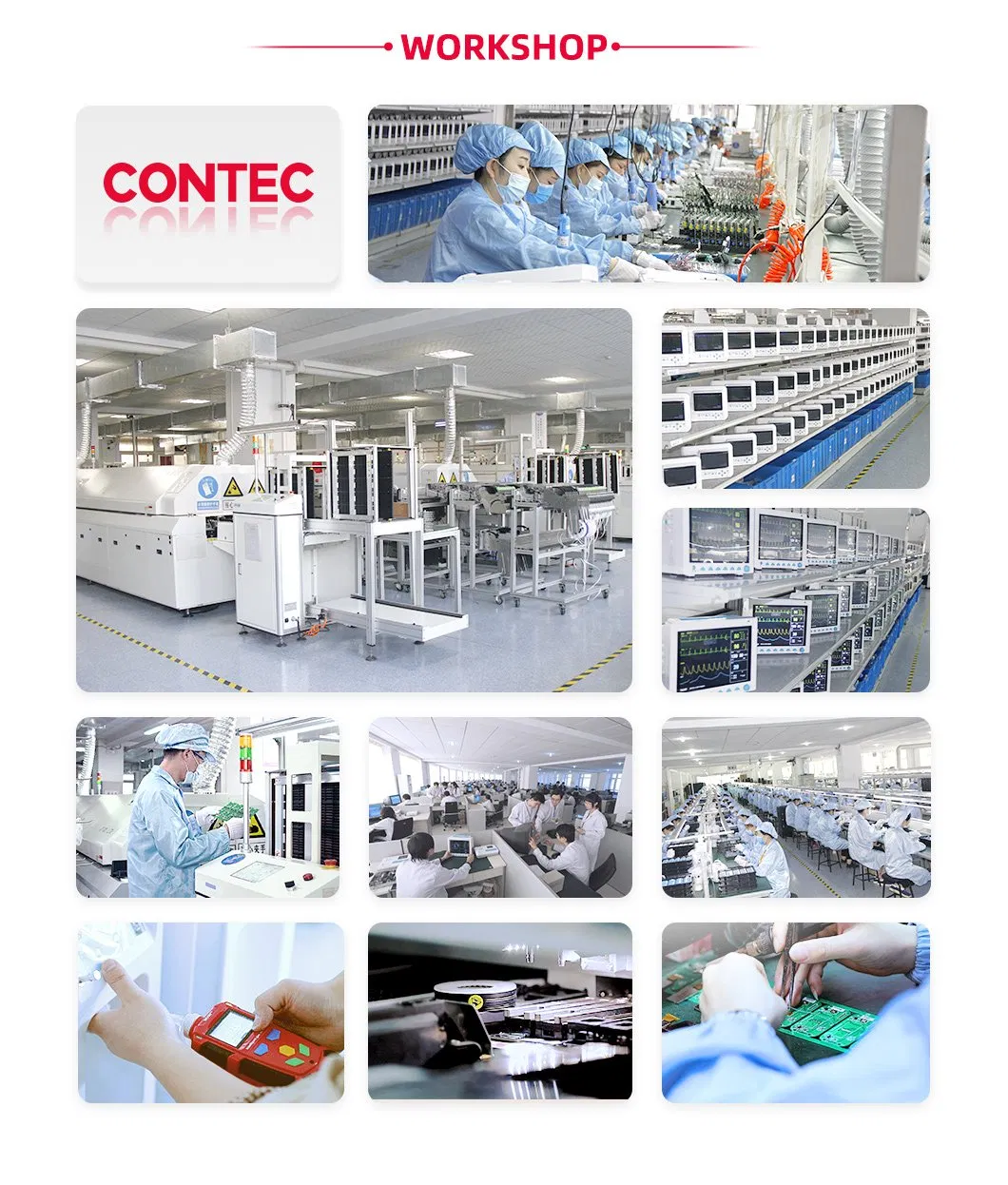

Quality Control
Certificates
R&D Center
Warehouse
Frequently Asked Questions
What are the standard monitoring parameters for the CMS9000?
The standard parameters include ECG, NIBP, SpO2, Respiration, Temperature, and Pulse rate.
Is this patient monitor suitable for pediatric and neonatal use?
Yes, the CMS9000 is designed for all-round monitoring of adult, pediatric, and neonatal patients.
What is the screen size and display capability?
It features a 12.1-inch color TFT screen capable of displaying up to 8 channels of waveforms simultaneously.
Does the device support data storage and review?
Yes, it supports up to 72 hours of storage and review for trend grams and tables, as well as 40-second holographic waveform review.
Can I add EtCO2 or IBP monitoring to this unit?
Yes, EtCO2 (side-stream or mainstream), 2-channel IBP, and a Thermal Printer are available as optional parameters.
Is the monitor protected against defibrillation?
Yes, the device is protected against electrosurgical units and defibrillation, ensuring safety during surgical procedures.
