Product Description

📋

Basic Specifications

Certification

ISO13485, FSC

Group

Adults, Children and Newborns

LCD Display

Colorful TFT LCD Display

Purpose

for Oxygen Breathing

Item Name

Patient Monitor

HS Code

9019200000

Capacity

20000 sets/Month

Origin

Ningbo, China

🩺

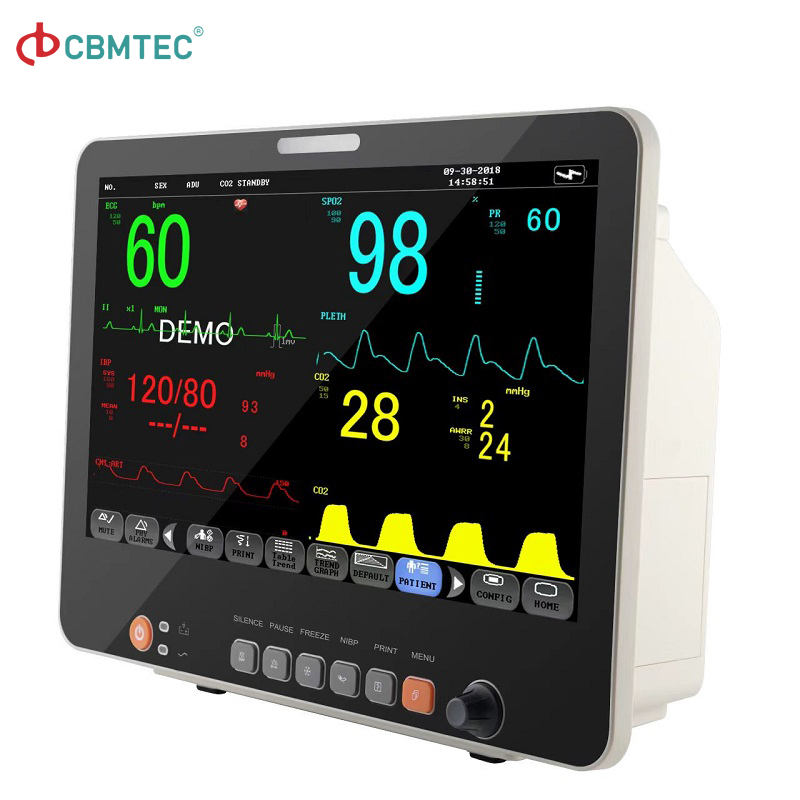

Medical Multi-Parameter Vital Sign Monitor

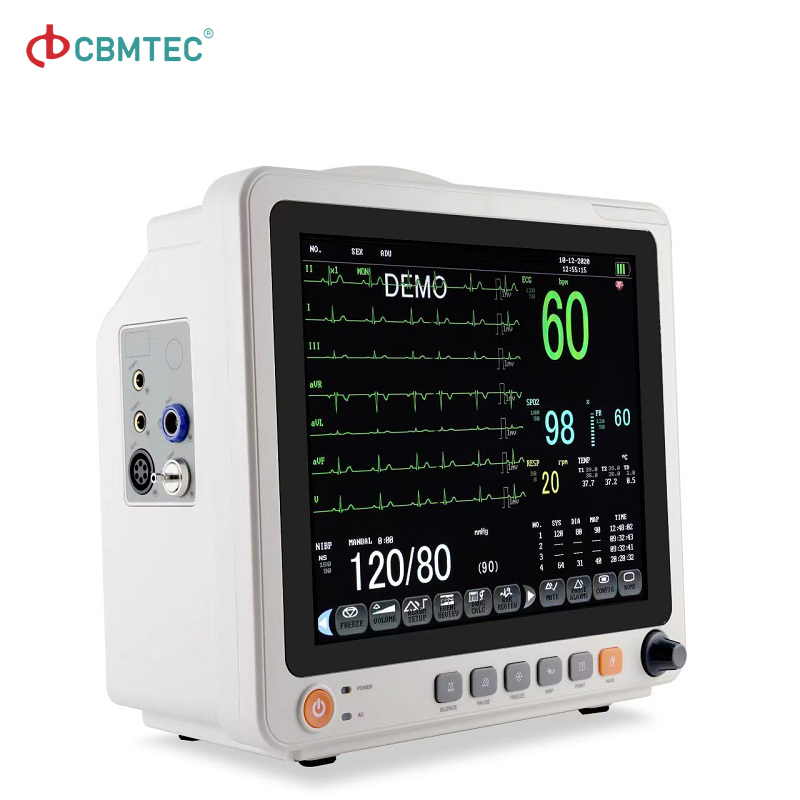

Key Features of 12.1'' Patient Monitor:

High brightness and resolution 12.1-inch colorful TFT LCD display with big font options.
Seven-channel synchronous ECG display for comprehensive monitoring.
Built-in Li-ion battery supporting up to 240 minutes of standby time with AC/DC conversion.

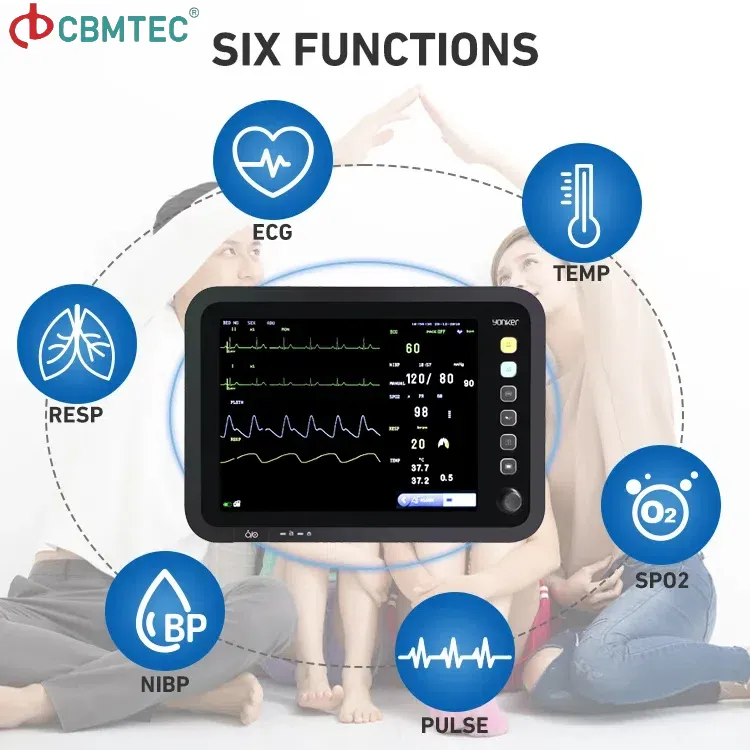

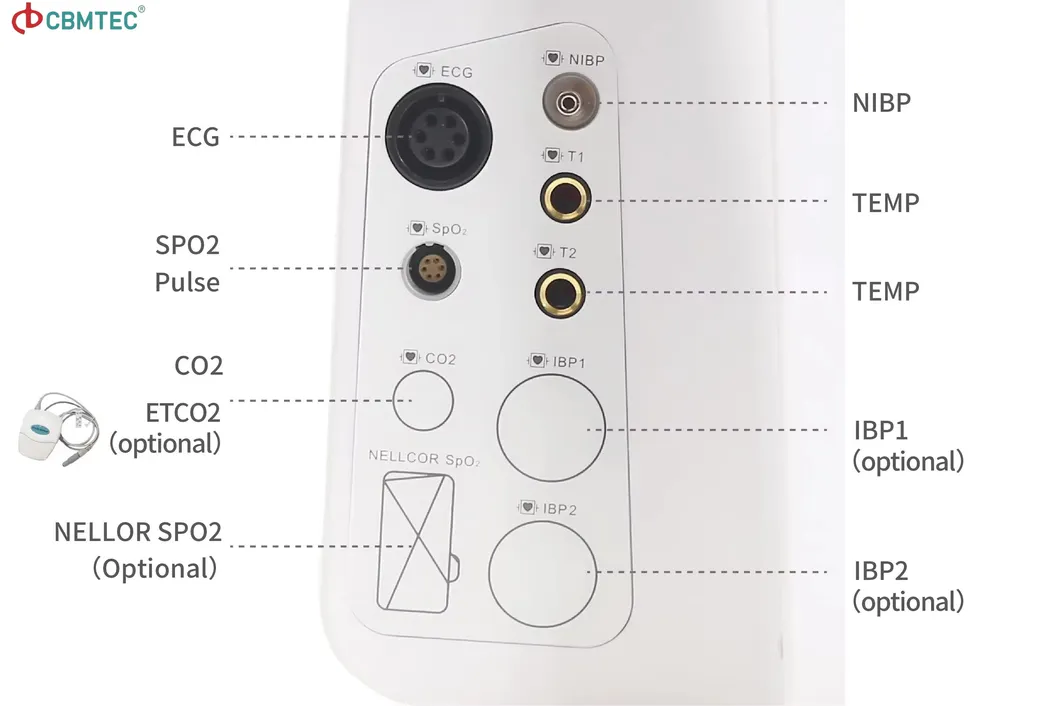

Standard parameters: ECG, HR/PR, SpO2, NIBP, RESP, TEMP.
Full digital SpO2 technology ensuring accuracy during low perfusion or movement.
Data export via USB to computer (PDF support) and WIFI module compatibility.
Dual over-pressure protection for NIBP to ensure patient safety in severe environments.
Advanced alarm system: 3 levels of audible, visible, and on-screen messages.
Massive storage: 43,200 trend points, 2,000 data sets, and 200 alarm event groups.
Powerful software: Pacemaker, ST segment, and arrhythmia analysis plus drug concentration titration.
Specialized design for newborns with a wide heart rate measurement range (15-350BP).
Multi-language support: 16 languages including English, Spanish, Portuguese, Russian, French, and more.

📊

Technical Specifications

ECG Monitoring		NIBP (Non-Invasive Blood Pressure)
Lead Mode: I, II, III, AVR, AVL, AVF, V1-6 Gain: ×0.25, ×0.5, ×1, ×2 Frequency: 0.5 Hz - 100 Hz ST Detection: -2.0mV to +2.0mV	Scan Rate: 12.5, 25, 50 mm/s Precision: 1mv (±3%) Alarm: Sound & Light Heart Rate: ±5 BPM	Technology: Oscillography Mode: Manual / Automatic Units: mmHg / kPa Range: 0-250 mmHg	SYS Range: 60-250 mmHg DIA Range: 40-220 mmHg MEAN Range: 45-235 mmHg Protection: Dual over-pressure

SpO2 & TEMP		RESP & System
SpO2 Range: 0-100% (Accuracy 1%) Pulse Rate: 20-250 bpm TEMP Range: 20°C - 45°C TEMP Accuracy: ±0.1°C	SpO2 Resolution: 1% TEMP Resolution: 0.1% Response Time: 1s	RESP Range: 0-60 rpm RESP Accuracy: ±1 rpm Screen: 12.1" TFT LCD Battery: Maintenance-free Lithium	Printer: Thermal array (Optional) Safety: IEC601-1 (GB9706.1) Languages: 16 Languages

🖥️

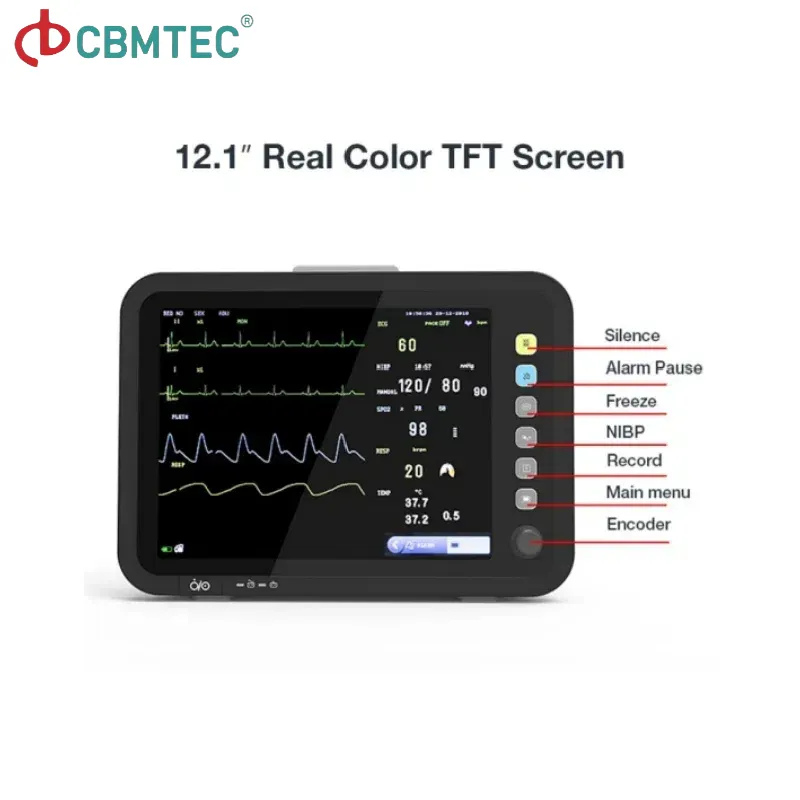

Interface & Display

Simple and friendly operating display interface:

Internal large capacity battery for patient mobility.
Long-term waveform playback and data record browsing.
Anti-interference from high-frequency electric surgical units.
Full-synchronistic multi-channel ECG display.
Visual and audible alarms for physiological and technical parameters.

🏭

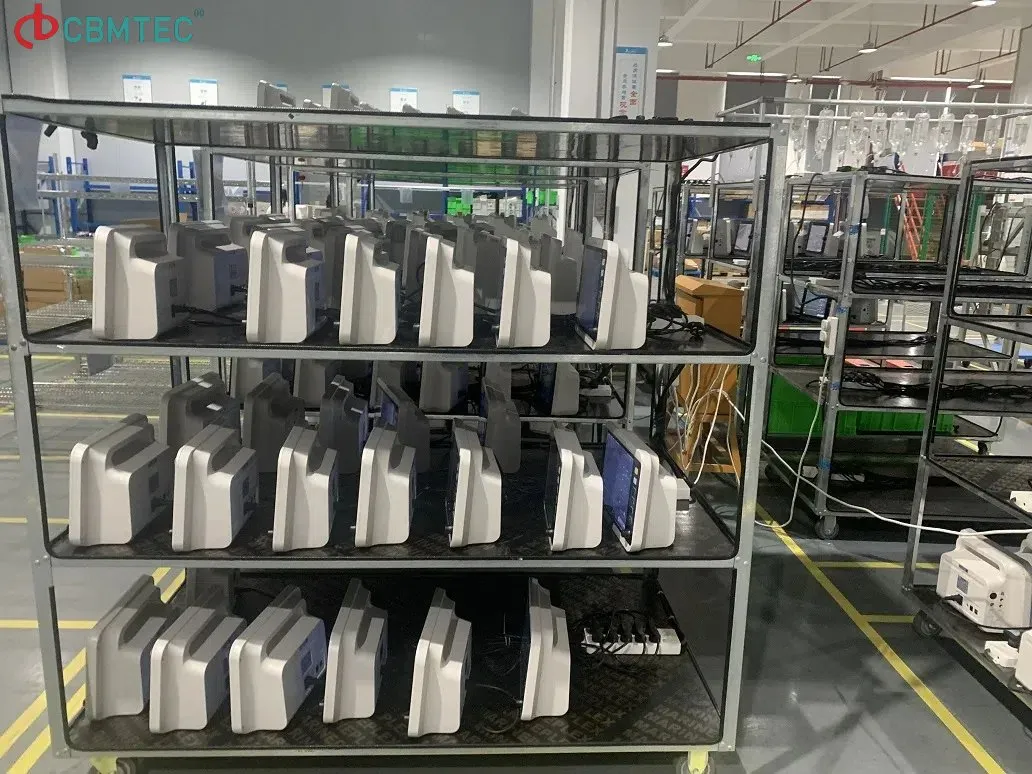

Manufacturing & Quality Control

We are a professional manufacturer specializing in medical gas systems and respiratory products. Our facilities include advanced punch machines and medical gas processing equipment to ensure high-quality output.

Our Advantages:

Original Manufacturer: Professional equipment for medical gas and monitoring products.
High Capacity: Capability to produce over 50,000 units per month.
Quality Management: ISO13485 certified with rigorous factory testing.
Export Experience: Over 15 years of experience serving international markets.
Flexible Orders: Small orders accepted (MOQ 50PCS).

❓

Frequently Asked Questions

What parameters can this monitor track?

The standard configuration monitors ECG, Heart Rate/Pulse Rate (HR/PR), SpO2, Non-Invasive Blood Pressure (NIBP), Respiration (RESP), and Temperature (TEMP).

Is this device suitable for all age groups?

Yes, it is designed for use with adults, children, and newborns. It specifically features a wide heart rate measurement range (15-350BP) tailored for neonatal care.

How long does the battery last?

The built-in maintenance-free lithium battery provides up to 240 minutes of standby time, ensuring continuous monitoring during patient transport.

Can the monitoring data be exported?

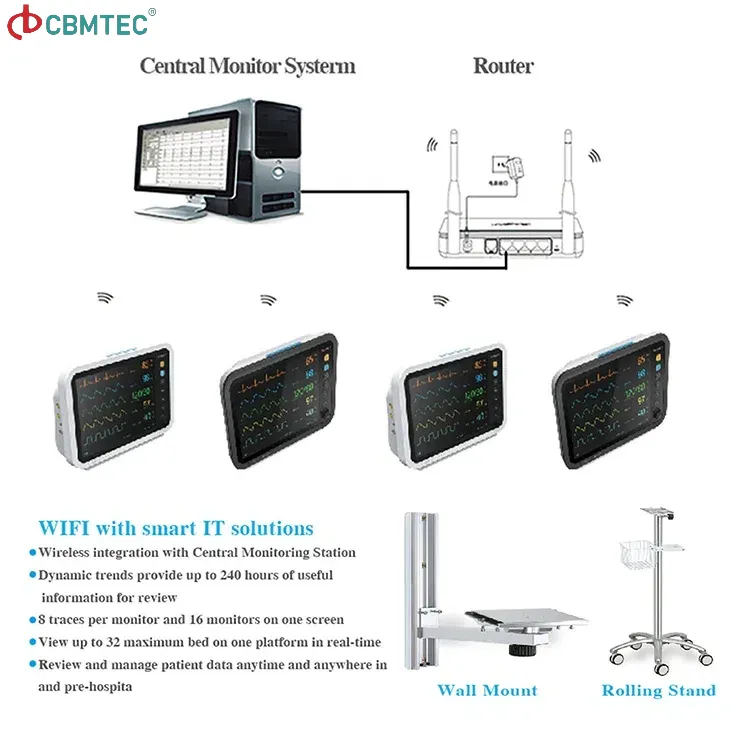

Yes, the device supports USB data export to a computer, including PDF format. It also features a USB interface for WIFI modules to support wireless central monitoring.

Does the monitor support different languages?

Yes, it supports 16 languages including English, Chinese, Spanish, Portuguese, Russian, French, German, and several others.

What kind of data storage does it offer?

It can store 43,200 trend points, 2,000 data sets, 200 groups of alarm events, and up to 7 days of trend charts for comprehensive clinical review.
