Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
1 / 5
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems
Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Certification: ISO13485
Send Inquiry

Product Description

📋Basic Specifications
Model NO.
CCV-PM80D
Warranty
1 Year
Display
12.1 Inches / 8 Inches
Optional
Etco2
Package
Standard Export Package
Origin
China
Capacity
1000 units/Month
🔍Product Overview

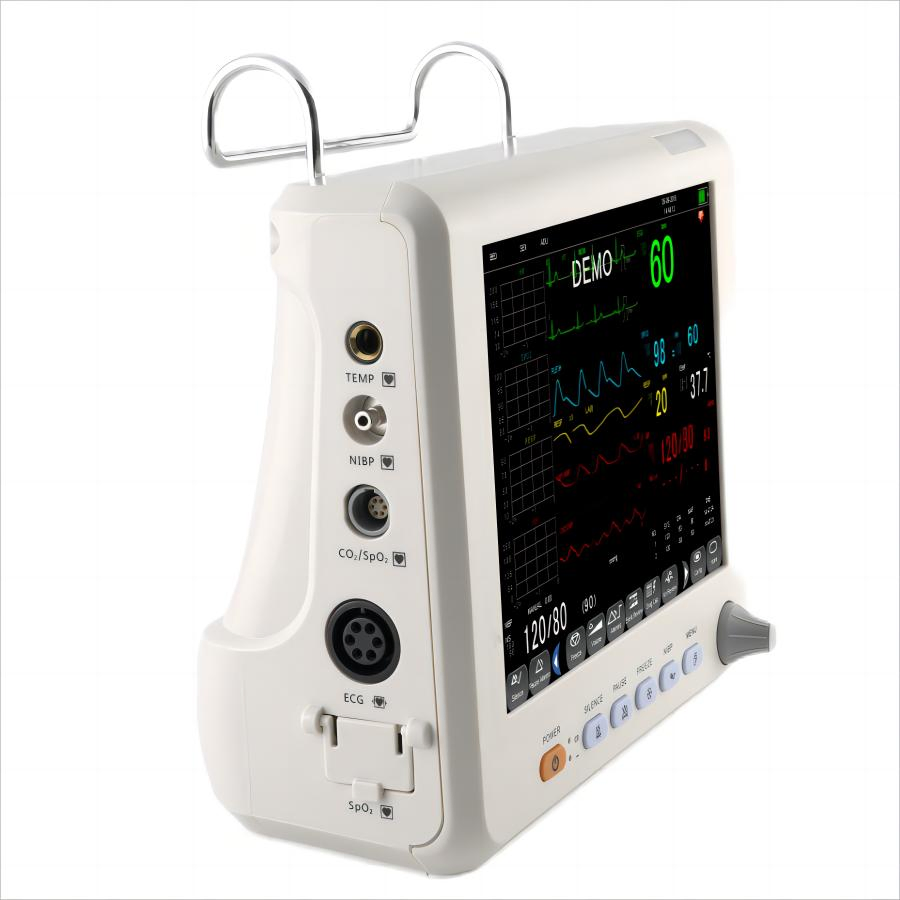

Portable Veterinary Cardiac Monitoring Systems (8-inch Screen)

Portable Veterinary Monitor

Key Features:

  • Compact and flexible appearance, easy for carrying and suitable for indoor and outdoor monitoring.
  • 8-inch high-resolution color TFT display for clear data visualization.
  • Adjustable audible and visual alarms to ensure patient safety.
  • Built-in rechargeable lithium battery for uninterrupted continuous monitoring.
⚙️Technical Specification
ECG Monitoring
Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
Gain Selection: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
Heart Rate Range: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
Resolution & Accuracy: 1 BPM / ±1%
ST Measurement: -2.0 ~ +2.0 mV
SPO2 & NIBP
SPO2: Range 0 ~ 100%, Accuracy ±2% (70%~100%), Pulse Rate 20-250 BPM
NIBP: Oscillometry method. Manual, Auto, STAT modes.
Adult Mode: SYS 40~280, DIA 10~225, MEAN 20~240 mmHg
Pediatric Mode: SYS 40~220, DIA 10~160, MEAN 20~170 mmHg
Neonatal Mode: SYS 40~135, DIA 10~100, MEAN 20~110 mmHg
RESP & TEMP
RESP: Impedance method. Adult: 10~120 BrPM; Neonatal/Pediatric: 7~150 BrPM
TEMP: Range 0 ~ 50 °C, Resolution 0.1°C, Accuracy ±0.1°C
📦Standard Configuration
No. Item Description Quantity
1Main Unit1
25-lead ECG cable1
3Spo2 probe1
4NIBP cuff5
5NIBP extension tube1
6Temperature probe1
7Power Cable1
8User Manual1
9Fuse2

Optional Parameters: Etco2

🏥Hospital Medical Equipment Solutions
Category Featured Equipment
X-Ray RoomX-ray machine, Processor, X-ray film, Cassette, Lead clothing (gloves, glasses, apron)
UltrasoundB/W 2D Ultrasound, 2/3/4D Color Ultrasound
LaboratoryChemistry analyzer, Hematology analyzer, ELISA reader, Centrifuge, Urine analyzer
Operation RoomPatient monitor, ECG, Oxygen generator, Operating lamp/table, Anesthesia machine, Infusion pump
🖼️Product Gallery
Veterinary Monitor Detail 1
Veterinary Monitor Detail 2
Complete View
❓Frequently Asked Questions
What parameters does this monitor track as standard?
The CCV-PM80D standard configuration includes ECG, RESP (Respiration), TEMP (Temperature), NIBP (Non-invasive Blood Pressure), SPO2, and PR (Pulse Rate).
Is this monitoring system suitable for portable use?
Yes, its compact design and built-in rechargeable lithium battery make it ideal for both indoor hospital settings and outdoor emergency monitoring.
Can it be used for small and large animals?
The system features three measurement modes—Adult, Pediatric, and Neonatal—allowing for accurate monitoring across various animal sizes.
What is the screen size and resolution?
It features an 8-inch high-resolution color TFT display, providing clear and flexible visualization of vital signs and waveforms.
Does the monitor support Etco2?
Yes, Etco2 is available as an optional parameter that can be added to the standard configuration based on your clinical needs.
What is the warranty period for this device?
This veterinary cardiac monitoring system comes with a 1-year standard warranty.
