1. Smart Oxygen Monitoring System with Colorful TFT LCD Display

Basic Information

Certification

ISO13485, FSC

Group

Adults, Children and Newborns

LCD Display

Colorful TFT LCD Display

Purpose

for Oxygen Breathing

Item Name

Patient Monitor

Transport Package

Ctns(OEM)

Specification

CUSTOMIZED

Trademark

OEM

HS Code

9019200000

Production Capacity

20000sets/Month

Product Description

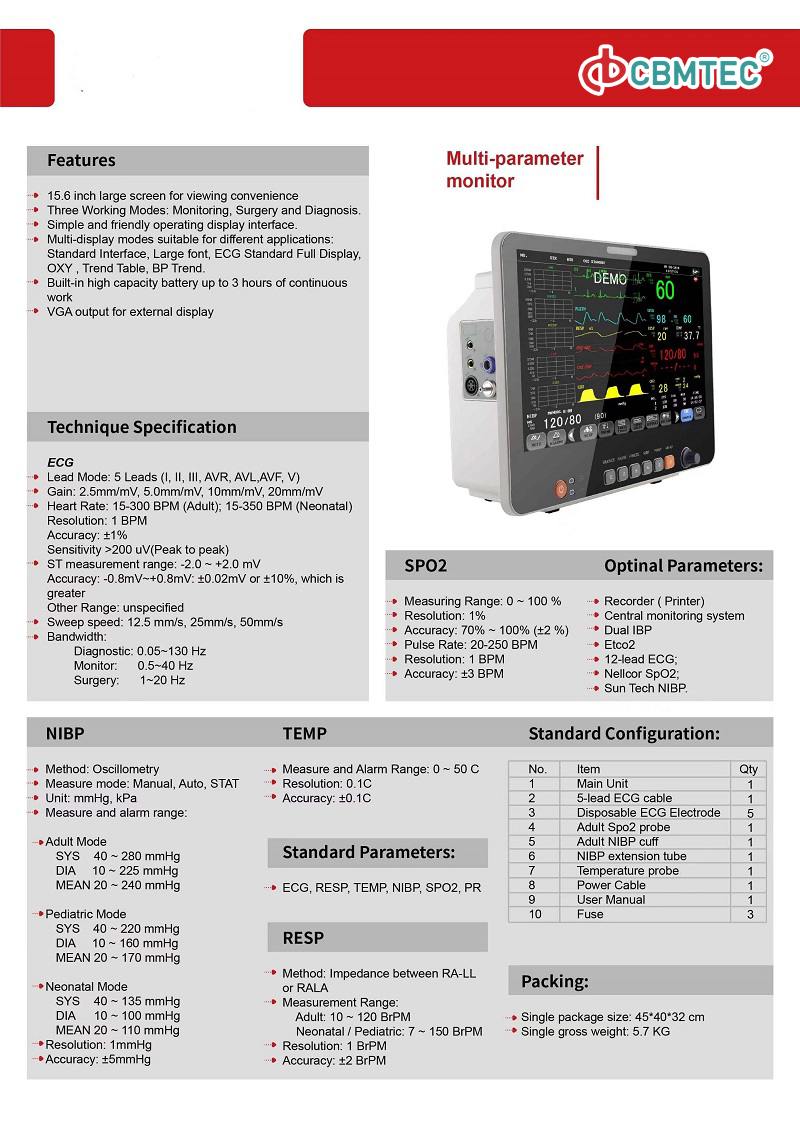

Medical Supply Multi-Parameter TFT LCD Vital Sign Patient Monitor

Specs of 12'' multi-parameter patient monitor:

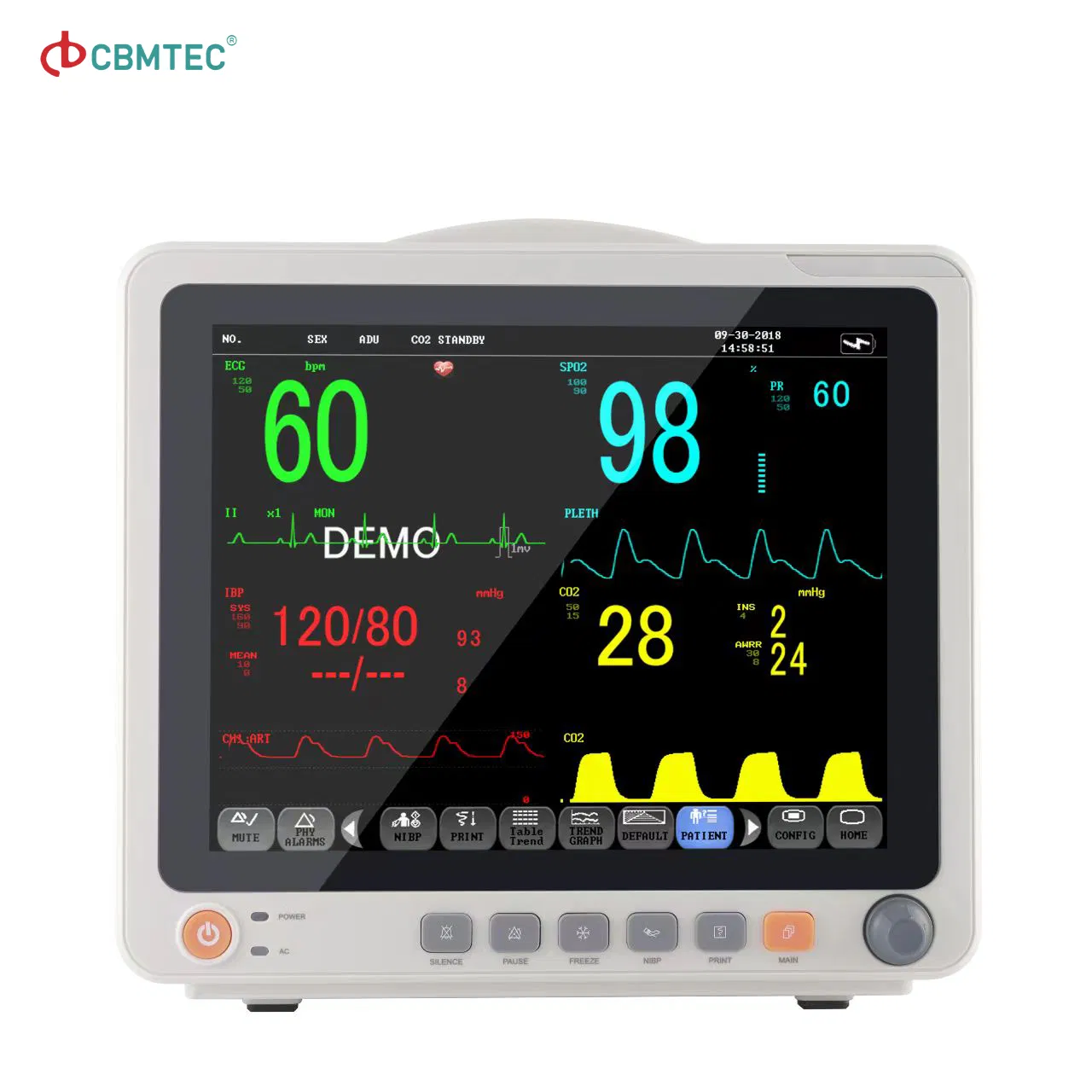

High brightness and resolution 12.1-inch colorful TFT LCD display, big font screen provided.
All leads, seven-channel synchronous ECG display
Built-in li-ion battery, standby time to 240 minus, AC/DC power conversion.

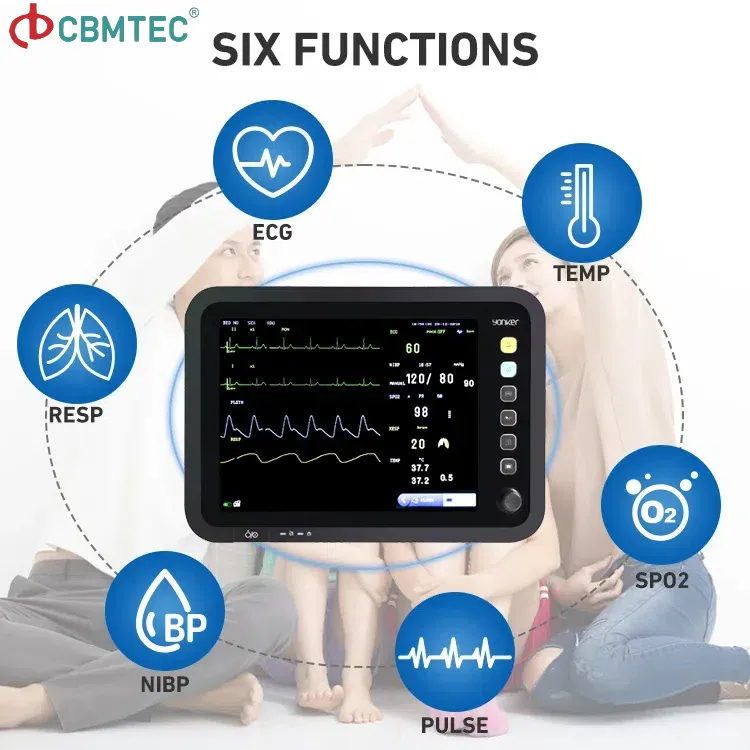

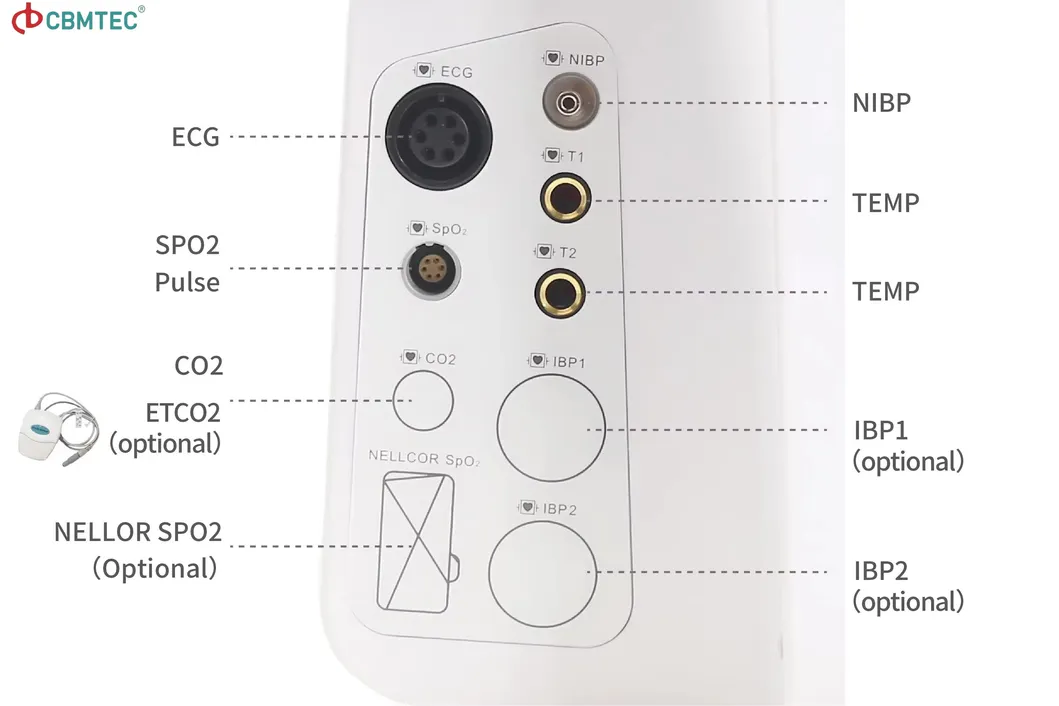

Standard parameters include ECG, HR/PR, SPO2, NIBP, RESP, TEMP.
Full digital SpO2 technology with excellent performance in low perfusion and movement
USB data export to computer, support PDF export, USB interface WIFI module, plug and play.
NIBP have dual over pressure protect, can operation correctly under severe environment to protect the patient
Full alarm feature include 3 alarm level, alarm sound, alarm light and on screen alarm message
Trend store 43,200 pcs, data store 2000 pcs, alarm events 200 groups and can be printed.
Powerful analysis software function: pacemaker analysis, ST segment analysis, arrhythmia analysis, drug concentration level measurement, titrimeter.

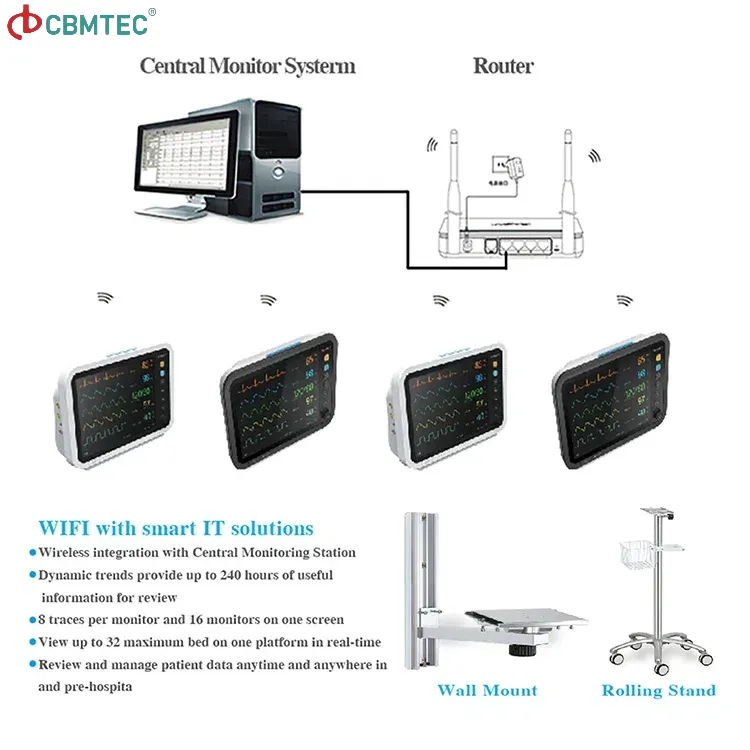

USB WIFI module support wireless central monitor
Applying "15-350BP" wide-range heart rate measurement design for newborns.
Support 16 languages including Chinese, English, Spanish, Portuguese, Russian, French, German, and more.

Technical Specifications

Parameter	Specifications Details	Parameter	Specifications Details
ECG	Lead mode: I, II, III, AVR, AVL, AVF, V1-6; Gain: ×0.25 to ×2; ST Detection: -2.0mV to +2.0mV; Response time: 1s.	NIBP	Technology: Oscillography; Mode: manual/automatic; Scope: 0-250 mmHg; Over-pressure protect: Dual.
SPO2	Range: 0-100%; Accuracy: 1%; Resolution: 1%; Pulse frequency: 20-250 bpm.	TEMP	Range: 20°C-45°C; Resolution: 0.1%; Accuracy: ±0.1°C; Response Time: 1s.
RESP	Frequency range: 0-60 rpm; Accuracy: ±1rpm; Gains: four levels; Alarm: Sound and Light.	Printer	Optional: Dual channel thermal array; Real time or event triggered; Vertical 800dpi.
System	Screen: 12.1 inches TFT screen; Battery: sealed maintenance-free lithium battery; Safety standard: IEC601-1.

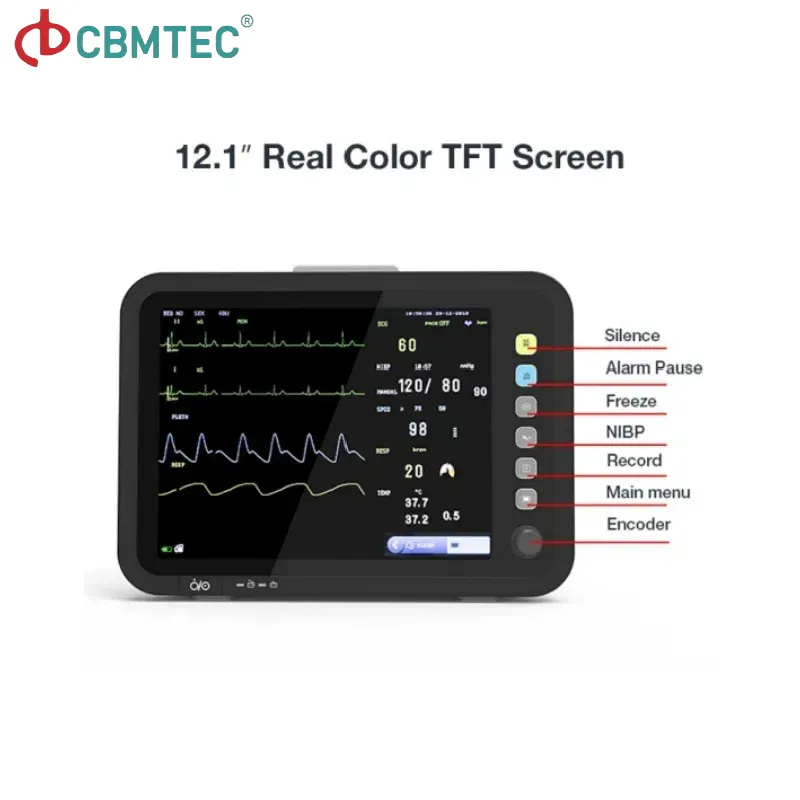

Interface & Features

Screen Type: Touch screen option
Display: Liquid crystal, 12.1 inch high brightness
Display Function: More than 8 parameter waveforms displayed simultaneously

Simple and friendly operating display interface.

Internal chargeable large capacity battery for mobility.
Playback function for long term waveform and data record.
Auto double alarm with audible and visible signals.
Anti-interference from high frequency electric knife.

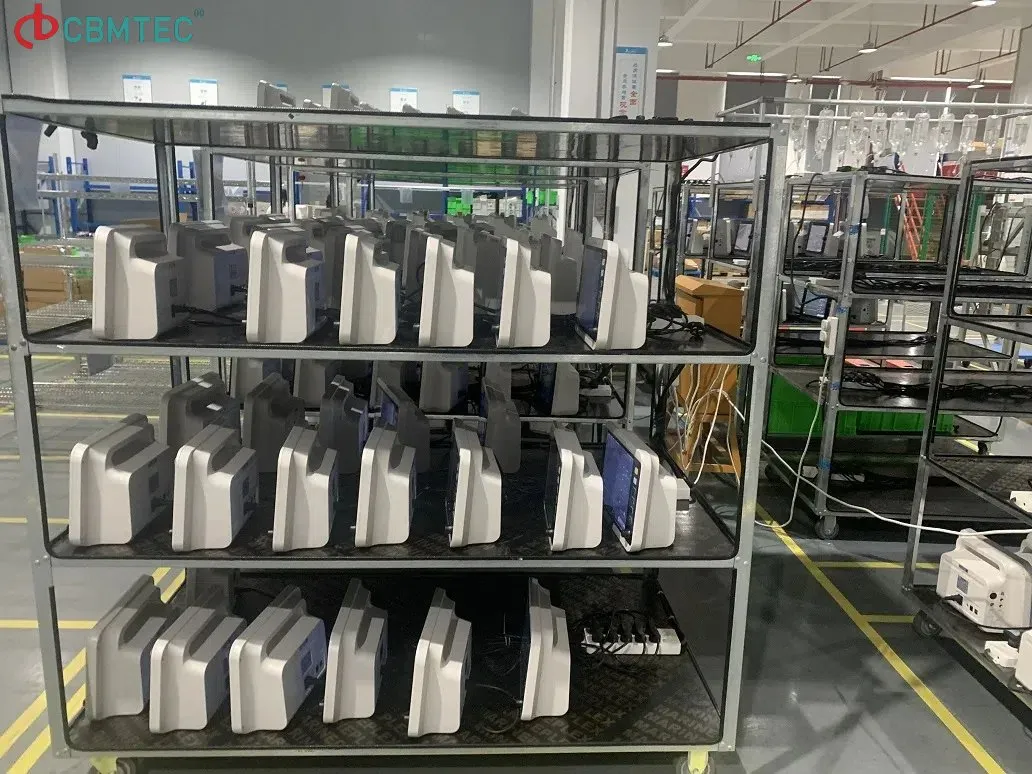

Production & Warehouse

Exhibition

Our Advantages

- Original Manufacturer: Professional equipment including Punch Machines and Medical Gas Machines.

- Large Capacity: Capability to produce more than 50,000 units per month.

- Quality Control: ISO13485 Management system; all products factory tested.

- Export Experience: Over 15 years of international exporting experience.

- Flexible Orders: Small orders accepted (M.O.Q. = 50PCS).

Frequently Asked Questions

Who can use this patient monitor?

The monitor is designed for use with adults, children, and newborns, featuring specific measurement designs like the 15-350BP range for neonatal heart rates.

What parameters are monitored as standard?

The standard parameters include ECG, Heart Rate/Pulse Rate (HR/PR), SpO2 (Oxygen Saturation), NIBP (Non-Invasive Blood Pressure), Respiration (RESP), and Temperature (TEMP).

How long does the battery last?

The monitor includes a built-in rechargeable Li-ion battery providing up to 240 minutes of standby time, facilitating patient mobility within the clinic.

Does the system support multiple languages?

Yes, the system supports 16 languages including Chinese, English, Spanish, Portuguese, Russian, French, German, Italian, and more.

Can monitoring data be exported?

Yes, the device supports USB data export to computers in PDF format and features a USB WIFI module for wireless central monitoring.

What are the alarm features?

It includes a full 3-level alarm system with audible sounds, visual lights, and on-screen messages for both physiological and technical alerts.
