Product Description

Basic Information
Model NO. Altai DP1

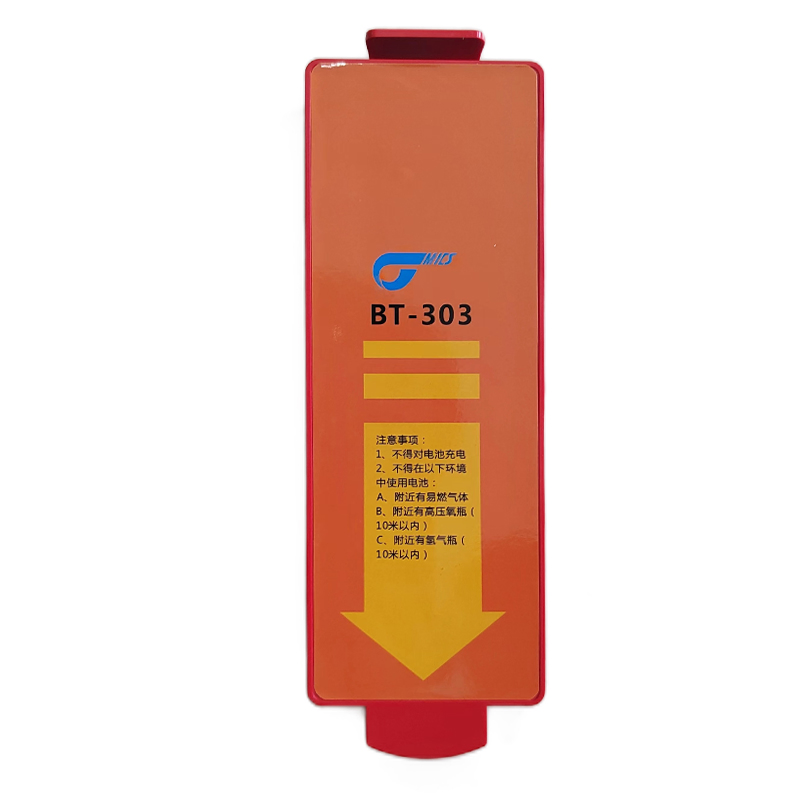

Battery Pack Non-Rechargeable Li-Mno2 Battery (12V, 6000mAh)

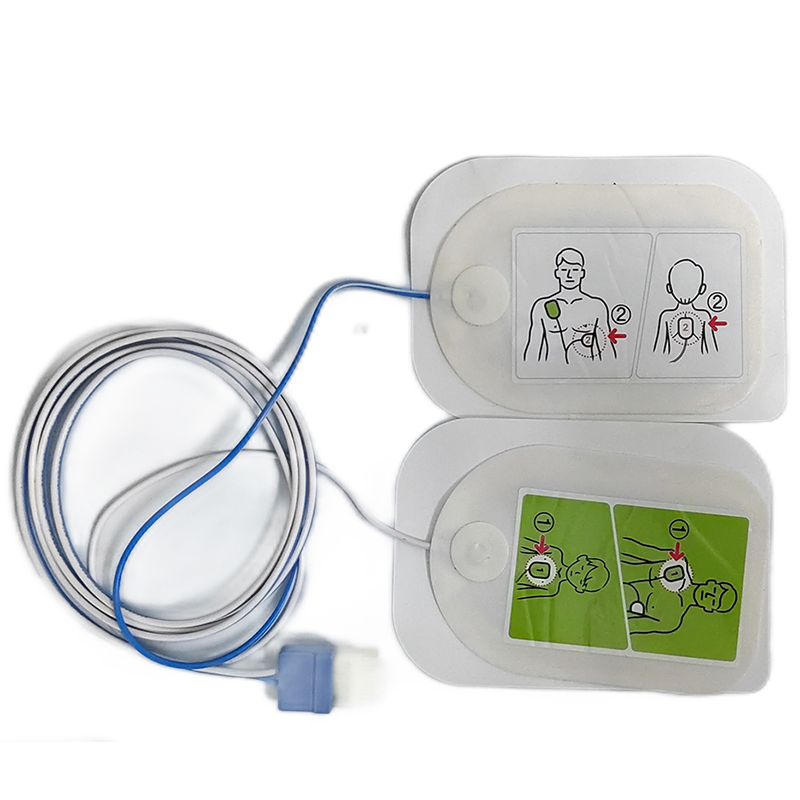

Electrode Pads Preinstalled, Adult/Child Compatible
Storage 90 Minutes Each for ECG Data and Around Sounds
Specification 320*230*85 mm
HS Code 9018199000
Production Capacity 50,000 Sets/Year
Product Description

Altai DP1: AED Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death

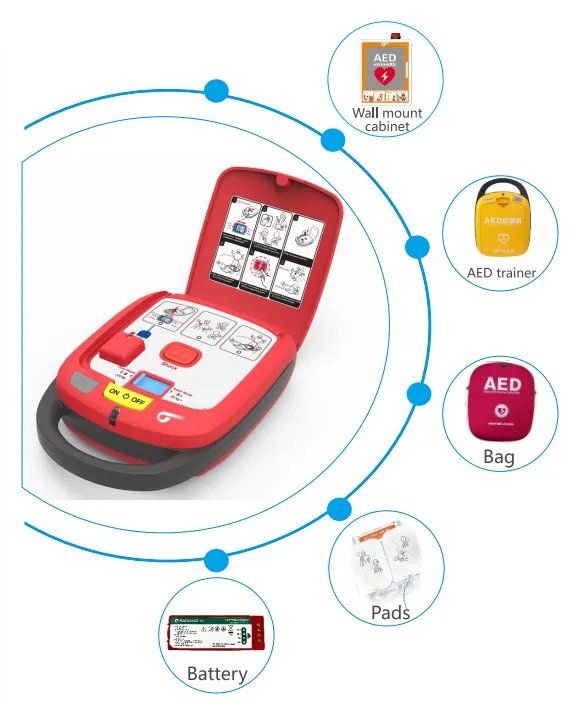

AED Defibrillator
★ Key Features
Low energy BTE to minimize myocardial injury
Non-rechargeable Li-MnO2 battery with long duration
Preinstalled electrode pads, compatible with adult and child
One-step operating: cover open and power on simultaneously
Automatic voice guide with customized languages
Automatic recording of ECG and surrounding sounds (90 mins)
Daily self-test and automatic self-test upon power on
★ Advantages
Automatic compensation of waveform as per load impedance
Shorter time in ECG analysis and shock preparation
Simultaneous ECG analysis and precharging
Higher success rate in defibrillating
Product Parameters
Parameter Specification Parameter Specification
ECG Analysis 8.5 Seconds Battery Pack Li-MnO2, 12V, 6000 mAh (4-year life)
Hi-Cap Charging 8 Seconds Shock Frequency ≥ 400 times
Max Shock Output 50J (Child), 150J (Adult) Electrode Pads Disposable, Preinstalled (6-year life)
Data Storage 90 mins ECG & Sound Voice Guide English/Chinese/Customized
Data Transfer Bluetooth Net Weight 2.3 Kg
Warranty 2 Years Standard Kit Main unit, Battery, Pads, Carry case
Detailed Photos

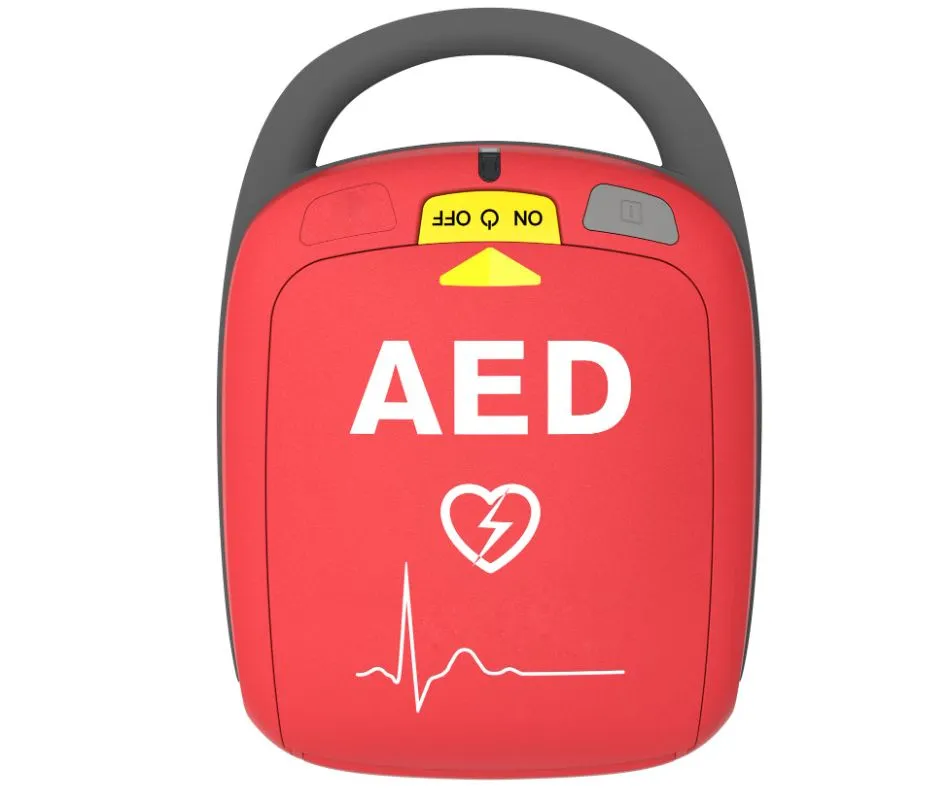

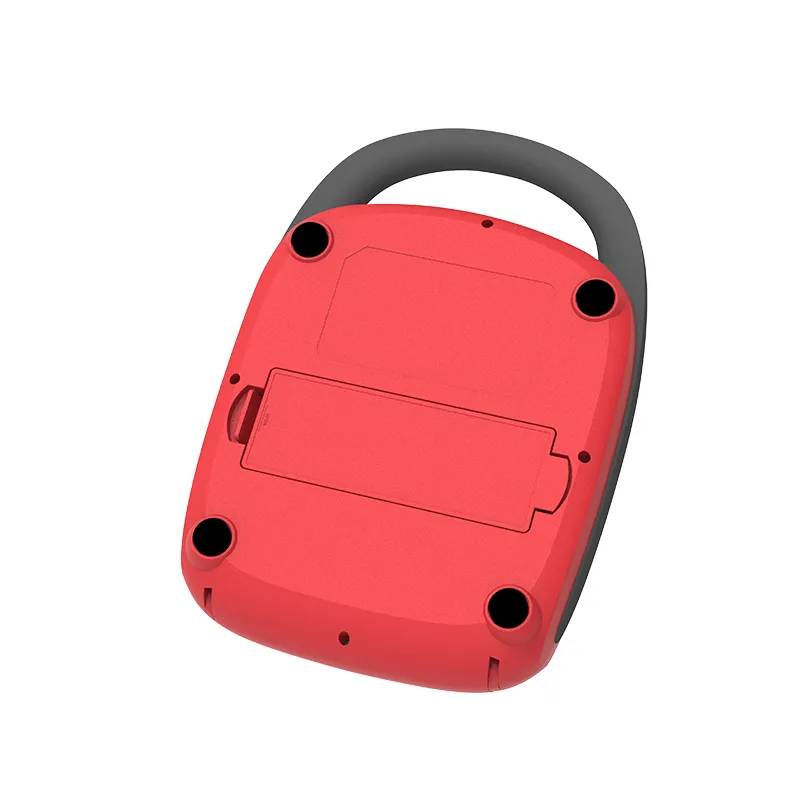

AED Detail 1 AED Detail 2

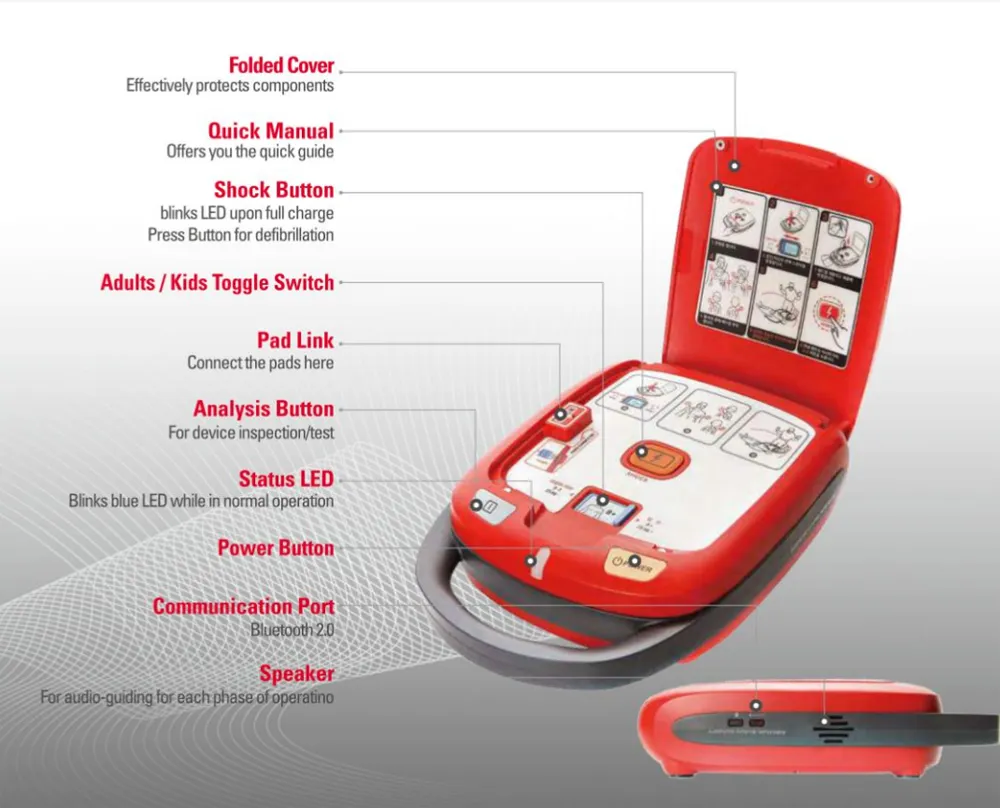

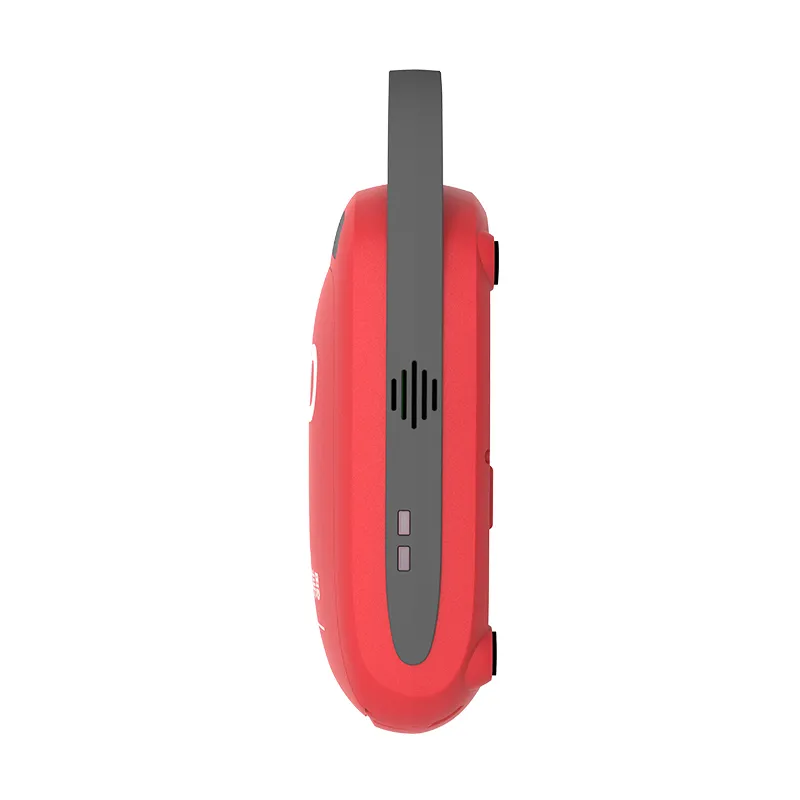

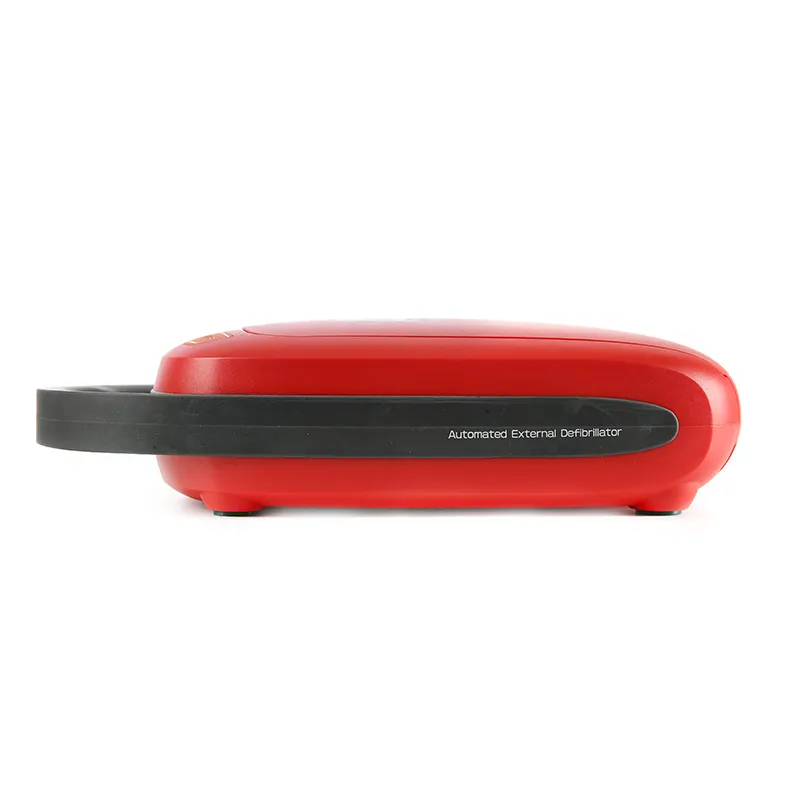

AED Detail 3 AED Detail 4 AED Detail 5

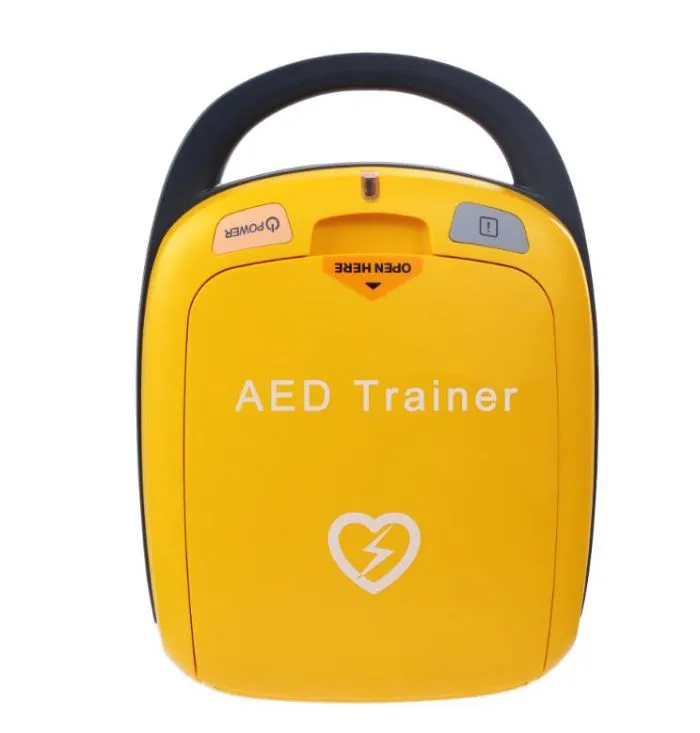

AED Detail 6 AED Detail 7
Certifications

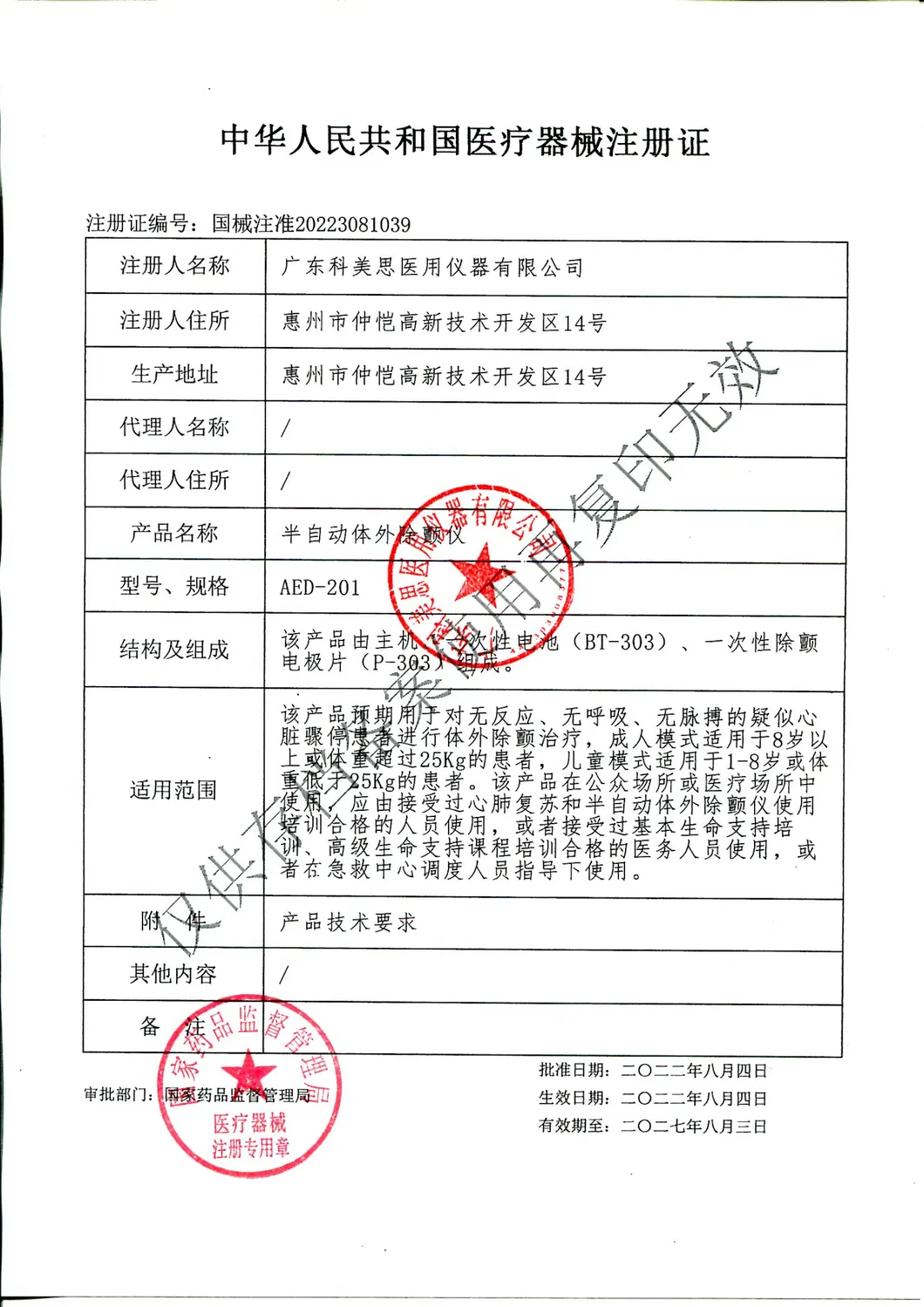

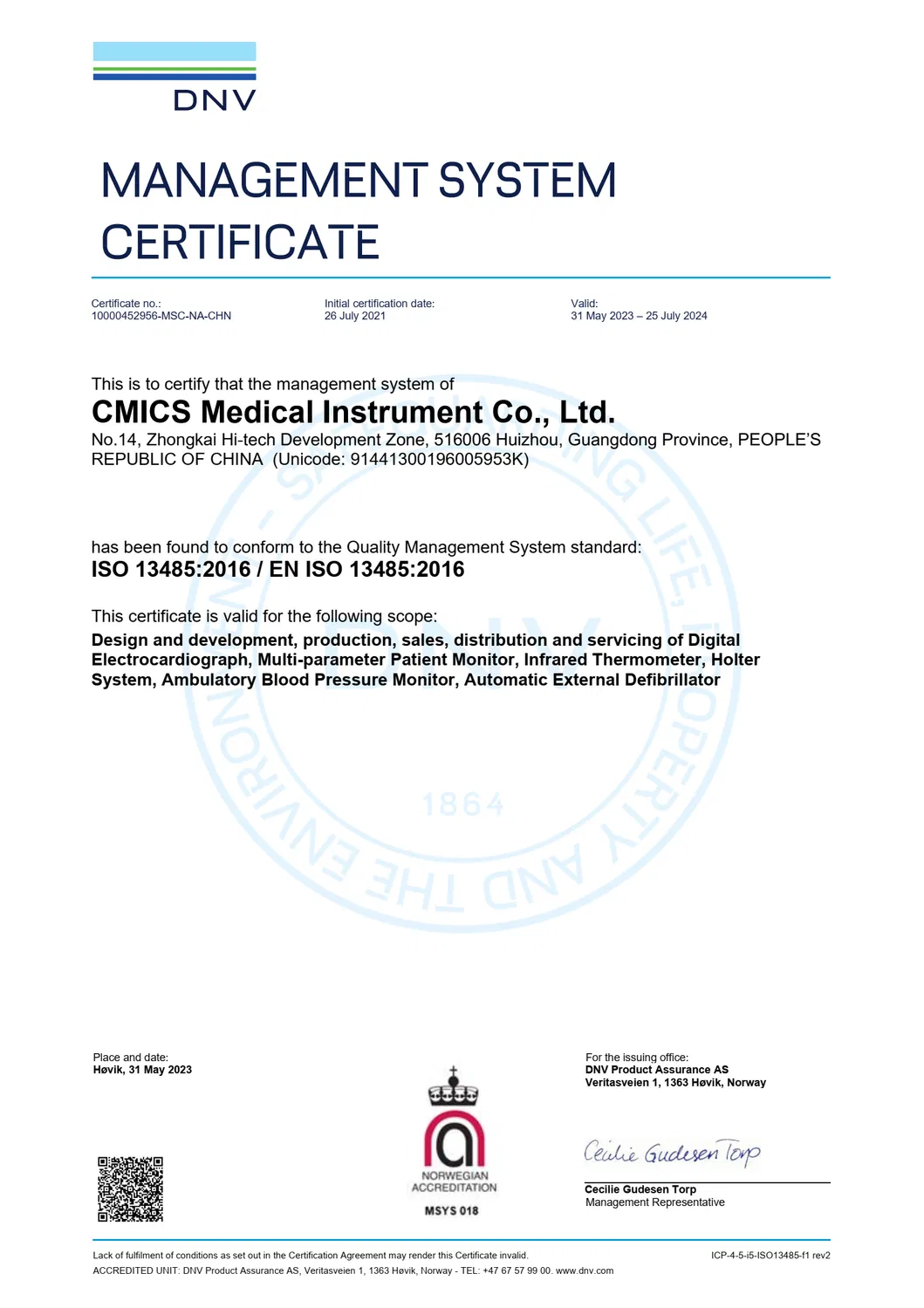

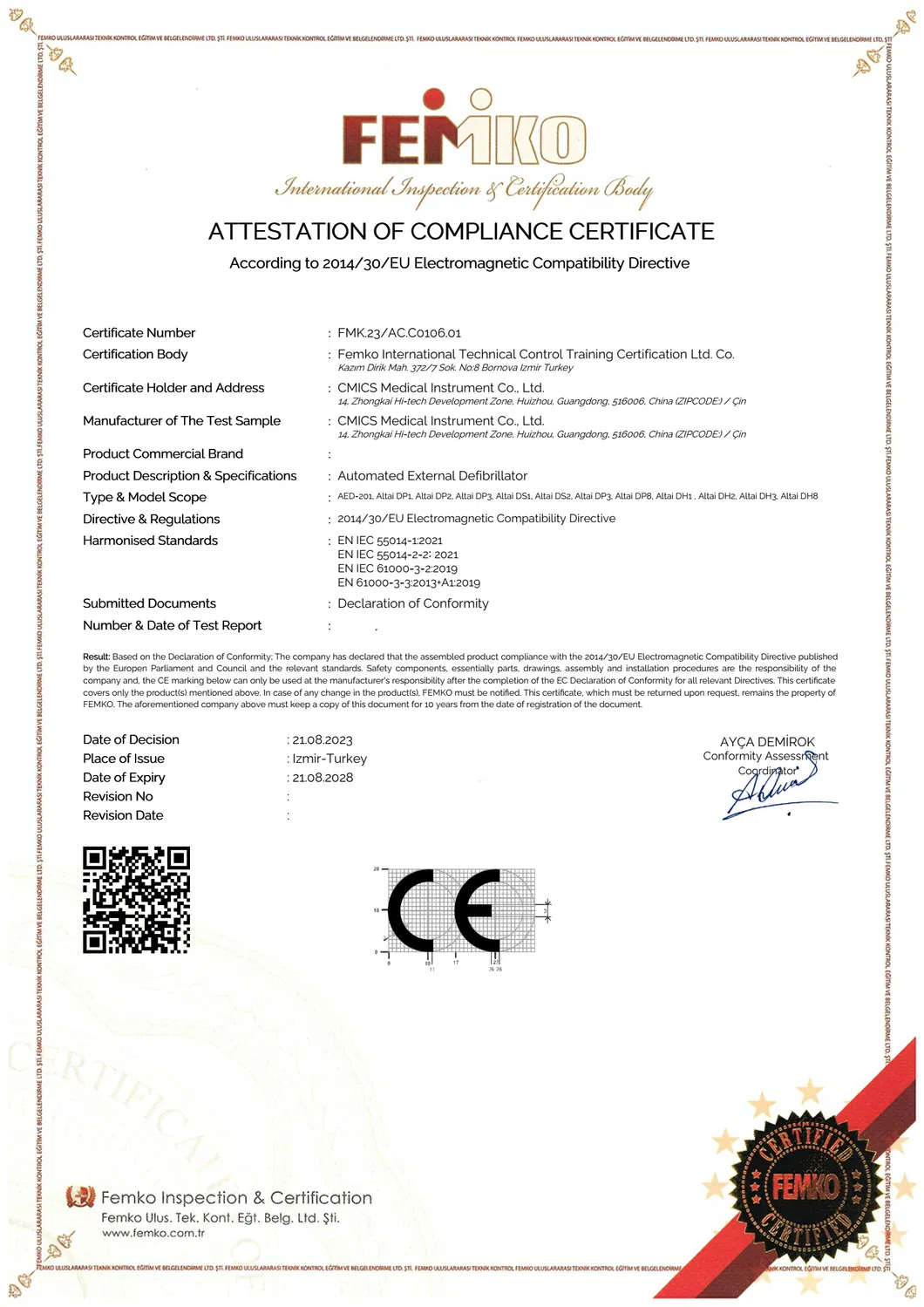

Certification 1 Certification 2 Certification 3
Facility Overview

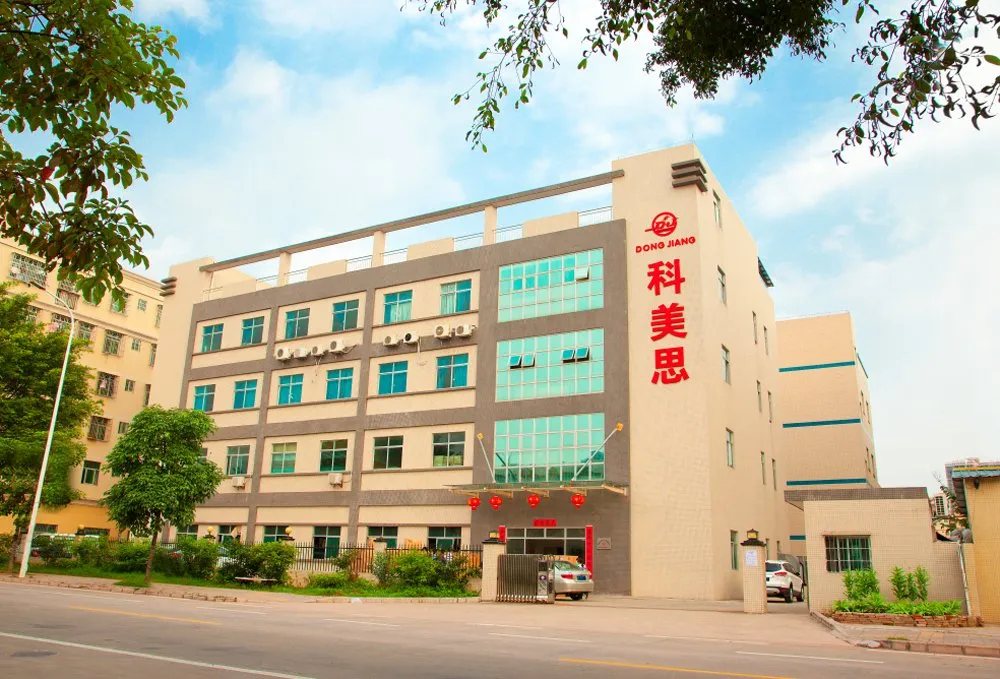

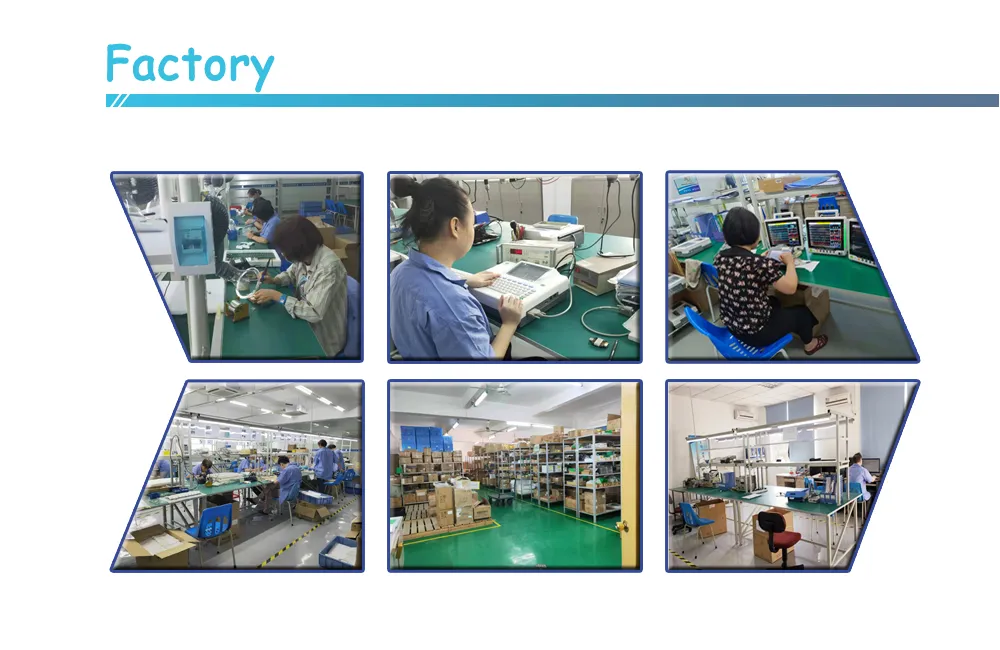

Facility 1 Facility 2 Facility 3
Facility 4 Facility 5
Frequently Asked Questions
What is the battery life and capacity of the Altai DP1?
The device uses a non-rechargeable Li-MnO2 battery (12V, 6000mAh) with a lifetime of approximately 4 years. It can deliver not less than 400 shocks.
Can this AED be used on both adults and children?
Yes, the Altai DP1 features preinstalled electrode pads that are compatible with both adults and children. It includes specific adult and child modes.
How long does it take to analyze ECG and charge?
The ECG analysis takes approximately 8.5 seconds, and the high-capacity charging takes about 8 seconds.
Does the device store rescue data?
Yes, it automatically records up to 90 minutes of ECG data and 90 minutes of surrounding sounds for post-event analysis.
What languages are available for the voice guidance?
Standard languages include English and Chinese, but customized languages are available upon request.
Is the device easy to operate for non-professionals?
Yes, it features one-step operation where opening the cover powers on the device, followed by clear automatic voice guidance.
