Model NO.
DM7000
Production Capacity
50000/Year
Colors Available
Two Colors Available

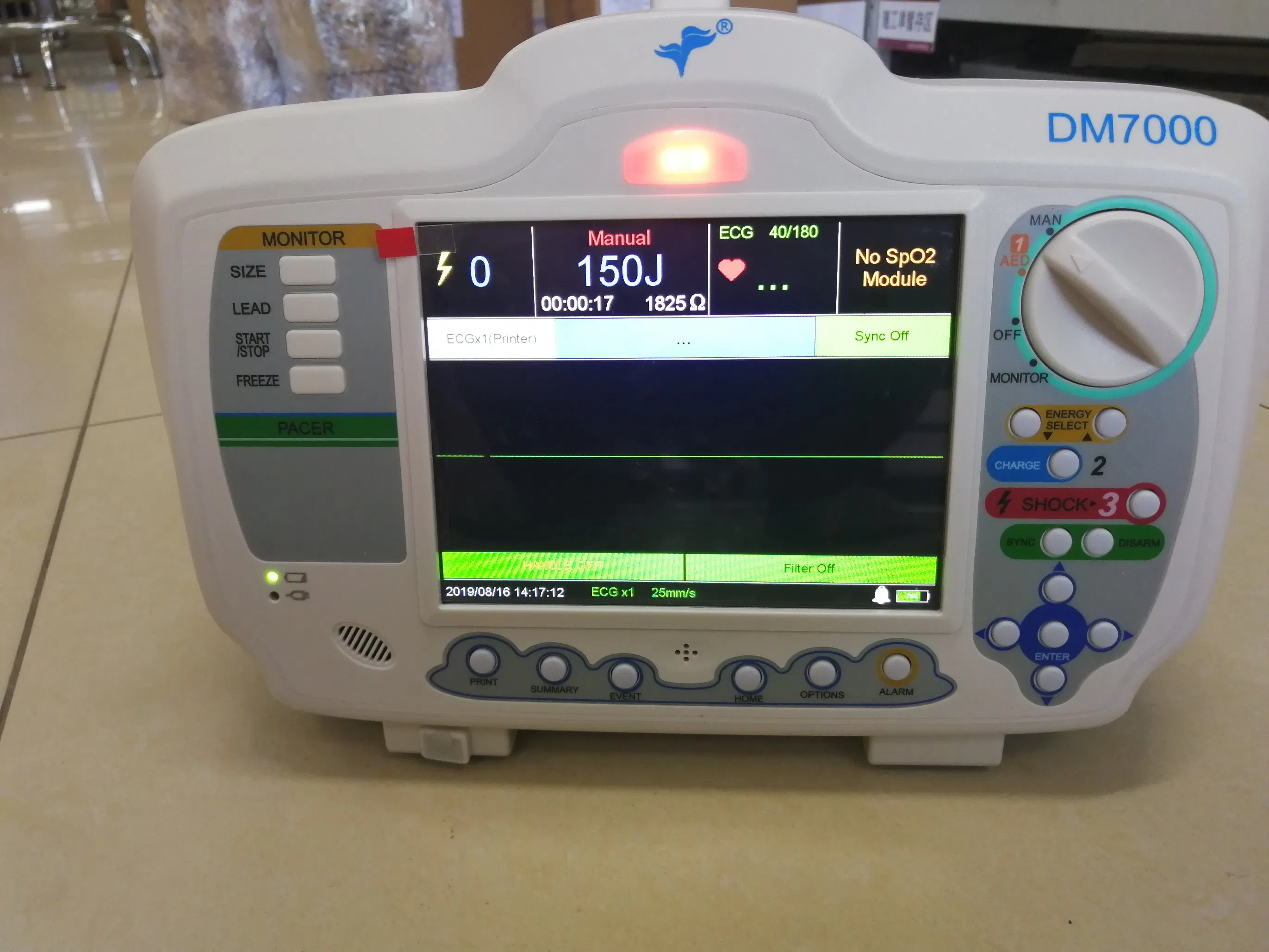

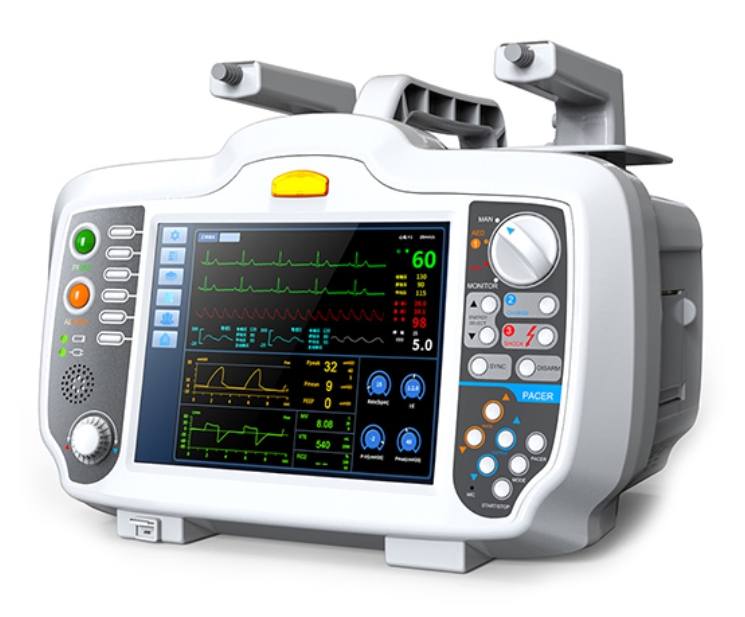

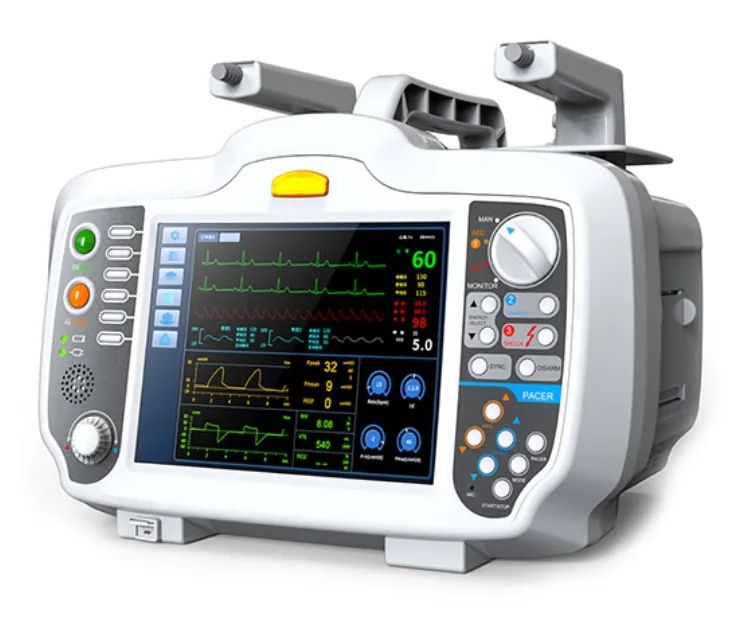

The DM7000 is a professional defibrillation device designed to meet diverse clinical needs, ranging from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

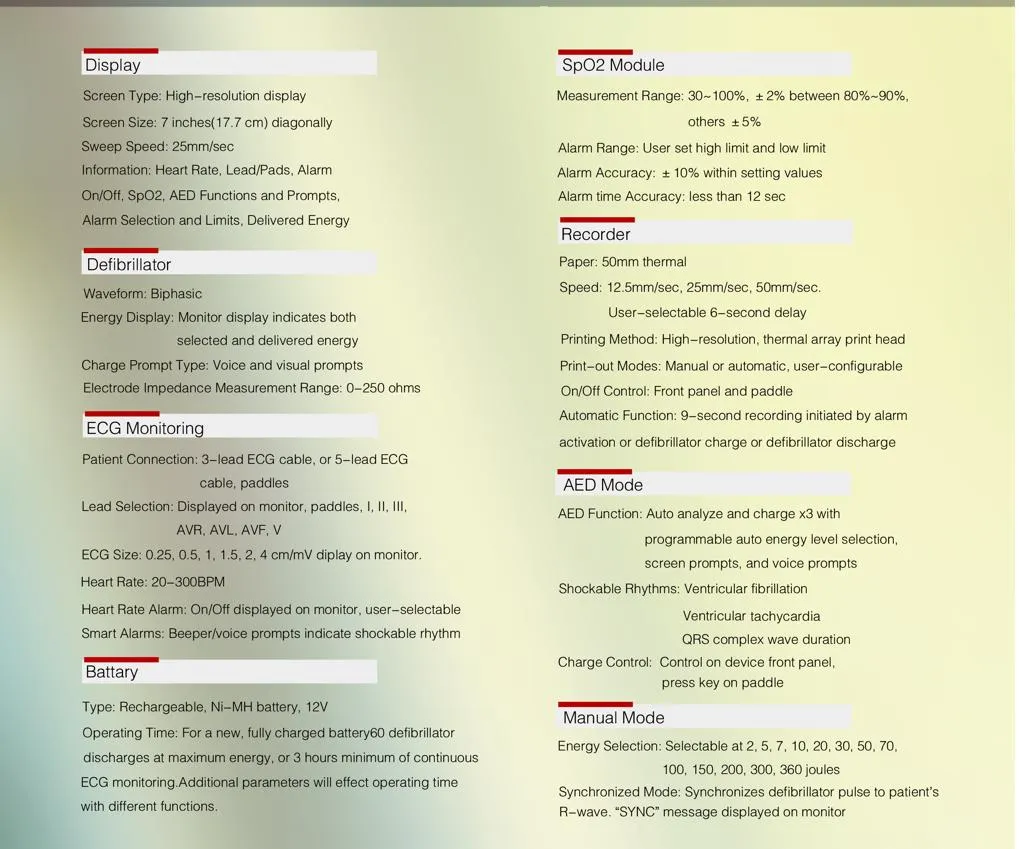

- Screen Type: High-resolution display
- Screen Size: 7 inch (17.7cm) diagonally
- Sweep Speed: 25mm/sec
- Information: Heart Rate, Lead/Pads, Alarm status, Spo2, AED Functions, Delivered Energy
- Waveform: Biphasic
- Charge Time: Less than 7 seconds (fully charged battery)
- Energy Display: Selected and delivered energy indicated
- Charge Prompt: Voice and visual prompts
- Impedance Range: 0-250 ohms
- Connection: 3-lead/5-lead ECG cable or paddles
- Lead Selection: I, II, III, AVR, AVL, AVF, V
- Heart Rate Range: 20-300 BPM
- Smart Alarms: Beeper/voice prompts for shockable rhythm
- Battery Type: Rechargeable Ni-MH, 12V
- Operating Time: 100 discharges or 3 hours ECG monitoring
- Recorder: 50mm thermal paper
- Print Speed: 12.5mm/sec, 25mm/sec, 50mm/sec
Frequently Asked Questions
What type of waveform does the DM7000 use?
The DM7000 utilizes a Biphasic waveform for efficient defibrillation.
How fast can the device charge to maximum energy?
It takes less than 7 seconds to charge when using a new, fully charged battery.
What is the screen size and resolution?
The device features a 7-inch (17.7cm) high-resolution diagonal display for clear monitoring of patient data.
Does the device support AED functionality?
Yes, it includes an AED mode with automatic analysis, programmable energy levels, and both voice and visual prompts.
What energy levels are available in manual mode?
Manual mode energy selection ranges from 2 joules up to a maximum of 360 joules.
How long does the battery last during continuous use?
A fully charged Ni-MH battery provides a minimum of 3 hours of continuous ECG monitoring or up to 100 discharges.
