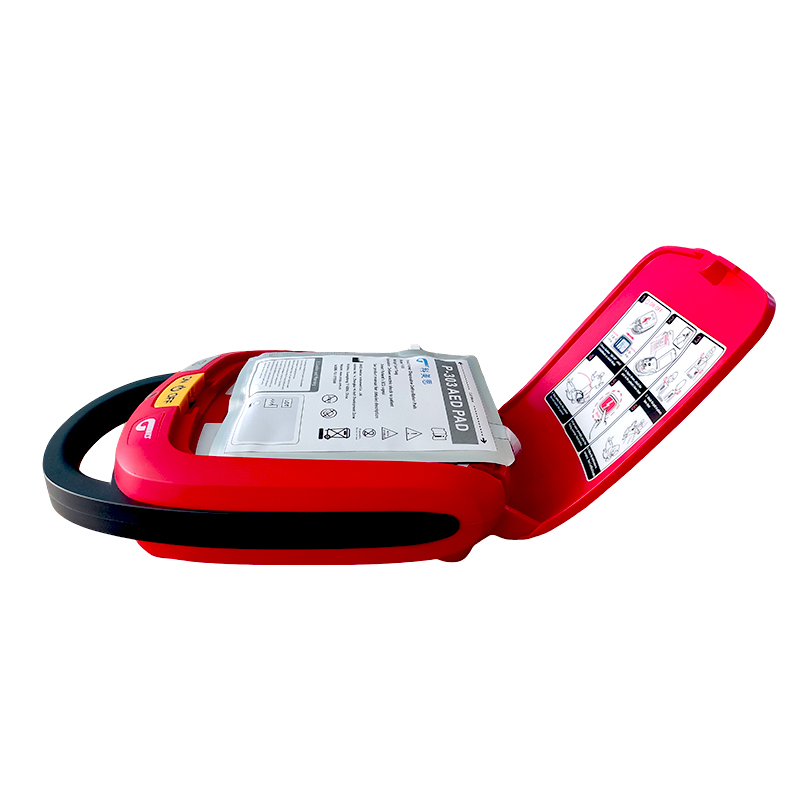

Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth

1 / 5

Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Altai DP1

Certification

CE, MSDS, ISO13485, FSC, Cfda

Group

All

Product Name

Automated External Defibrillator (AED)

Color

Red

ECG Analysis

8.5 Second

Shock Output

150j (Adult), 50j (Pediatric)

Net Weight

1.9 Kg

Battery Pack

Non Rechargeable Li-Mn Battery (12V, 4.2ah)

Production Capacity

50,000 Sets/Year

Product Description

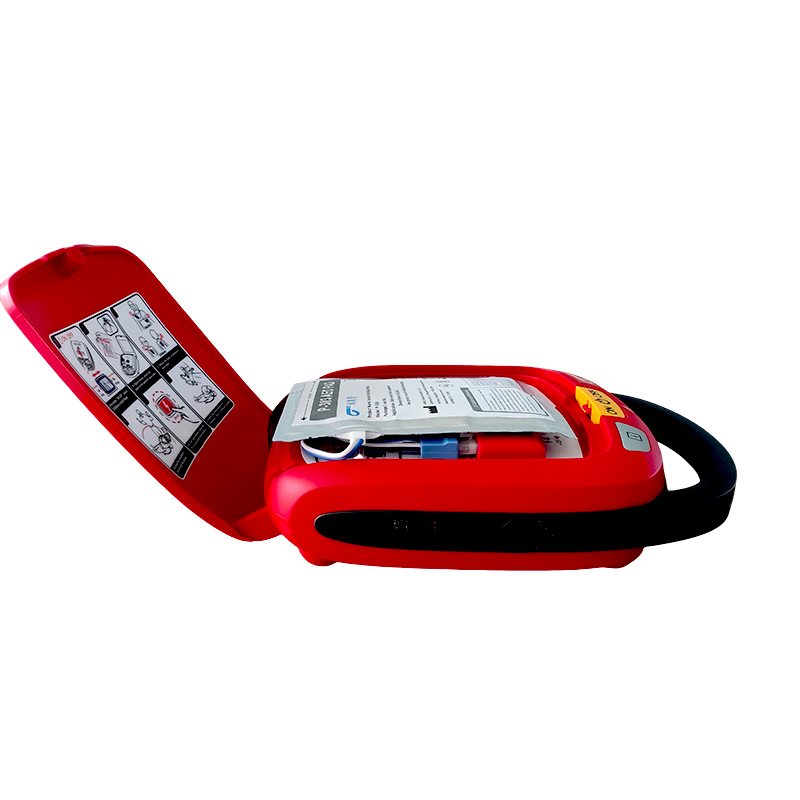

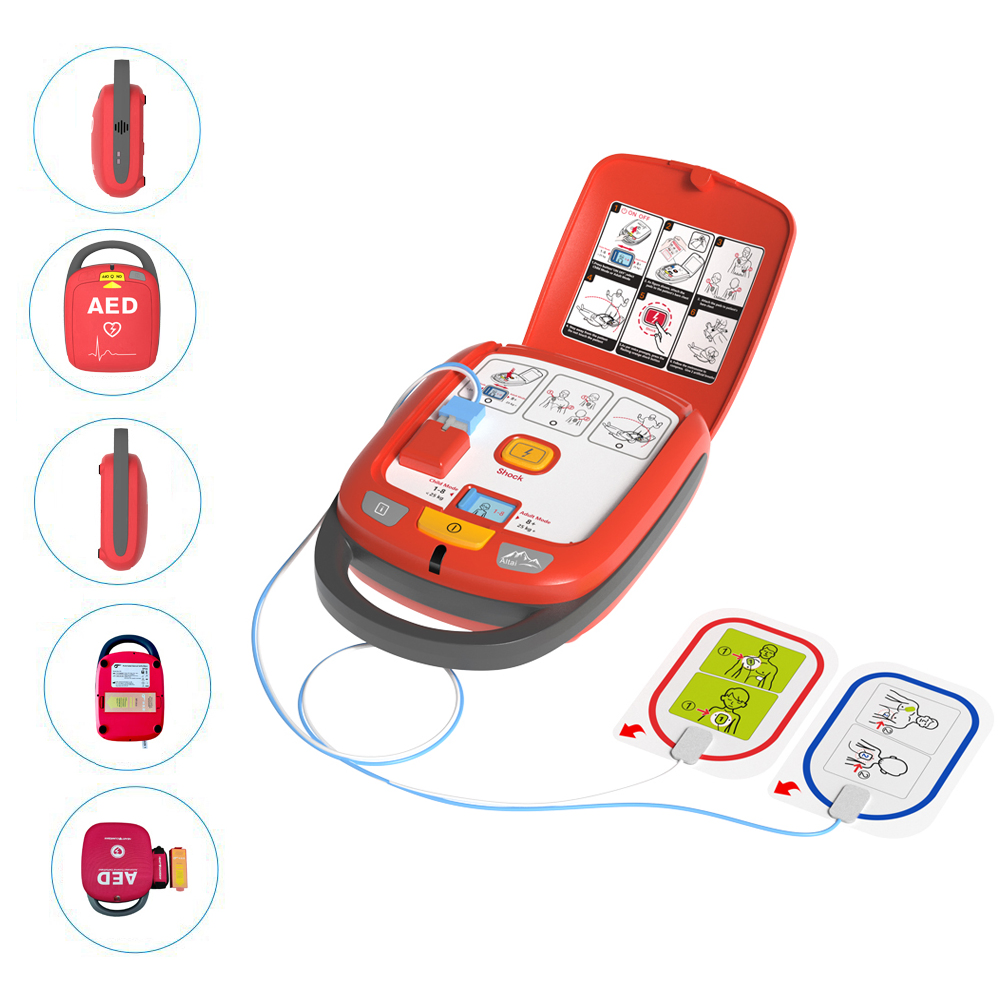

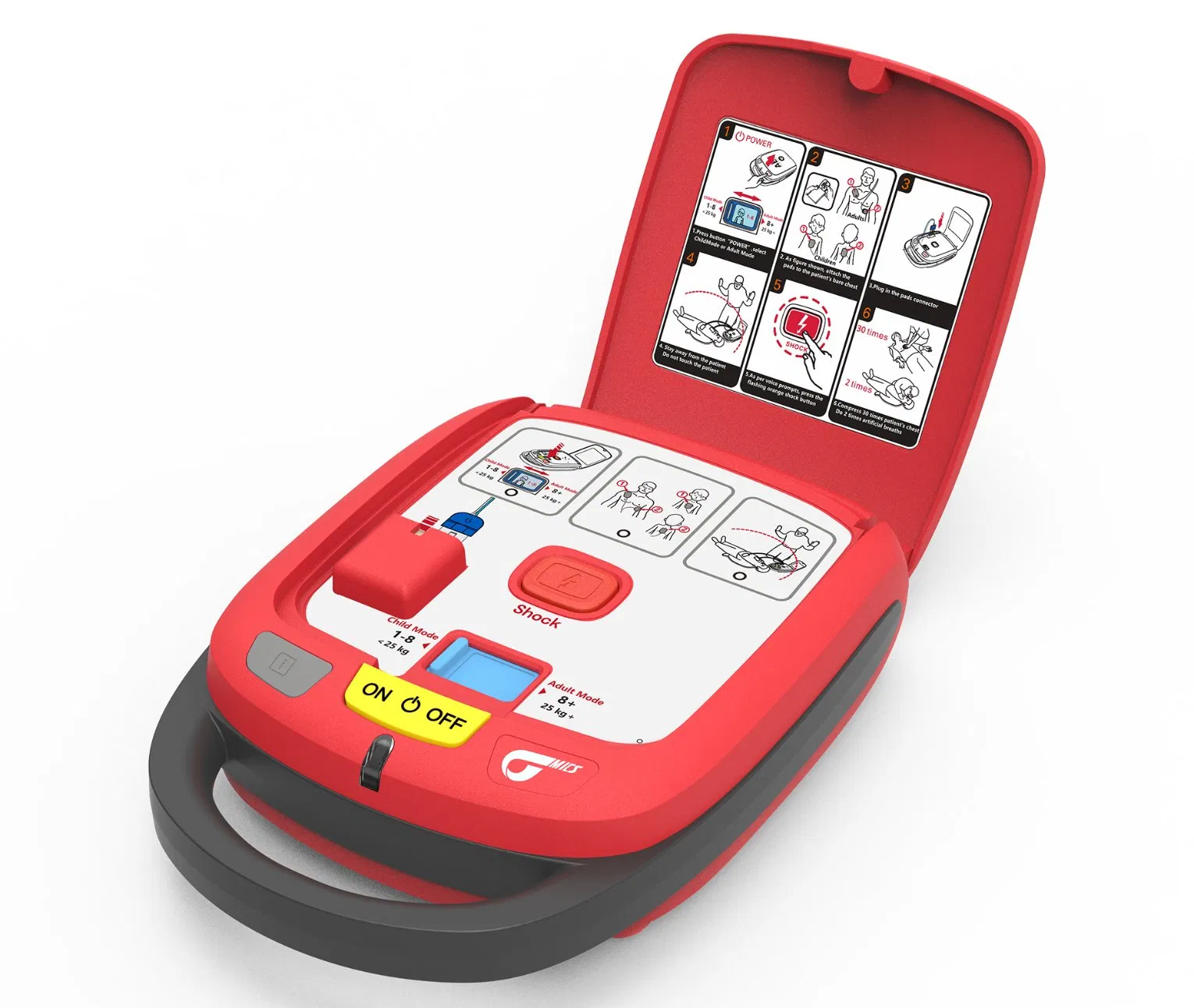

Altai DP1: First Aid Automatic External Defibrillator (AED) with Low Energy BTE, Adult/Pediatric Pads

Product Parameters

ECG Analysis	8.5 Second
Hi - Cap Charging	8 Second
Shock Output	150J (Adult), 50J (Pediatric)
Data Storage	40 Minute (built-in memory)
Data Transfer Protocol	Bluetooth
Button Operating	Power on/off, Shock
Battery Pack	Non rechargeable Li-Mn battery of 12 V, 4.2 Ah
Shock Frequency	Not less than 200 times
Electrode Pads	Disposable and adhesive, adult/pediatric compatible
Voice Guide	Customized languages

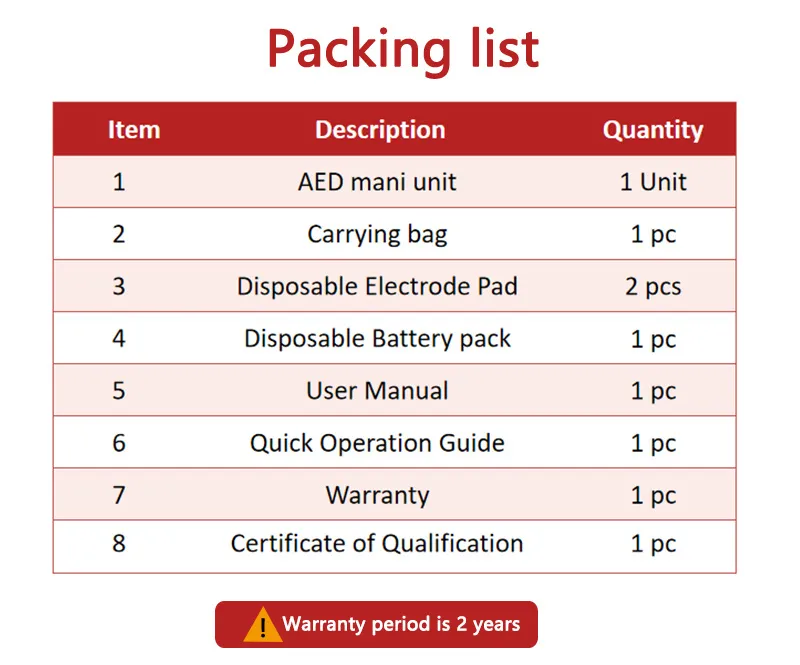

Standard Configuration	1x main unit, 1x battery pack, 1x electrode pads (2 pcs), 1x carry case
Optional Configuration	Standing/wall mount cabinet, first aid kit, PC software, remote management system

Key Features

Biphasic Truncated Exponential (BTE) with low energy to minimize myocardial injury
High capacity Li-MnO2 battery supporting up to 400 shocks
Automatic recording of ECG data and ambient sounds during operation
Preinstalled electrode pads compatible with both adults and children

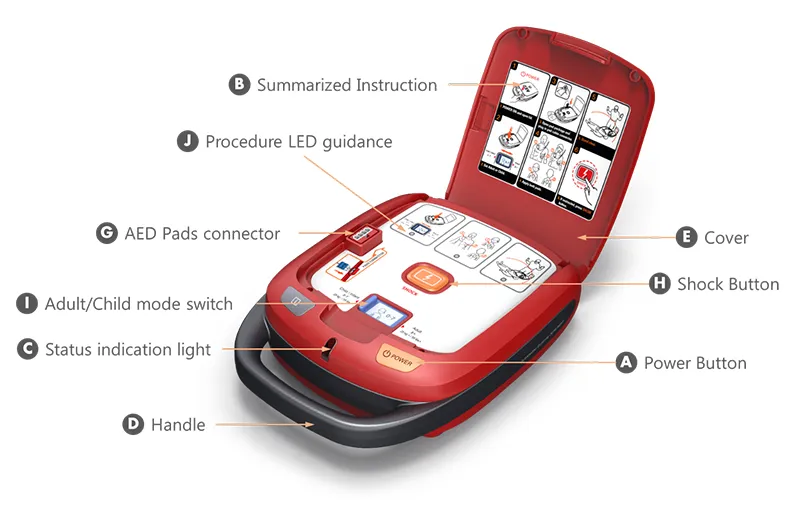

One-step operation: power on automatically when cover is opened
Daily self-test and automatic self-test upon power on
Automatic voice guidance throughout the complete operation
Alarm for low battery capacity

Advantage of Low Energy BTE

Automatic compensation and adjustment of waveform based on load impedance
Shorter time for ECG analysis and shock preparation
Simultaneous ECG analysis and precharging
Higher success rate in defibrillation with minimum injury to myocardium
Faster response time and better for patient rehabilitation

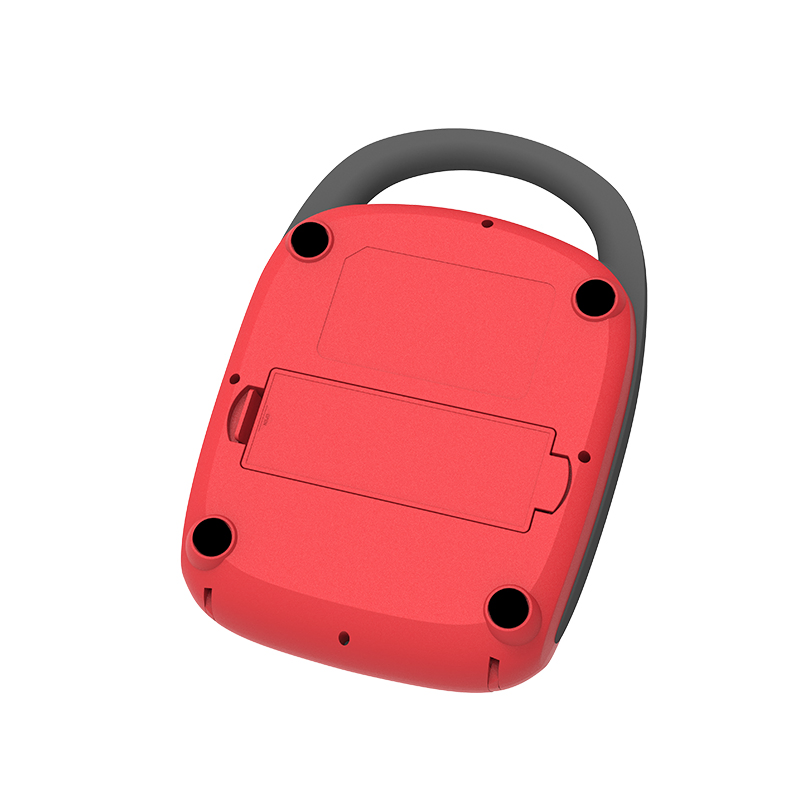

Product Visuals

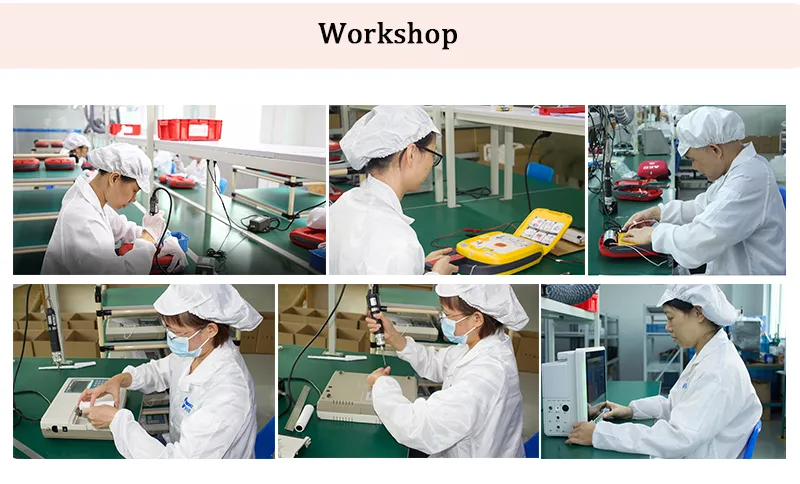

Manufacturing & Quality Control

Frequently Asked Questions

Q1: What is the shock energy output for adults and children? The Altai DP1 provides a 150J shock for adults and a 50J shock for pediatric patients, utilizing Low Energy BTE technology to minimize injury.

Q2: How does the device assist the user during an emergency? The device features an automatic voice guide that walks the user through the entire operation, along with one-step power-on by simply opening the cover.

Q3: What kind of battery does the Altai DP1 use? It uses a non-rechargeable Li-Mn 12V 4.2Ah battery, which is capable of delivering at least 200 shocks (up to 400 in some conditions).

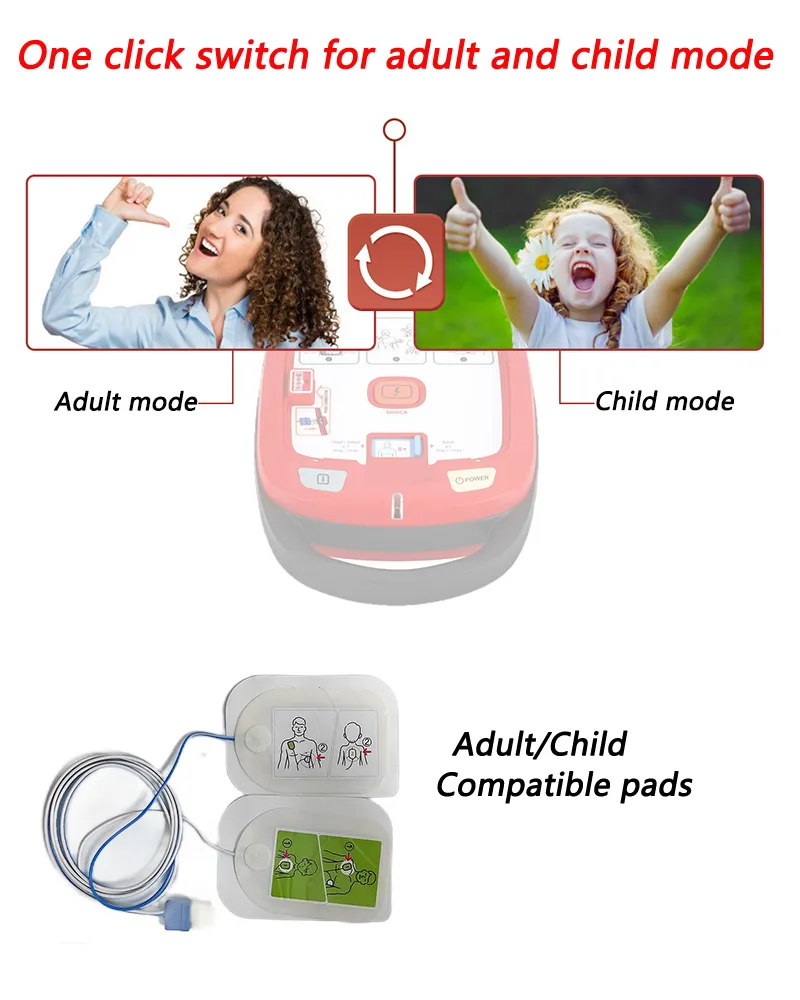

Q4: Can the same electrode pads be used for both adults and children? Yes, the preinstalled electrode pads are compatible with both adult and pediatric patients, and the device features a dedicated child mode.

Q5: How is the rescue data stored and accessed? The device has built-in memory that records up to 40 minutes of ECG data and ambient sounds. Data can be transferred via Bluetooth for review.

Q6: Is the device portable for emergency transport? Yes, the Altai DP1 is highly portable with a net weight of only 1.9 kg and comes with a dedicated carrying case.
