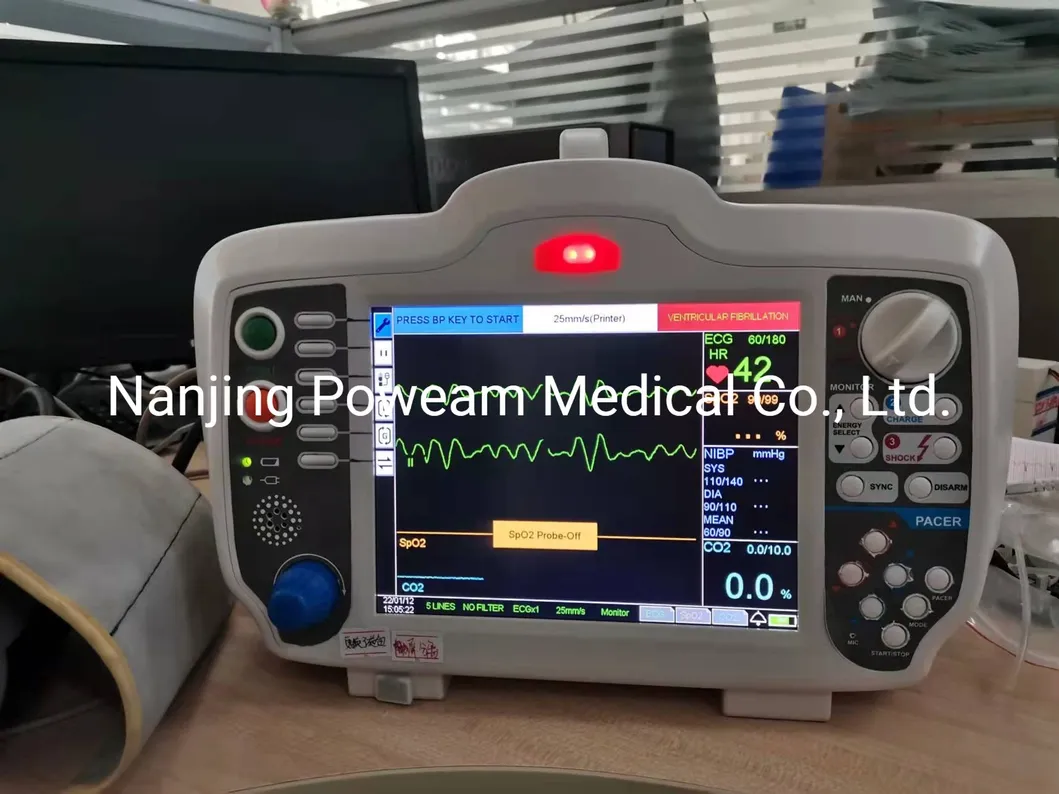

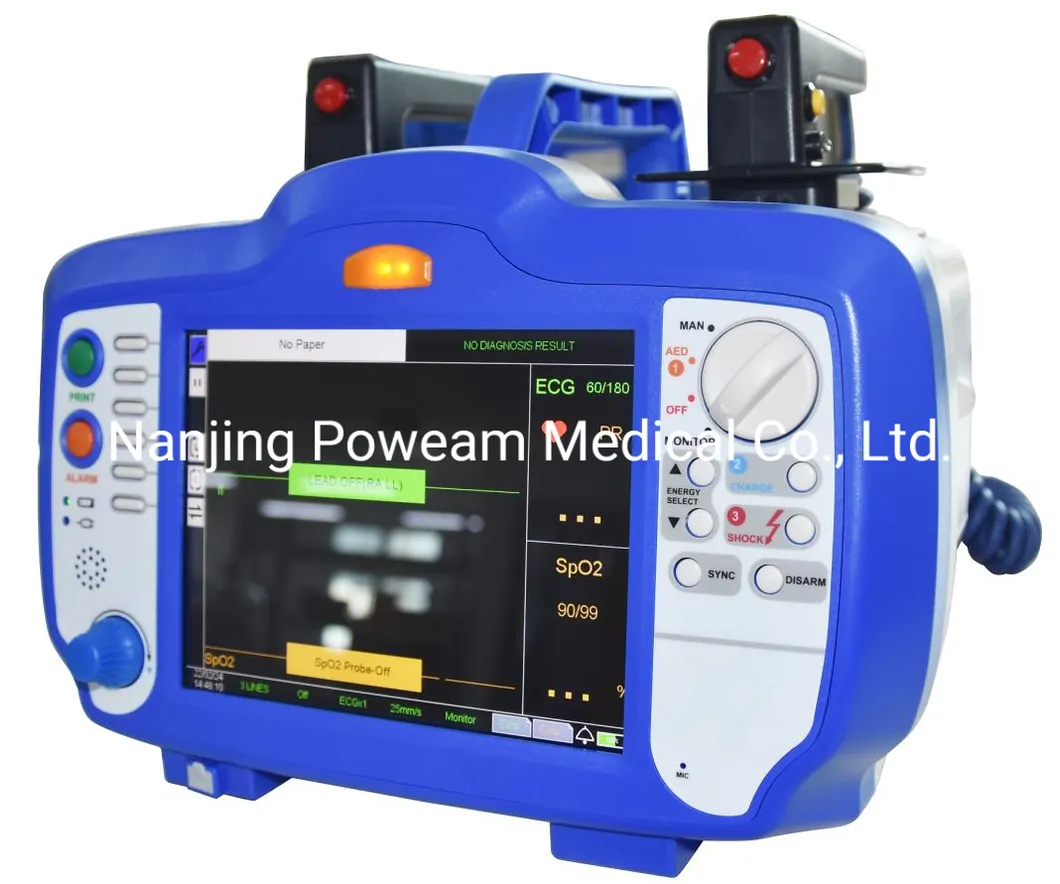

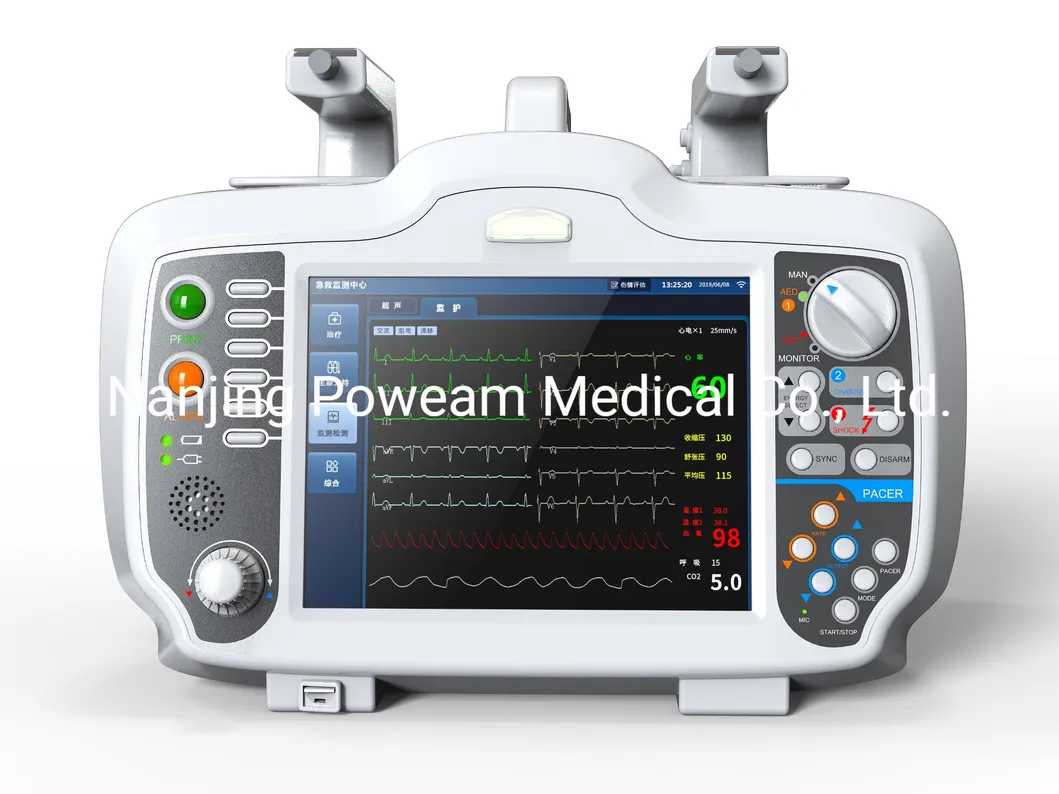

• Display Type: 8 inch high resolution LCD display
• Sweep Speed: 25mm/sec
• Information: HR, Lead/Pads, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
• Waveform: Biphasic
• Charge Time: Less than 7 seconds with a new fully charged battery.
• Energy Display: Monitor indicates both selected and delivered energy.
• Charge Prompt Type: Voice and visual prompts.
• Electrode Impedance Measurement Range: 0-250 ohms.
• Patient Connection: 5-lead ECG cable, 3-lead ECG cable, or paddles.
• Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
• ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV display.
• Heart Rate Range: 20-300BPM with user-selectable Smart Alarms.
• Measurement Range: 30~100%, ± 2% (80%~90%)
• Alarm Range: User-set high and low limits with accuracy within 12 seconds.
• Paper: 50mm thermal, high-resolution printing.
• Battery: Rechargeable Ni-MH 12V.
• Operating Time: 60 discharges at max energy or 3 hours continuous ECG monitoring.
• AED Mode: Auto analyze and charge X3 with programmable energy levels and voice prompts.
• Manual Mode: Energy selection at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
• Synchronized Mode: Synchronizes pulse to patient's R-wave.
