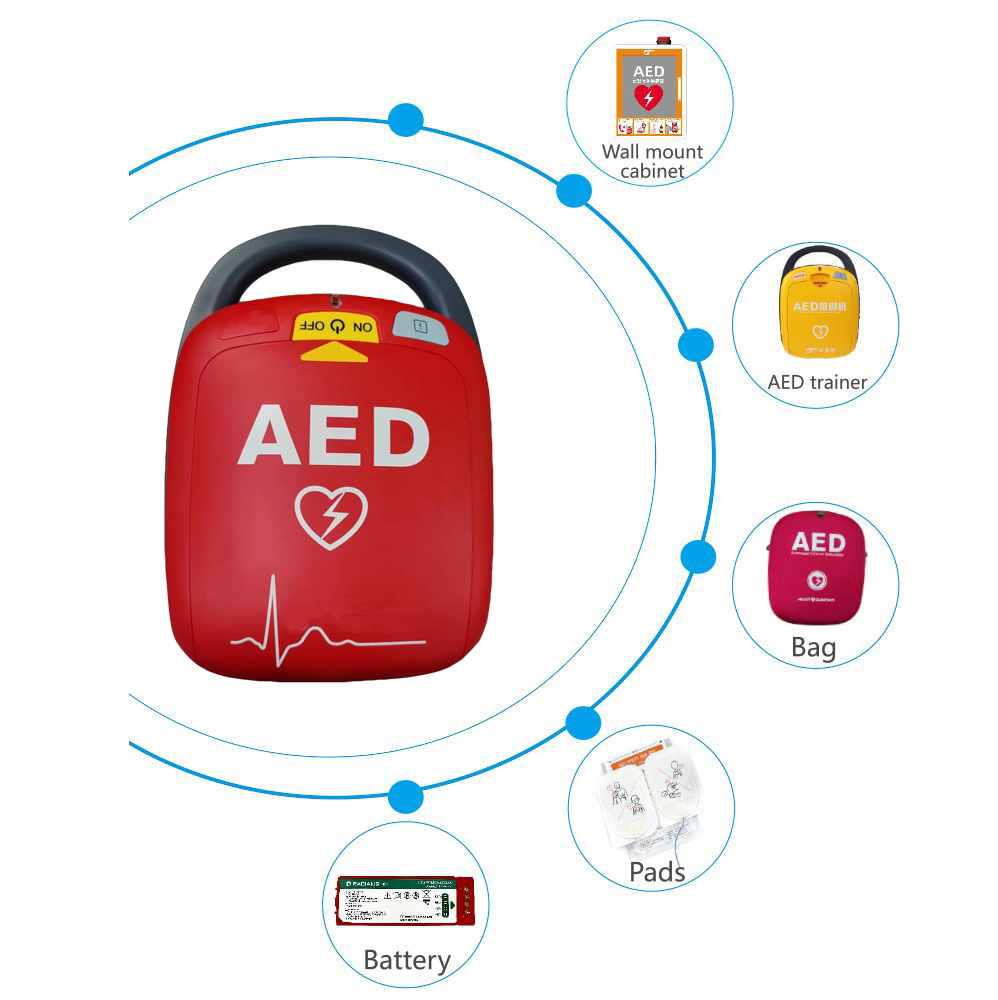

CE Certified Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads

1 / 5

CE Certified Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads

Customization:	Available
Classification:	First Aid
Type:	Automatic External Defibrillator (Aed)

Send Inquiry

Product Description

Basic Info

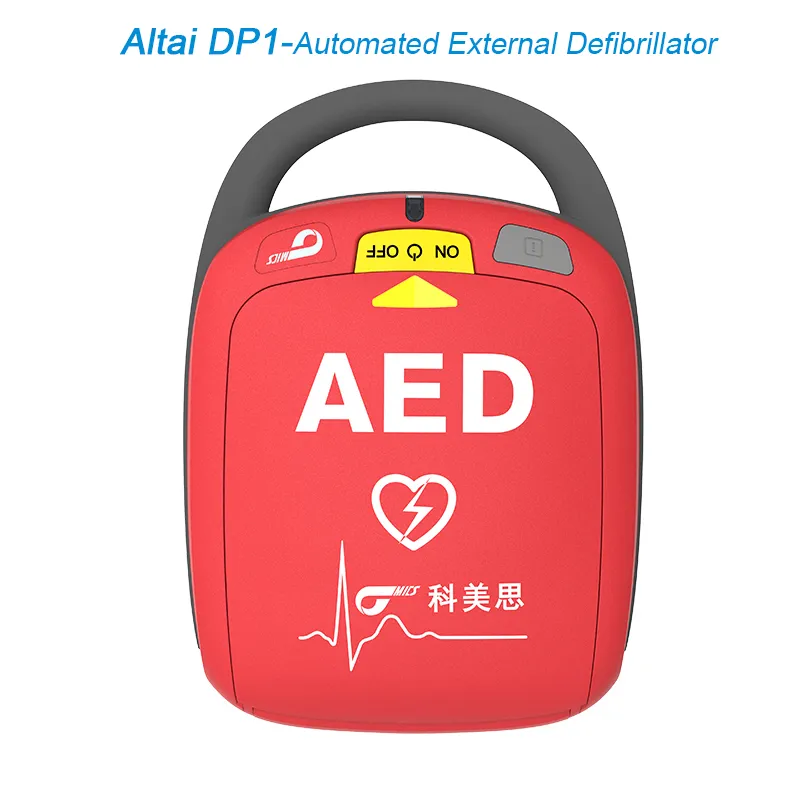

Model NO.Altai DP1

CertificationCE, MSDS, ISO13485, Nmpa, FSC

GroupAll

Product NameAutomatic External Defibrillator (AED)

ECG Analysis8.5 Second

Hi-Cap Charging8 Second

Shock Output150j (Adult), 50j (Pediatric)

Data Storage90 Minutes Each for ECG and Sounds

Battery PackNon Rechargeable Li-Mn Battery

Shock Frequencyup to 400 Times

Weight1.9 Kg

Specification320*230*85 mm

Product Description

CE Certified Automatic External Defibrillator (AED) with Low Energy BTE, Adult/Pediatric Pads

Product Parameters

ECG Analysis	8.5 Second	Battery Pack	Non rechargeable Li-MnO2 battery, 12V, 6000 mAh, 4 year lifetime
Hi-Cap Charging	8 Second	Shock Frequency	Not less than 400 times
Shock output	50 J (child), 150 J (adult)	Electrode Pads	Disposable and adhesive, Adult/pediatric compatible, 6 year lifetime
Data Storage	90 minutes each for ECG data and around sounds	Voice Guide	English/Chinese, Customized languages
Data transfer	Bluetooth	Net Weight	2.3 Kg

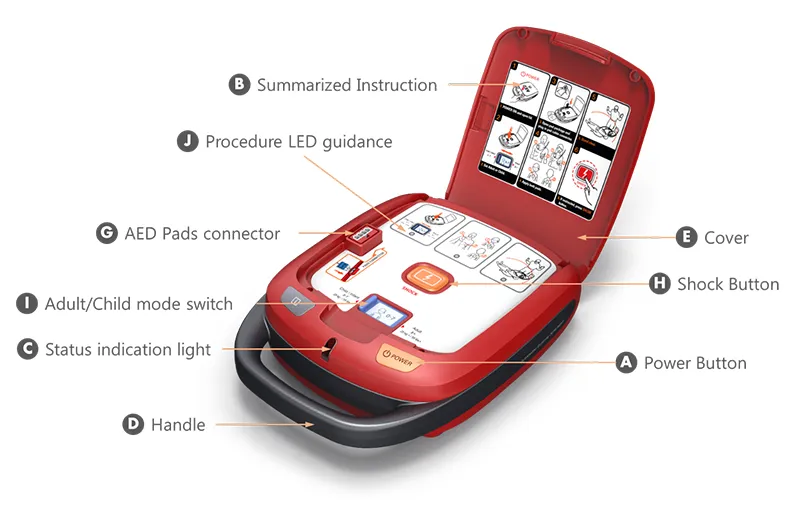

Warranty	2 year	Operating	Power, Analysis, Shock buttons

Core Features

Biphasic Truncated Exponential (BTE) with low energy to minimize myocardial injury
High capacity Li-MnO2 battery supporting up to 400 shocks
Automatic recording of ECG data & ambient sounds throughout operation

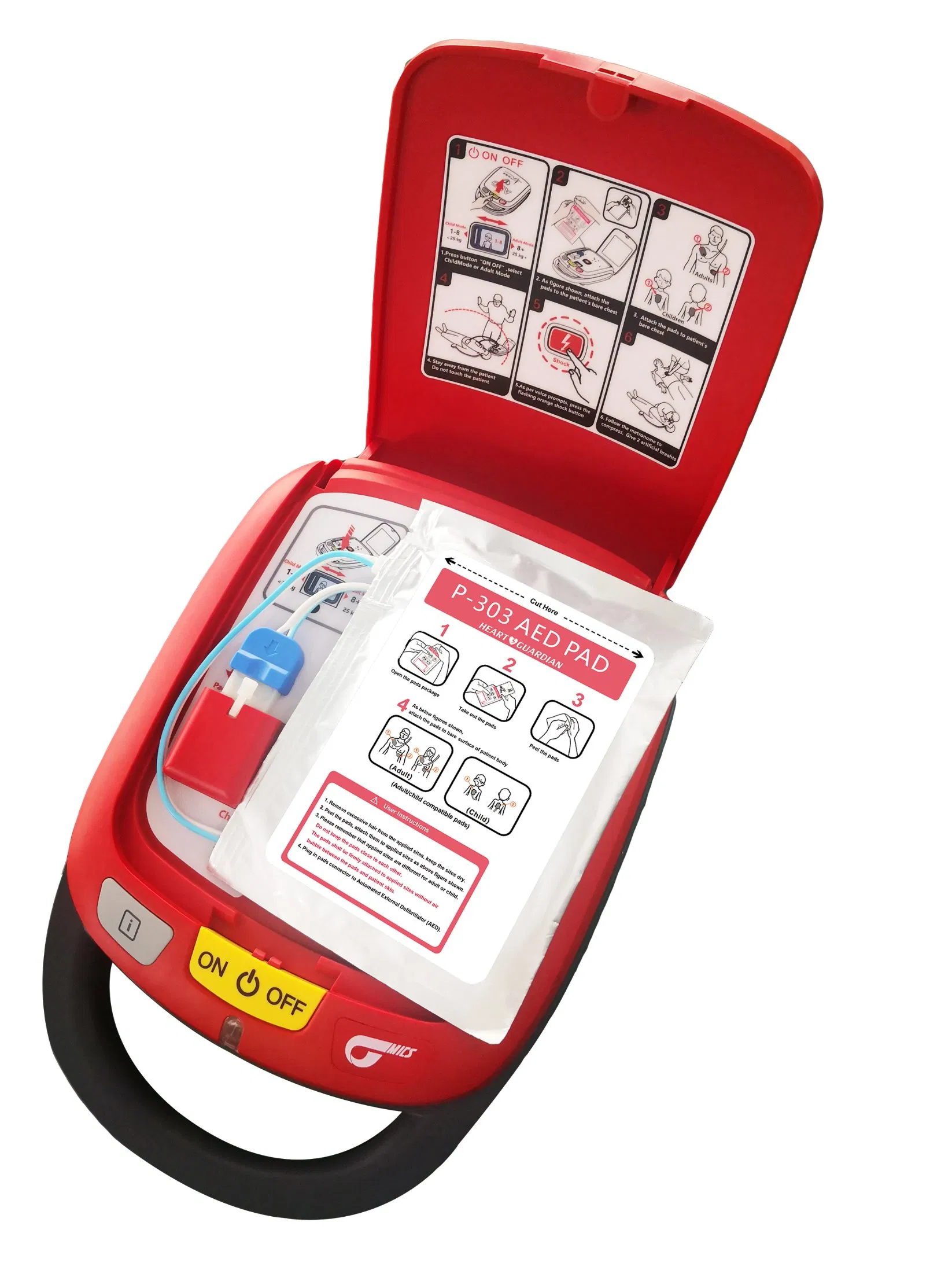

Preinstalled electrode pads compatible with both adults and children
One-step operation: Power on automatically when cover is opened
Daily self-test and automatic self-test upon power on

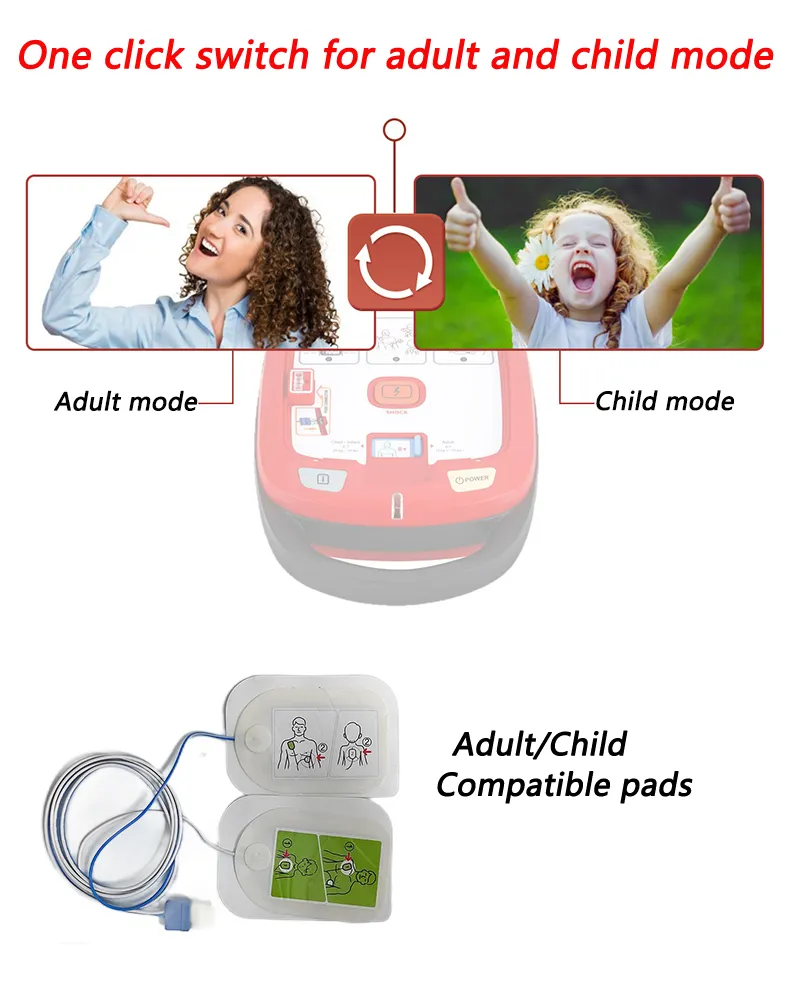

Available with dedicated adult and child modes
Automatic voice guidance throughout the complete rescue process
Low battery capacity alarm with replacement notification

Advantage of Low Energy BTE

Automatic compensation and adjustment of waveform as per load impedance
Shorter time in ECG analysis and shock preparation
Simultaneous ECG analysis and precharging for faster response
Higher success rate in defibrillating with minimum injury to myocardium
Optimized for better patient rehabilitation

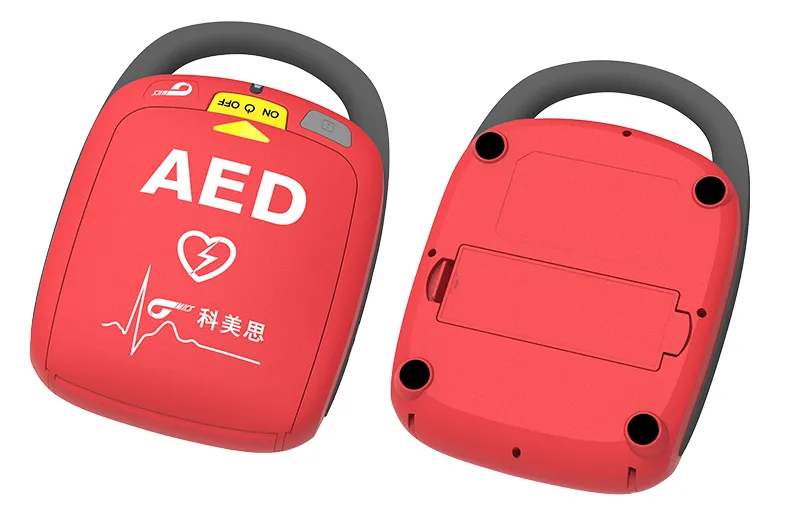

Product Details & Gallery

Frequently Asked Questions

Q1: Can this AED be used on both adults and children? A: Yes, the Altai DP1 features preinstalled electrode pads that are compatible with both adult and pediatric patients, with a dedicated switch for child mode.

Q2: How long does the battery last in standby mode? A: The non-rechargeable Li-MnO2 battery has a standby lifetime of approximately 4 years.

Q3: How many shocks can the device deliver on a full battery? A: The high-capacity battery pack is designed to support up to 400 shocks.

Q4: Does the device record data during a rescue? A: Yes, it automatically records up to 90 minutes of ECG data and ambient sounds for later review via optional PC software.

Q5: Is the AED easy for untrained people to use? A: Yes, it features automatic voice guidance and one-step operation (opening the cover powers it on) to assist users through every step of the process.

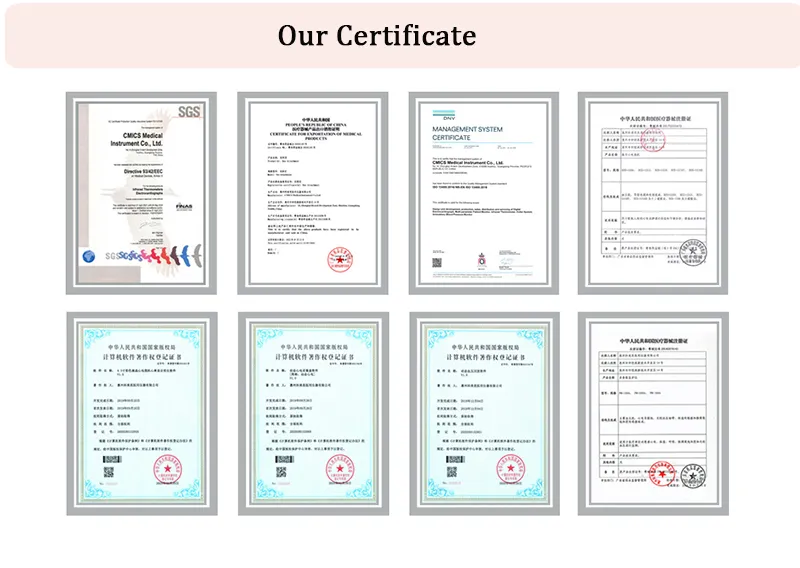

Q6: What certifications does the Altai DP1 have? A: The device is CE certified and complies with ISO13485, MSDS, and Nmpa standards.
