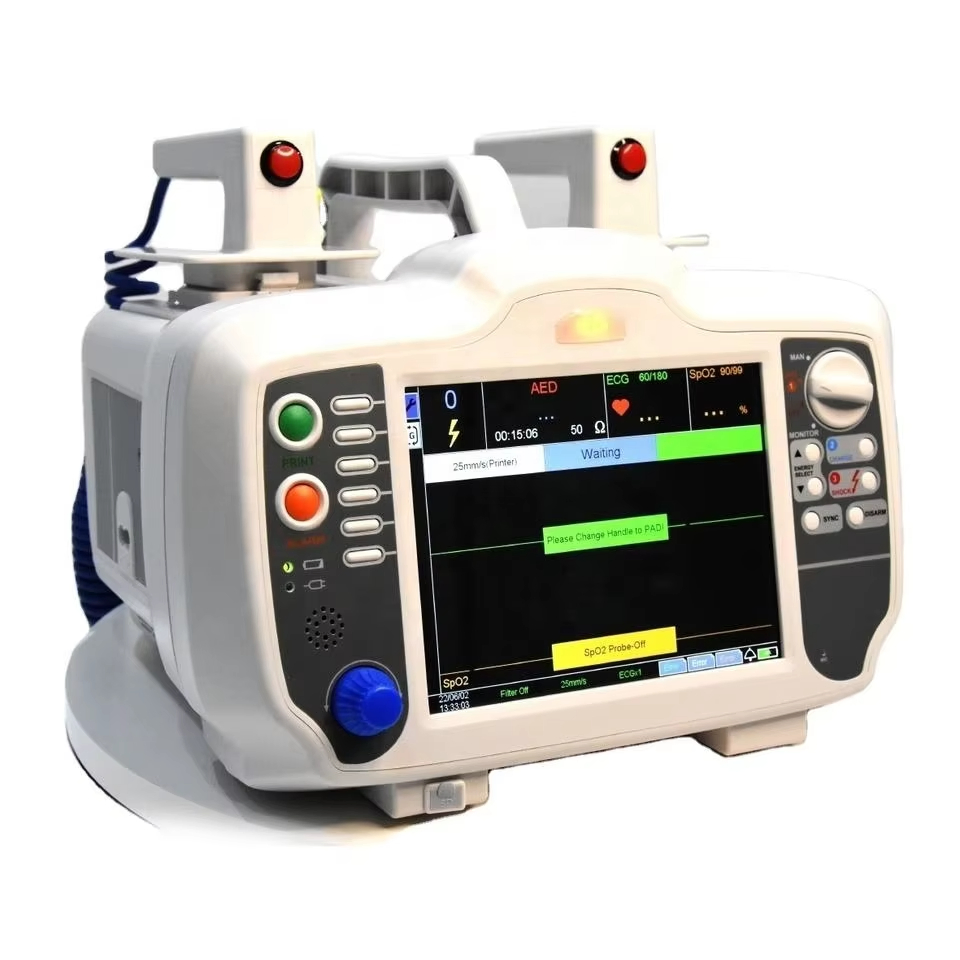

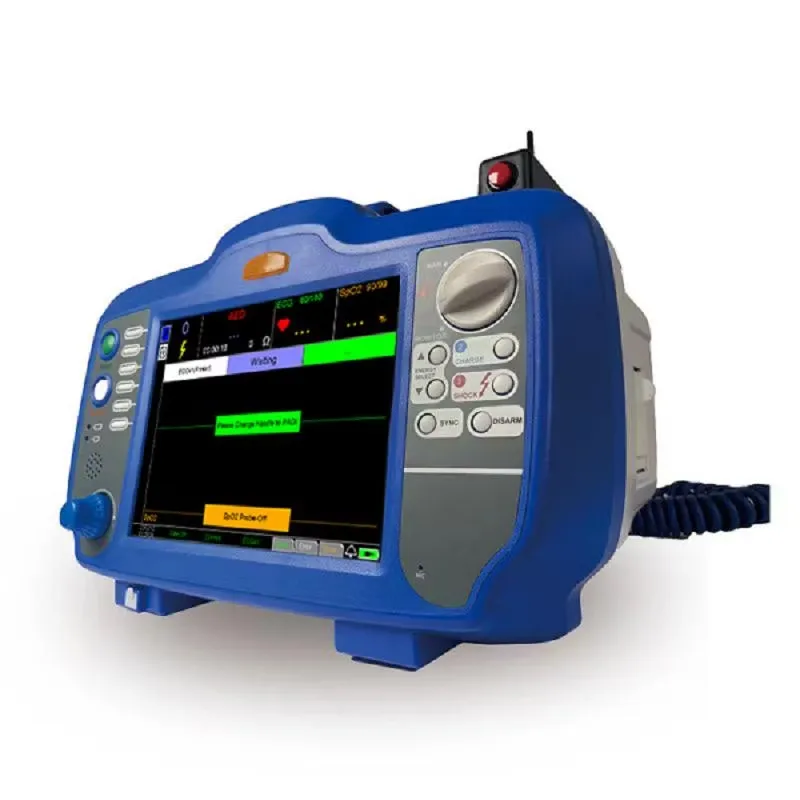

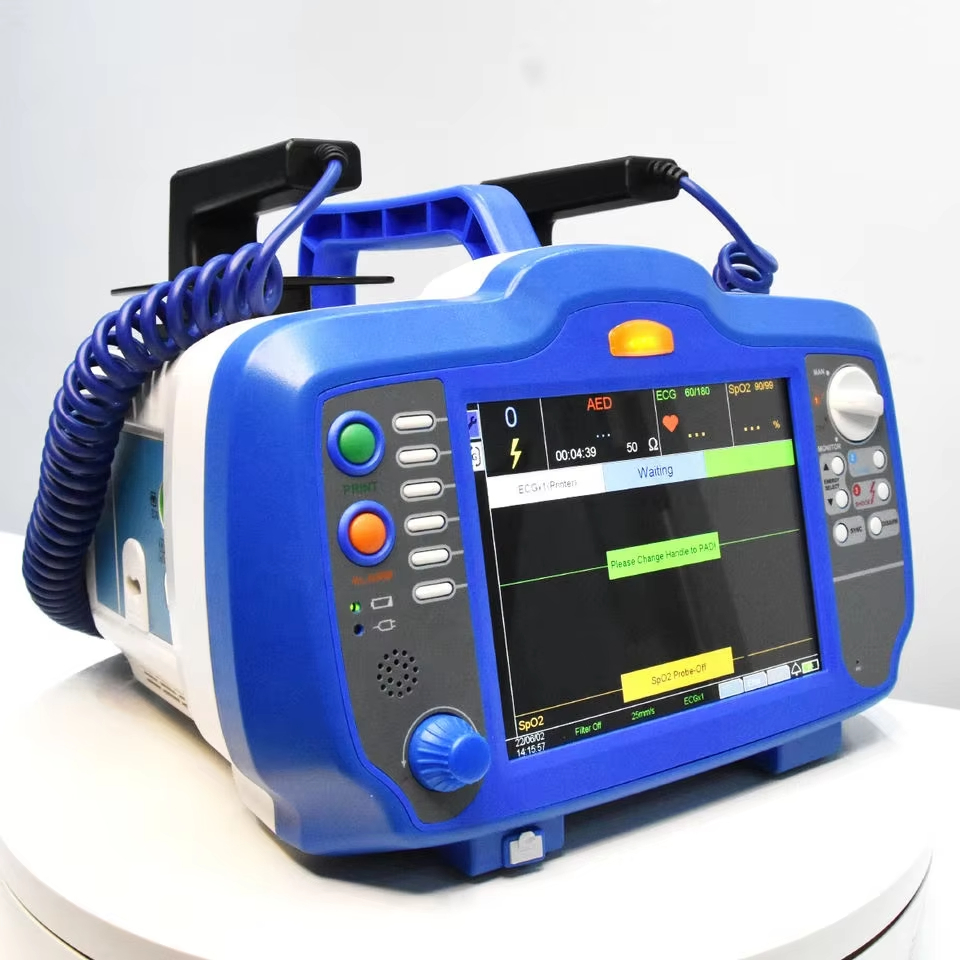

The YJ-D9000 is a professional biphasic defibrillator-monitor designed for emergency care, hospital wards, and emergency departments. It combines portability with multi-parameter monitoring capabilities.
ECG Monitoring: Supports 3-lead or 5-lead ECG cables. Lead selection includes I, II, III, AVR, AVL, AVF, and V. Heart rate monitoring range: 20-300 BPM with smart alarms for shockable rhythms.
SpO2 Module (Optional): Precision pulse oximetry with user-defined high/low alarm limits and 12-second accuracy response.

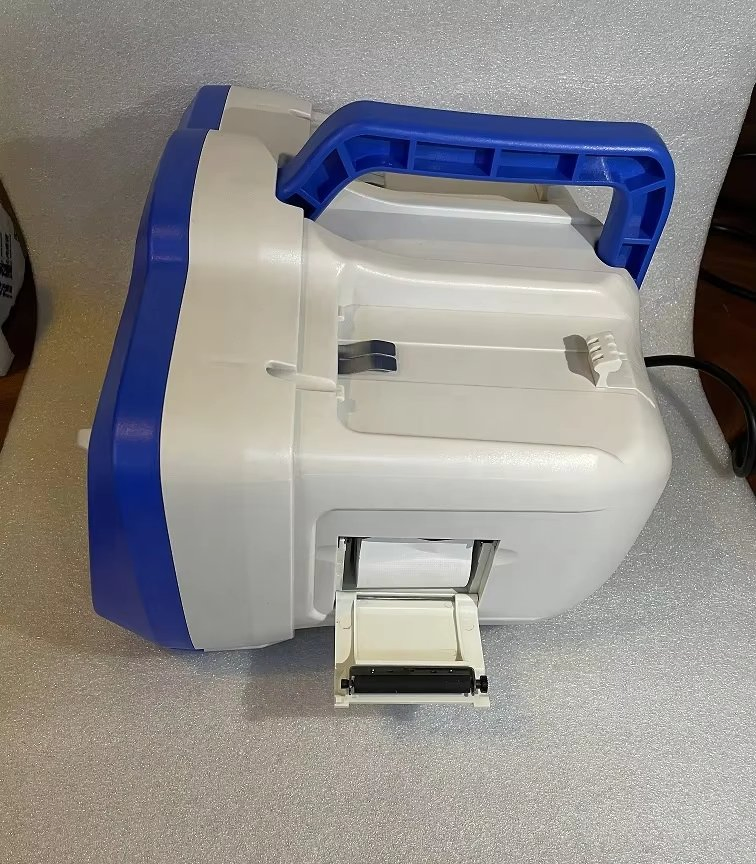

Recorder: High-resolution thermal printer using 50mm paper. Features manual or automatic 9-second recording initiated by alarms or discharge.
AED Mode: Automatic analysis with programmable energy levels. Provides clear voice and visual prompts to guide the user through the rescue process.
| Parameter | Description | |
|---|---|---|
| Defibrillator | Waveform | Biphasic |
| Charge Time | Less than 7 seconds with new battery | |
| Battery | Type | Rechargeable Ni-MH, 12V |
| Capacity | 60 discharges at max energy or 3 hours ECG monitoring | |
| Recorder | Paper Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Paper Type | 50mm Thermal | |
| Modes | Manual or Automatic | |
| SpO2 | Range | 30% ~ 100% |
| Accuracy | ±2% (80%-90%), ±5% (others) | |
