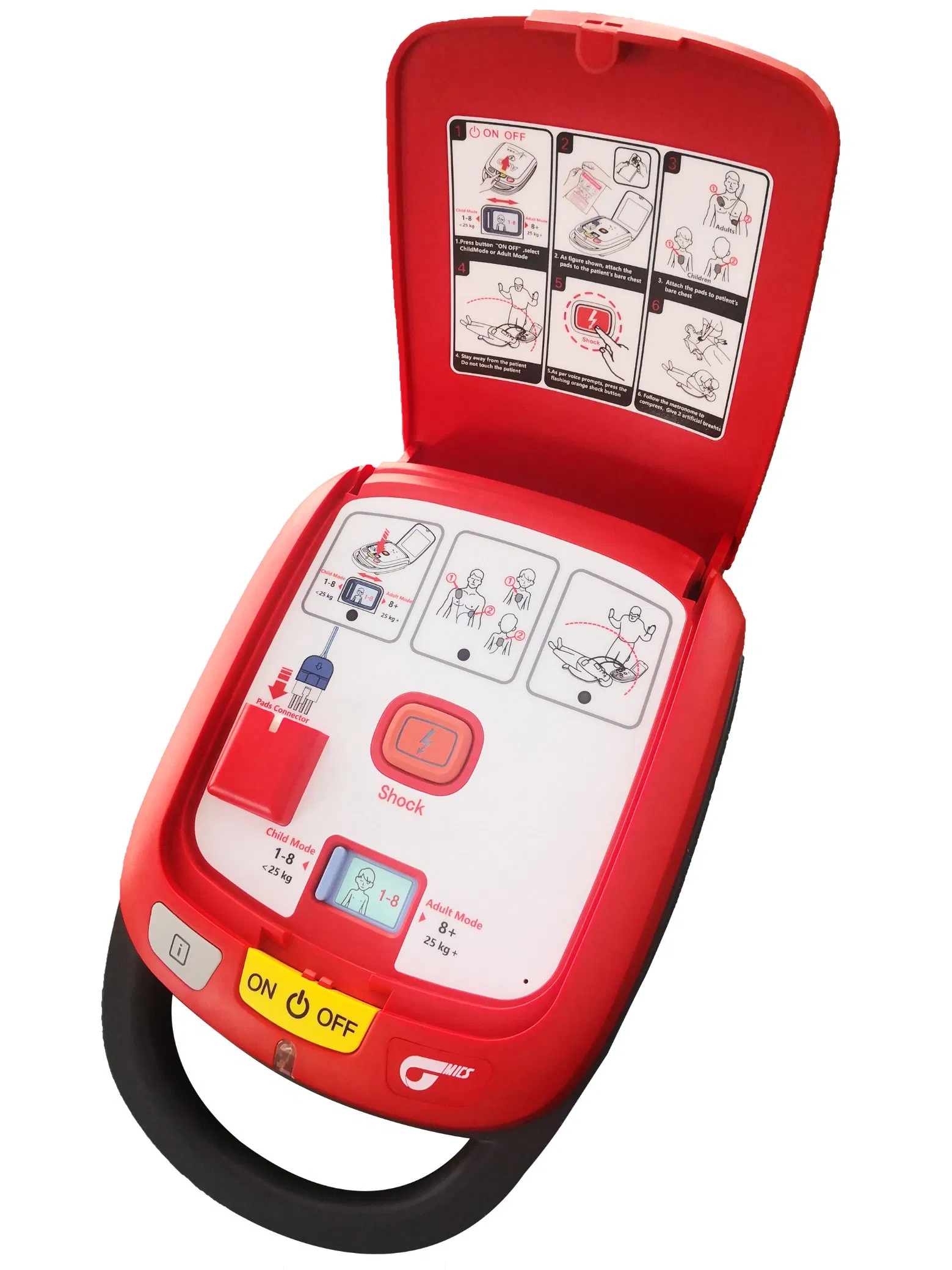

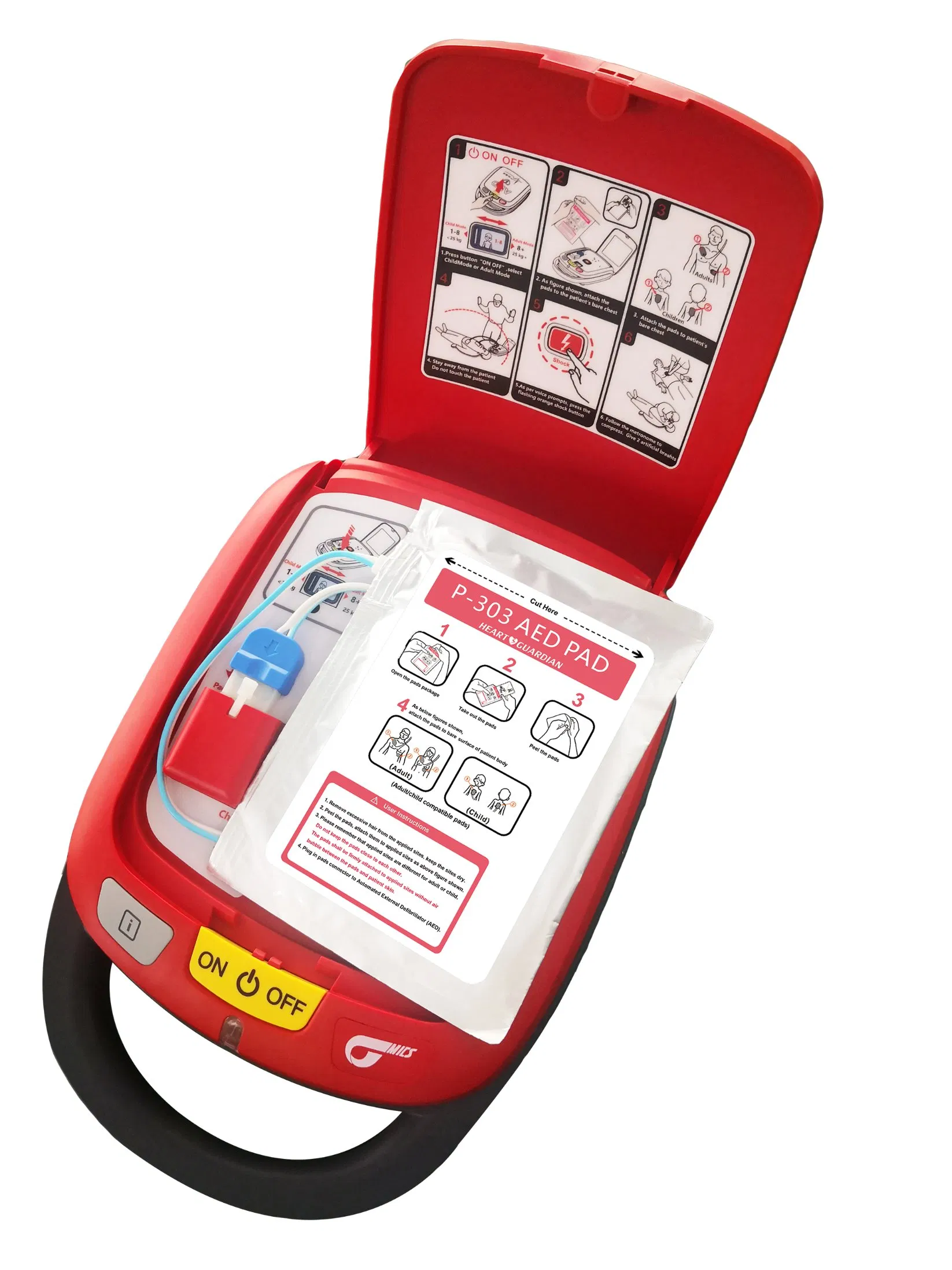

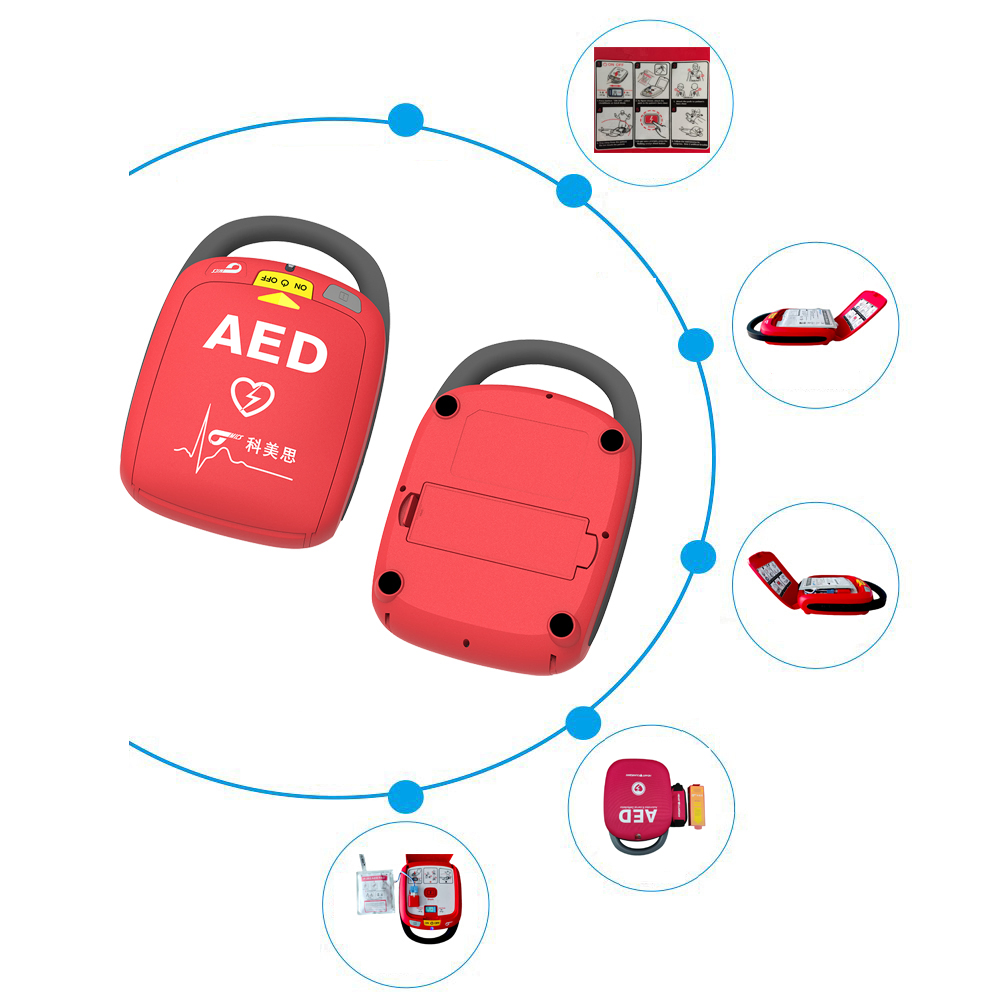

Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
1 / 5
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator
Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator

Cmics Aed Automatic External Defibrillator Portable Cardiac Defibrillator

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO. Altai DP1 Certification CE, MSDS, ISO13485, FSC
Voice Guide Customized Languages Electrode Pads Adult/Pediatric Compatible
Battery Pack Non Rechargeable Li-Mn of 12V, 6 Ah Shock Output 50J (Child), 150J (Adult)
Shock Frequency Not Less Than 200 Times ECG Analysis 8.5 Seconds
Charging Time 8 Seconds Data Storage 90 Minutes for ECG and Sounds
Specification 320*230*85 mm HS Code 9018199000
📋

Product Description

Altai DP1: AED Defibrillator with Low Energy BTE

  • Biphasic Truncated Exponential with low energy to minimize myocardial injury
  • High capacity Li-MnO2 battery supporting up to 400 shocks
  • Automatic recording of ECG data and ambient sounds
  • Preinstalled electrode pads compatible with both adults and children
  • One-step operation: cover open and power on simultaneously
  • Daily self-test and automatic self-test upon power on
  • Automatic voice guidance throughout the complete operation
  • Low battery capacity alarm and status indication

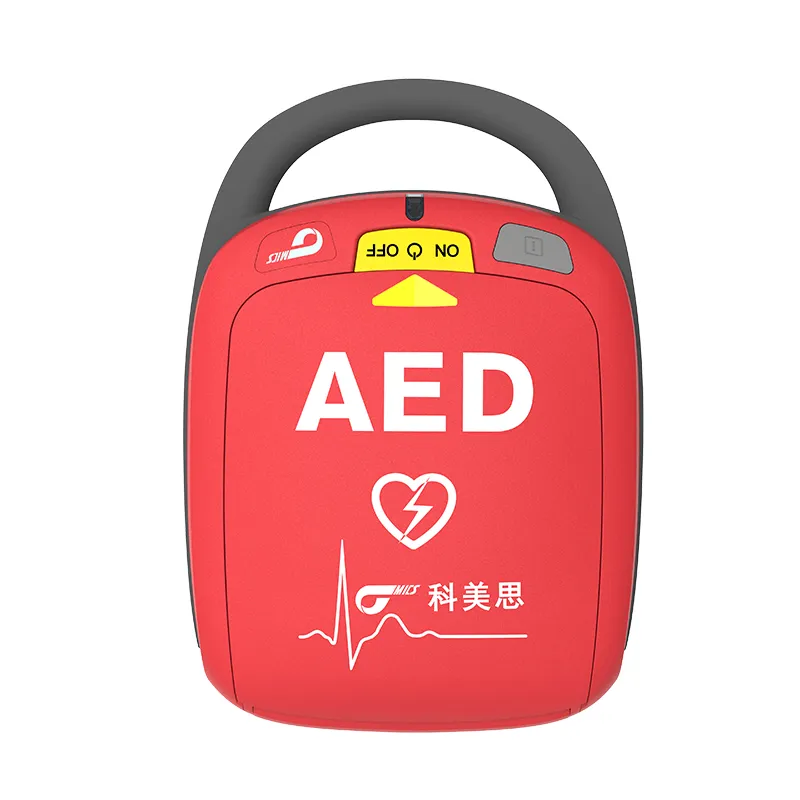

AED Device View 1

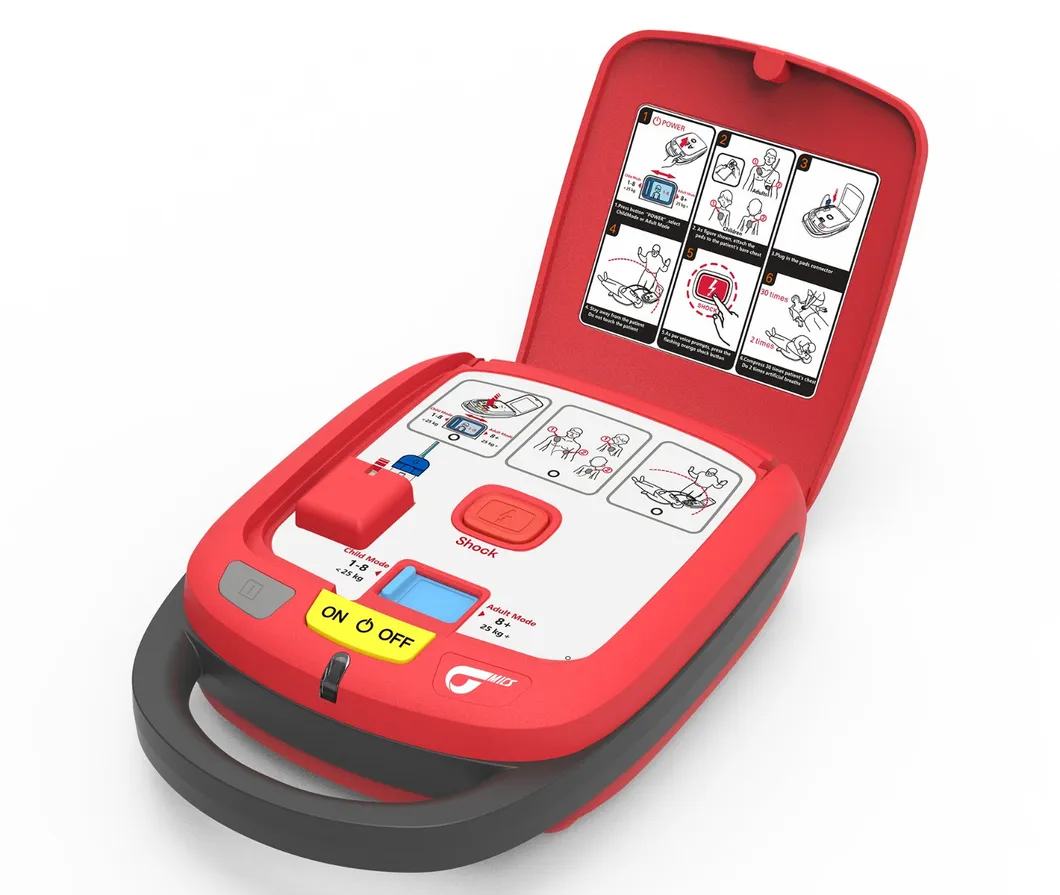

AED Device View 2

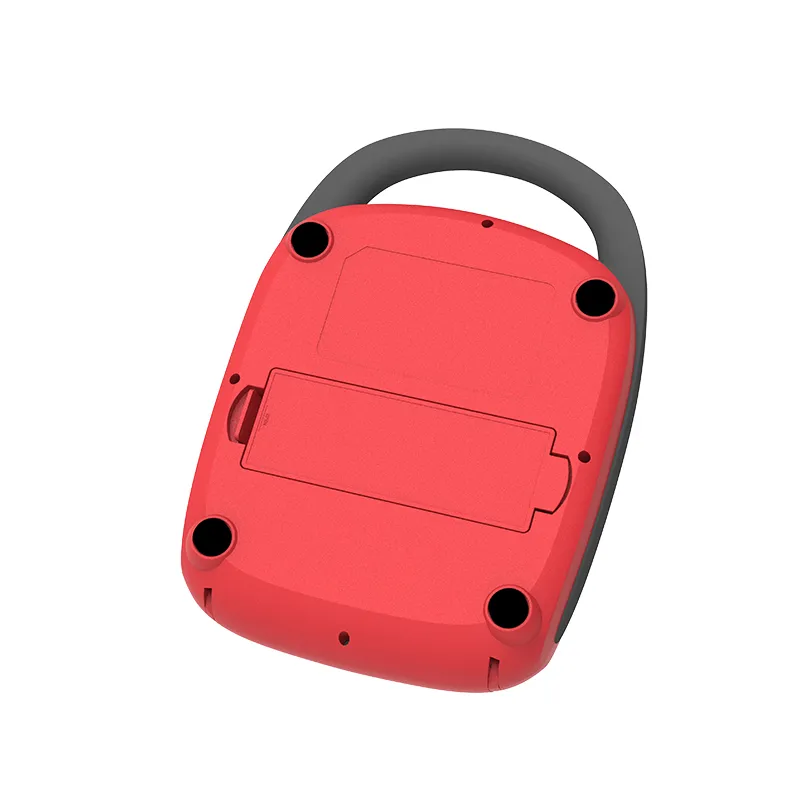

AED Device View 3
⚙️

Technical Parameters

ECG Analysis 8.5 Second Battery Type Non-rechargeable Li-Mn, 12V, 6000 mAh (4-year lifetime)
Hi-Cap Charging 8 Second Shock Frequency Not less than 400 times
Shock Output 50 ~ 150 J Electrode Pads Disposable, Adult/Pediatric compatible, Preinstalled

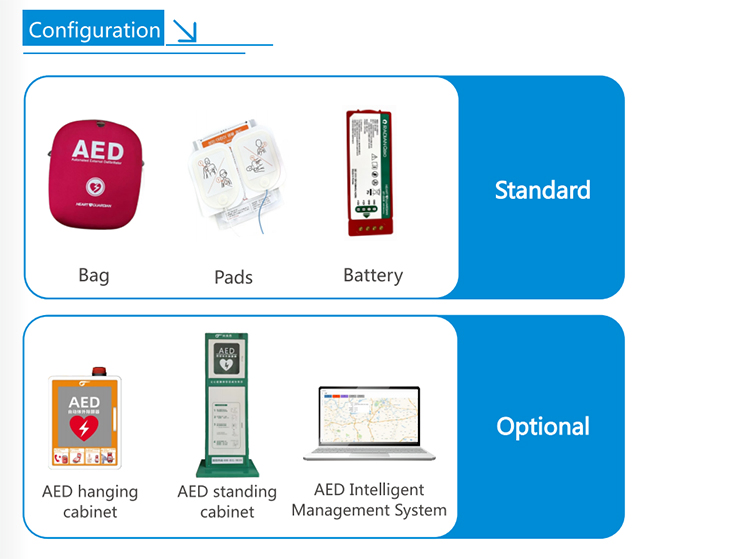

Data Retrieve Bluetooth, 4G, GPS Standard Config Main unit, Battery pack, Electrode pads, Carry case
Warranty 2 Years Optional Standing/Wall cabinet, First aid kit, PC software

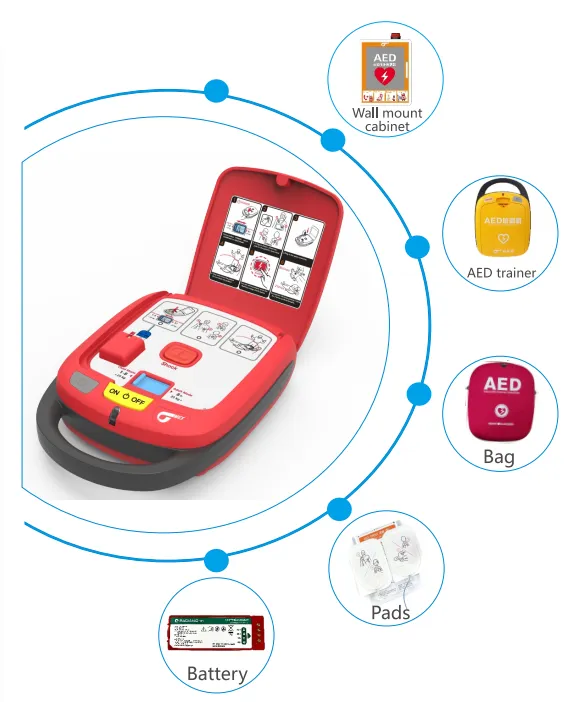

AED Dimensions
AED Usage
⭐

Our Advantages

Advantage of Low Energy BTE Technology

  • Automatic compensation and adjustment of waveform based on load impedance
  • Shorter time required for ECG analysis and shock preparation
  • Simultaneous ECG analysis and precharging for faster response
  • Higher success rate in defibrillation with minimum injury to myocardium
  • Better outcomes for patient rehabilitation

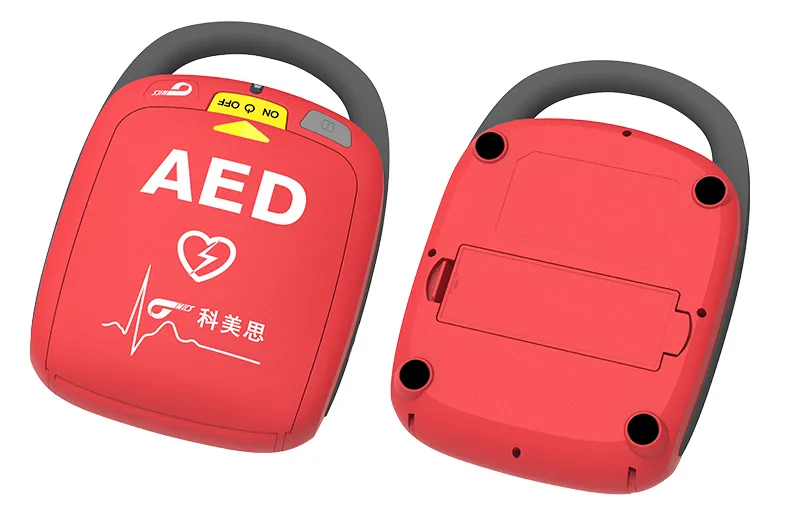

BTE Technology Chart
📜

Certifications

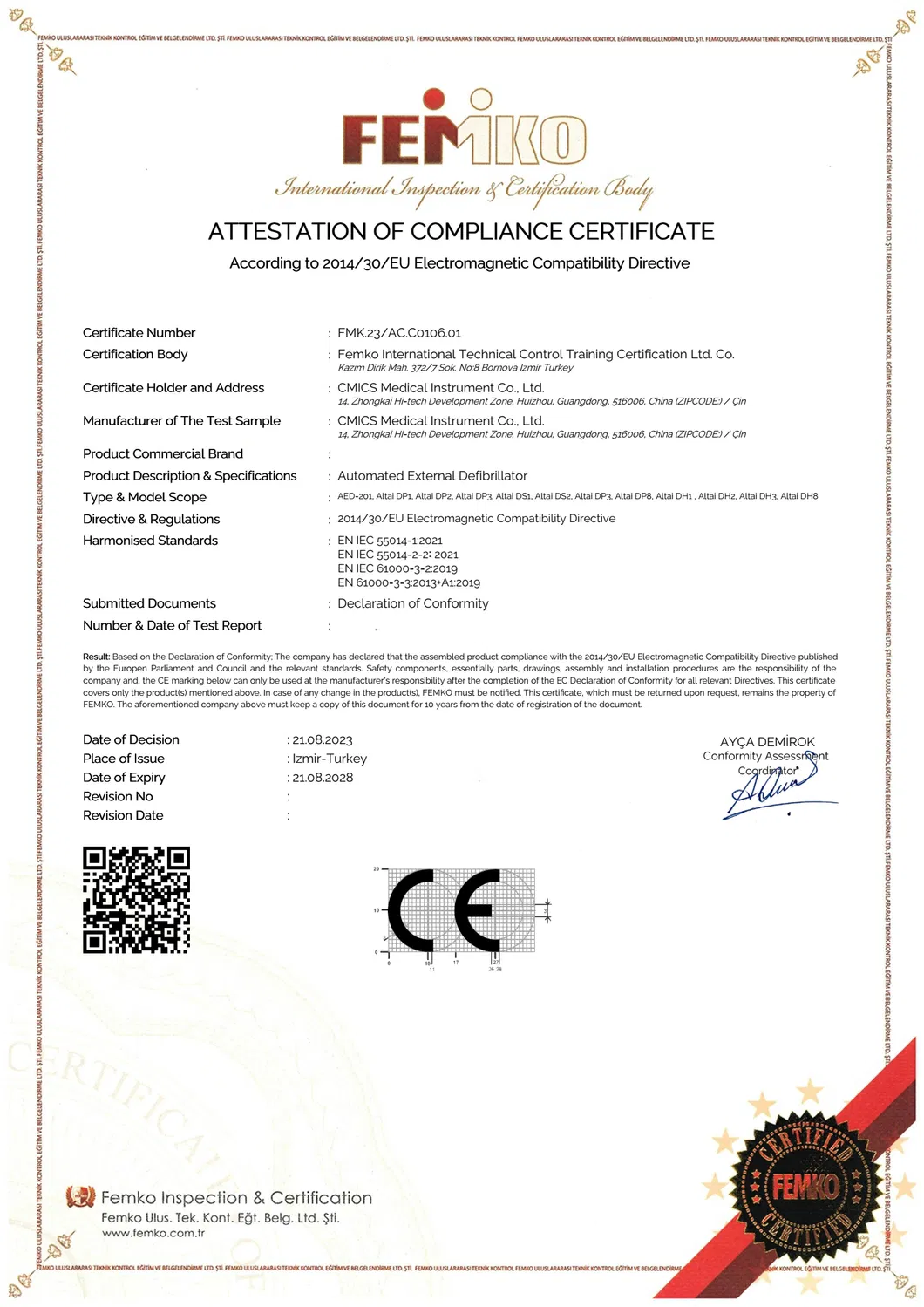

Certification 1

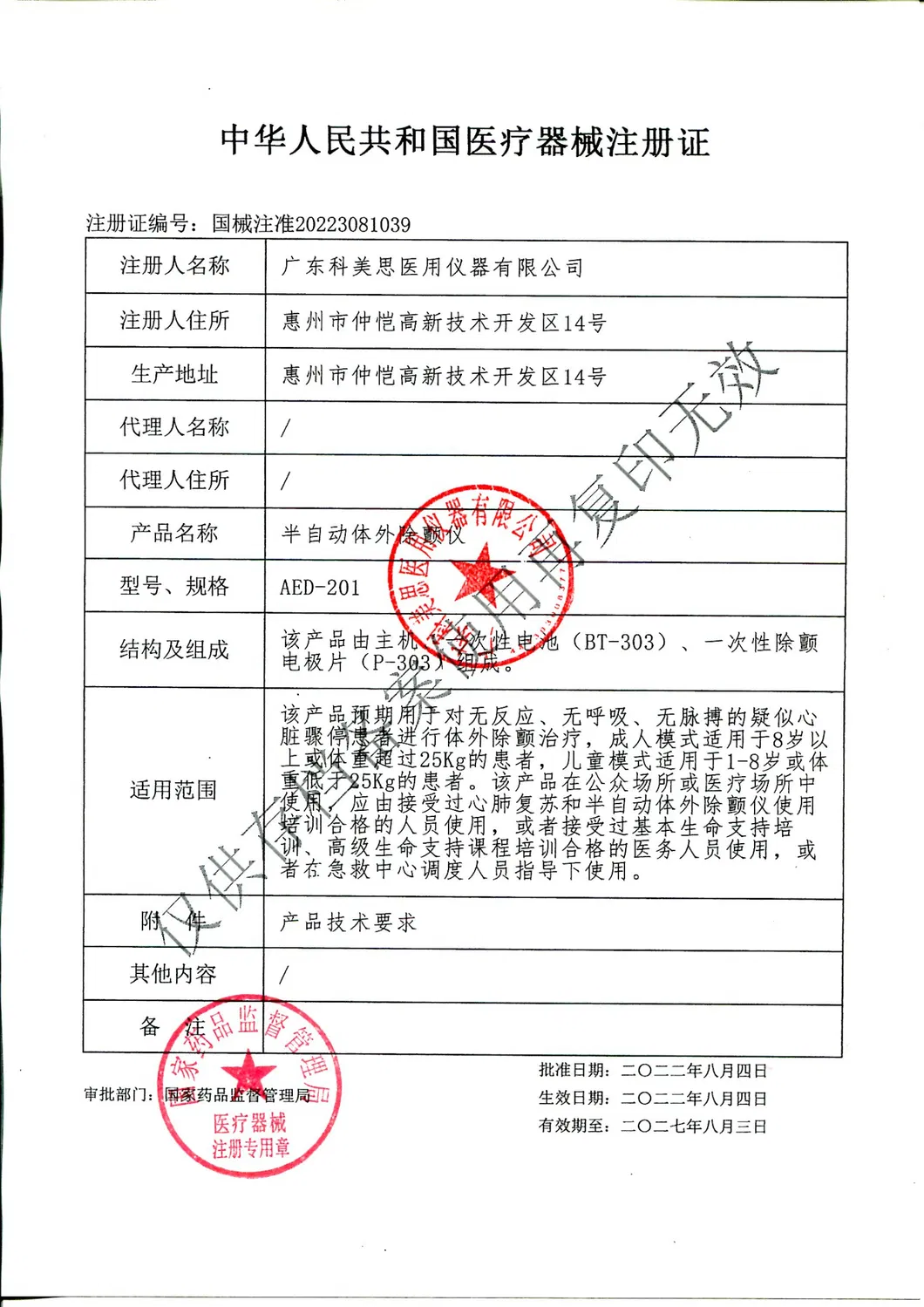

Certification 2

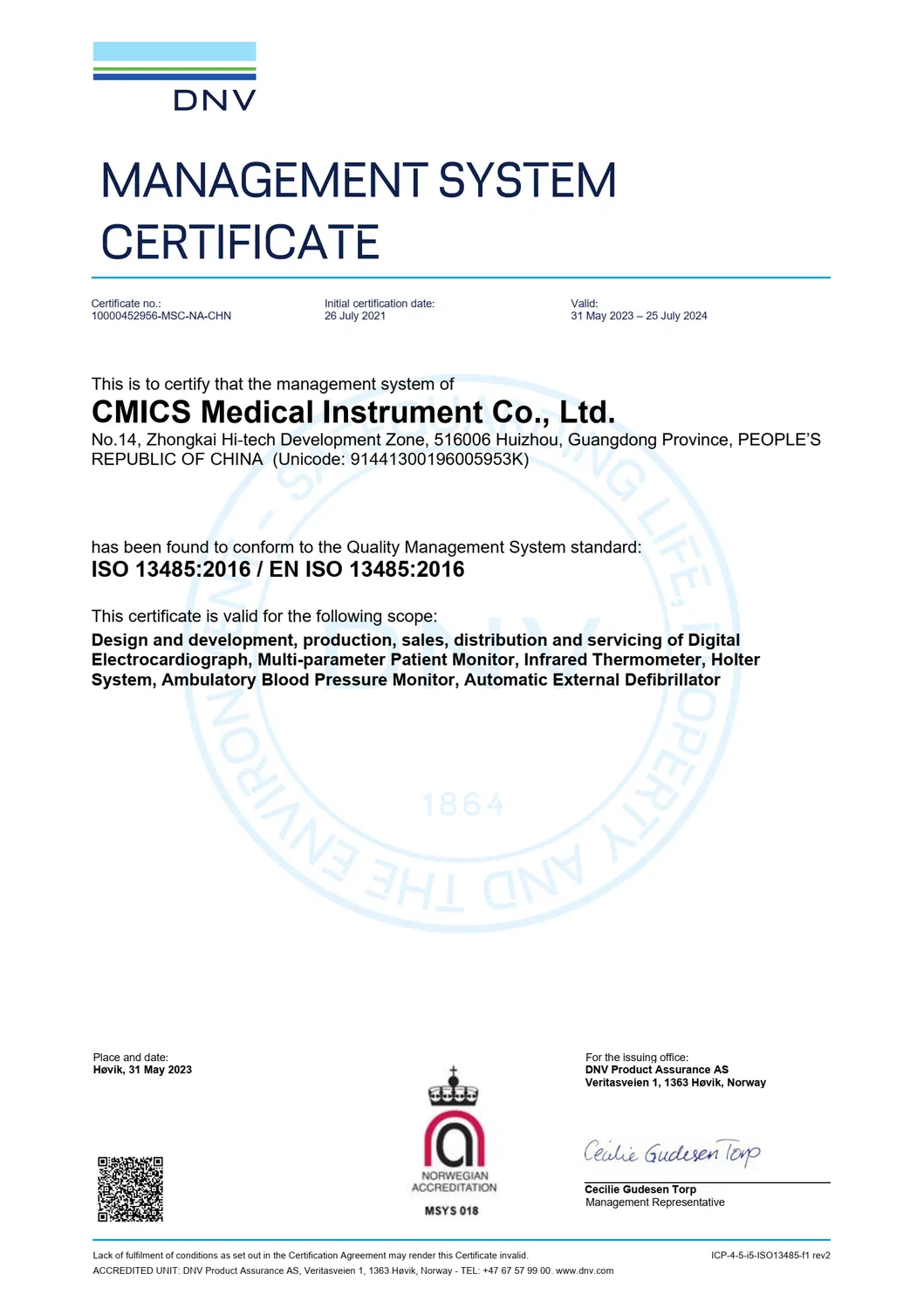

Certification 3
🏢

Production & Facilities

Facility 1

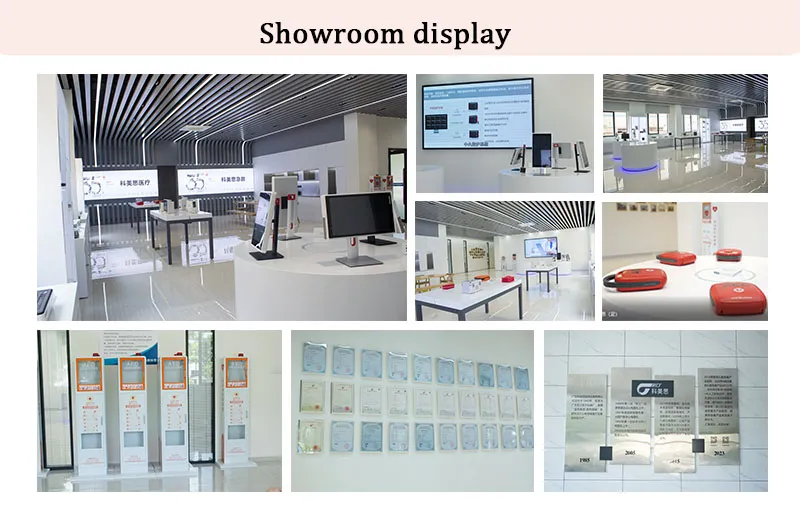

Facility 2

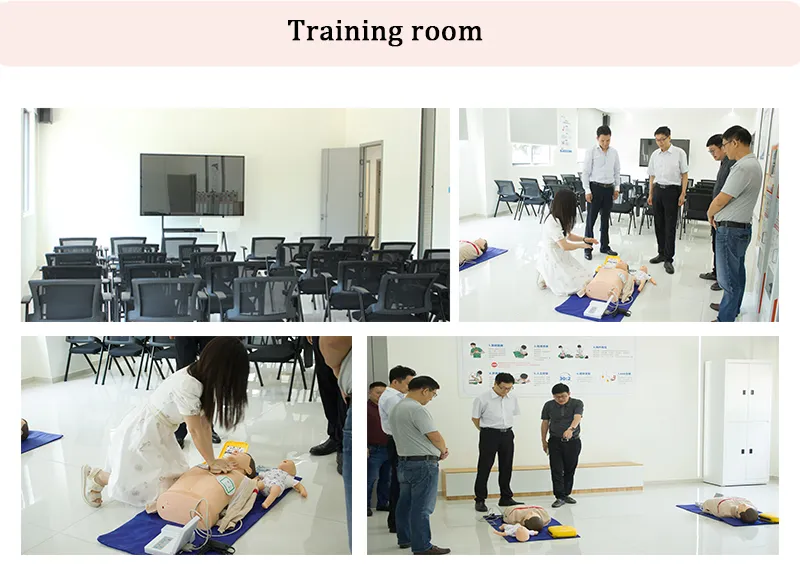

Facility 3

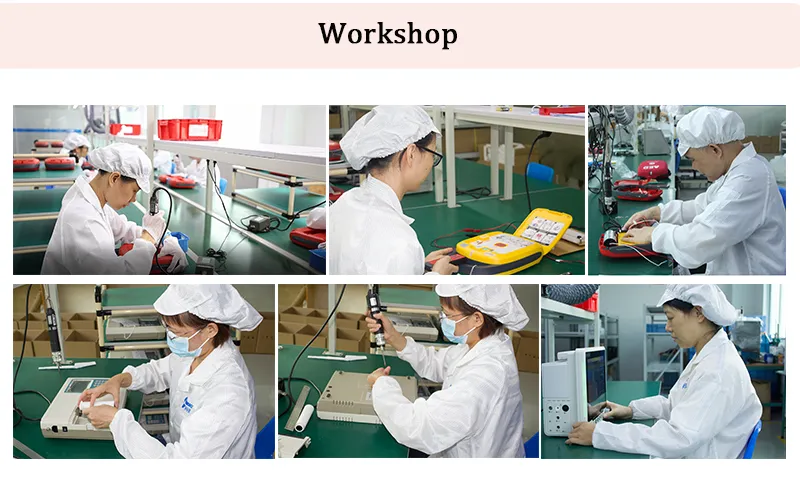

Facility 4
Facility 5
Facility 6

Frequently Asked Questions

What is the battery life of the Altai DP1?
The device uses a high-capacity non-rechargeable Li-Mn battery with a 4-year lifetime, capable of supporting up to 400 shocks.
Can this AED be used for both adults and children?
Yes, the Altai DP1 features preinstalled electrode pads that are compatible with both adult and pediatric patients. It includes specific modes for each.
How long does it take to analyze ECG and charge?
The device performs ECG analysis in approximately 8.5 seconds and can charge for a shock in just 8 seconds.
Does the device record rescue data?
Yes, it automatically records up to 90 minutes of ECG data and ambient sounds during operation for later review.
What are the advantages of Low Energy BTE technology?
Low Energy Biphasic Truncated Exponential (BTE) technology adjusts waveforms based on patient impedance, leading to higher success rates with minimal injury to the heart muscle.
Is the device easy to operate for non-professionals?
Absolutely. It features one-step operation (power on when the cover opens) and provides automatic voice guidance throughout the entire rescue process.
