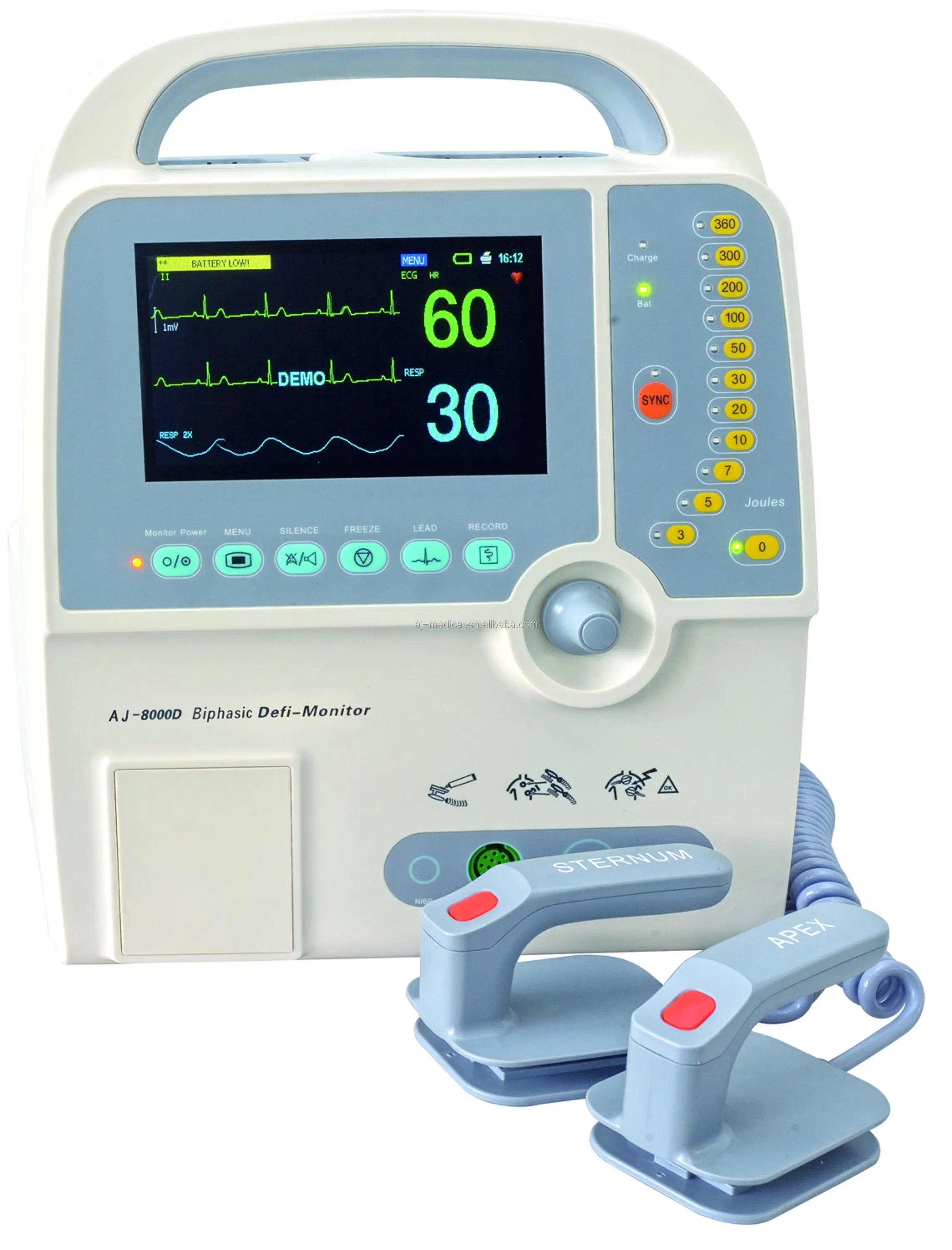

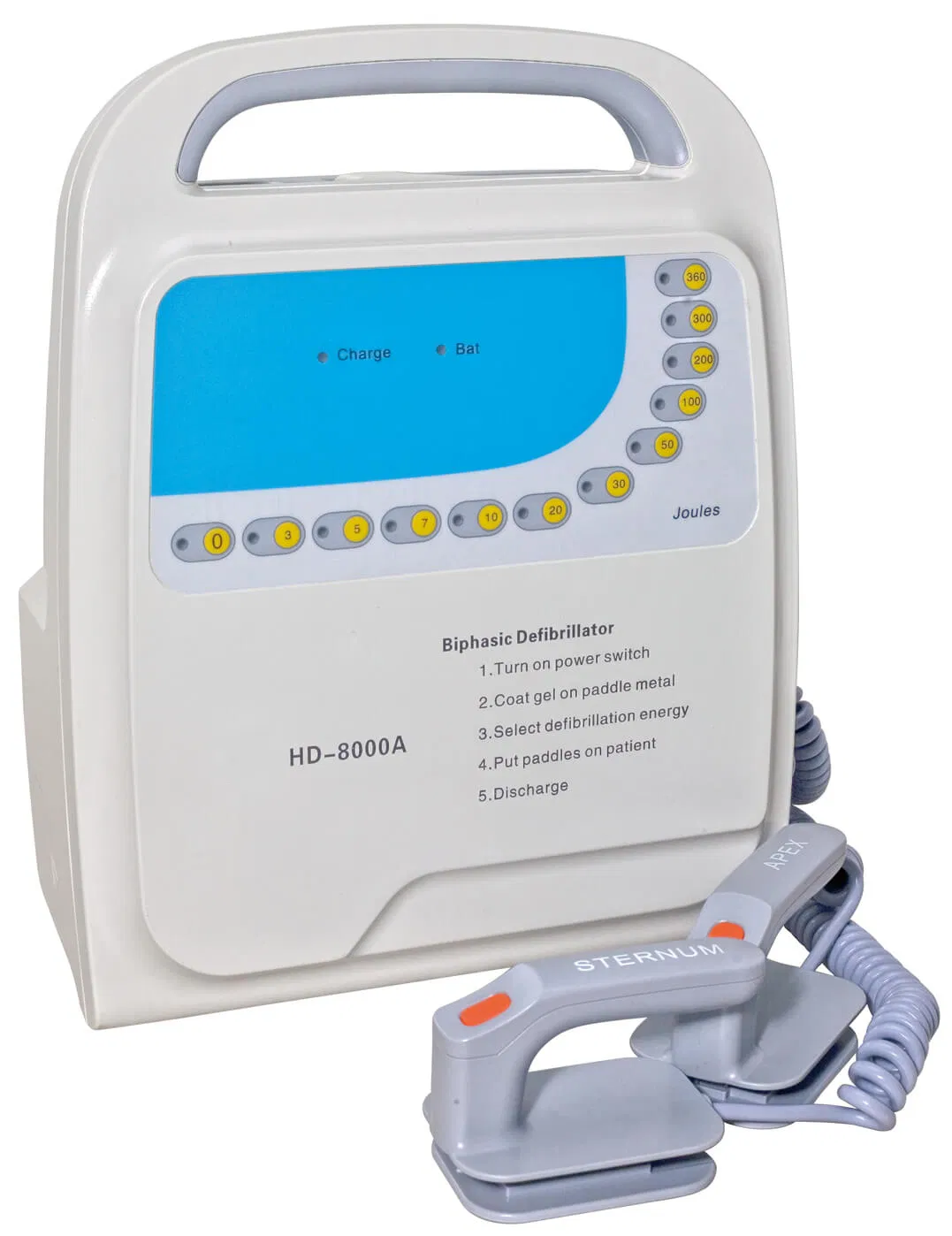

Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG

Customization: Available
Classification: Defibrillator
Type: Defibrillator

Product Description

📋 Basic Information
Model NO.
OEM
Certification
CE, ISO13485
Group
Adult & Child
Warranty
1 Year
Power Source
Electricity
Usage
Medical Products
Material
Aluminum Alloy
After-Sale Service
Online Technical Support
Transport Package
Carton
Specification
L320xW205xH410
Origin
China
HS Code
9018909911
💡 Product Features
  • Voice prompt system for guided operation.
  • Standard built-in Recorder with defibrillation discharge trigger recording.
  • ECG waveform monitoring via paddle electrodes.
  • Comprehensive display: Heart Rate, Lead, Alarm Status, and Delivered Energy.
  • High-performance 7-inch TFT color display.
  • Standard configuration includes Biphasic defibrillation, ECG, Printer, and Li-ion Battery.
  • Optional features: SpO2 and AED mode.
Technical Specifications
Defibrillator Parameters
ECG3-lead or 5-lead ECG cable, paddles. Leads: I, II, III, AVR, AVL, AVF, V.
NIBPMethod: Automatic oscillation; Mode: Manual/Automatic.
TEMPMeasurement range: 20-45ºC.
SpO2Display: SpO2 value, pulse histogram, waveform, pulse.
Pulse Range0~300bpm; Accuracy: ±2bpm.
Defibrillator TypeBiphasic/Manual/External Synchronous/Asynchronous.
Charge TimeLess than 10 seconds to 360 Joules.
Energy Selection0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules.
PaddlesReusable external adult paddles (pediatric paddles integrated).
AED OptionalAdult: 150J/200J; Children: 30J/50J/75J.
Power & Battery
AC Power Supply100V~240V, 50Hz/60 Hz.
Vehicle VoltageDC 12V (Optional).
Battery TypeRechargeable Li-ion battery.
Charging TimeMinimum of 4 hours for full charge.
Battery Capacity120 mins monitoring or 30 discharges at 360 Joules.

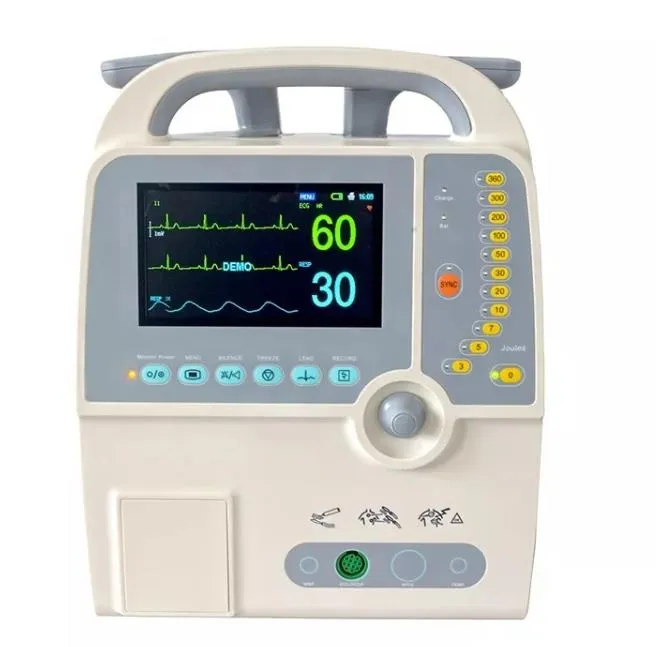

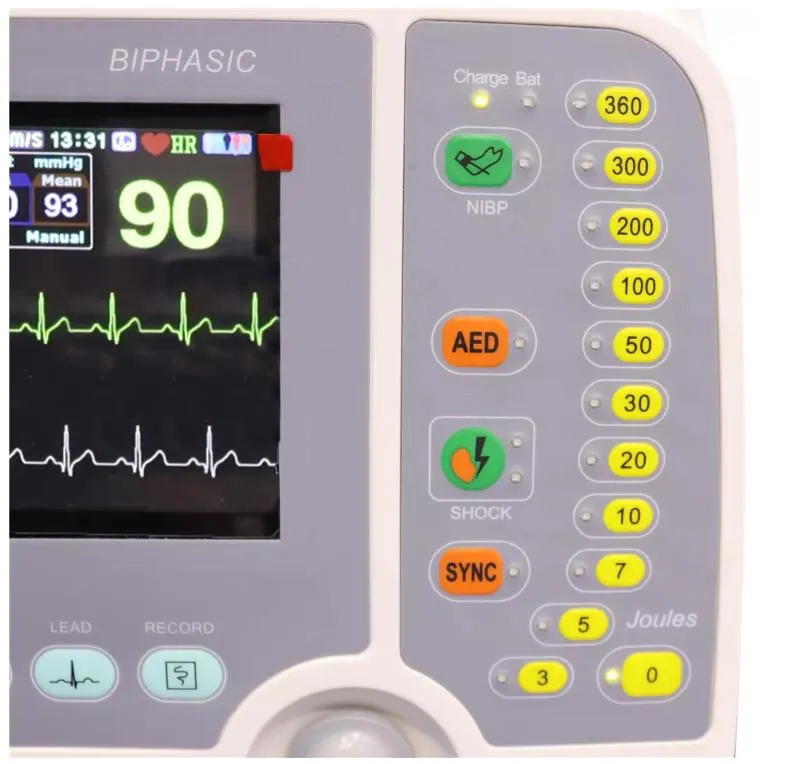

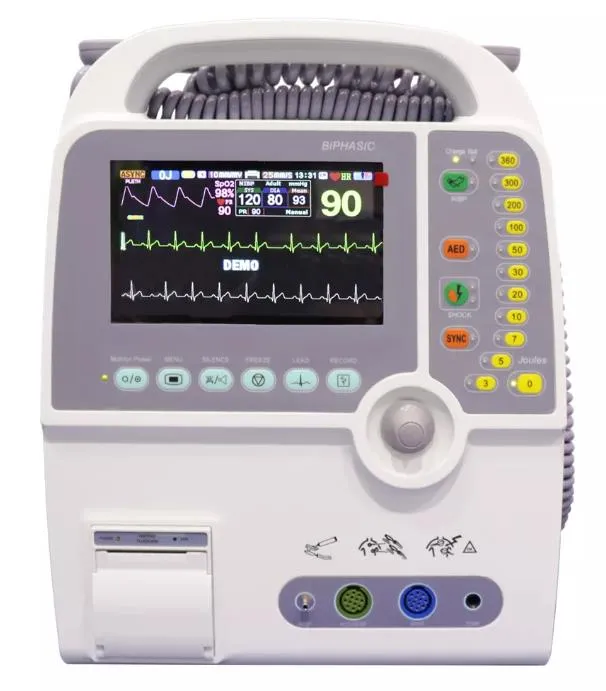

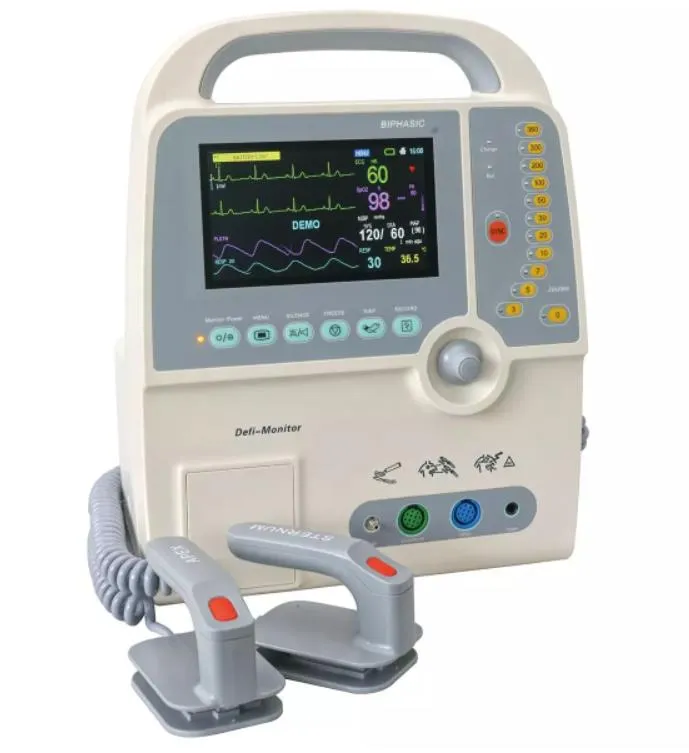

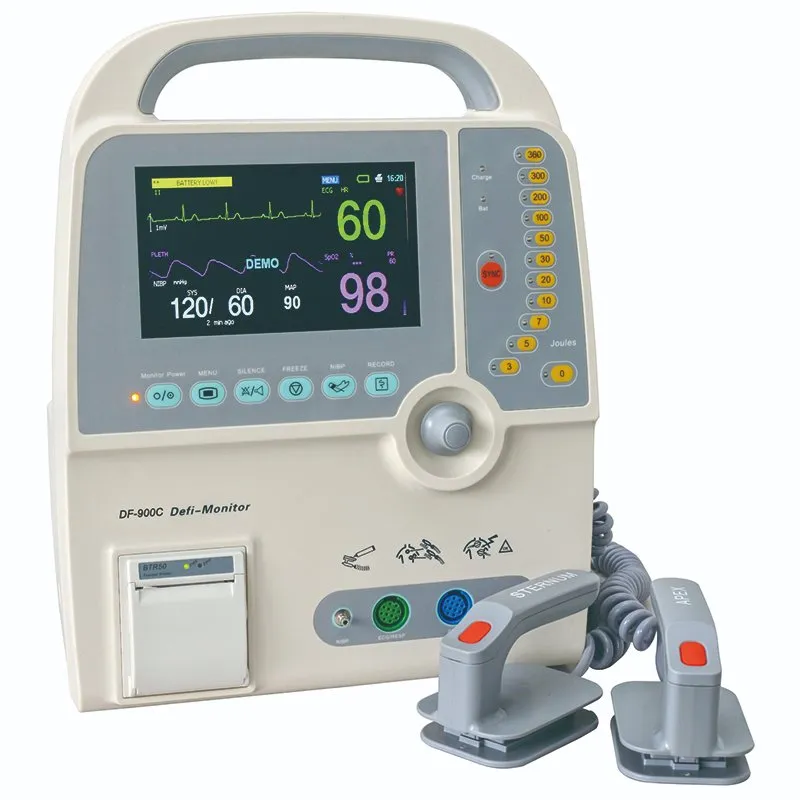

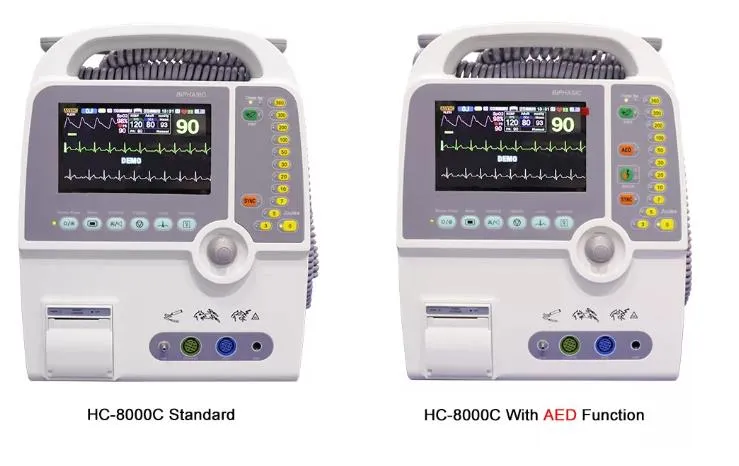

📸 Product Gallery

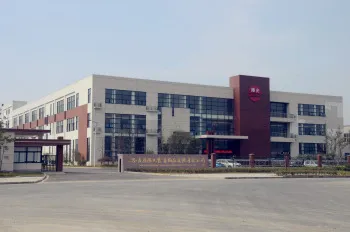

🏢 Facility & Exhibition
Frequently Asked Questions
Do you accept OEM or ODM package?
Of course. We also have a professional design team who can assist you to design the package.
What is the minimum order quantity (MOQ)?
Usually we accept 1 pc for trial orders. It depends on different items with different materials and sizes. Please contact us for specific details.
What certifications do you have?
All necessary medical certifications are approved, including CE and ISO13485.
What information is needed for a quote?
Please provide product specifications such as material, logo requirements, size, and quantity. You can also contact us directly with your requirements.
What is the expected delivery date?
Our products are normally shipped about 25-35 days after order confirmation.
How is the battery performance?
A fully charged battery provides 120 minutes of continuous monitoring or up to 30 discharges at maximum energy (360 Joules).
