Portable First Aid Aed Biphase Automatic External Defibrillator with ECG Monitor and Pacer

1 / 5

Portable First Aid Aed Biphase Automatic External Defibrillator with ECG Monitor and Pacer

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Defi

Send Inquiry

Product Description

✨ Basic Information

Model NO.

Defi Xpress

Certification

CE, FDA, ISO13485

Group

Adult, Child

Screen Size

8 Inch

Max Energy (Manual)

360j

ECG Monitoring

3-Lead / 5-Lead

Battery

Built-in

Specification

49*49*54CM

Origin

China

HS Code

94029000

Production Capacity

5000set/Sets / Month

📋 Product Description

Defi Xpress Portable First Aid AED Biphase Automatic External Defibrillator with ECG Monitor and Pacer

✓Professional dual-phase defibrillation monitor with manual, AED, and ECG monitoring functions.
✓8-inch screen displaying HR, Lead/Pads, SpO2, AED Prompts, and Delivered Energy.
✓Automatic analysis of external defibrillation with energy selection and voice prompts.
✓Built-in rechargeable battery for multiple uses.
✓Biphase waveform output for efficient defibrillation.
✓Integrated 50mm thermal printer for immediate record keeping.
✓Maximum energy capacity of 360J in manual mode.
✓Comprehensive 3-lead / 5-lead ECG monitoring with alarm limits.
✓Optional cardiac pacing function available.

⚙ Product Parameters

Specification	Pacer (Optional)
Type	VVI
Pulse Type	rectangular, constant current
Pulse Amplitude	0 to 180 mA±10% or 5 mA
Pacing Rate	Variable from 30 ppm to 180 ppm
MFE Pads	multipurpose defibrillation/pacing electrodes
Pause	Pacing pulse frequency reduced by factor of 4
Pulse Width	(20+ 1.5 ms)
Output Protection	Fully defibrillator protected and isolated
EtCO2 (Optional)
Type of sensor	By-pass
Technical principle	Non-dispersive infrared gas analysis NDIR
Range	0-19.7% (0-150mmHg, or 0-20kPa)
Resolution	0.1mmHg
Accuracy (0-40mmHg)	±2mmHg

For more parameters, please send us your enquiry directly

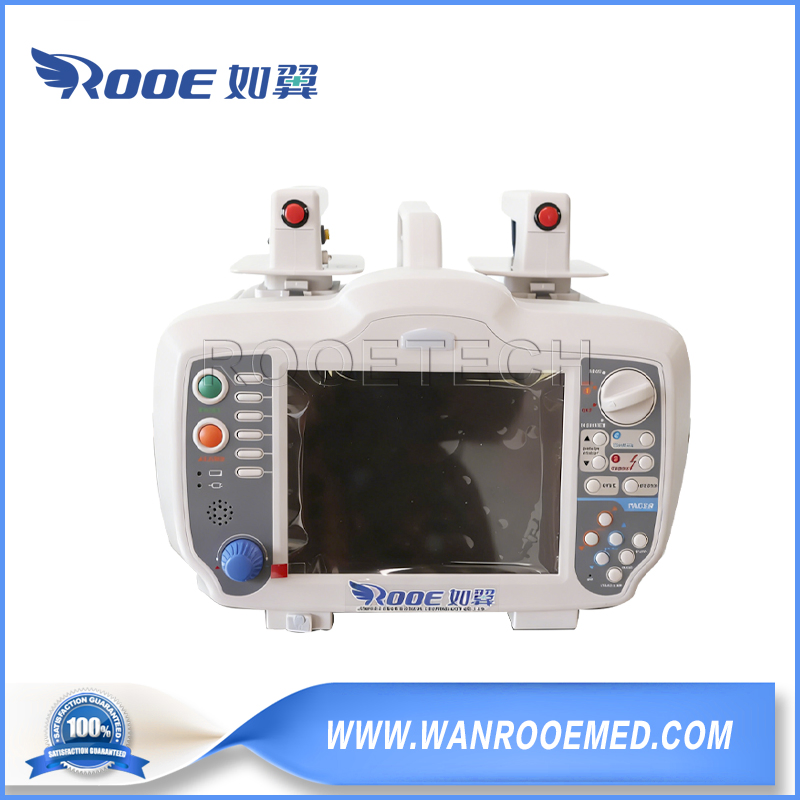

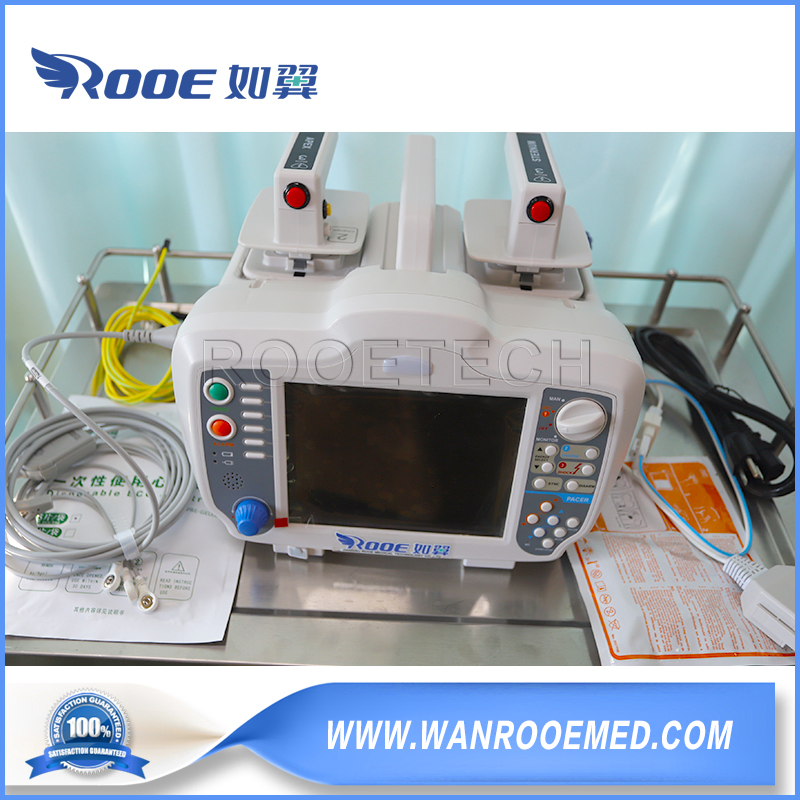

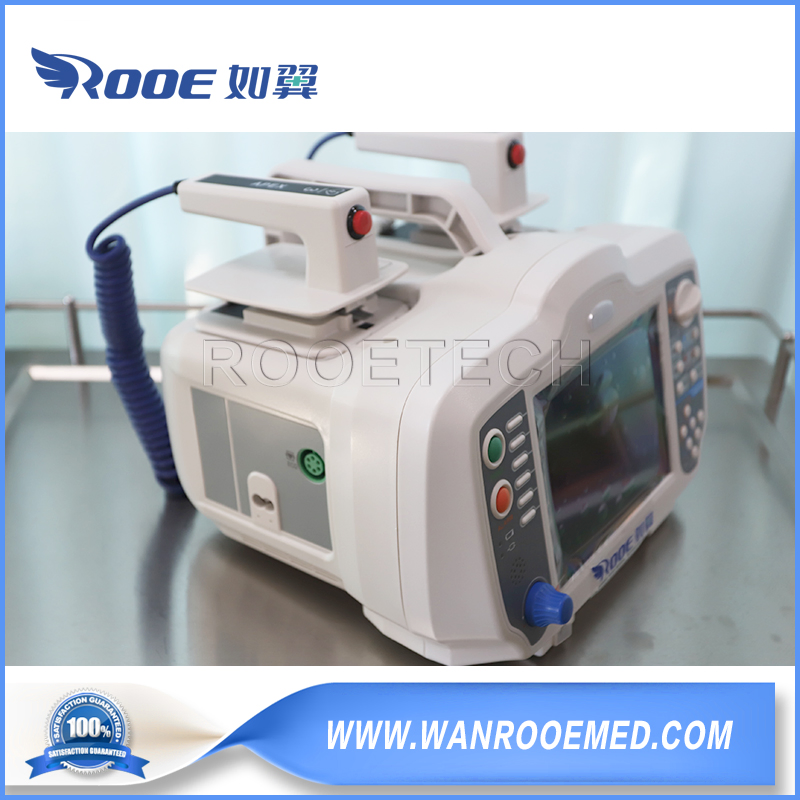

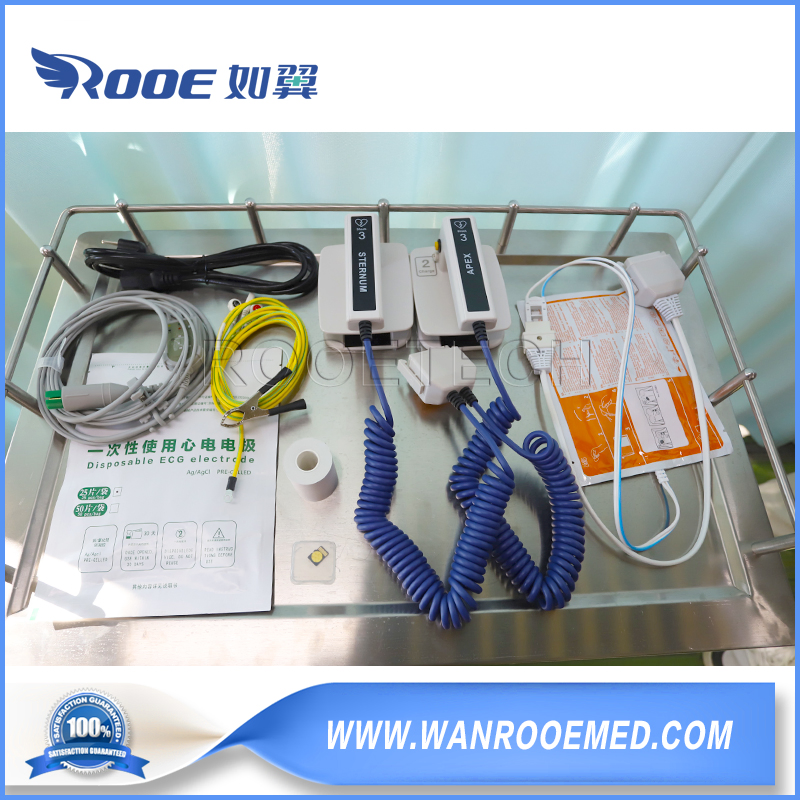

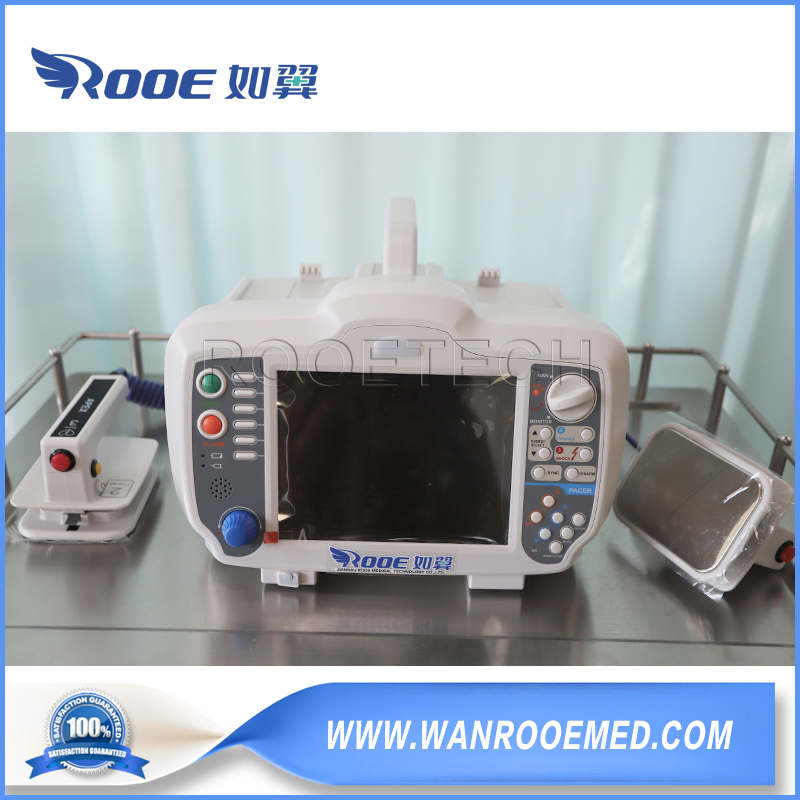

📷 Detailed Photos

FAQ

Q: What is the maximum energy output of the Defi Xpress? A: The device provides a maximum energy of 360J in manual mode for effective defibrillation.

Q: Is this defibrillator suitable for pediatric patients? A: Yes, the Defi Xpress is designed for use with both adult and child patient groups.

Q: What monitoring functions are included in the 8-inch screen? A: The screen monitors Heart Rate (HR), SpO2, AED functions, voice prompts, and 3-lead/5-lead ECG.

Q: Does the device include a printer for medical records? A: Yes, it features a built-in 50mm thermal printer that provides immediate defibrillation records.

Q: What certifications does the Defi Xpress hold? A: The product is fully certified with CE, FDA, and ISO13485 standards for international medical use.

Q: Can the device be used for cardiac pacing? A: Yes, a cardiac pacing function is available as an optional feature for this model.
