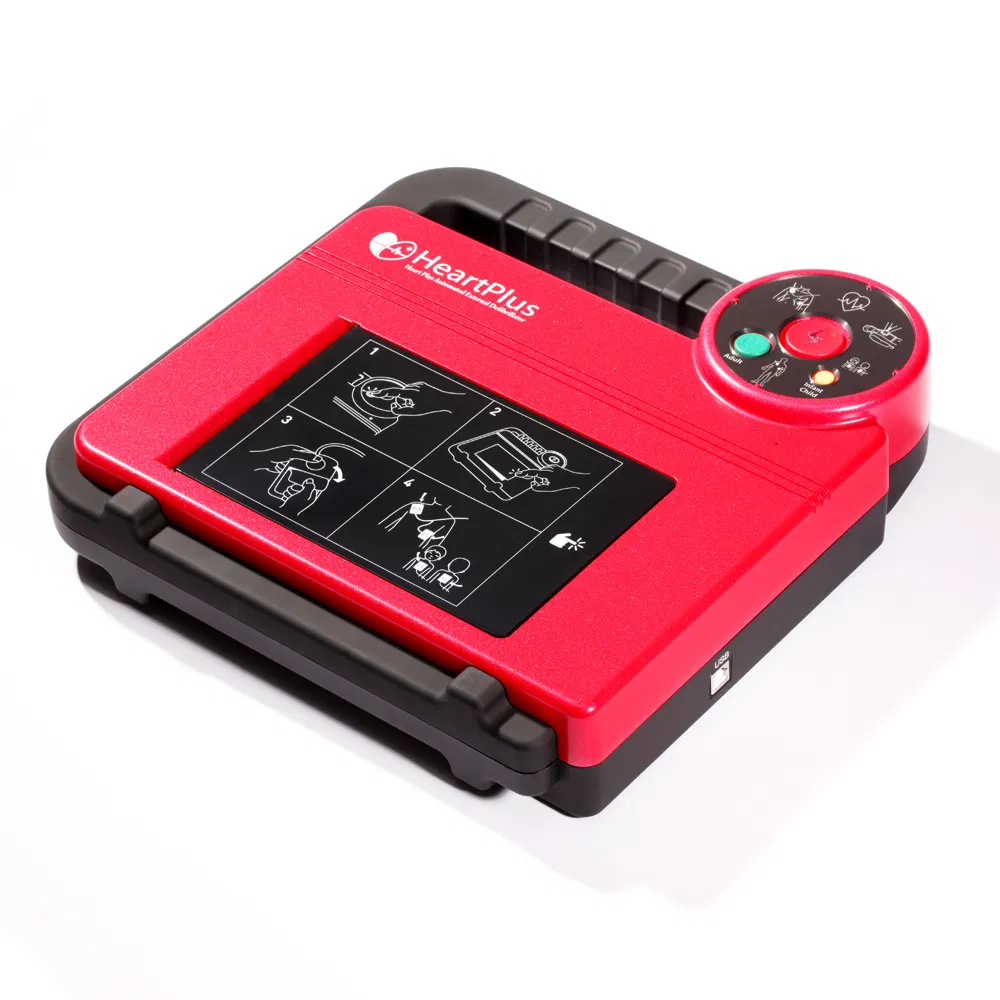

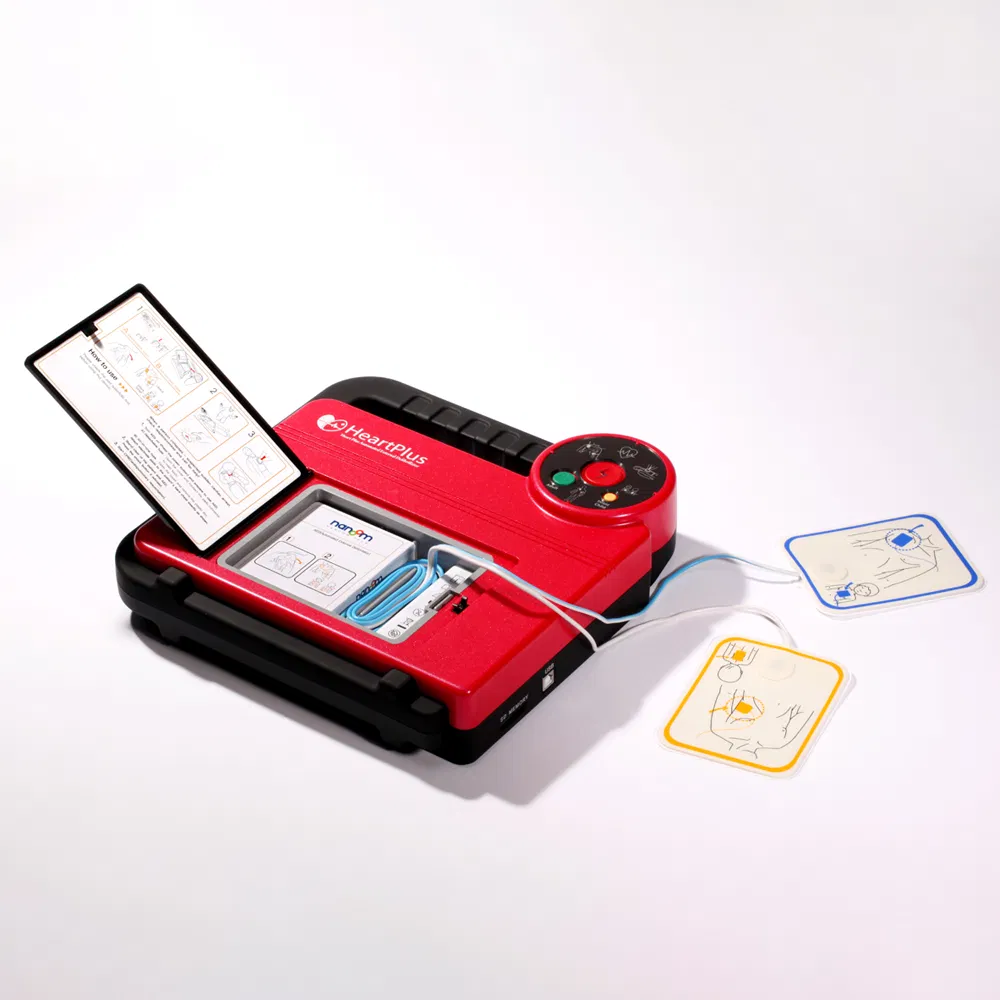

Portable First Aid Kit Machine External Automated Aed Defibrillator

1 / 5

Portable First Aid Kit Machine External Automated Aed Defibrillator

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

A180

Certification

CE, FDA, ISO13485

Group

First-Aid Personnel

Waveform

Truncated Exponential Biphasic

Shock Charge Time

Less Than 13 Seconds

Shock Method

Manual Button (Flashes When Ready)

Storage Type

Internal Memory

Dimensions

7.1cm(H) X 29.3cm(W) X 29.1cm(D)

Weight

1.9kg (Including Battery Pack and Electrode Pads)

Warranty

2 Years

MOQ

1 Unit

Origin

China

Production Capacity

5000 Piece/Month

Detailed Photos

Product Parameters

Defibrillator Specifications
Products Name	Automated External Defibrillator
Model Number	A180

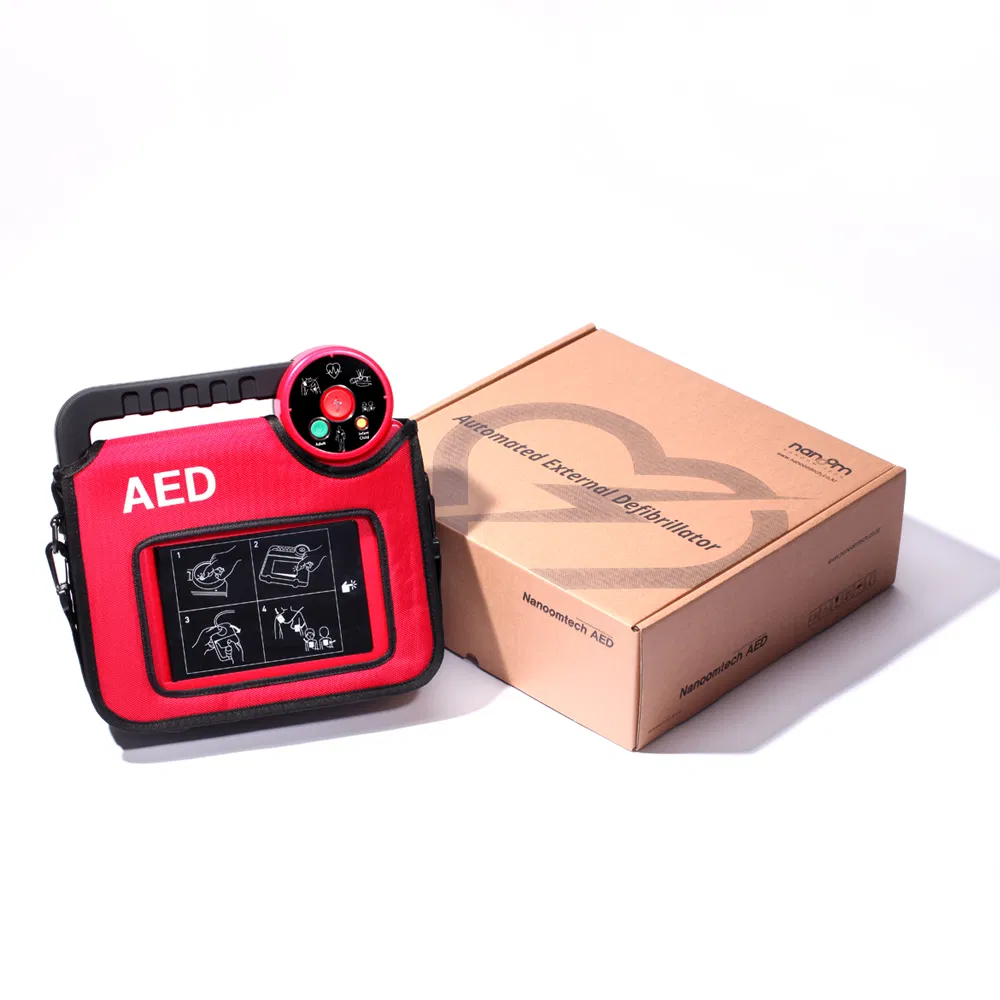

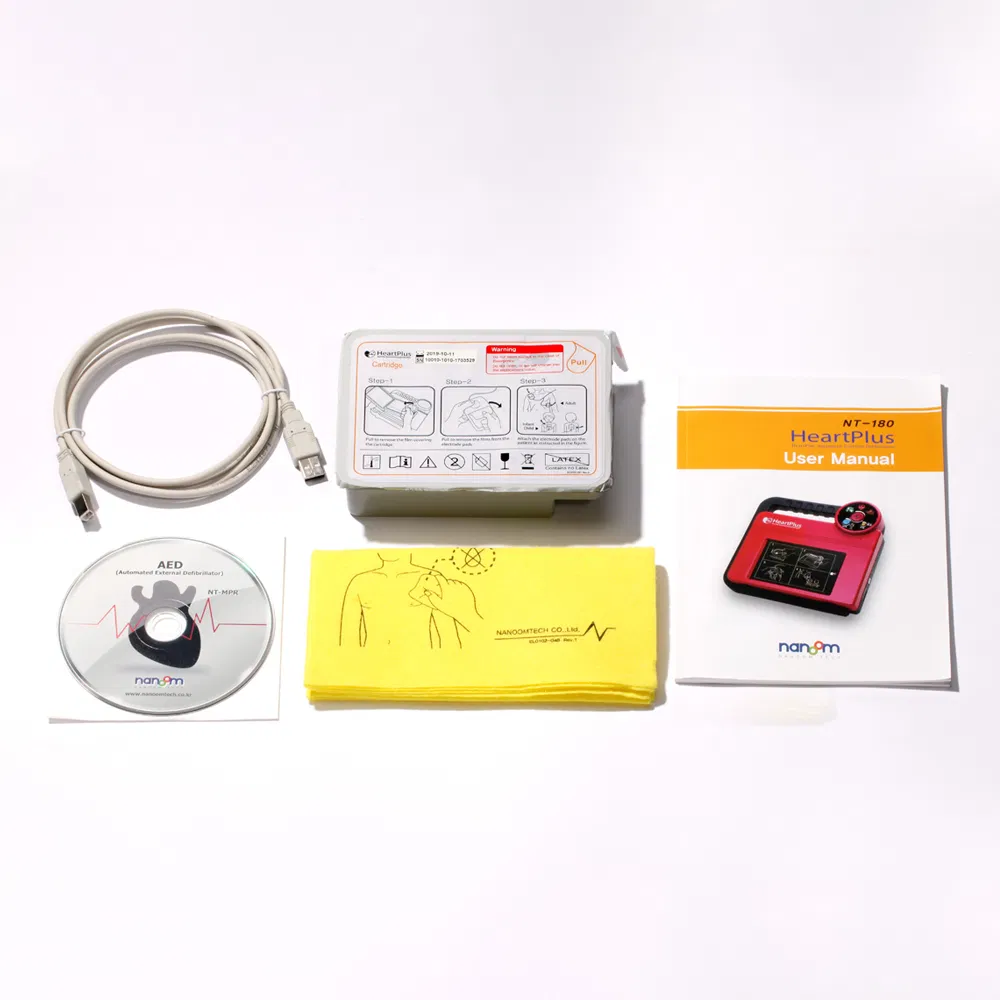

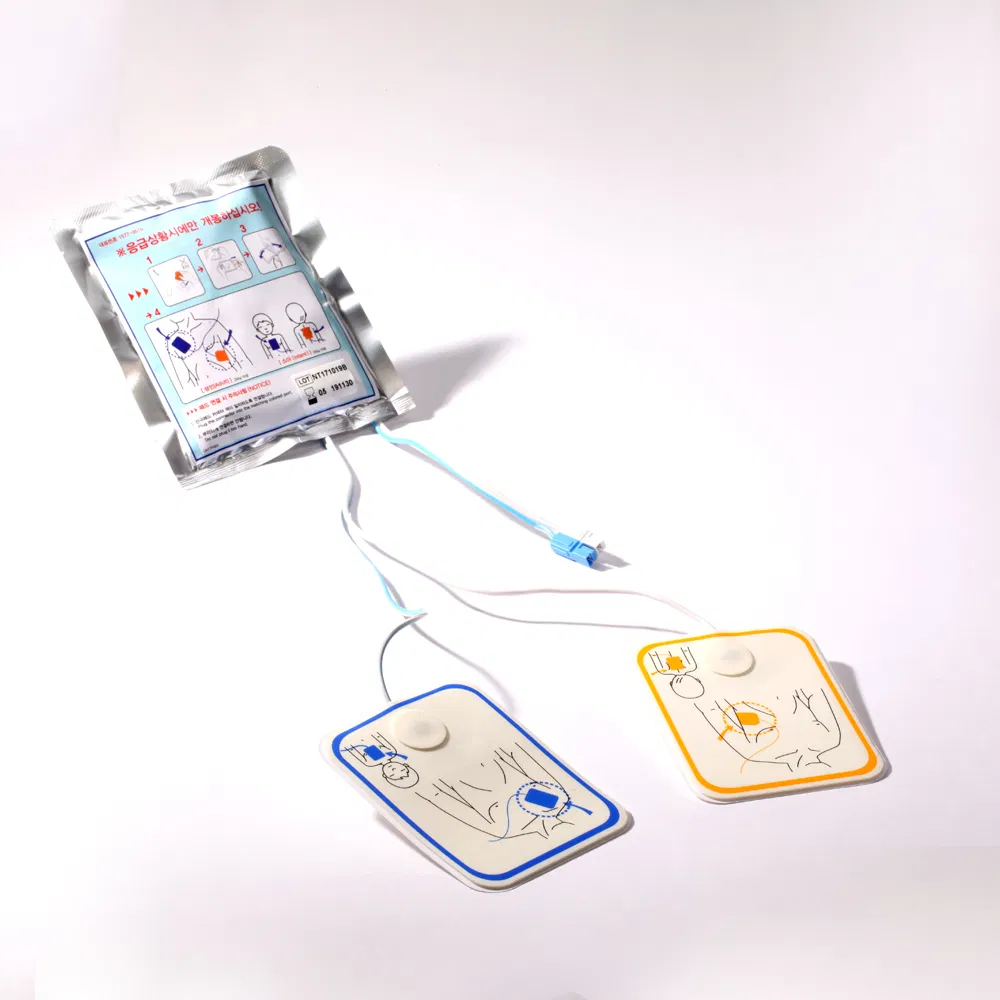

Set Configuration	Defibrillator, battery pack, sealed electrode pads, User Guide, Protective Carrying Case, CD-ROM, USB cable
Waveform	Truncated Exponential Biphasic
Energy	180J (Adult, Impedance 50Ω) / 50J (Pediatric, Impedance 50Ω)
Shock Charge Time	Less than 13 seconds
Shock Method	Manual button (flashes when ready)
Mode Conversion	Adult/Child separate power buttons (Child Mode delivers 50J Pediatric shock for patients weighing less than 25kg)
Physical & Environmental
Dimensions	7.1cm(H) x 29.3cm(W) x 29.1cm(D)
Weight	1.9kg (including battery pack and electrode pads)
Water Resistance	IPX2 per IEC 60529
Temperature	Operating: 0°C to 40°C; Storage: -20°C to 60°C
Humidity	10% to 95% Relative Humidity, Non-Condensing
ECG & Data Storage
ECG Recording	LEAD II
Analysis Time	Less than 11 seconds (Read: 5s ± 2s, Analyze: within 4s)
Memory Capacity	ECG: 1,000 instances of 5s recordings; Ambient Noise: 60 mins; Self-Test: 3,000 events
Access / Retrieval	App (for PC) via USB connection

Product Description

Frequently Asked Questions

What is the shock charge time for the A180 AED?

The A180 AED features a rapid response time, charging for a shock in less than 13 seconds.

Can this device be used on both adults and children?

Yes, it includes separate power buttons for Adult and Child modes. The Child mode delivers a specific 50J pediatric shock suitable for patients weighing less than 25kg.

What is the water resistance rating of the unit?

The device is rated IPX2 for water resistance according to IEC 60529 standards, ensuring durability in various environments.

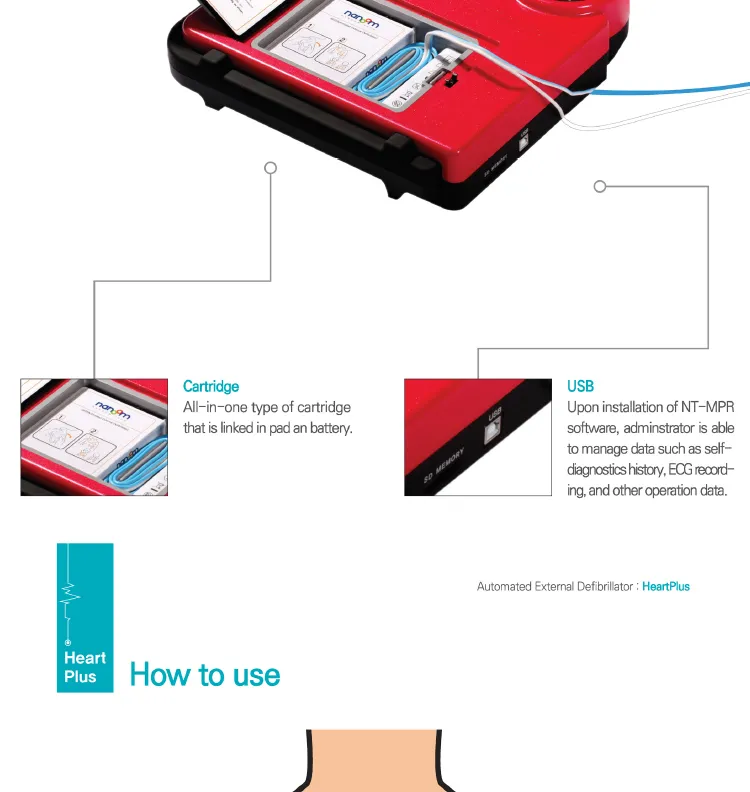

How is the rescue data stored and retrieved?

The device has internal memory that records ECG data, ambient noise, and self-diagnostic history. Data can be retrieved via a USB connection using a dedicated PC application.

What type of waveform does the A180 use?

It utilizes a Truncated Exponential Biphasic waveform, which is the standard for modern, effective defibrillation.

What is included in the standard set configuration?

The standard set includes the defibrillator unit, a battery pack, sealed electrode pads, a user guide, a protective carrying case, and a USB cable.
